Name: 1/2.8" 8.0MP IMX415 Sensor Mini WIFI 3G 4K 4G Camera Network Kamera Module 8MP 5MP 2MP IP Camera CCTV Video Audio Camhi IR Cut
Brand: Mini USB Camera Mini Camera IP Camera Camhi Camera Factory
SKU: 3256803317242426
Price: 25.18 USD
Availability: InStock

Description

1/2.8" 8.0MP IMX415 Sensor Mini WIFI 3G 4K 4G Camera Network Kamera Module 8MP 5MP 2MP IP Camera CCTV Video Audio Camhi IR Cut

NOTICE:

Our IP Camera DO NOT Included The Power Adapter,
If You Need It, Please Kindly Click The Photo As Below, Add It In Your Order List, Thanks !

if you have other requirement ,welcome contact with us free !

Read carefully before you place orders !!!!,thanks

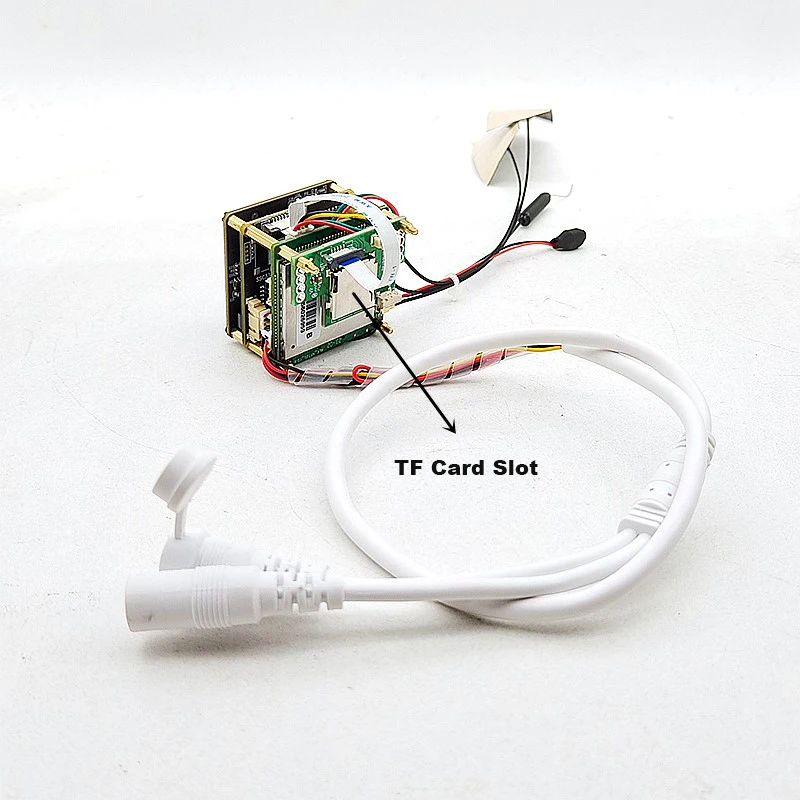

2MP Wifi ---Signal Board with tf card slot &Audio&Wifi module&Wifi Antenna

5MP Wifi ----Signal Board with tf card slot &Audio&Wifi module&Wifi Antenna

8MP Wifi----Three Board with tf card slot &Audio&Wifi module&Wifi Antenna

2MP POE---Signal Board with tf card slot &Audio

5MP POE ----Signal Board with tf card slot &Audio

8MP POE----Three Board with tf card slot &Audio

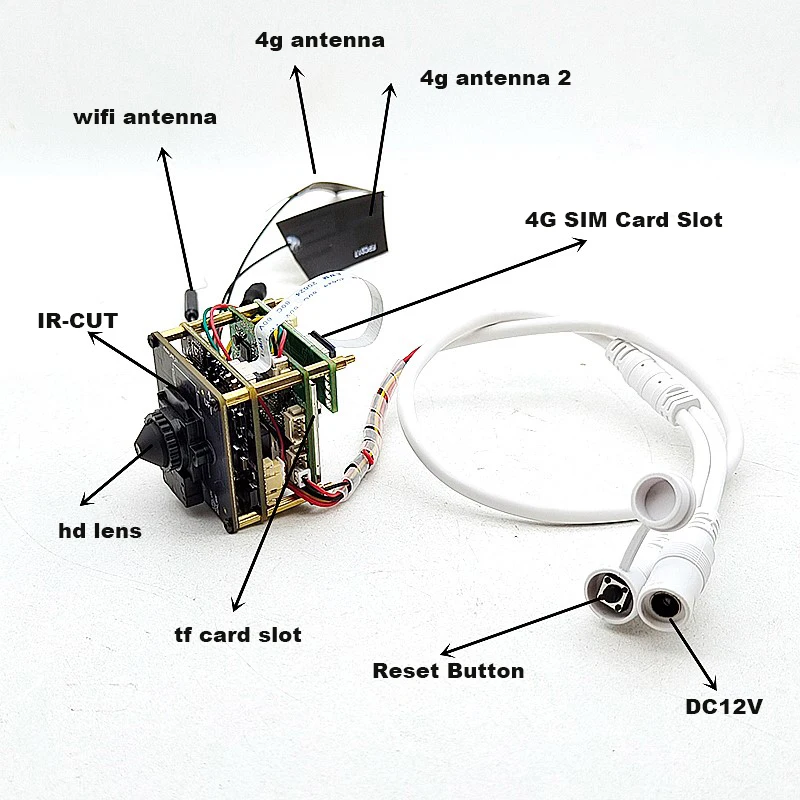

5MP 4G ----Double Board with tf card slot &Audio&4G Moudle &Wifi Antenna&4G Antenna

8MP 4G----Four Board with tf card slot &Audio&4G Moudle &Wifi Antenna&4G Antenna

What is the difference between 4G version and WiFi version and POE Version?

The 4G SIM Version is not support RJ45 LAN connect, but Wifi version can support RJ45 LAN Connect.

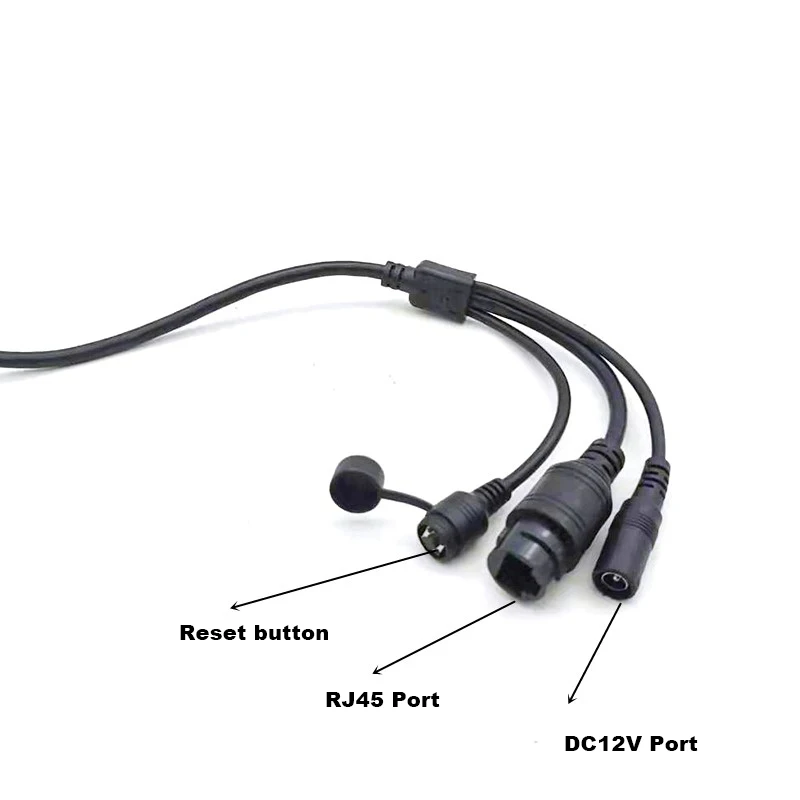

Wifi version: supports 2.4g wifi and RJ45 ports ( Cable - RJ45 Port + Reset button +DC 12V connector )

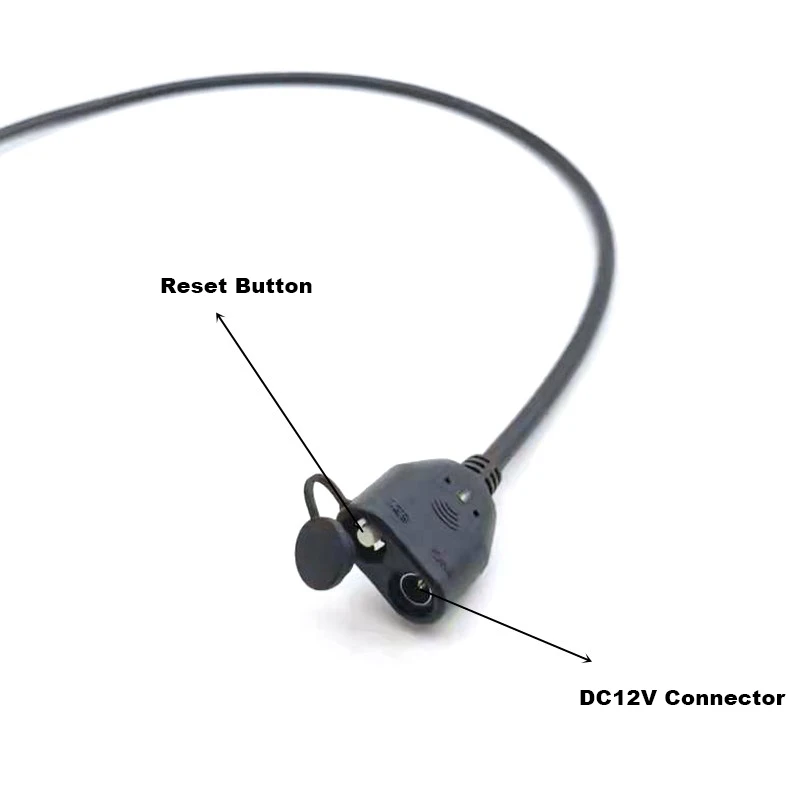

4G version: No RJ45 port or wifi, only works with SIM card traffic ( Cable -Reset button +DC12V connector )

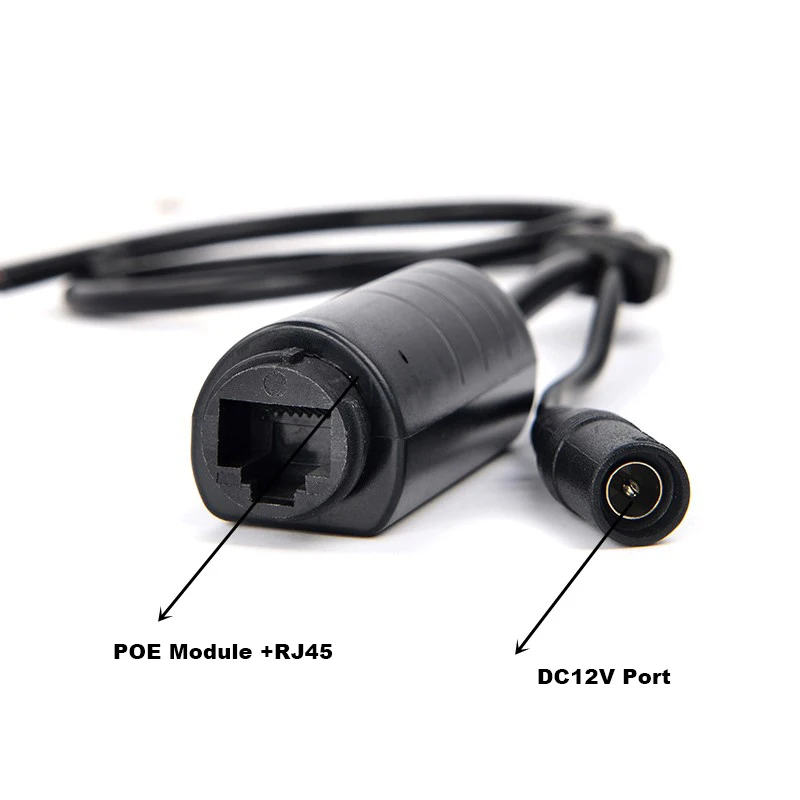

POE version :Support 48v standard POE switch power or POE NVR power the camera , no need adapter ,it is power by lan cable ! ( RJ45 Port with POE module IEEE802.3AF/3AT )

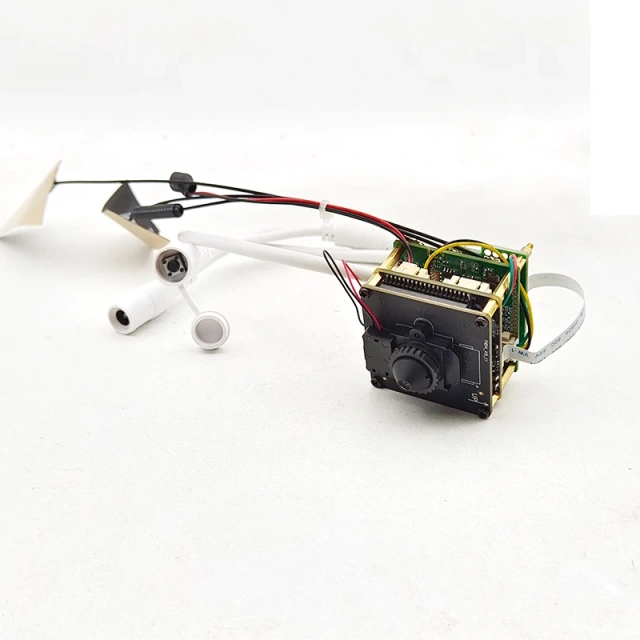

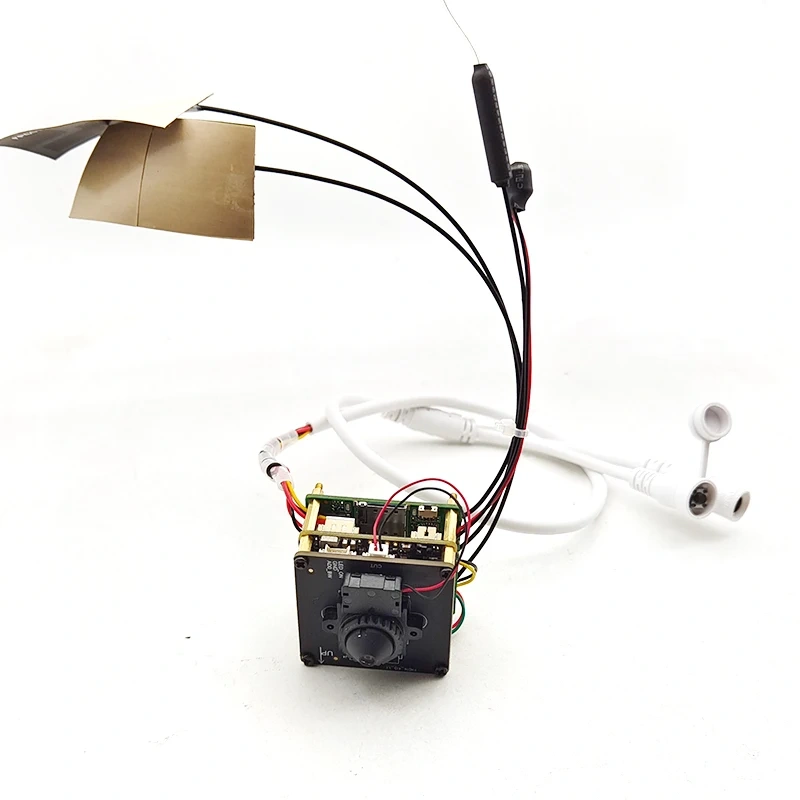

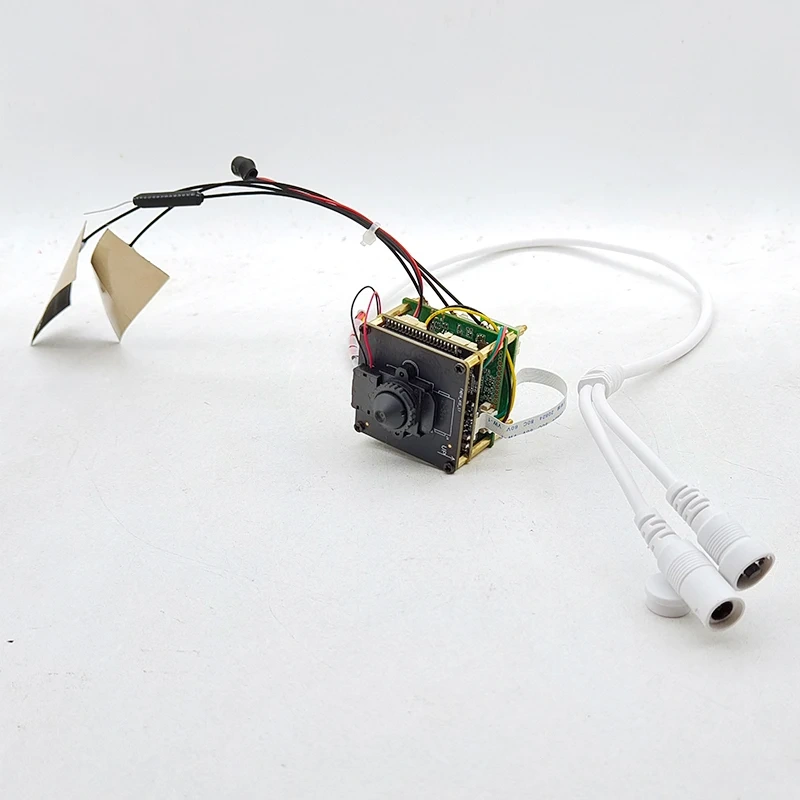

4K 4G Camera Pictures below:

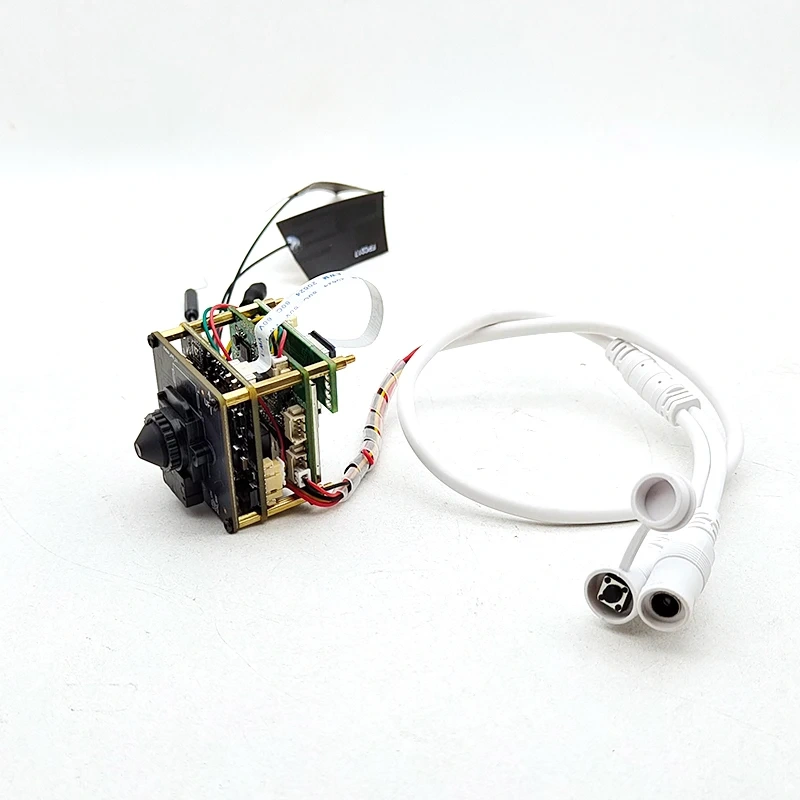

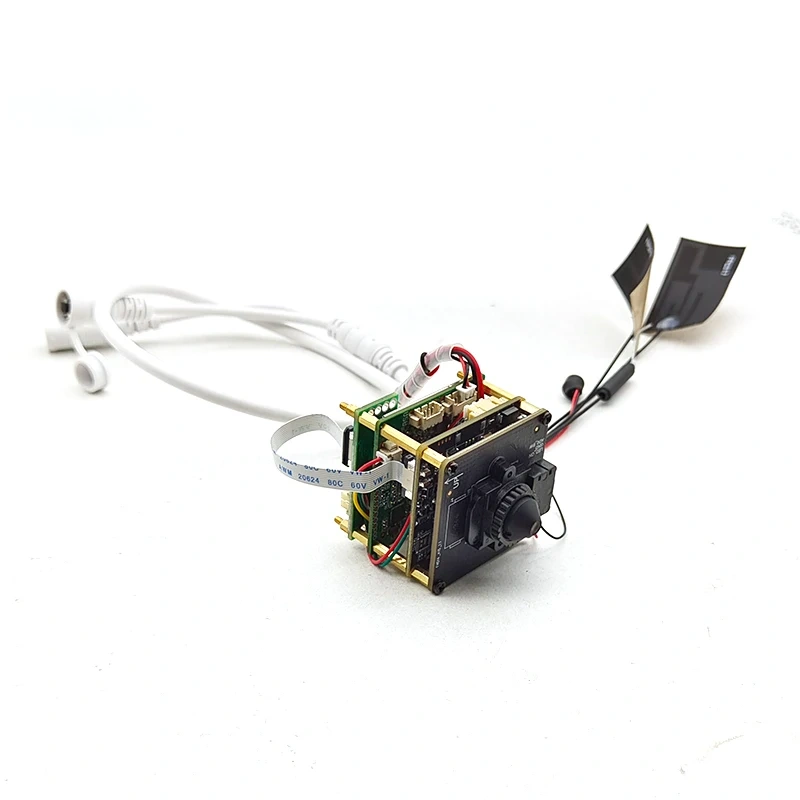

4G 4K IP Camera Module

Phone PC Remote View TF Card Recording P2PONE Way Audio 4G SIM Card IP Network Wifi Wireless Pinhole Real 4K 4G Camera Module

Please read carefully before ordering

Pictures in Description just show Product Color, Product Shape, and Product Exterior, Some Accessories and Parts by default are Not demonstrated in the picture.
This is an industrial-grade HD camera. It is compatible with most of the monitoring system. Very easy to use. Even if you have any questions, you can get a reply within 24 hours.
If you need to buy more. But no suitable mode of transport for you to choose. Or transportation costs are too high. Please contact us. We will find a suitable way for you.
After you receive the goods. If there are any problems. Please contact us. We will help you solve the problem. If you are satisfied with our products. Please give us 5 star feedback .
Note: our product is support Wifi/3G/4G Wireless connect, not support wired connect(RJ45 port not work), but we support customized product, if you want RJ45 port, you can leave message for us.

Related instructions

Three operating modes. Wired, WiFi ,3G/4G.

In the place where the camera is installed, there is no network or WIFI signal. But have SIM mobile signals.

You can install a SIM card to the camera and connect the Internet by your SIM card

Tips: When using 3G/4G. Do not connect the network cable at the same time . Avoid IP assignment conflicts.NO need to set up wifi signal

In 3G/4G mode. The camera does not support the local PC client (unless the PC is connected to the 3G/4G signal MIFI-XX).

In 3G/4G mode. Camera does not support cloud FTP storage

How to quickly set up 3G/4G

First of all , Download APP "CamHi" from the iPhone App Store or Google Play Store. Or scan the QR code

If you choose the camera has 3G/4G. Then when the camera leaves the factory. The default connection to the 3G/4G module (signal MIFI-XX) has been set.

Note:If you use the reset button. Then you need to re-bind the camera to MIFI-xx

You only need a few simple steps.

Insert the SIM card into the camera. Connect the power adapter , wait 10-20s, camera will be ready.

Then open your phone WLAN setting , you will find "MIFI-XXX" and select to connect, the default password is 1234567890

When your phone is connected to MIFI-XX. Then open the app "camhi". Select "Add Camera."

Because your phone is connected to MIFI-XX. So you can choose "Search Camera from LAN". Or directly scan the QR code of the camera.

Then you can see your camera online. You can control the camera and watch videos from your phone.

NOTE:

If view the 3G/4G camera is offline, please check the SIM card”.

Use the mobile phone or PC to connect the WIFI “MIFI_3F41”,the WIFI password is “1234567890”, you can find the WIFI when the

camera starts working. Access “192.168.100.1” through the browser, the page password

is “admin”, you can check the SIM card information on this page.

If your camera display is offline, please note the following:

1.Damaged card or wrong installation direction when prompted "

No SIM Card or SIM Card invalid! ", as shown below:

2.Frequency not supported or SIM card arrears when prompted "No Service" or "Limited Service", as shown below 1):

3.Make sure 3G/4G signal strength is enough, as shown below 2):

Product Description

Important Warning:

You MUST check your SIM card frequency range MUST be in below listed range if you want to use this 3G 4G IP Camera, we will not agree any dispute for your own reason for your wrong order.

3G standard: WCDMA

Frequency range: B1(2100MHz), B8(900MHz)

4G standard: FDD-LTE

Frequency range: B1(2100MHz), B3(1800MHz), B7(2600MHz), B8(900MHz), B20(800MHz)

This 3G 4G ip camera mostly used for those environment place not have internet but have SIM mobile signal, you have to put a SIM card into camera and connect internet by your SIM card. The camera does not support router internet connection !

This 3G 4G ip camera Connection Way: Insert your SIM card into camera, then power on, connect SIM Card internet.

No need to connect network LAN cable ! No need to setup wifi !

The 3G 4G ip camera does not support local PC clients . It supports mobile phone app (CamHi) and a remote clients CMS.

The 3G 4G ip camera does not support Cloud FTP storage !

Features:

8.0 megapixel HD IP camera, maximum resolution 3840x2160P

5.0 megapixel HD IP camera, maximum resolution 2560x1920P

3.0 megapixel HD IP camera, maximum resolution 2304x1296

2.0 megapixel HD IP camera, maximum resolution 1920*1080;

1.3 megapixel HD IP camera, maximum resolution 1280*960P;

1.0 megapixel HD IP camera, maximum resolution 1280*720P;

Support 3G/4G, support AP mode;

Support TF card storage, maximum support 128G Micro SD card; (SD card is NOT include)

Default 3.7mm lens;

Support P2P, view & anywhere & anytime;

Elegant outline and easy installation;

Provide Android & IOS APP and professional CMS PC client software;

Specificaitons:

Model		GS-4GPBTFWCA4k-P
Video	Sensor	8.0 megapixel 1/2.8" IMX415 low lux CMOS imx335 5mp
	Video resolution	Main stream: 4K(3840x2160)@15fps, Sub stream: 1280*720P @25fps
	Video compression	H.264 / H.265
	Lens	Hd mp pinhole lens -geniuspy hd lens
	View angle	92°
	Night vision	N/A
Audio	Audio compression	G.726/G.711
	Audio code rate	8Kbps, 16bit
	Audio input	Built-in MIC, support voice monitor/ SPeaker optional
	Audio output	Support, can connect speakers
Audio	Audio compression	G.726/G.711
	Audio code rate	Rate adaptive
	Audio input	Support, can connect the pickup and MIC
	Audio output	Support, can connect speakers
Alarm	Motion detecting alarm	Can set 4 independent detection region (1-100 sensitivity can be set)
	Alarm linkage	Alarm send pictures to the mailbox, Alarm upload pictures and videos to the FTP server, Alarm record pictures and videos to Micro SD card, Alarm mobile phone message push
	Alarm recording	Support Micro SD card and PC client linkage alarm recording
4G	4G standard	FDD-LTE/TDD-LTE
	4G frequency range	B1(2100MHz), B3(1800MHz), B7(2600MHz), B8(900MHz), B20(800MHz), B38(2600MHz), B40(2300MHz), B41(2500MHz)
	Interface type	Micro SIM card, Plug and play, no need to set
Storage	Micro SD card	Support up to 128G micro SD card
	Recording mode	Alarm record, timing record,
	Video playback	Support APP, IE browser, remote client play and download the video
General specification	Power	DC12V 1A
	Operating environment	Environment -20℃~+60℃(-4℉~+140℉), Humidity 10%~90%, non-condensing
	Waterproof level	IP66
	Product size	38mm×38mm(L×W×H)
	Product weight	0.15kg
	Package weight	0.4kg
	Reset button	Support

4K NVR

Please Use 4K NVR Get 4K HD

If You DVR is 5MP/4MP/1080P, You Only Get 5MP/4MP/1080P. so You need to confirm your NVR!

If there are any problems during use,Please contact us, we will be within 8 hours, quick reply, to provide you with quality after
