Features:
This camera is a 12mp HD USB-2.0-free drive camera module, frame rate up to 15/ frames. It can be used for one computer, advertising equipment, video doorbell, can meet the high demands of customers!

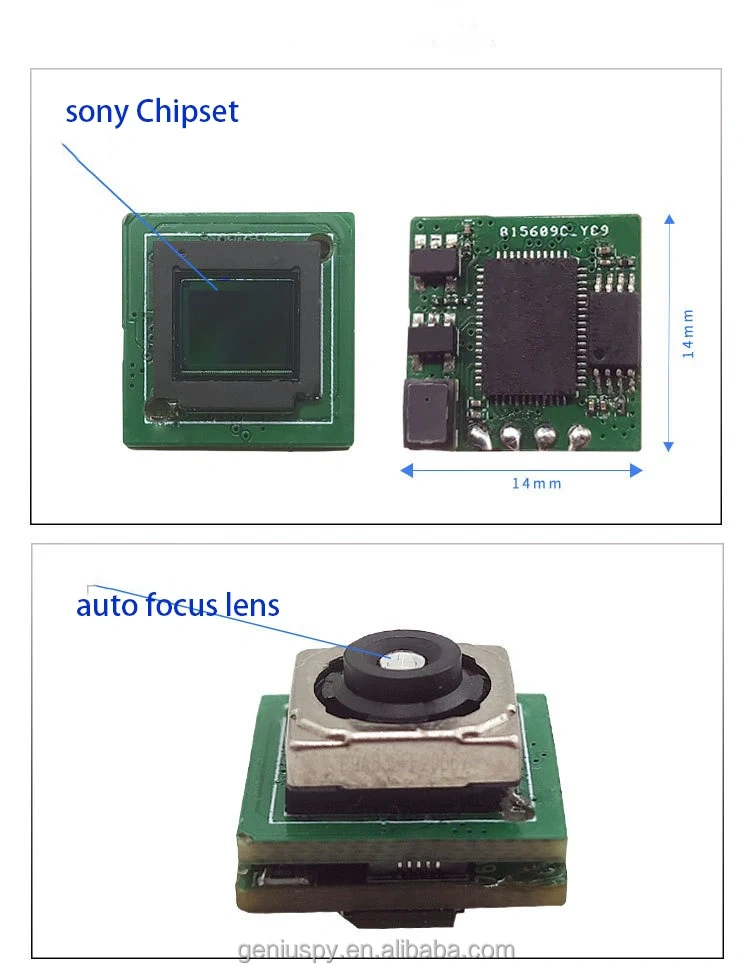

HD USB camera module
Synchronization technology
High speed USB 2.0 interface
High quality image
Low power consumption
Small outline for embedded application
UVC compliance for use in OS Windows,Linux,Android,Mac
1: ATM,Kiosk,POS,TV box 2: advertising cameras 3: one camera 4: Smart TV built-in camera
5: Construction Equipment 6: Banking equipment 7: body switch 8: Scanner
9: a mobile terminal device 10: Medical diagnostic image acquisition 11: fingerprints, palm prints image acquisition
12:video door phone 13:HD surveillance
1: Use the USB cable wire into the computer, notebooks and other USB interface will be able to use!
2: inserted as computers, laptops can not be used, indicating that there is no drive in accordance with the camera.

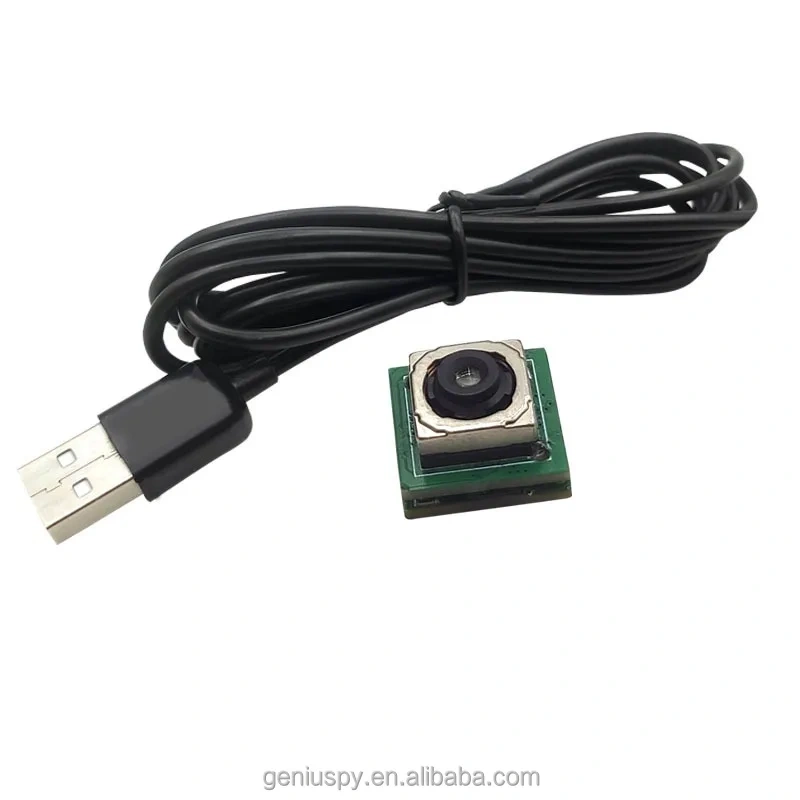

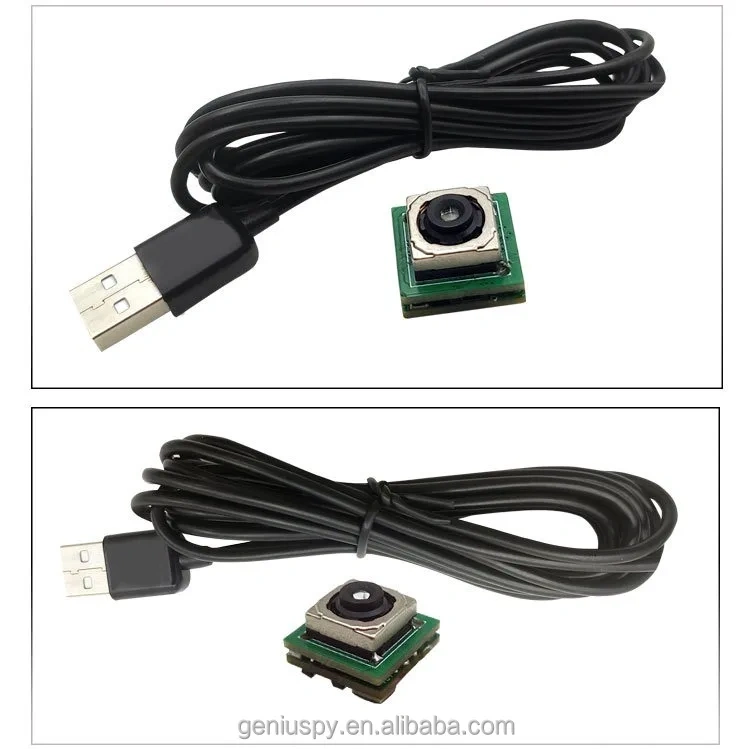

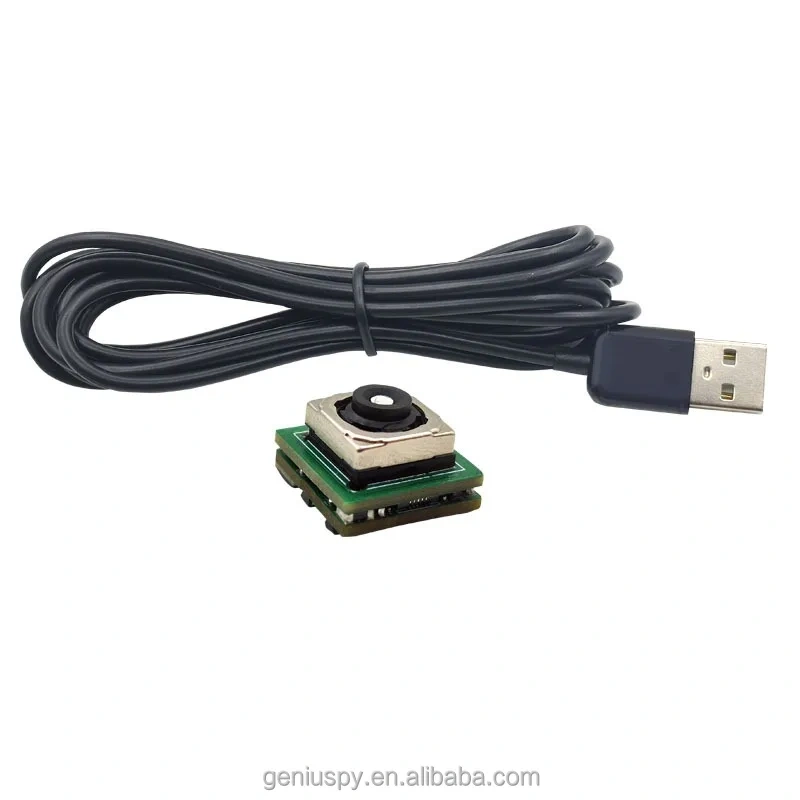

3: This product is equipped with a USB cable.
Detailed Specifications Of The Parameters
Size:1/3.2 inch
pixel size:1.4 µm x 1.4 µm
Maximum effective pixels: 4000*3000p
Output image format: YUV2 (YUYV) / MJPEG
Frame rate:
4000*3000p-MJPEG-15FPS YUY2-2FPS
3840*2160P-MJPEG-30FPS YUY2-3FPS
2592*1944P-MJPEG-30FPS
2048*1536P-MJPEG-30FPS
1920*1080-MJPEG-30FPS YUY2-5FPS
1600*1200P
1280*720- MJPEG-30FPS YUY2-10FPS
950*540- MJPEG-30FPS YUY2-
640*480- MJPEG-30FPS YUY2-30FPS
320*240- MJPEG-30FPS YUY2-
320*180- MJPEG-30FPS YUY2-30FPS
Signal to noise ratio: 36dB
Dynamic range: 72dB
image area:3673.6 µm x 2738.4 µm
Sensitivity: 690 mV/lux-sec
Minimum illumination: 0.01LUX
Shutter type: Electronic rolling Frame shutter/ exposure
Interface type: USB2.0 High Speed
Support free flooding protocol: USB Video Class (UVC)
Support OTG protocol: USB2.0 OTG
Automatic exposure control AEC: support
Automatic white balance AEB: support
Automatic gain control AGC: support
Adjustable parameters: brightness contrast color saturation hue resolution
The gamma exposure contrast gain white balance backlighting
Power supply: USB BUS 4P-2.0mm POWER socket
Working voltage: DC5V
Working current: 140mA~220mA
Working temperature: 0 ~ 60
Storage temperature: -20 ~ 70 C

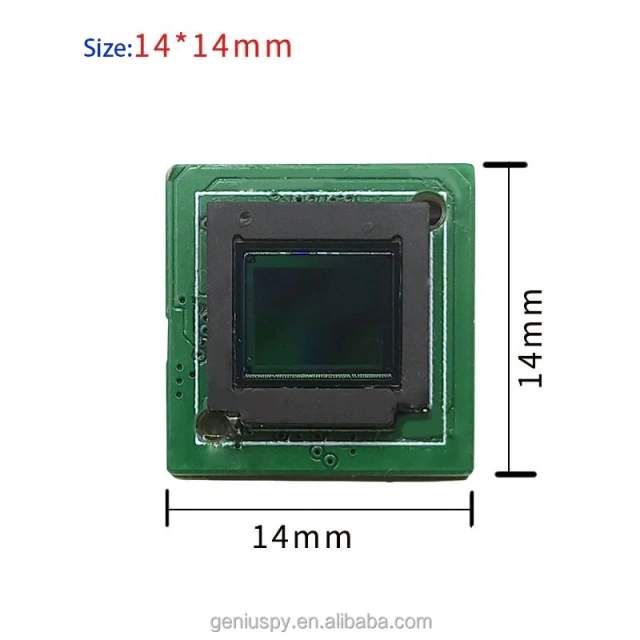

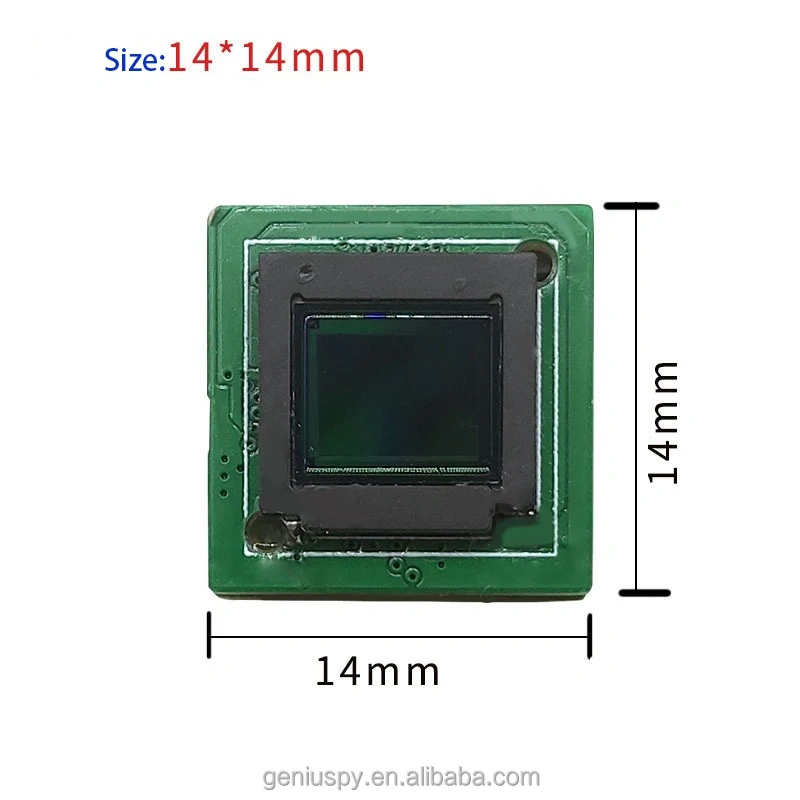

Board size: 14*14mm
Machine weight: 50g
Supported system: WinXP/Vista/Win7/Win8/ Linux with UVC (above linux-2.6.26)/ MAC-OS X 10.4.8 or later
/Wince with UVC/Android 4 or with above UVC
Interface:USB Interface
Lens: 3.6mm
Angle(FOV): 90°
Line length:1M default ,other cable length optional
