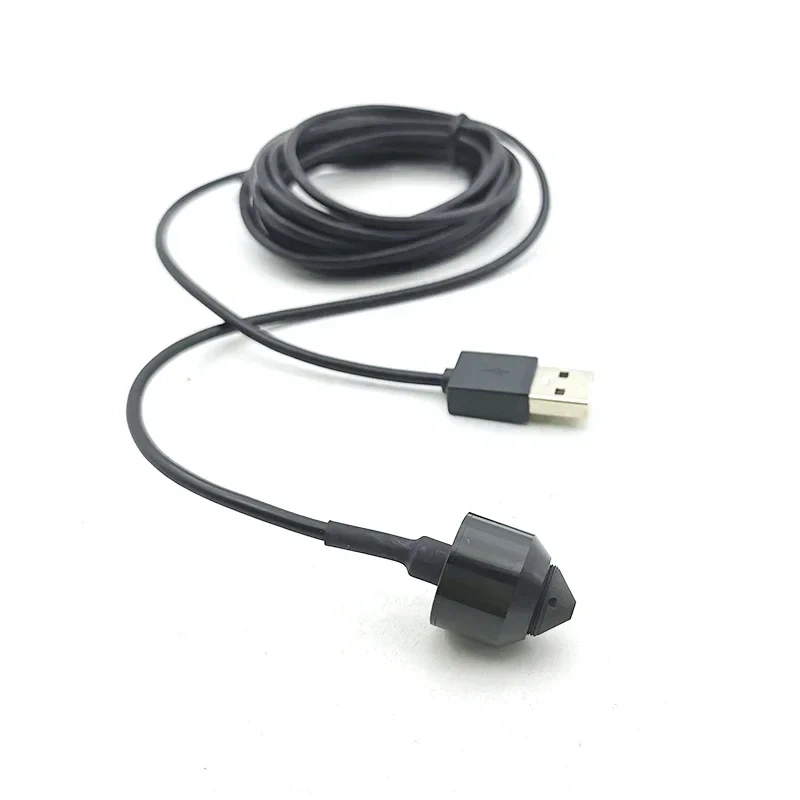

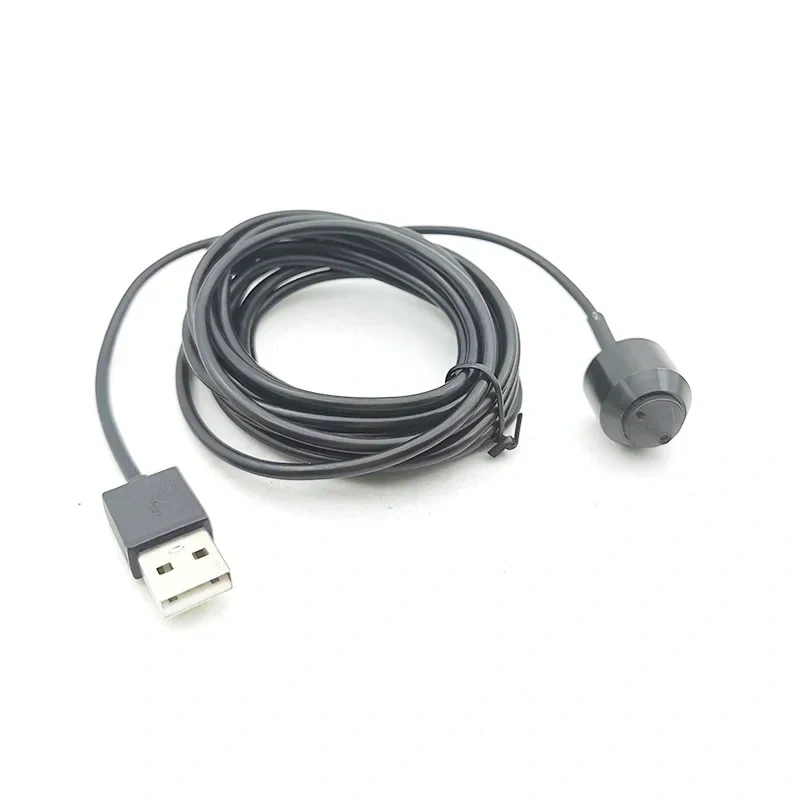

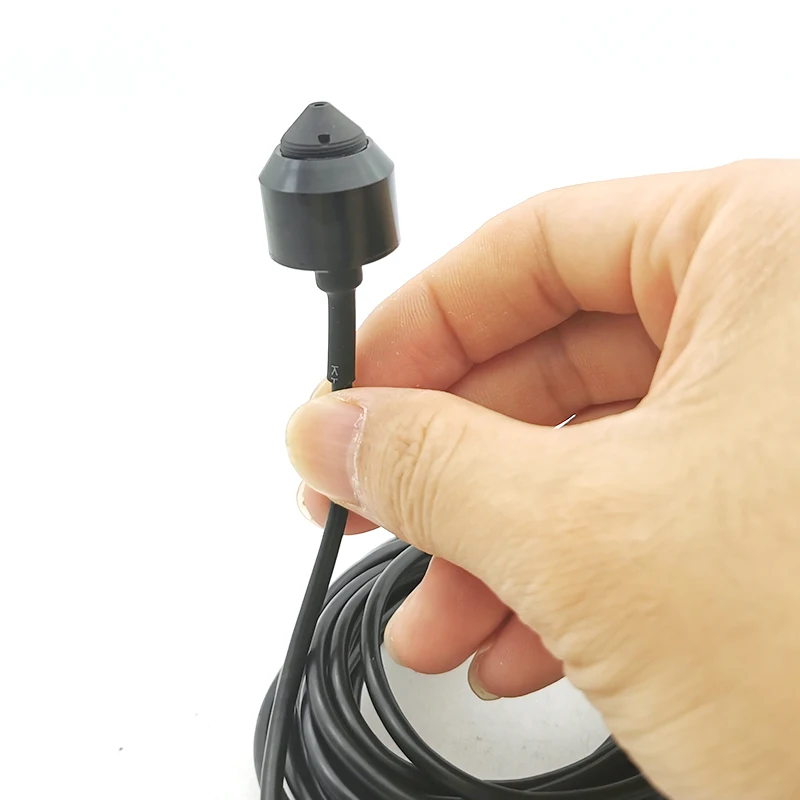

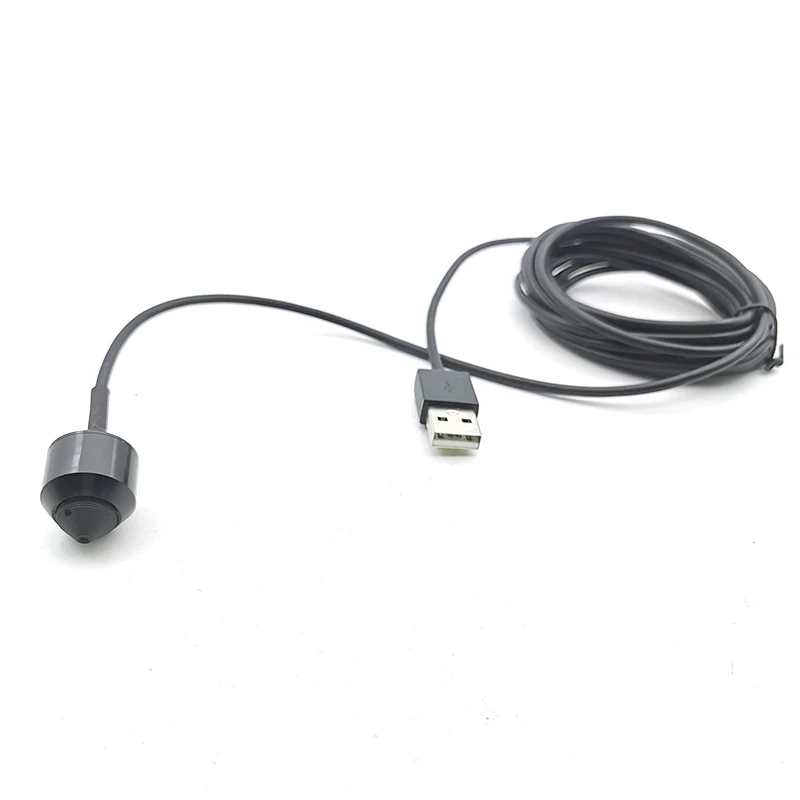

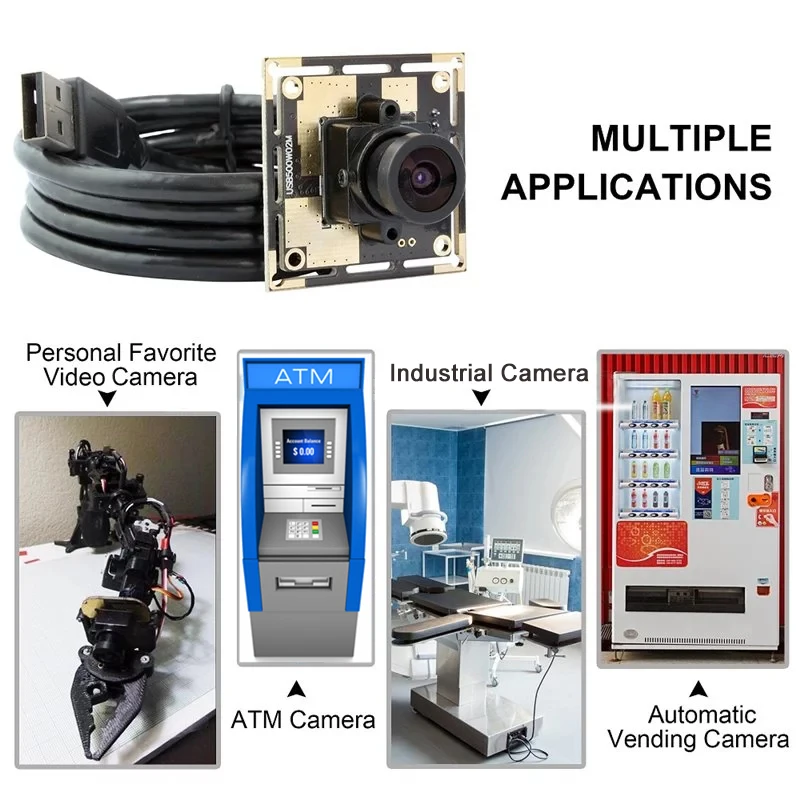

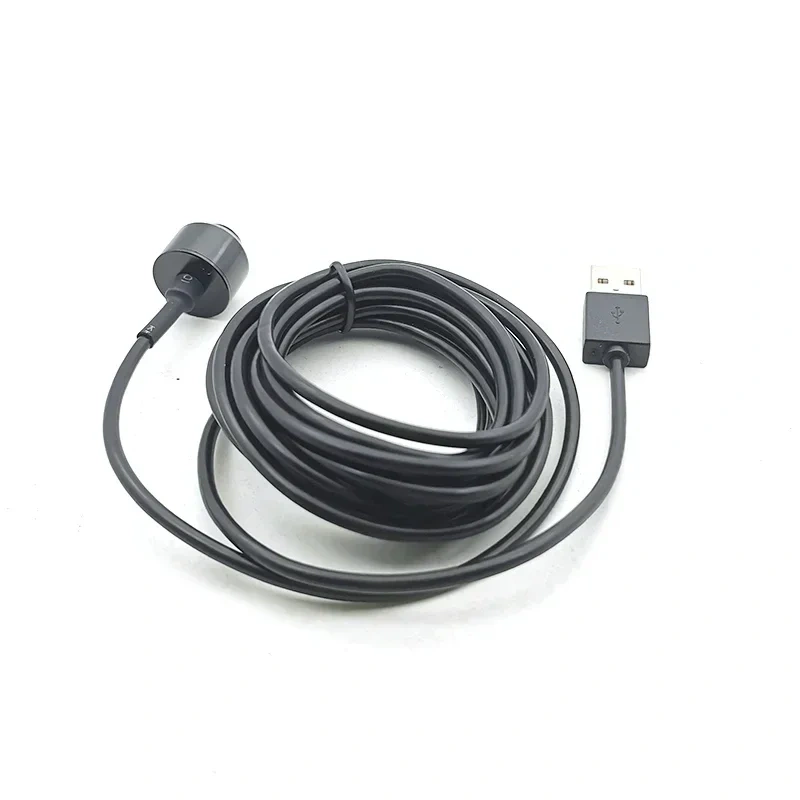

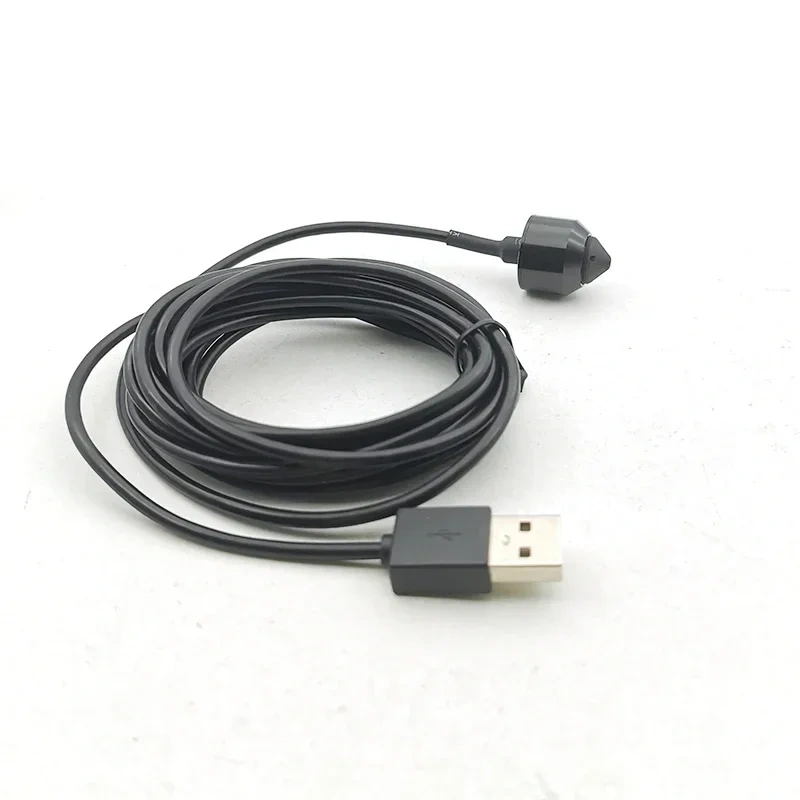

19mm Diamater HD 1080P 2MP Mini USB Camera UVC Bullet Camera Mini Webcam Windows Linux Andorid for Bank ATM Machine Vending

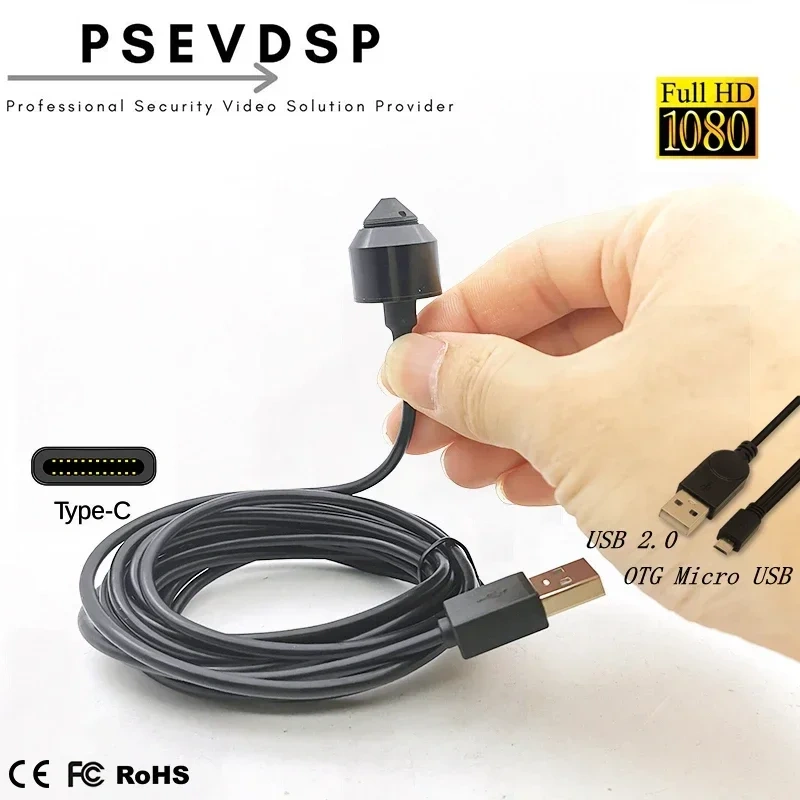

NOTE: Before purchase this camera, please confirm whether your phone supports OTG function to avoid unnecessary losses or trouble when use the camera

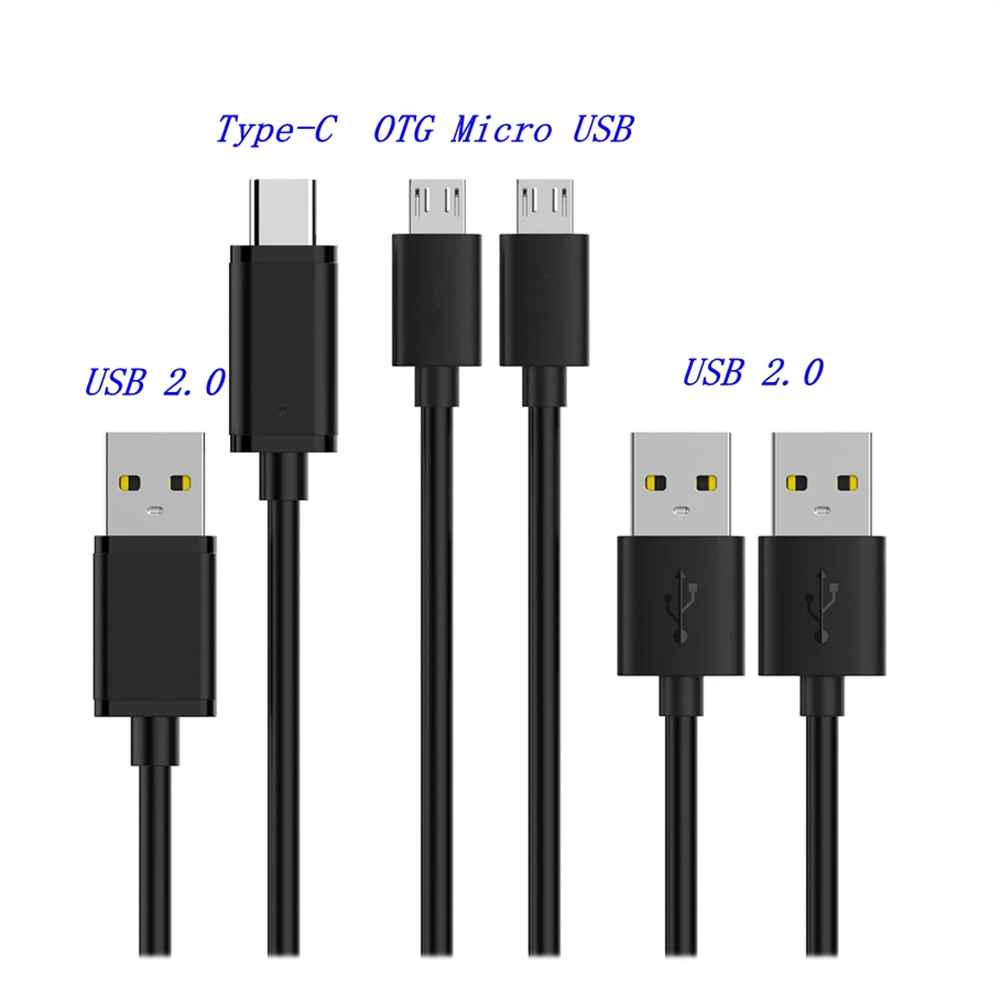

(For those who require OTG Micro USB interface, please contact customer service or note in your order,Thank you !)
Product details
product name | Industry USB Camera |
Lens | 3.7mm pinhole |
Video Compression Format | MJPG/YUV |
sensor | OV2710 |
usb port | USB 2.0 Default |
Product Keywords | Mini USB Camera |
Product Features:
lUse 1 / 2.7 inch low noise image sensor
lAntistatic and EMC design
lLow power consumption, low heat output.
l USB2.0 High Speed
l UVC compatible with Windows XP /7/8.1/10/vista/seven/Mac linux2.6.2(include UVC ),Android4.0(include UVC)above.
Sensor | OV 1/2.7 sensor | Remarks |
Effective Pixels | 1920(H)X 1080(V) | |
Resolution | 1080P | |
Pixel Size | 3um X 3um | |
Minimum illumination | 0.1LUX | |
Scanning Mode | Progressive scan | |
H Scanning frequency | 30HZ/25HZ | |
V Scanning frequency | 60HZ/50HZ | |
Dynamic Range | 80dB | |
SN Ratio | >=50dB | |
Video Format | MJPG/YUY2 | |
Sensor Output | MIPI | |
| Resolution and Frame rate
| 1920x1080 at 30fps 1280x720 at30fps1024x768 at 30fps 800x600 at 30fps 640x480 at 30fps | MJPG |
| Resolution and Frame rate | 1920x1080 at 5fps 1280x720 at 10fps800x600at20fps 640x480 at 30fps | YUY2 |
LENS | (Video distortion<1%) 3.0mm lower distortion | |
LES parameters | M12 LENS(650nm IR filters,HFOV:86 VFOV:55 DFOV:95 ) M12 LENS 650nm filters | |
Connector | 5PIN 1.25mm connector Dual connector out | |
USB2.0 Speed | 480Mb/S | |
Power | 5V±5% | |
Power consumption | Max 1W | |

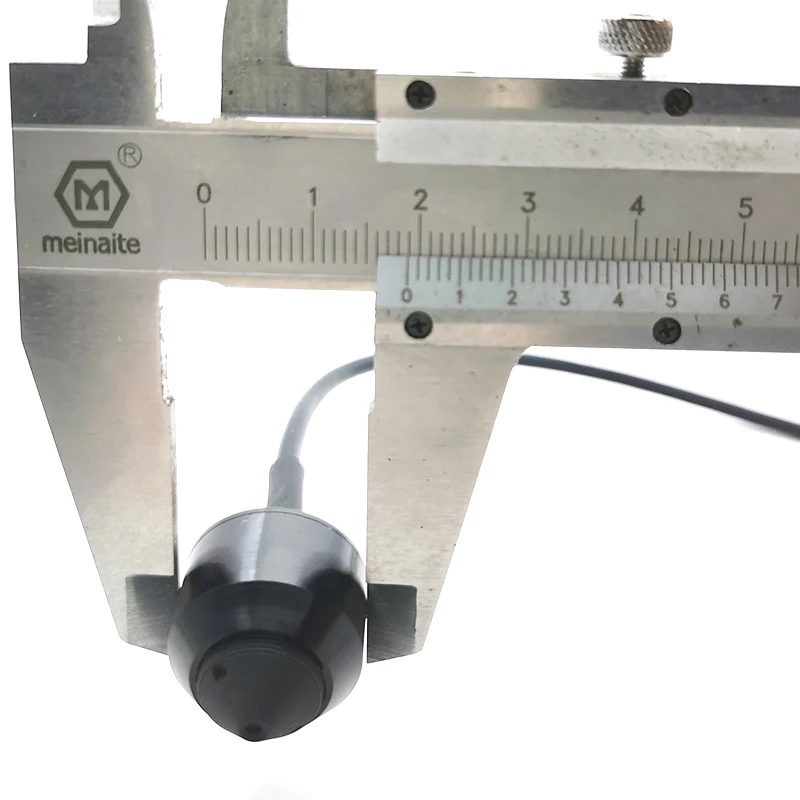

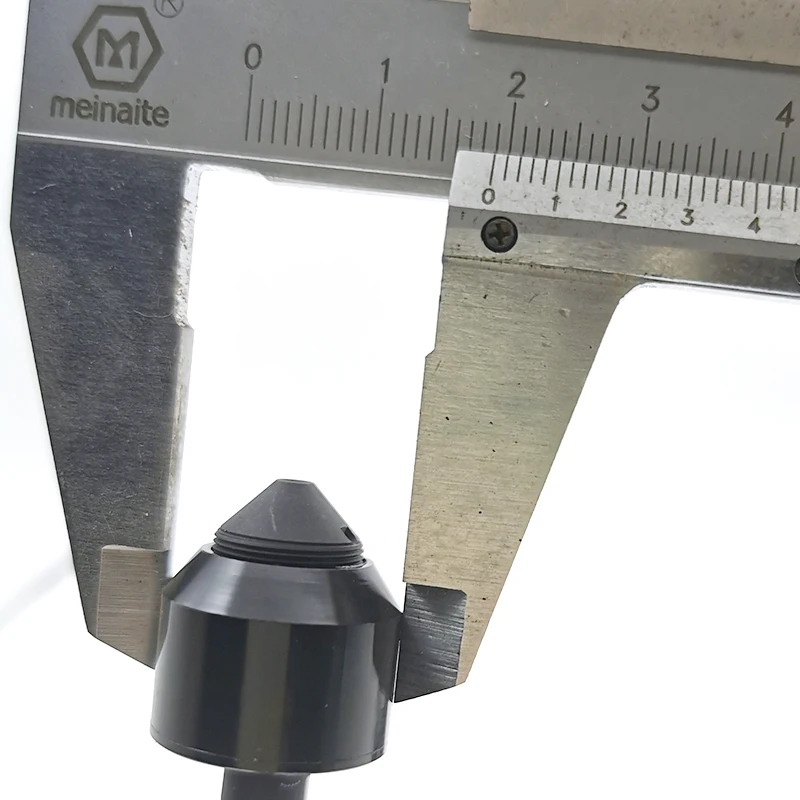

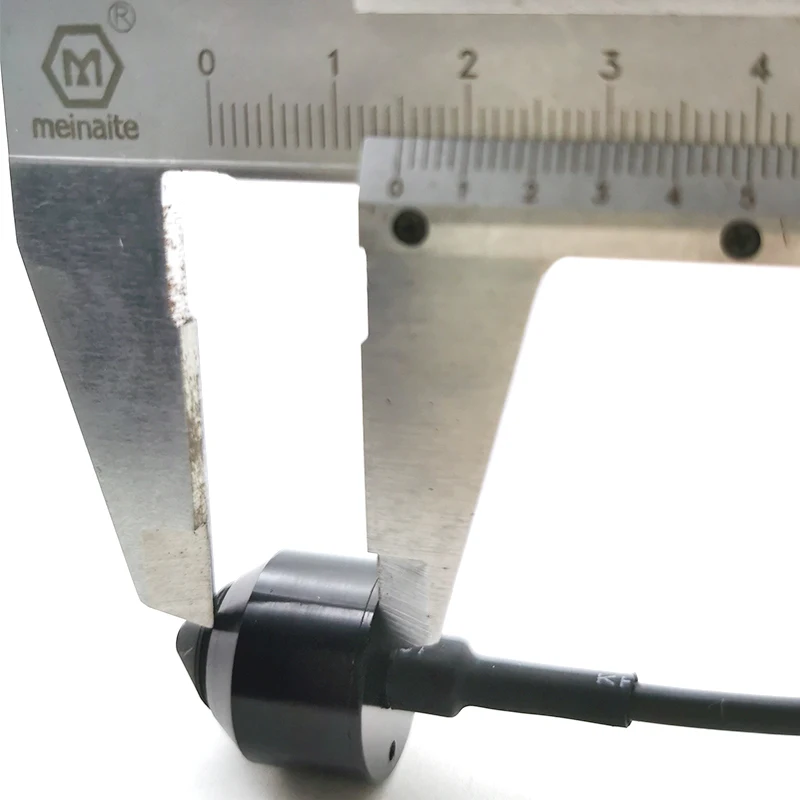

Size | 19 X 15mm | |
Weight | TBD | |
Working Temperature | -30~70 ℃ | |
Storage temperature | -40~80 ℃/0~90RH | |
Product Standard | USB-IFWHQLRoHS | |
warranty | 2 years | |
Package contents:
1 x Camera .1xadapter 1 x English User Manual
Note:

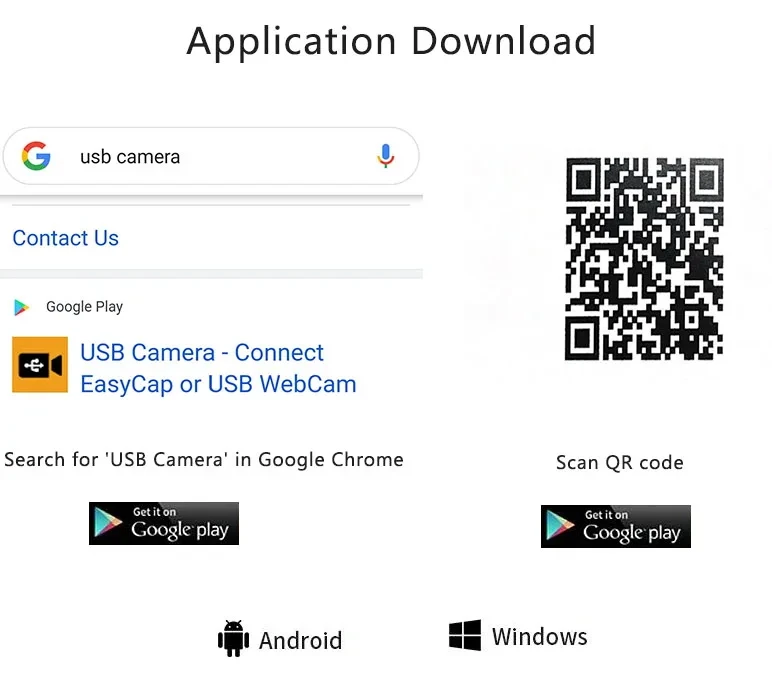

Software will be sent to your emails or leave message in aliexpress when you paid!pls contact with our SALES team if you need !

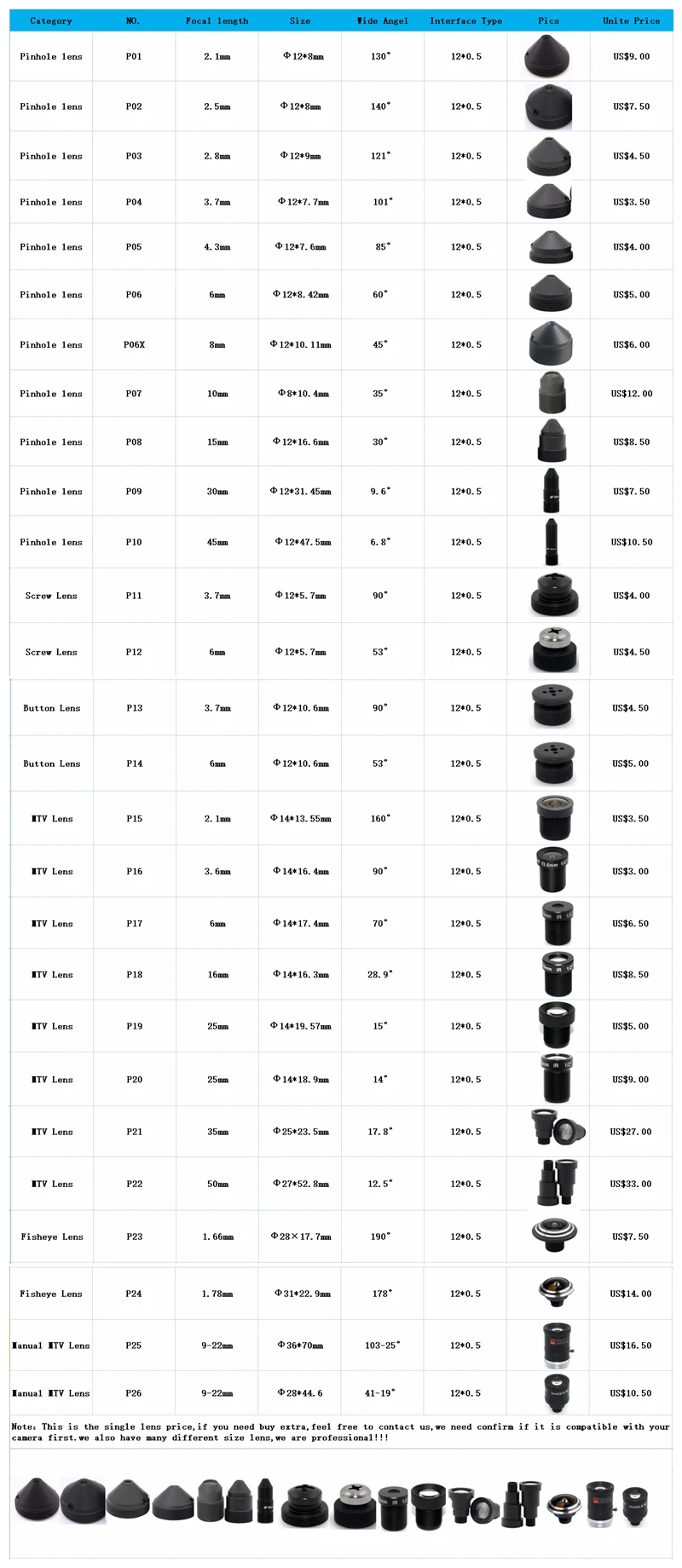

Below Lens for your optional :Contact with us for more details !
