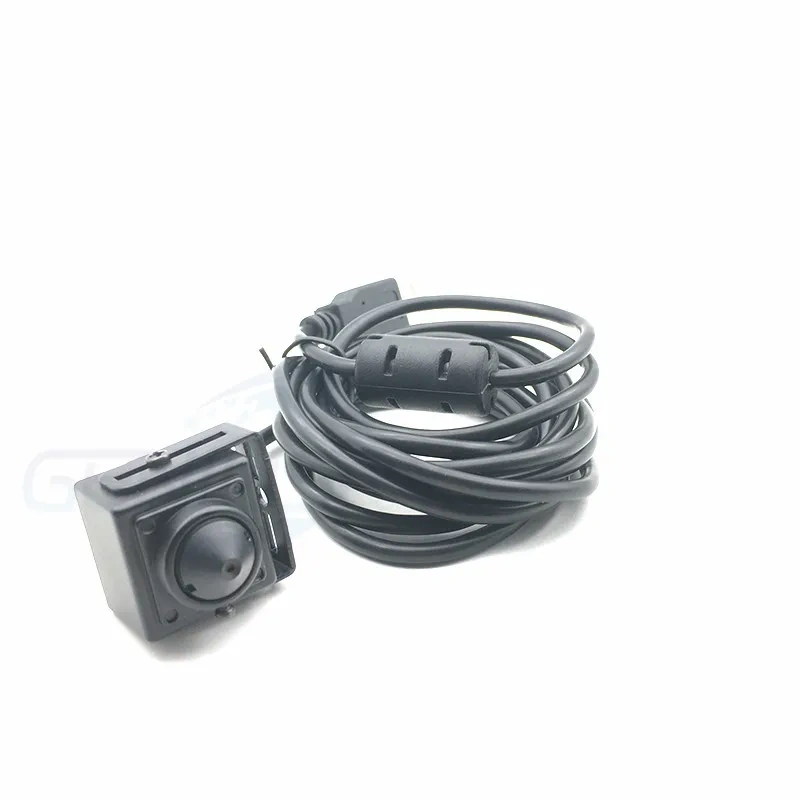

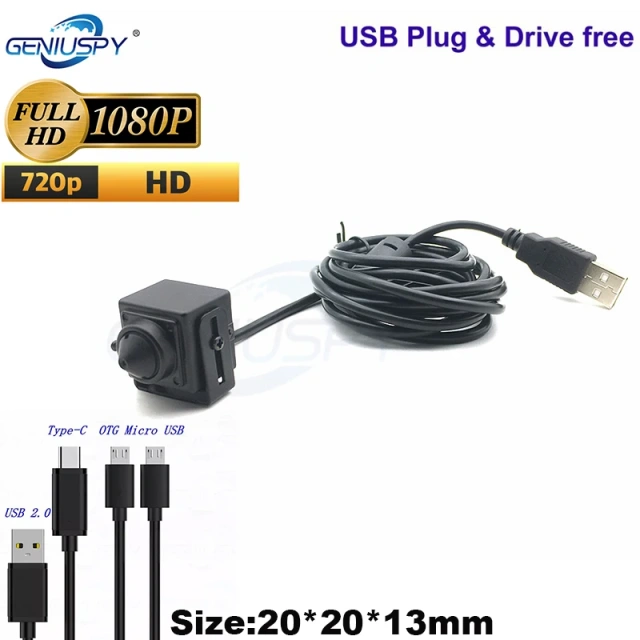

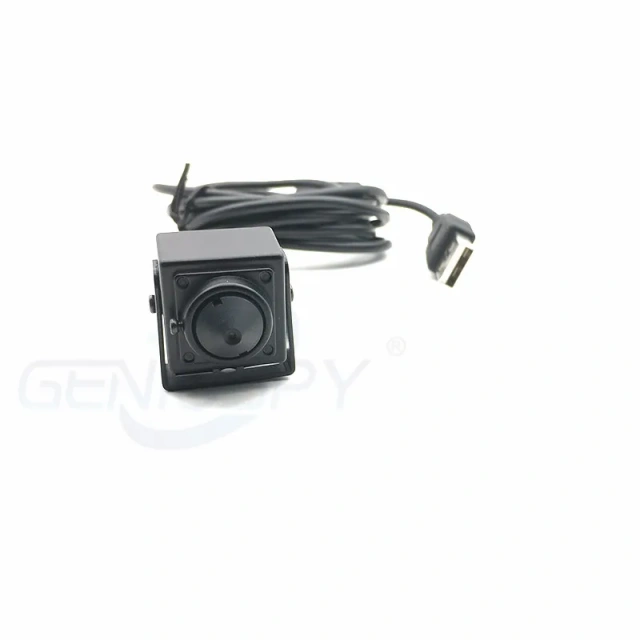

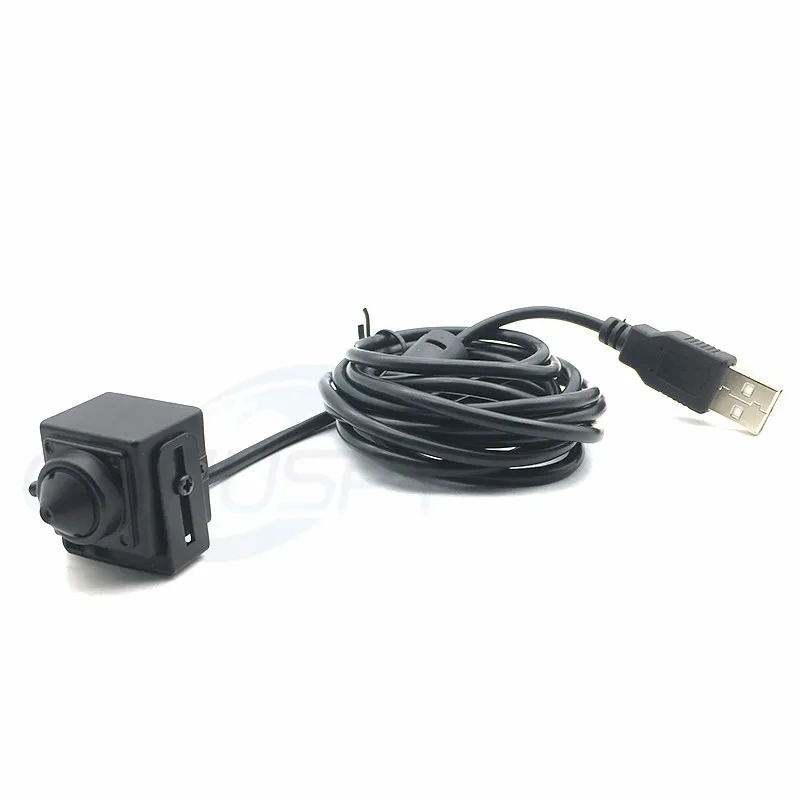

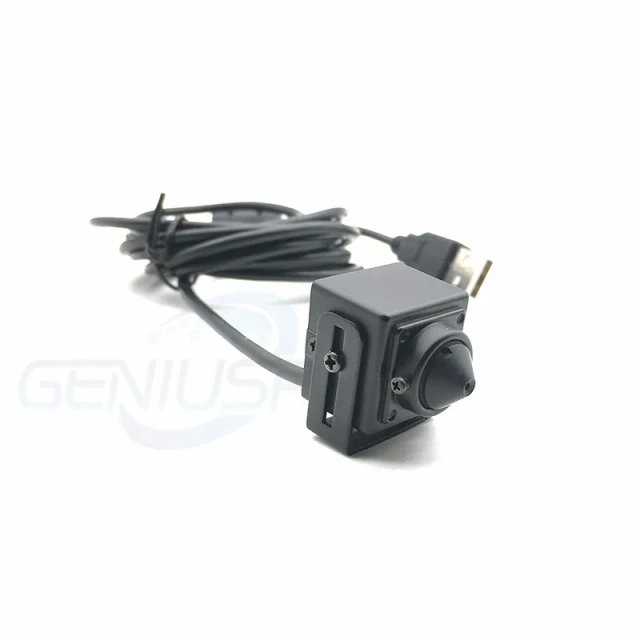

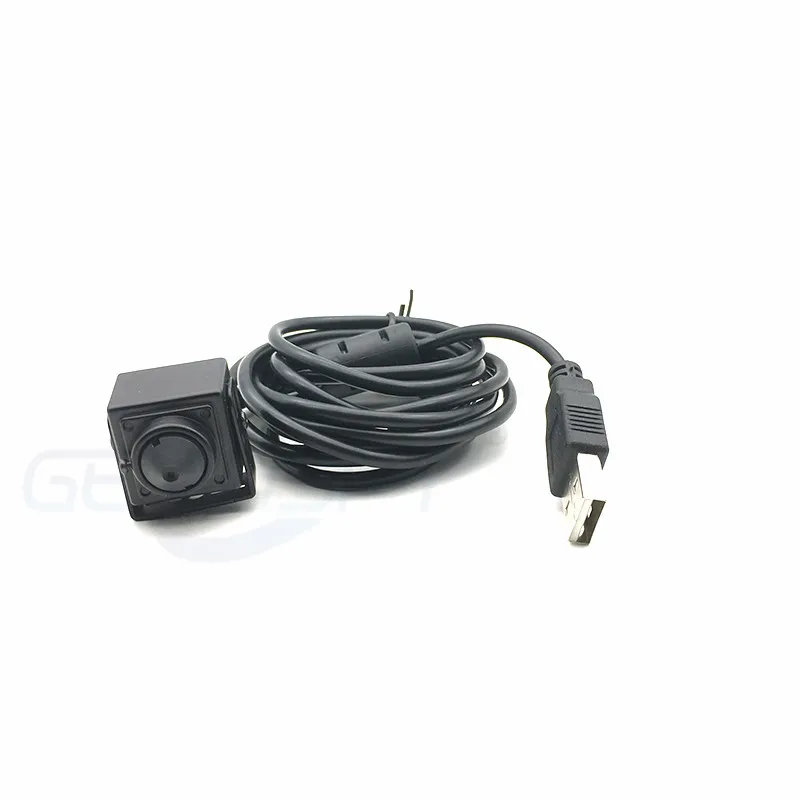

20x20mm 1080P Smallest Size CMOS 720P HD Mini Pin hole Usb Camera KIOSK Industry Machine PC UVC Miniature ATM Usb Camera
Note: 1080P / 720P Optional
if you need other connector ,pls kindly contact with us for custom made !
|
Model |
GS-MU20CSP4 |
|
Name |
1080P Ex-view Mini USB Camera |
|
Image Sensor |
1/3"cmos Progressive Scan 1080P |
|
DSP |
Cmos |
|
Resolution |
1080P |
|
Syetem |
Windows 2000/Windows XP/Windows VISTA/Windows 7/Linux(In 2.6.18 above the kernel version)/ Mac ps3 Driverless(UVC) |
|
Min.Illumination |
0.01Lux |
|
Effective Pixels |
1080P :1920*1080P .960P:1280*960P 720P: 1280H X720 /V800(H) ×600(V) /V640(H) ×480(V) |
|
Frame 30fps |
1280H X720 30fps /V8000(H)×6000(V) 30fps /V640(H) ×480(V) 30fps |
|
Standard Lens |
P3.7mm default |
|
Optional Lens |
L2.1/2.8/3.6/4/6/8mm, |
|
Elec Shutter |
1/50(1/60)s to 1/100,000s |
|
Day& Night |
Electronic Day& Night |
|
White Balance |
Auto |
|
Synchronization |
Internal Synchronization |
|
Video Output |
1Vp-p Composite Output (75Ω/BNC) |
|
S/N Ratio |
More than 48dB |
|
Power Supply |
5 V DC ± 10% |
|
Working Temp |
-20 °C - 60 °C (14 °F-140 °F), |
|
Impact Protection |
IEC60068-2-75 test, Eh, 50J; EN50102, up to IK10. |
|
Output |
2.0 USB Connector 1.0Vp-p 75Ω |
|
Shell Color |
Black |
|
Size Weight |
20x20mm |
|
Free |
Brackets *1,Screw *2,Cable *1,Manul book *1 |

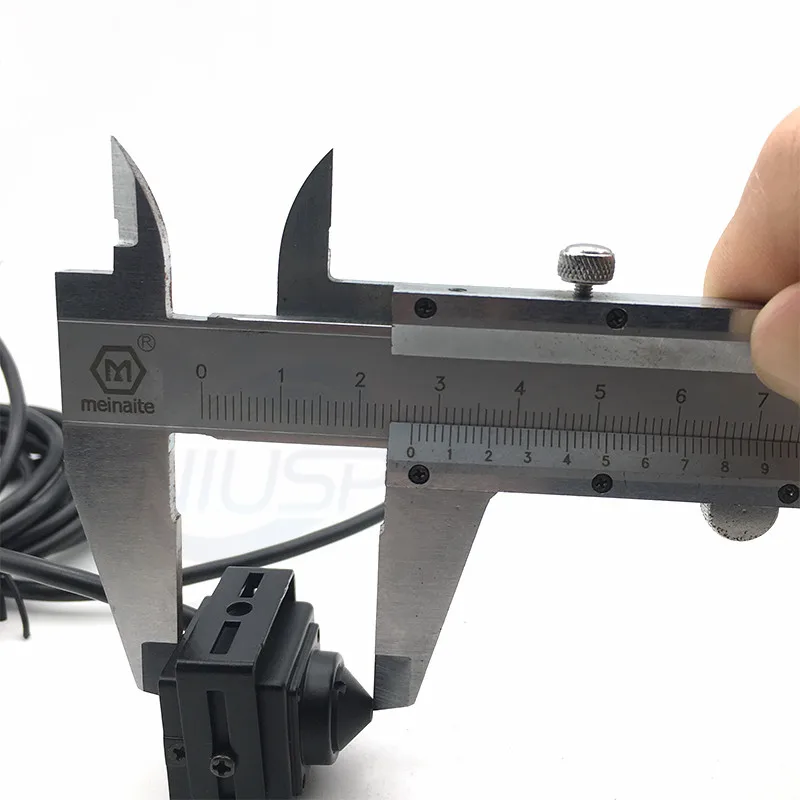

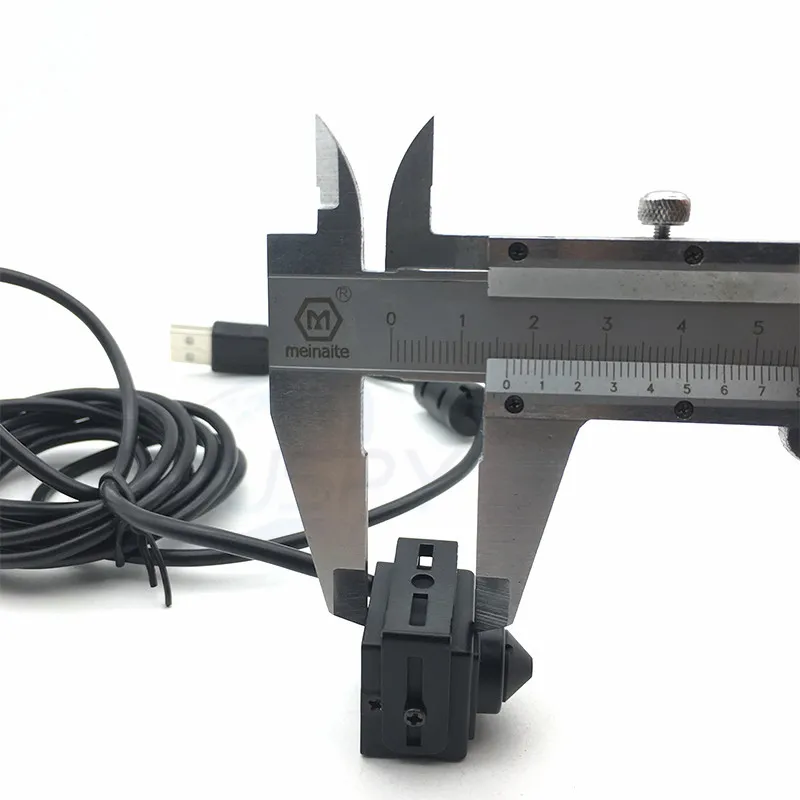

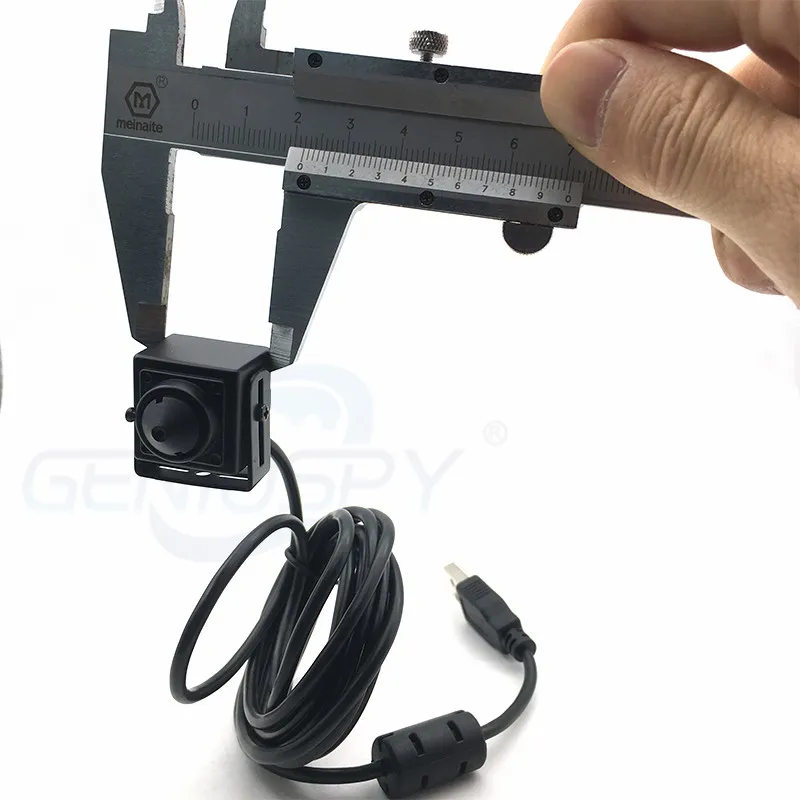

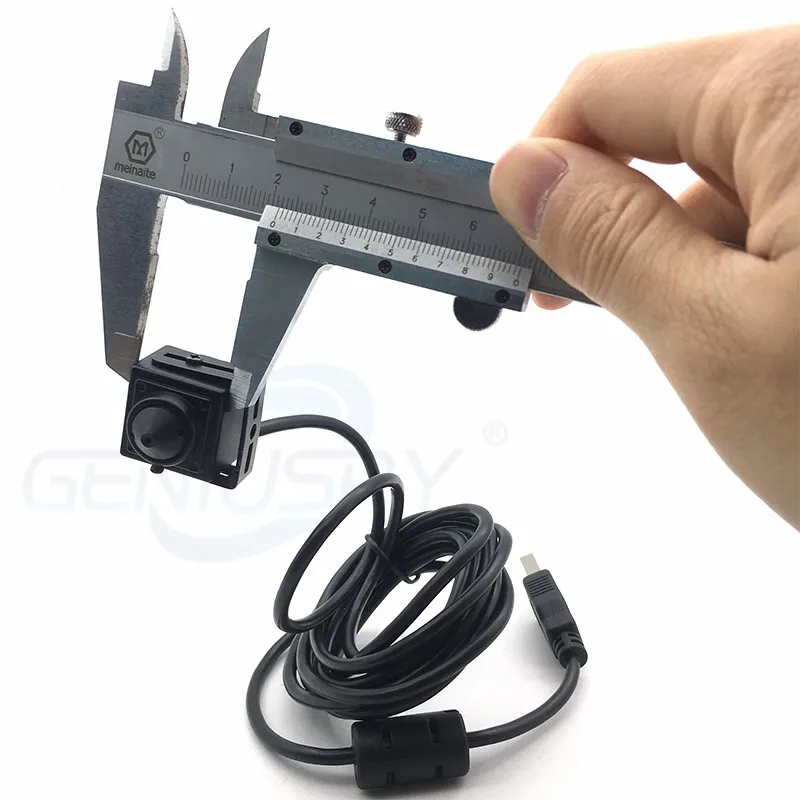

Small Size: 20*20mm
USB 2.0 High Speed.
Resolution: 720P HD Video
|
Model |
GS-MU20CHP4 |
|
Name |
720P Ex-view Mini USB Camera |
|
Image Sensor |
1/4"cmos Progressive Scan 720P |
|
DSP |
Cmos |
|
Resolution |
720P 1MP |
|
Syetem |
Windows 2000/Windows XP/Windows VISTA/Windows 7/Linux(In 2.6.18 above the kernel version)/ Mac ps3 Driverless(UVC) |
|
Min.Illumination |
0.1Lux |
|
Effective Pixels |
720P: 1280H X720 /V800(H) ×600(V) /V640(H) ×480(V) |
|
Frame 30fps |
1280H X720 25fps /V8000(H)×6000(V) 25fps /V640(H) ×480(V) 25fps |
|
Standard Lens |
P3.7mm pinhole lens default |
|
Optional Lens |
L2.52.8/3.6/4/6/8mm, |
|
Elec Shutter |
1/50(1/60)s to 1/100,000s |
|
Day& Night |
Electronic Day& Night |
|
White Balance |
Auto |
|
Synchronization |
Internal Synchronization |
|
Video Output |
1Vp-p Composite Output (75Ω/BNC) |
|
S/N Ratio |
More than 48dB |
|
Power Supply |
5 V DC ± 10% |
|
Working Temp |
-20 °C - 60 °C (14 °F-140 °F), |
|
Impact Protection |
IEC60068-2-75 test, Eh, 50J; EN50102, up to IK10. |
|
Output |
2.0 USB Connector 1.0Vp-p 75Ω |
|
Shell Color |
Black |
|
Size Weight |
20x20mm |
|
Free |
Brackets *1,Screw *2,Cable *1,Manul book *1 |
Package contents:
1 x Camera 1 x English User Manual
