28*28 23*23mm 1080P Low Lux Industry Mini Size USB Camera Board Android Micro UVC USB Camera With Audio 2MP OTG Type-C USB2.0
Note:2MP Camera Board With Audio

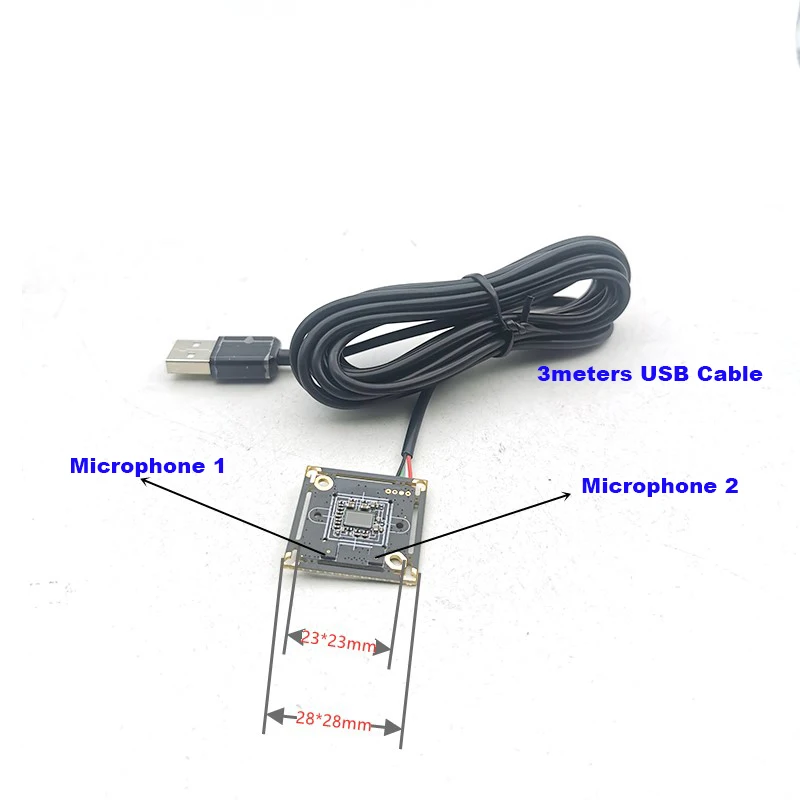

Camera size:28*28mm 23*23mm ( not included the Lens Length)
USB2.0 interface default , TYPE-C.OTG Micro Android Interface Optional !if you need ,pls contact with us for custom made !
if you need other connector ,pls kindly contact with us for custom made !
These interfaces are optional, please tell me which one you need:
Small size, Hands free filming
high clearance lens
1080P FULL HD
Free drive
Suitable for multi system equipment
High clearance image
Where to use
1. Inspecting industrial equipments
2. Assisting medical treatment
3. CCTV
4. Video teaching
5. Vehicle video applications
Detailed Specifications Of The Parameters
Model | GS-2823UBCM2A |
Sensor | CMOS |
Resolution | 1920X1080 |
Lens size | 1/3 inch |
Pixel | 1080P |
Line length | 3meters usb cable |
Formats | MJPG |
Array size | MJPG:1080P 30fps |
Lens Construction | 5G2P |
F/No | F2.1 |
Lens EFL | NO lens |
Minimum illumination | 0.1LUX |
S/N Ratio | ≥52dB |
Gammar | 0.45 |
Shutter | 30f/s |
White balance | Auto |
Working temperature | -10~+50°C |
Power | 5V |
AUDIO | Hi-Fi |
Power consumption | 150mA |
Size | 23*23 28*28mm |
Interface | usb 2.0 interface/type-c /android OTG |

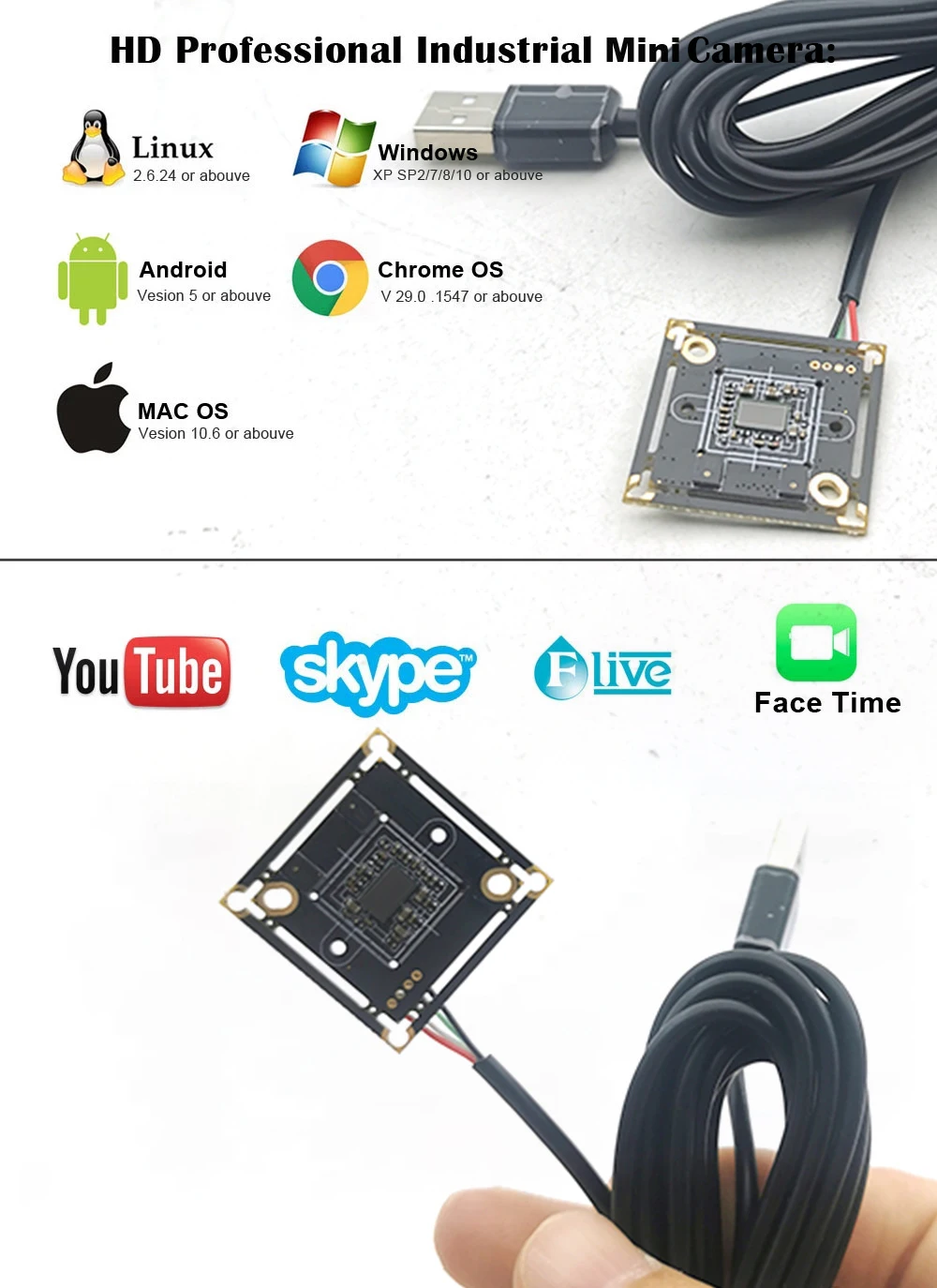

System | WINXP/WIN7/WIN8/Linux/Android/MAC |
Package contents:
1 x Camera
Thanks for your attention to our products.if you have any question ,pls fell free to contact with us !
we will replyed you within 24hours!!!
