Name: 32x32mm IIMX179 Starvis 4K Auto Focus AF ZOOM or Fixed lens Security CCTV UVC 8MP USB Camera Module
Brand: Mini USB Camera Mini Camera IP Camera Camhi Camera Factory
SKU: 2255800505555645
Price: 37.60 USD
Availability: InStock

Description

Note: the camera needs to keep a distance of more than 8CM from the object to be able to focus automatically. When the camera is working, it will emit heat. The highest temperature can reach 55 degrees, which is normal, please do not worry.

auto focus mini usb camera

32x32mm IIMX179 Starvis 4K Auto Focus AF ZOOM or Fixed lens Security CCTV UVC 8MP USB Camera module

Our company has been persisting in the tenet of credibility based, customers supreme, and quality guaranteed, to provide the best services to you through our utmost efforts!

We promise: the same to you the quality our price is optimal, same price our quality is the most guarantee!

Factory direct sales of goods are definitely value for money!

These interfaces are optional, please tell me which one you need:

Product Description

Features:

This camera is a 5.0 megapixel/8MP Mini size 3264*2448P 2592*1944 pixel 1080P HD USB-2.0-free drive camera module, frame rate up to 15/30 frames. It can be used for one computer, advertising equipment, video doorbell, can meet the high demands of customers!

HD 8MP 5MP 1080P USB camera module

Synchronization technology

High speed USB 2.0 interface

High quality image

Low power consumption

Small outline for embedded application

UVC compliance for use in OS Windows,Linux,Android,Mac

1: ATM,Kiosk,POS,TV box 2: advertising cameras 3: one camera 4: Smart TV built-in camera

5: Construction Equipment 6: Banking equipment 7: body switch 8: Scanner

9: a mobile terminal device 10: Medical diagnostic image acquisition 11: fingerprints, palm prints image acquisition

12:video door phone 13:HD surveillance

1: Use the USB cable wire into the computer, notebooks and other USB interface will be able to use!

2: inserted as computers, laptops can not be used, indicating that there is no drive in accordance with the camera.

3: This product is equipped with a USB cable.

8MP IMX179 Senor 15fps /5MP ov5649 30fps

Detailed Specifications Of The Parameters

Size:1/4 inch

pixel size:1.4 µm x 1.4 µm

Maximum effective pixels: 2592(H)*1944(V)/1920 (H) *1080 (V)

Output image format: YUV2 (YUYV) / MJPEG

Frame rate:

3264*2448-MJPEG-15FPS YUY2-2FPS

2592*1944-MJPEG-30FPS YUY2-2FPS

2048*1536-MJPEG-30FPS YUY2-3FPS

1920*1080-MJPEG-30FPS YUY2-5FPS

1280*720- MJPEG-30FPS YUY2-10FPS

950*540- MJPEG-30FPS YUY2-

640*480- MJPEG-30FPS YUY2-30FPS

320*240- MJPEG-30FPS YUY2-

320*180- MJPEG-30FPS YUY2-30FPS

Signal to noise ratio: 36dB

Dynamic range: 72dB

image area:3673.6 µm x 2738.4 µm

Sensitivity: 690 mV/lux-sec

Minimum illumination: 0.01LUX

Shutter type: Electronic rolling Frame shutter/ exposure

Interface type: USB2.0 High Speed

Support free flooding protocol: USB Video Class (UVC)

Support OTG protocol: USB2.0 OTG

Automatic exposure control AEC: support

Automatic white balance AEB: support

Automatic gain control AGC: support

Adjustable parameters: brightness contrast color saturation hue resolution

The gamma exposure contrast gain white balance backlighting

Power supply: USB BUS 4P-2.0mm POWER socket

Working voltage: DC5V

Working current: 140mA~220mA

Working temperature: 0 ~ 60

Storage temperature: -20 ~ 70 C

Board size: 15*15*13mm

Machine weight: 50g

Supported system: WinXP/Vista/Win7/Win8/ Linux with UVC (above linux-2.6.26)/ MAC-OS X 10.4.8 or later

/Wince with UVC/Android 4 or with above UVC
Interface:USB Interface

Lens: 3.6mm

Angle(FOV): 75°

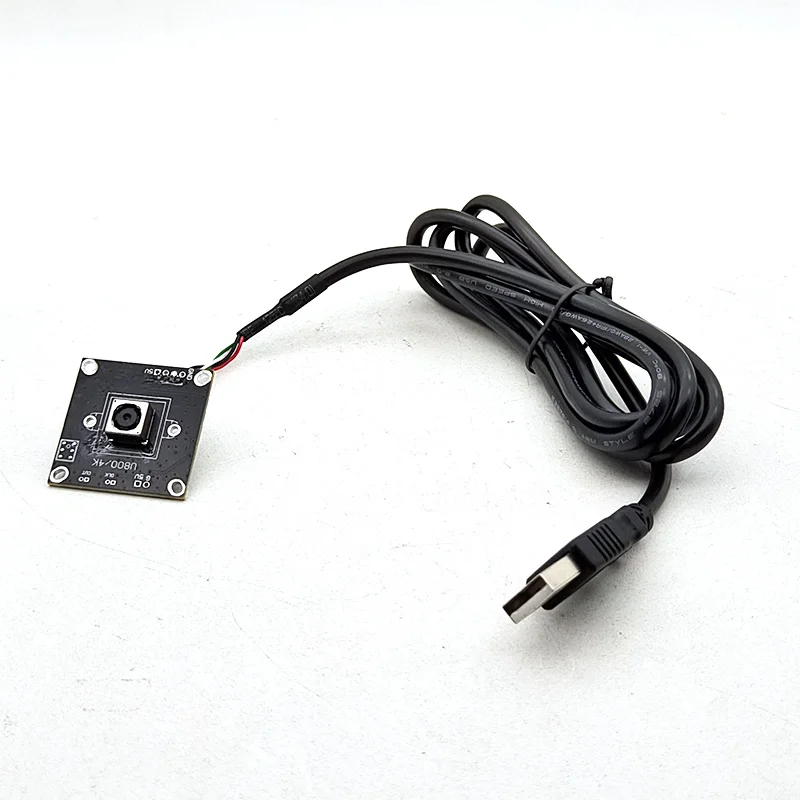

Line length:2M default

Quick response	Within 24hours you can get a reply
Sample	Sample is available, it will be send 2-3days after you paid sample charge and shippin cost.
Shipping Method	By sea, by air, by express(DHL, UPS,FEDEX,TNT,HK post,China post,EMS,SF etc).
Payment Terms	T/T, Western Union,PayPal.
OEM&ODM	OEM design, OEM color, OEM packing, ODM are highly welcome.
Trade Terms	EXW,FOB,CIF or as per you request.
QC	Each product will be 100% inspected before shipping.
After-Services	Responsible and effective.
Warranty	12 months.
