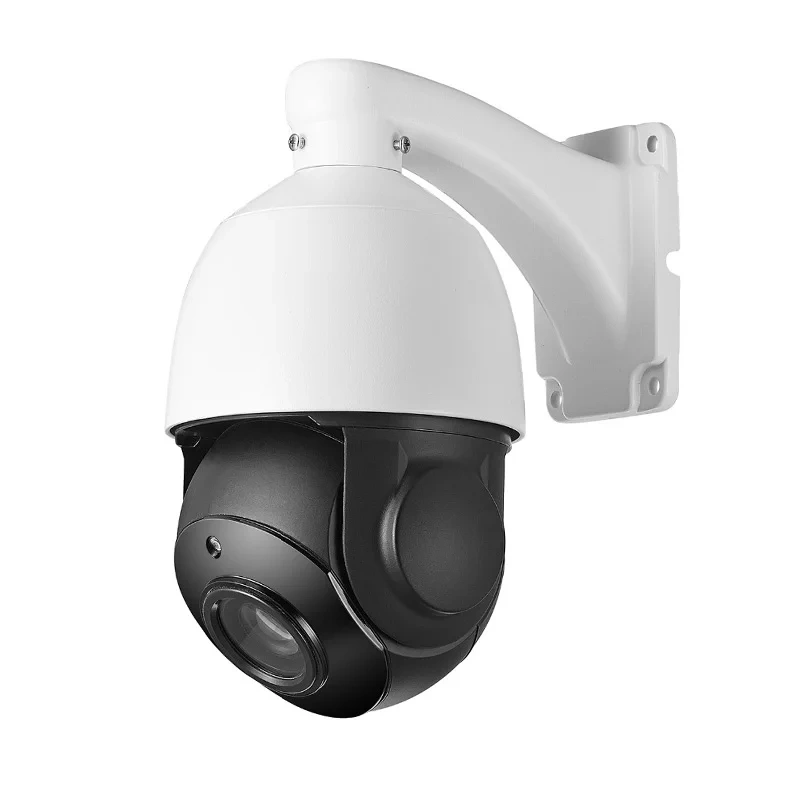

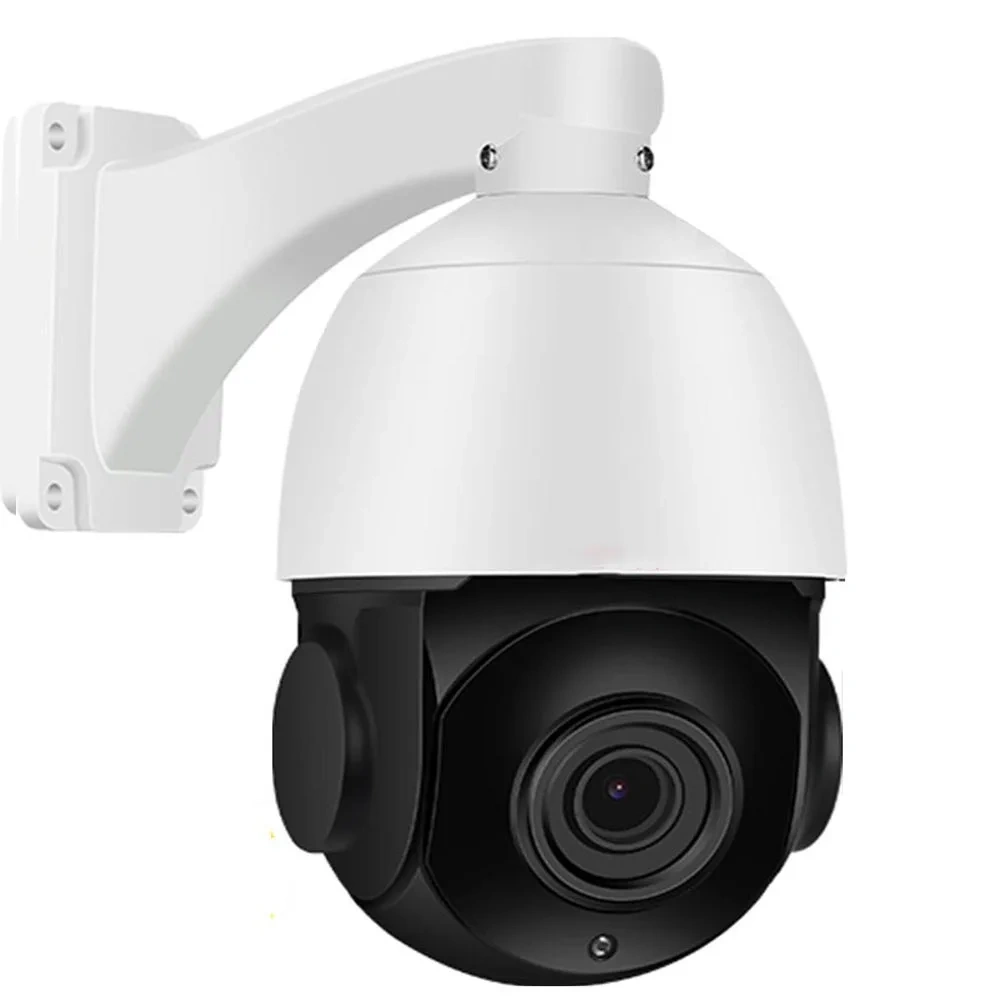

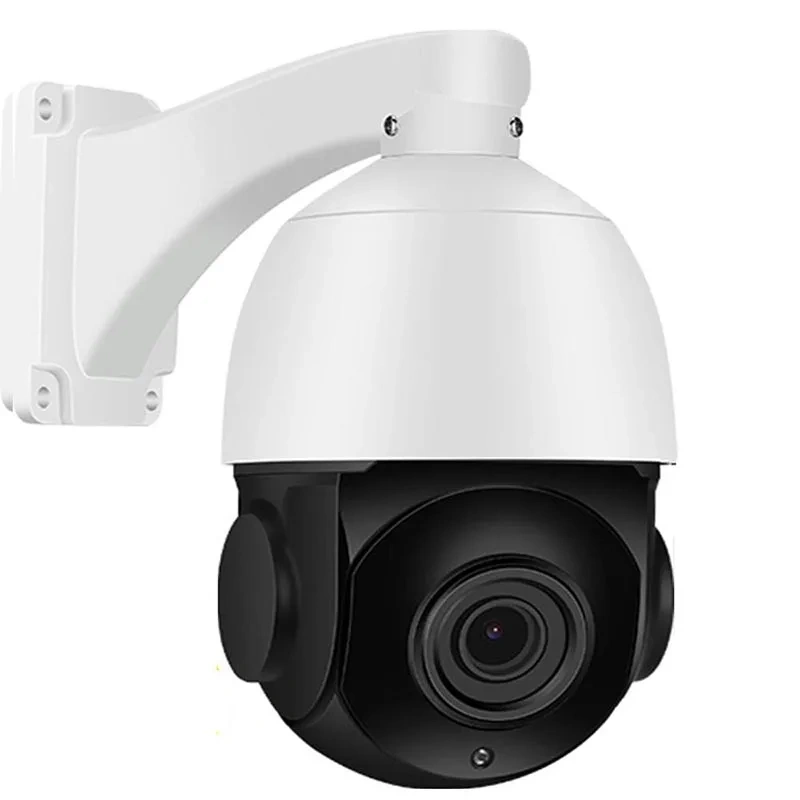

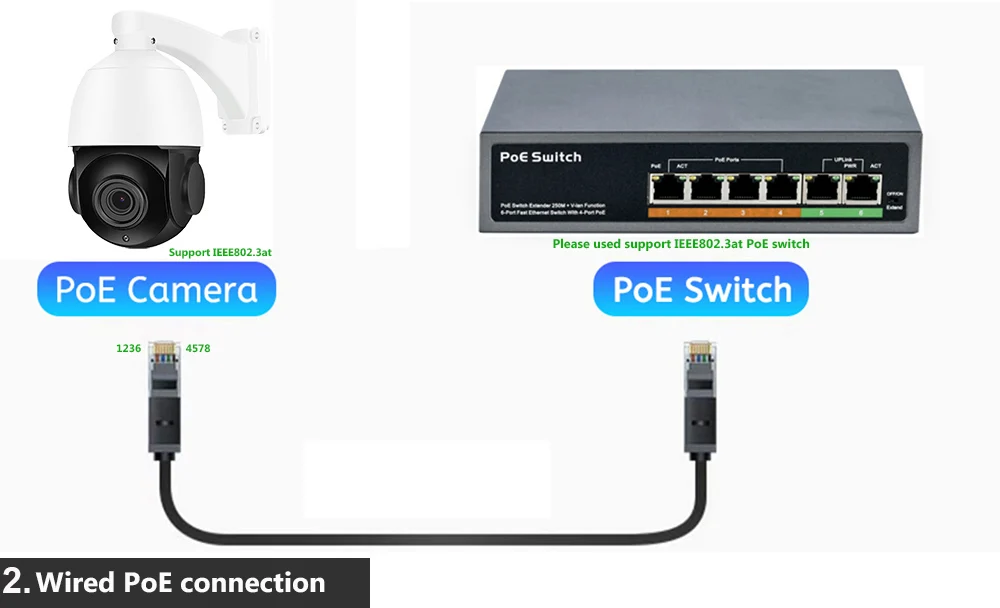

This is a brand new multi-functional intelligent AI PTZ IP CAMERA released by ESUNSTAR. It is equipped with a 30x optical zoom high-definition lens and supports 10x digital zoom, which can achieve a true 300x zoom camera. The camera supports 360° horizontal and unlimited rotation, which can achieve 7*24 hours of uninterrupted tracking and cruising. Equipped with 10 high-power LED lights, it can achieve infrared night vision distance of 150 meters at night, and achieve full-color night vision of 50 meters. The rich AI intelligent programming can meet the monitoring in most application scenarios, and truly realize multi-mode, multi-angle and multi-scenario video monitoring. All functions can be customized. This camera supports multiple connection protocols and is perfectly compatible with your NVR and third-party management software platforms. Support ONVIF, Hikvision protocol, RTSP protocol, RTMP protocol, etc. And support IEEE802.3AT (1236/4578) POE connection.
Three specifications:

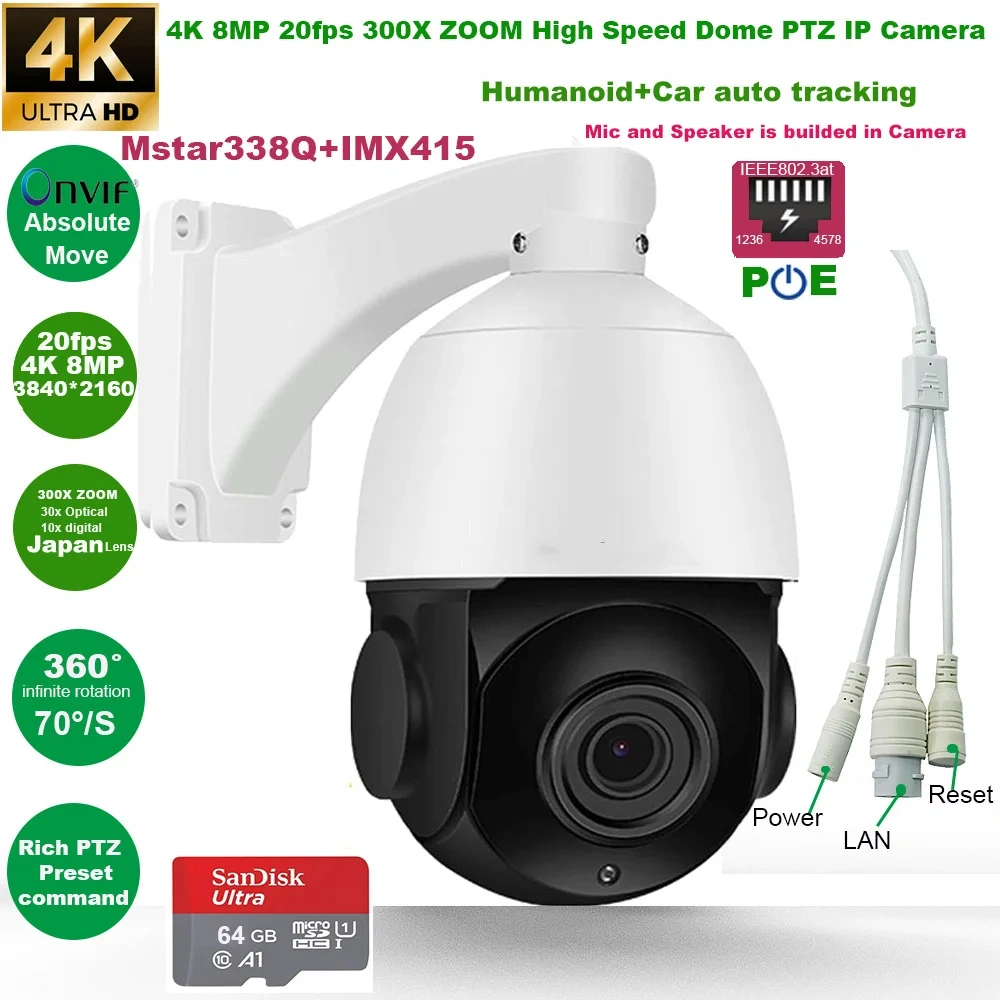

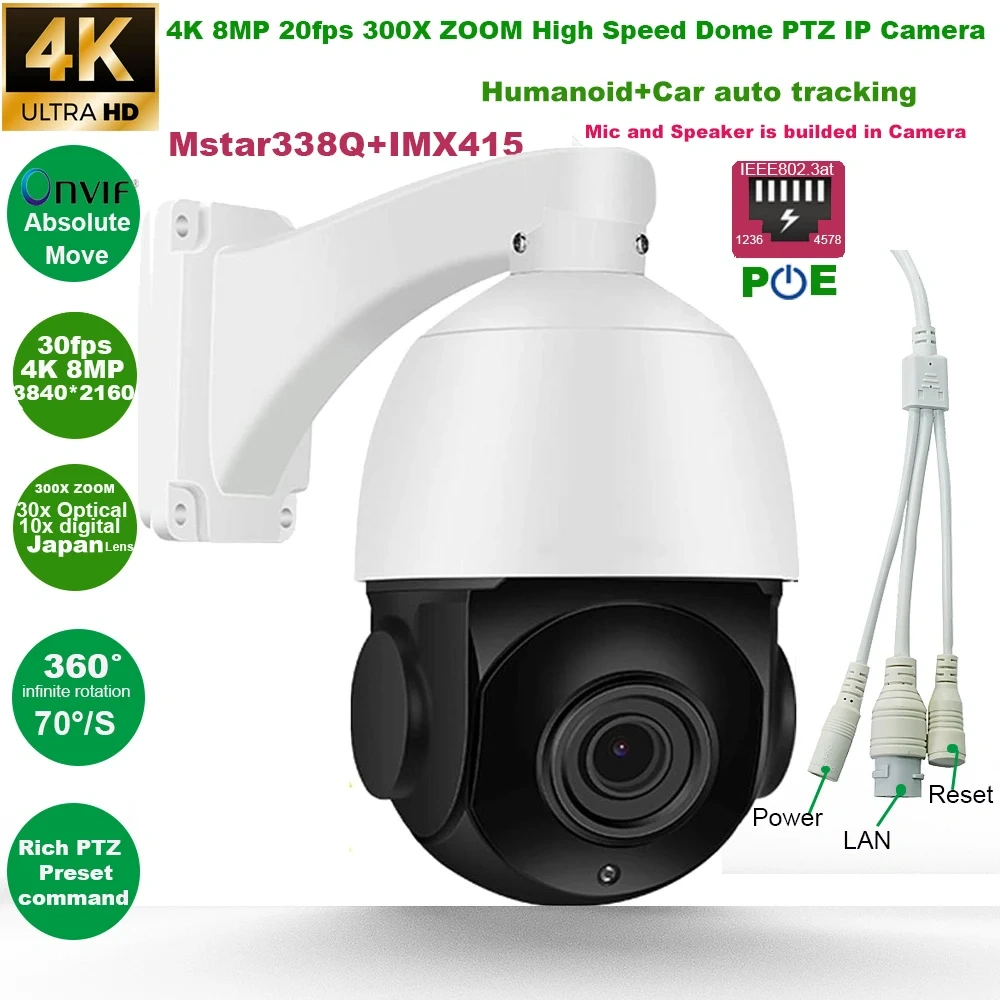

4K 8MP 20fps(IMX415): Encoding chip: Mstar338Q+SONY IMX415

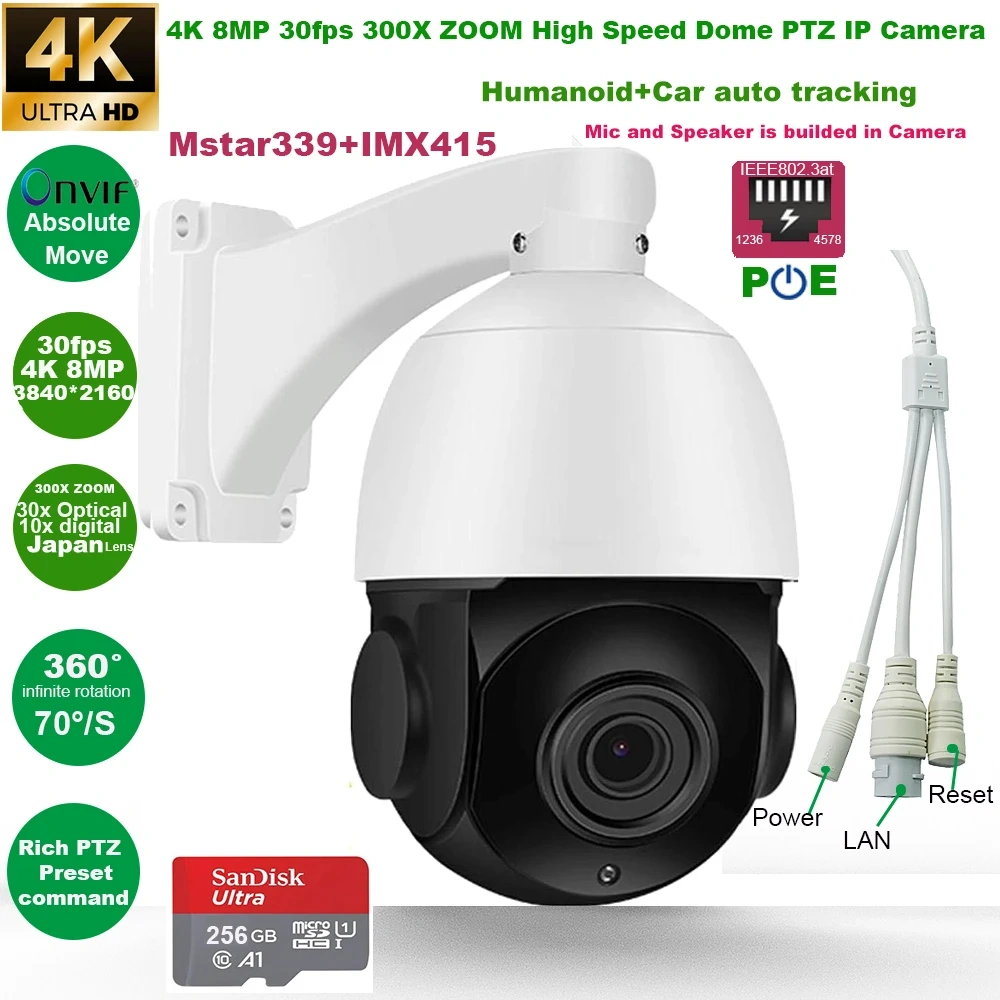

4K 8MP 30fps(IMX415): Encoding chip: Mstar339+SONY IMX415

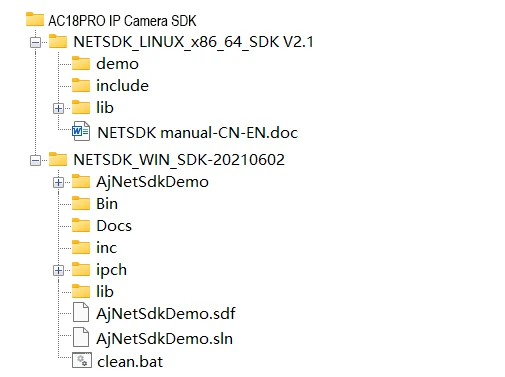

We can provide users with SDK secondary development kits.
Product introduction:
1,High sensitivity, high signal-to-noise CMOS image sensorUsing the MSTAR339 processing chip+SONY IMX415 CMOSThe highest pixel is up to 8MP, and
the highest resolution is up to 8MP (3840*2160)
2,Support 8MP 30fps,6MP,5MP,4MP,3MP 30fps,2MP 60fps
3,H.265 compression algorithm, effectively reducing network bandwidth, supporting dual stream,
4,H.265+ , H.265 ,H.264 and MJPEG compression algorithm, effectively reducing network bandwidth,
5,supporting 2 streams, supporting mobile phone monitoring
6,Support humanoid recognition to trigger SD card recording, SD card capture, voice alarm, mobile app message push and the picture is captured, and the
current video playback can be accurately positioned,
7,support fog function, support WDR, HDR. Support strong light suppression function.
8,Support humanoid recognition and humanoid alarm
9,Support multiple network protocols: TCP/IP, HTTP, TCP, ICMP, UDP, ARP,IGMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPNP, RTSP, RTMP,etc.

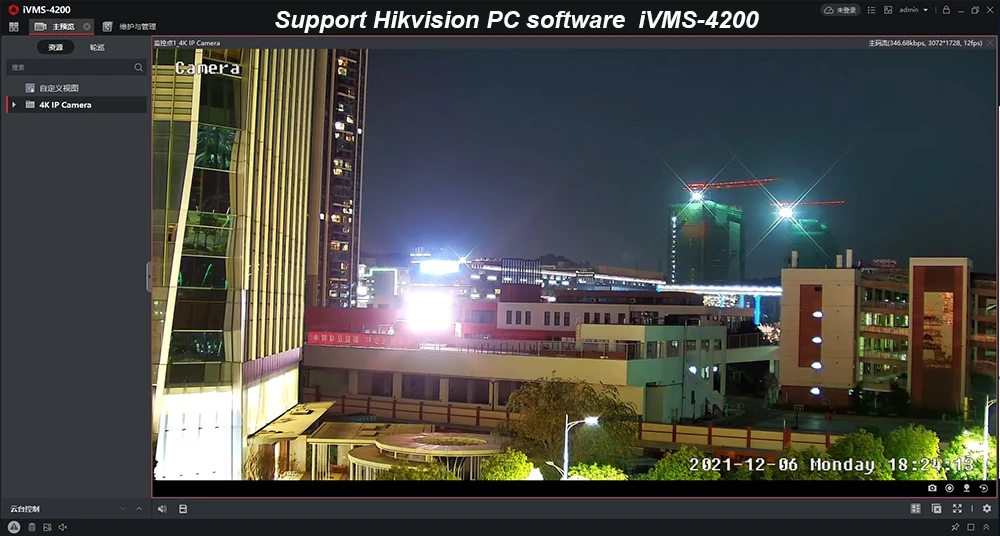

10,Support ONVIF protocol,Hikvision protocol
11,Support alarm sound outputs
12,Support alarm recording time customization, 20 seconds to 10 minutes can be set
13,Support static IP, also support dynamic IP (DHCP)
14,Support custom network card (Mac)address
15,Support P2P plug and play and mobile phone
16,Support IE, Google, Firefox browser
17,Supports custom users and authority management
18,Provide motion detection (area, sensitivity can be set) alarm function

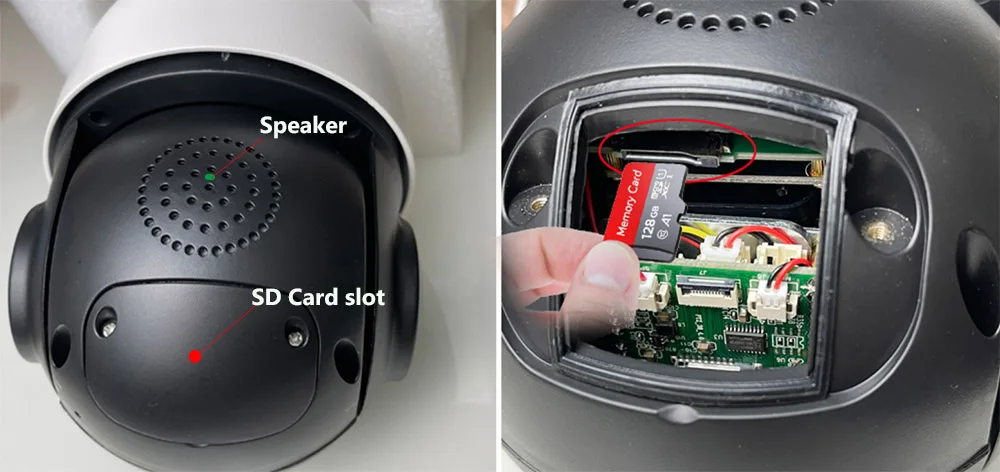

19,Support Micro SD card function, support up to 256GB Micro SD card
20,Support PC client to download SD card video
21,Support mobile phone download and playback SD card recording
PTZ Speed dome introduction
1. Support horizontal 360-degree infinite rotation and vertical 95-degree rotation. Rotation speed adjustable from 0.1 to 50 degrees/second
2. Support 3 groups of light control: infrared short-distance light, infrared long-distance light and white light, which can realize full color day and night, full infrared and other modes
3,Support ONVIF Absolute
move
4. Support humanoid/vehicle tracking;
5. Support fixed-point tracking, cruise tracking, 360-degree horizontal scanning tracking, limit scanning tracking and other tracking modes
6. Support limited time tracking/continuous tracking mode adjustable and support adjustable tracking speed
7. Support 2 groups of cruises, each group of cruises supports a maximum of 64 preset positions. And supports the cruise point stay time and cruise speed adjustable.
8. Supports regular functions such as guard position, 360-degree horizontal scanning, limit scanning, and idle action. And supports adjustable dwell time and rotation speed
9, IP66 waterproof grade.
Tracking function:
Support for fixed-point tracking:
1. Before starting the tracking, the user can set a starting tracking position, we define this position as the 88th preset position (HOME
position). When tracking is turned on, the camera will automatically rotate to this position and then wait for tracking. When a person or car is detected, the camera automatically starts tracking. After the tracking is over, the camera will automatically return to this position to wait for the next tracking.
2. The camera supports adjusting the rotation speed of the tracking.
If the tracking speed is too fast or too slow, the user can use the programming function to set the tracking speed according to the actual
application scenario.
3. Support tracking time setting
Users can set each tracking time of the camera according to actual needs.
a: The user can set the tracking time length for each tracking as: 15-60 seconds. After the tracking duration is reached, the camera will discard the tracking target and automatically return to the initial position to wait for the next tracking.
b: User can also perform continuous tracking mode for each tracking. When the camera detects a person or car, as long as the tracking target does not disappear, the camera will keep tracking the target.
Cruise tracking: the user can set some preset positions, up to 64 preset positions are supported
The camera supports cruising between multiple preset positions. When the camera finds the tracking target, it will automatically start the tracking function (tracking speed and tracking time are the same as fixed-point tracking). When tracking the target for hours, the camera automatically resumes cruising.

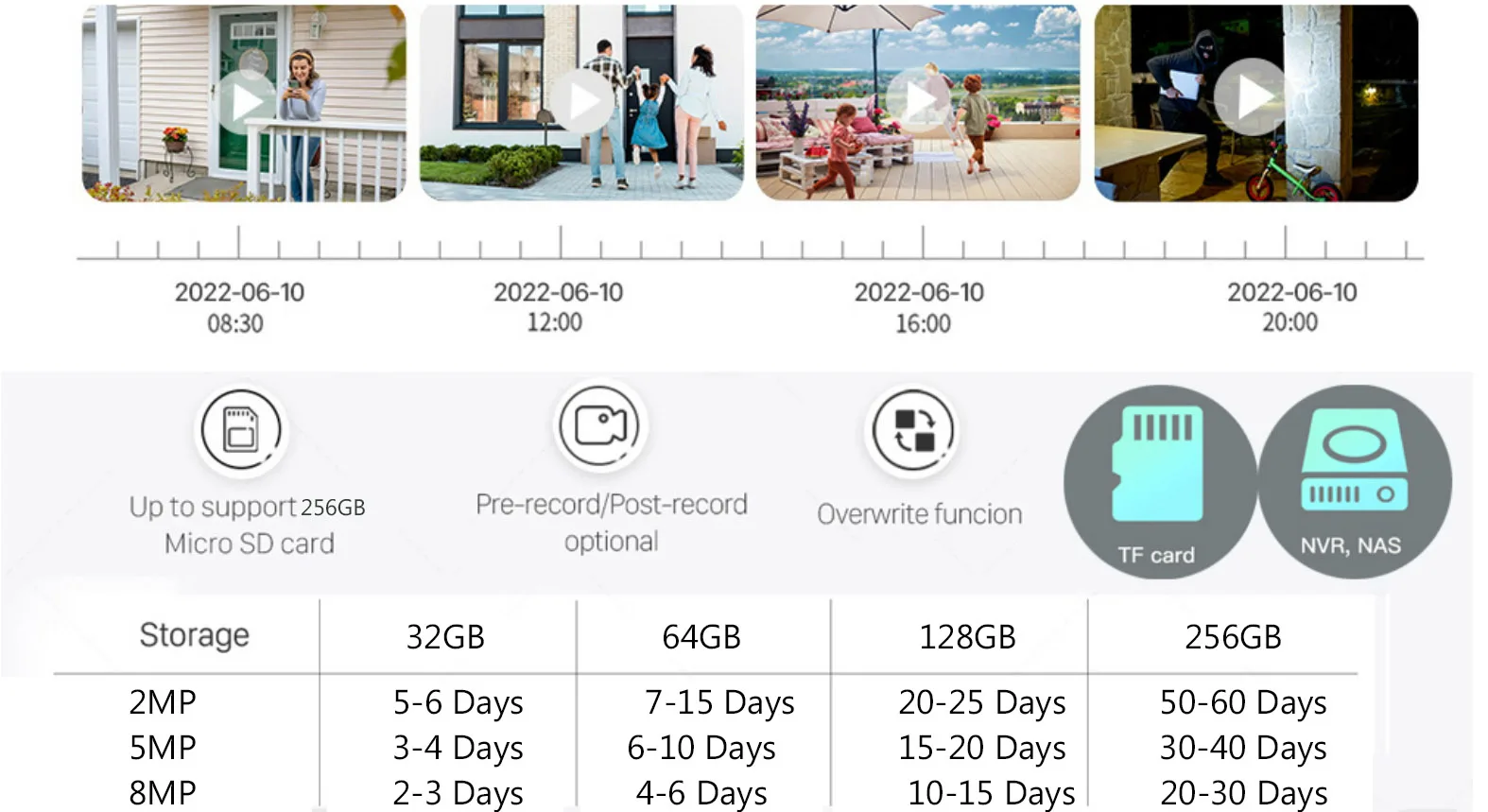

Support SD card storage:Max support 256GB
Camera technical parameters:
Item | 4K parameterP02M800GLP4T2-300 |
Coding chip | Mstar 339 |
Sensor | SONY IMX415 |
LENS | 30X ZOOM LESN,3.3-97mm+10X digital ZOOM |
IR LED | 1:8x IR LED for 2:4x White LED for 50 meters Color Night version |
Illumination | Color:0LUX,Black:0LUX |
Resolution | Main Substream:720x480,VGA,640x360,480x360,CIF Can be set Third stream:1080P,720P,CIF can be set |
Frame rate | 4K,30fps.5MP,4MP,3MP 30fps. And support 1080P,720P 60fps |
Video encode | H.265,H.265+,H.264.Third stream: H.265,H.265+,H.264 and MJPEG,Record encode:MP4 |
Audio engcode | G.711,G711A,Sample Rate:8000-16000.Bitrate :64000.AAC ,Sample Rate: 16000.Bitrate :16000 |
Image adjustment | Support Brightness,Contrast,Saturation,sharpness,blc,hlc,2D NR,3D NR,Power Frequency,Forced |
WDR | Support WDR,HDR |
IR CUT setting | Support |
Light ON/OFF sensitivity | 0-100 can be set |
Light on illumination | Support 0.001Lux to |
Image mode | Support Normal,Forced |
OSD | Support |
IP address | Support static and DHCP,and Support MAC address modification |
Network protocol | Support ONVIF and Onvif Absolute move,RTSP,RTMP,Hikvision and Dahua protocol Support FTP,SMTP(EMAIL) |
AI | Support Motion detect,Human,car,motorcycle and bicycle detect |
Alarm | Support AI alarm,Video cover alarm. |
Local Storage | Support Max 256GB SD card ,NFS, PC software |
Users Manage | Support add and modify user and password And Support authority |
Reliability | Lightning protection design of motherboard, in line with international standard IEC61000-4-5 |
P2P connection | Support mobile APP and P2P PC APP |
Speed dome Features | |
P/T Speed ONVIF | Rotation speed: 0.1° to 60°/S ONVIF Absolute move |
Horizontal rotation angle: | 360°infinite rotation |
Vertical rotation angle: | 95°rotation |
Cruise | Support 1-48 preset position Cruise |
Home Position | Support |
Tracking | Supprot Humanoid and Car Tracking and the speed and time can be customized |
Tracking mode | Support Fixed position and Cruise Tracking and the speed and time can be customized |
Tracking time | The tracking time can not be customized each time, and it also supports continuous tracking (the target does not disappear, and the tracking does not stop) |
Tracking Home position | It can be customeized to any position |
area scan | Support,and Support speed and time can be customized |
360° horizontal scan | Support,and Support speed can be customized |
Lighting Control | PWM |
Power | Support DC12V/2A Or POE connection |
Weight | 2.3KG |

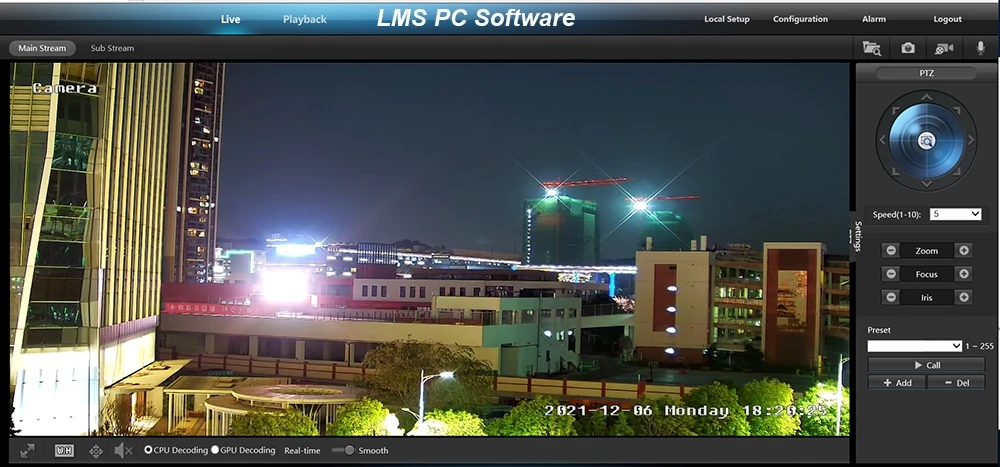

Browser interface preview

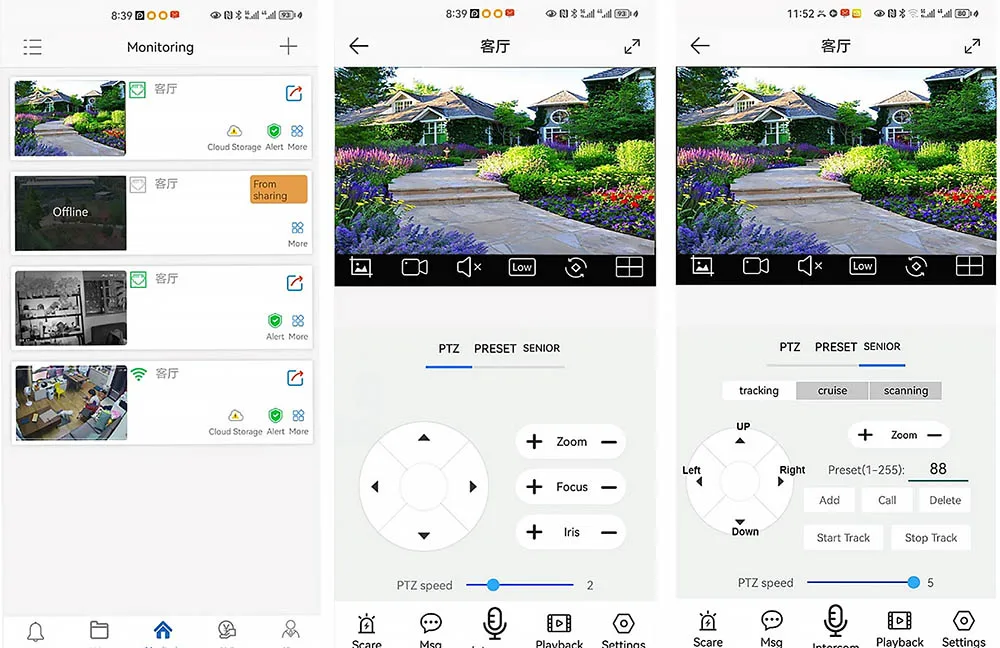

Mobile APP:Videolink

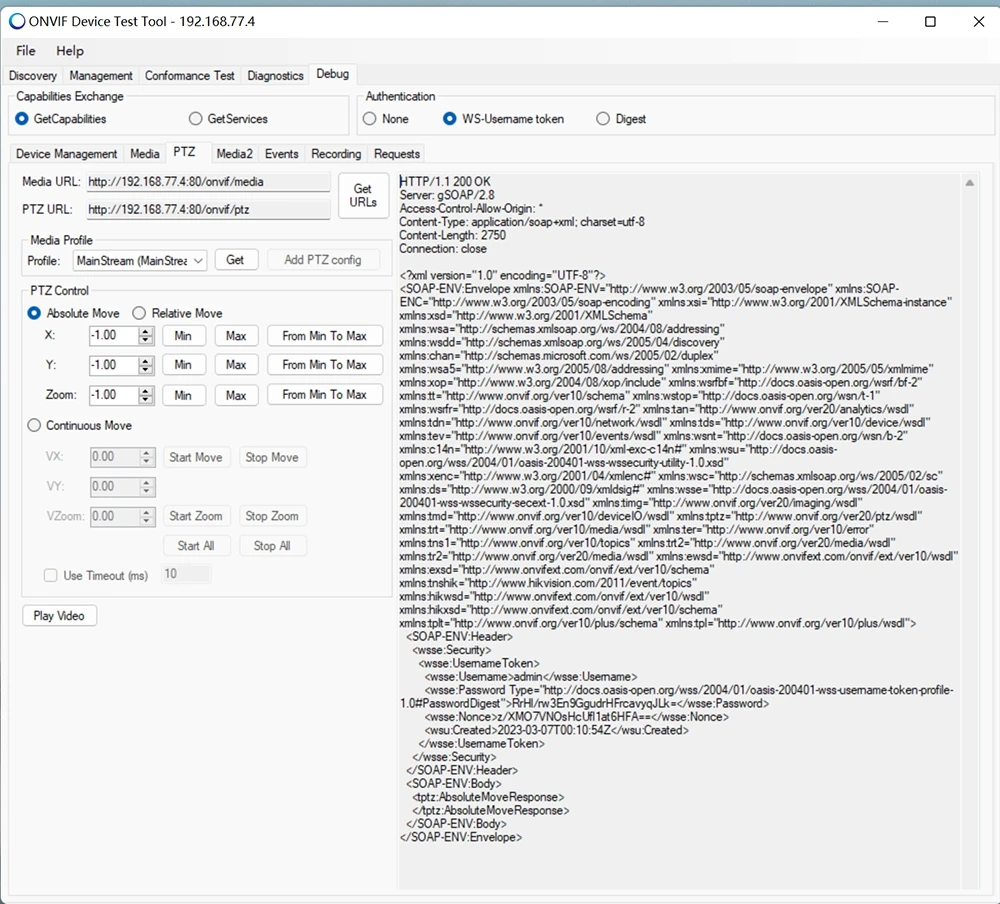

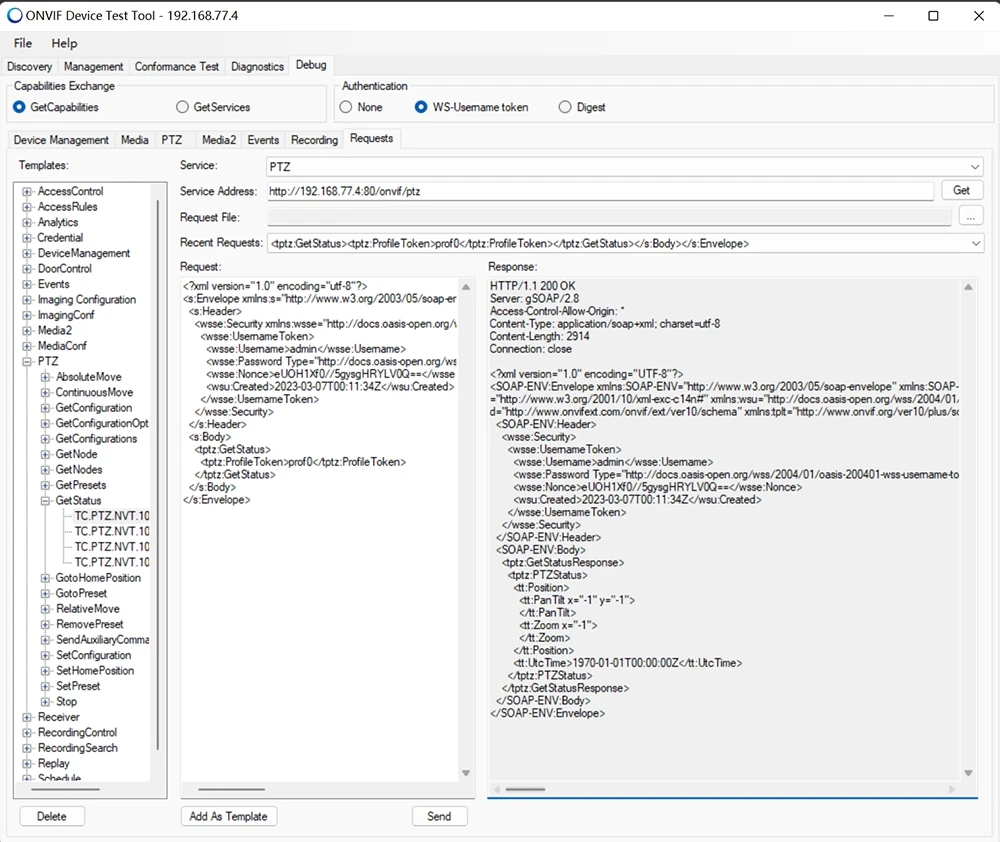

Onvif Absolute move
CGI snapshot URL
Main-stream snapshot URLhttp://IP/snapshot.cgi?stream=1&username=admin&password=123456
Sub-stream snapshot URLhttp://IP/snapshot.cgi?stream=0&username=admin&password=123456
About RTSP:
The RTSP URL format for AJ series cameras is as follows (assuming the IPC IP is 192.168.0.123):
Main stream: rtsp://admin:123456@192.168.0.123/stream0
Substream: rtsp://admin:123456@192.168.0.123/stream1
For the RTSP URL above, if audio is enabled, the stream will contain both video and audio.
If you only need video or audio data, use the following URL:
Main stream pure video: rtsp://admin:123456@192.168.0.123/video1
Substream pure video: rtsp://admin:123456@192.168.0.123/video2
Audio only: rtsp://admin:123456@192.168.0.123/audio
Package list:
1x 4K 300X ZOOM POE PTZ IP Camera
1x DC12V 3A power adapter
1x cable
1x Manual
