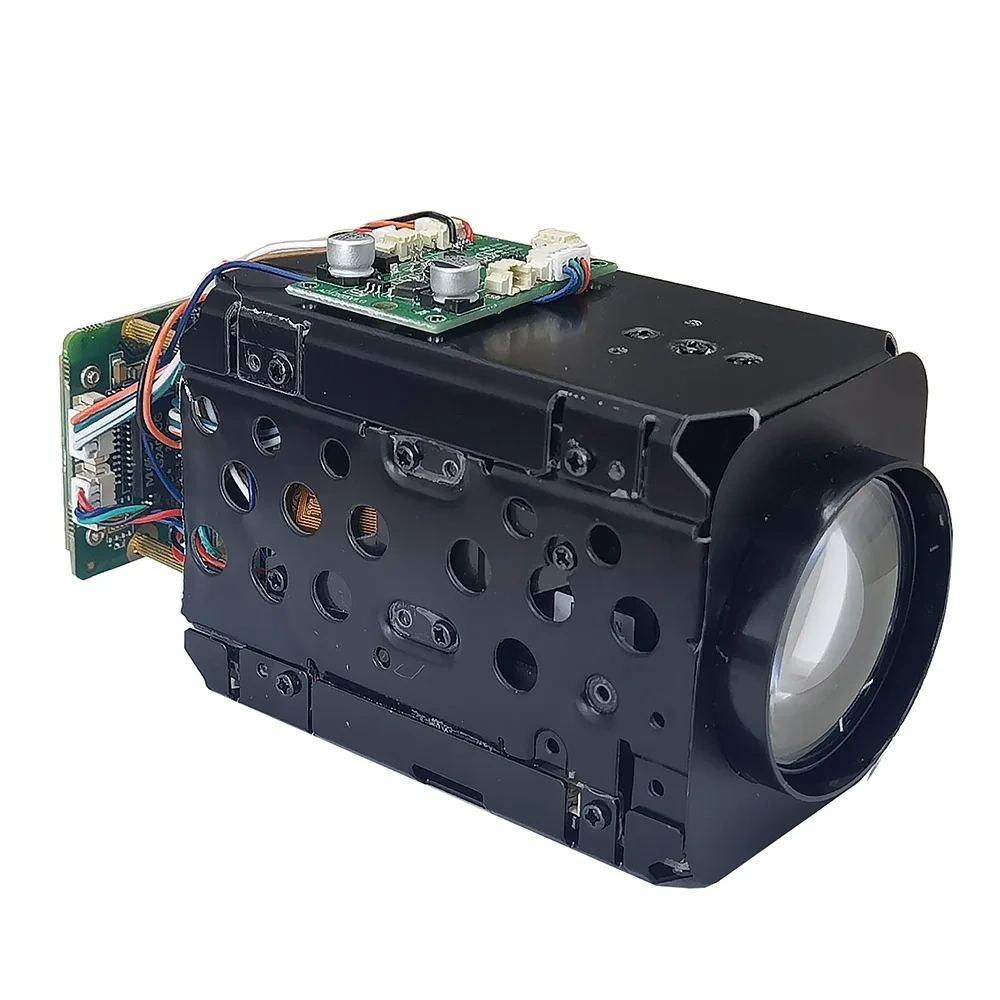

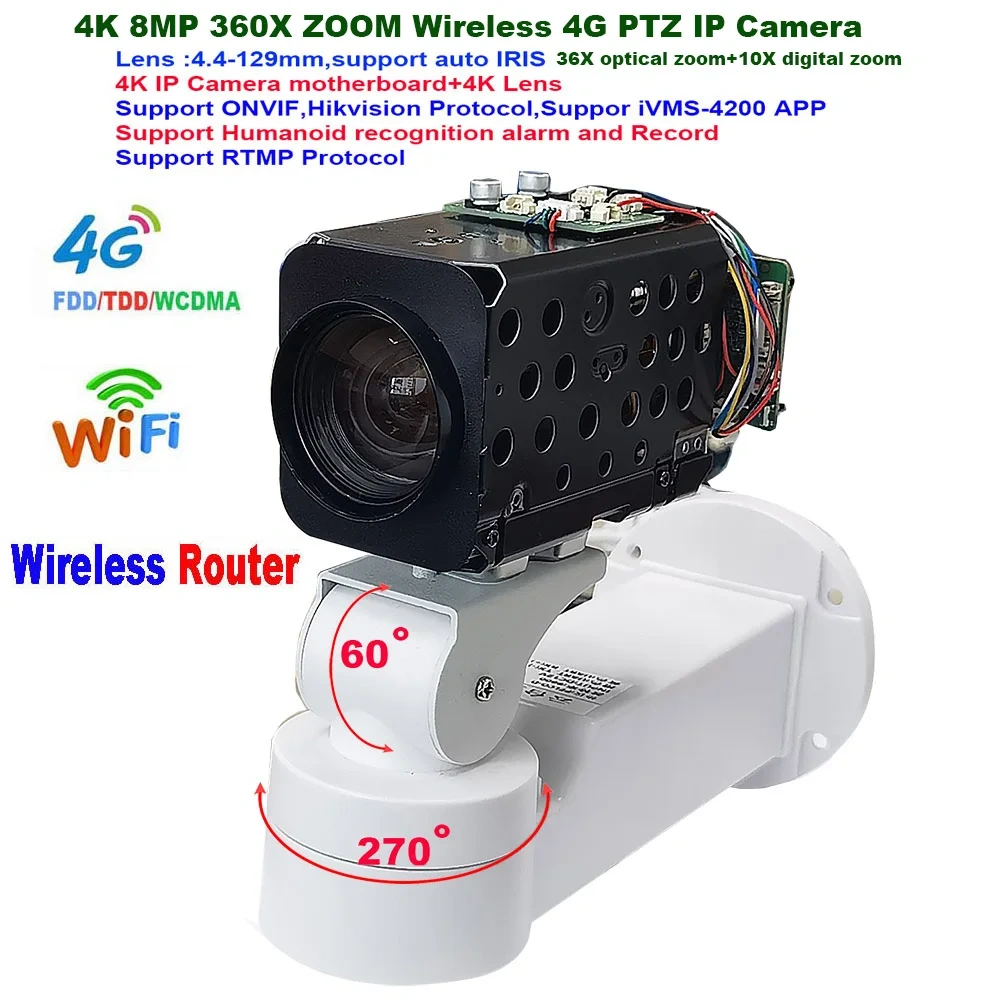

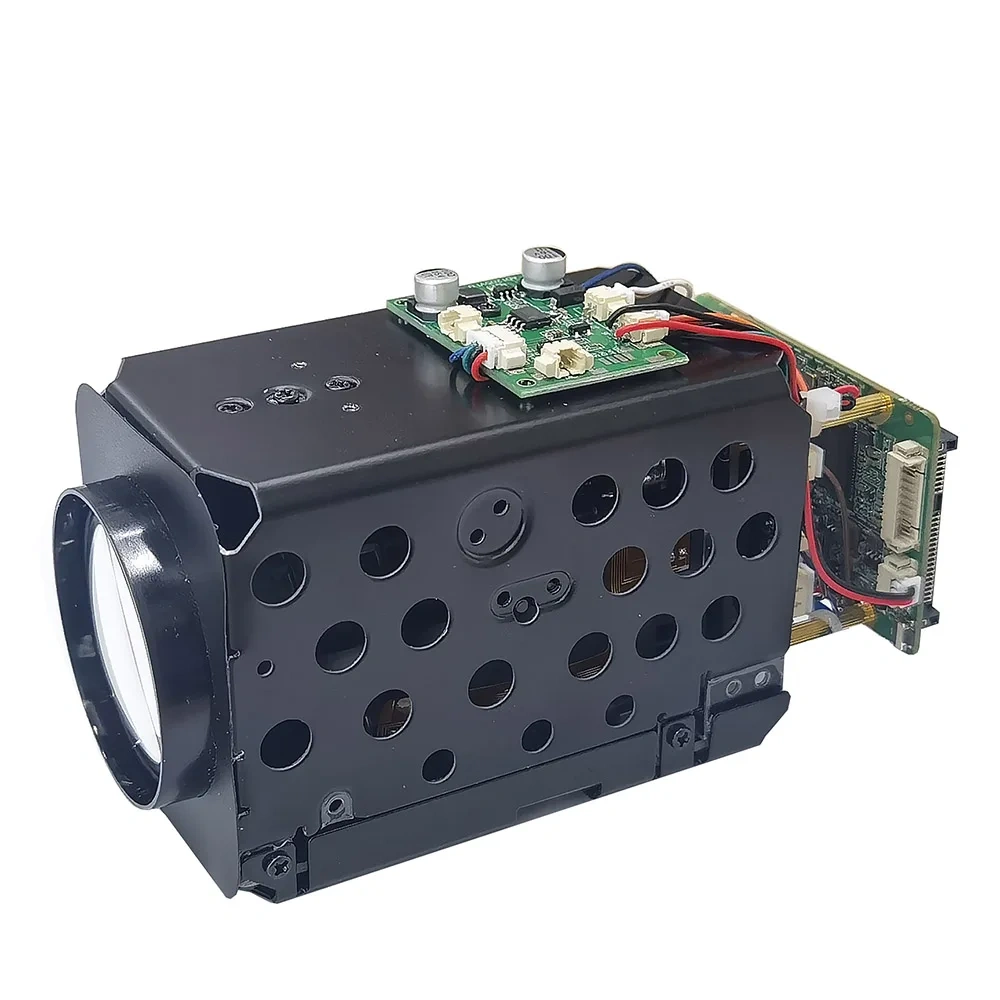

4K 8MP 4G PTZ IP Camera adopts highly integrated MSTAR338Q+IMX415 processor, extremely low power consumption and strong stability; supports H.265 compression algorithm to ensure image quality while effectively reducing network bandwidth occupation; powerful network function, support standard Support Hikvision protocol, and compatible with iVMS-4200, support RTSP, RTMP and other protocols, support alarm picture upload FTP server, alarm picture to E-Mail, support mobile phone remote monitoring;
About the protocol specification of the camera sent to the external MCU to control the lighting

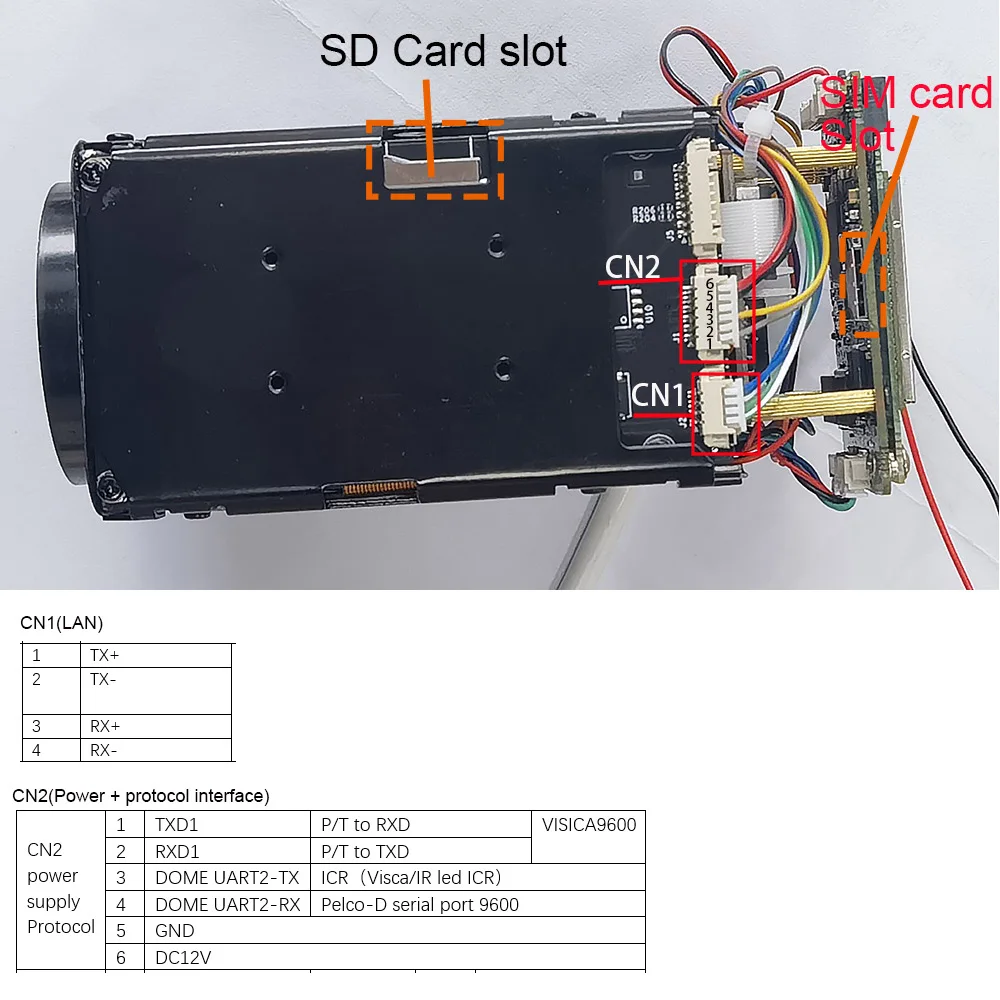

Data is sent through CN2: TXD1 UART1 (Pleco-d, 9600)
IRCUT status0: color, 1:B/W
IRCUT model0Automatic control mode (day and night determined by SENSOR)
1Day and night mode, control according to the time period
2External control mode (this mode is the traditional camera control mode, the MCU sends the VISCA command to control the camera IRCUT mode, in this mode, the camera
will not send the command to the MCU)
3Manual control mode
Light control PWM:
IR LED PWM: Infrared LED power 0-100 decimal, 0: close infrared LED, 100 maximum infrared LED brightness
White LED PWM: White LED power 0-100, decimal, 0 closes white LED, 100 maximum white LED brightness
For example:
IRCUT Auto Mode (Daytime):FF 01 83 01 00 00 11 00 96
IRCUT Auto Mode (Night - Pure Infrared) :FF 01 83 01 01 00 C6 00 4C
IRCUT automatic mode (pure white light at night):FF 01 83 01 00 00 E5 00 6A
IRCUT Auto Mode (Dual Light Night Infrared) :FF 01 83 01 01 00 ED 00 73
IRCUT automatic mode (dual light night white light) :FF 01 83 01 00 00 19 00 9E
Manual mode (daytime) :FF 01 83 01 00 03 07 00 8F
Manual mode (pure infrared at night):FF 01 83 01 01 03 EC 00 75
Model:JM800SG4-30X-360-PT | |
Operating system | embedded LINUX |
Main processor |
|
Image Sensor | SONY IMX415 1/2.8" Ultra Low Illumination CMOS Sensor |
Day and night mode | Support |
Compression standard | |
Compression standard | Video compression algorithm supports H.265, H.264 High Profile, H.264 Main Profile and H.264 Baseline |
Audio compression algorithm | G.726/G.711 |
Compressed transport stream | 512Kbps-12288bps, can be customized, |
Images | |
Maximum image size | 8MP (3840*2160) |
Sharpness
| First stream:4K 8MP (3840*2160),3072*17282592*19442560*14402304*12961080P,720P
|
Second stream720*480VGA,640*360,480*360,CIF | |
Video frame rate | 8mp 20fps,3072*17282592*19442560*14402304*12961080P,720P 30fps |
Character overlay | Support OSD name,time and date information overlay |
Image settings | Brightness, contrast, saturation, exposure, up and down reverse, left and right mirroring adjustable |
Network Function | |
Storage function | Supports up to 256G Micro SD card storage and supports scheduled video storage |
Motion detection | Four independent detection areas can be set (sensitivity 1-100 can be set) |
Alarm linkage | alarm sends the picture to the specified mailbox; the alarm uploads the picture and the video is uploaded to the FTP server; |
Network Protocol | Supports TCP/IP, HTTP, TCP, ICMP, UDP, ARP, IGMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPNP, RTSPRTMP. |
Access Protocol | Supports ONVIF 2.4 Protocol |
Interface | |

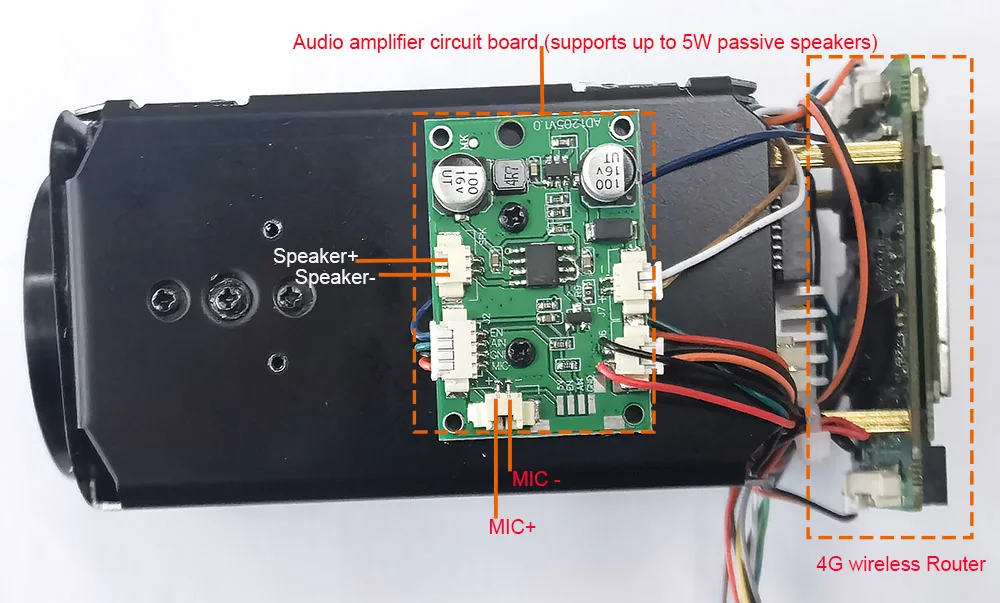

Audio input | support External MIC |
Audio output | External speaker |
LAN interface | RJ45 10Base-T/100Base-TX, |
IR night distance | support |
LEN | 360x zoom, 36x Optical zoom 4.4-129mm and 10x digital zoom |
waterproof level | indoor |
WIFI | 4G Router wifi |
Working temperature | -40 to +85 Celsius |
power | DC12V 1A |
Working Humidity | -10-95% |

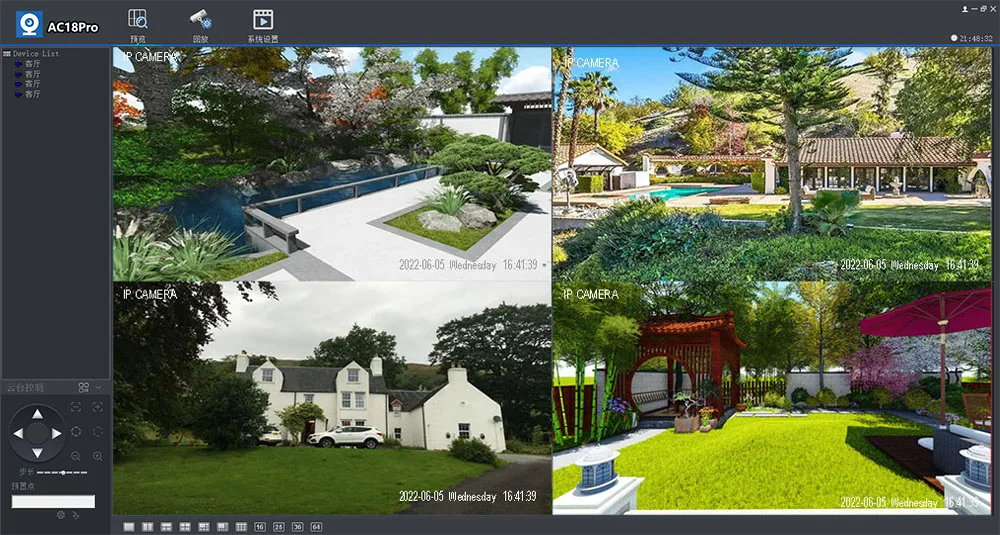

PC software:
PC Remote Connection Software:
Support Humanoid,car,Motorcycle,Bicycle identification and alarm

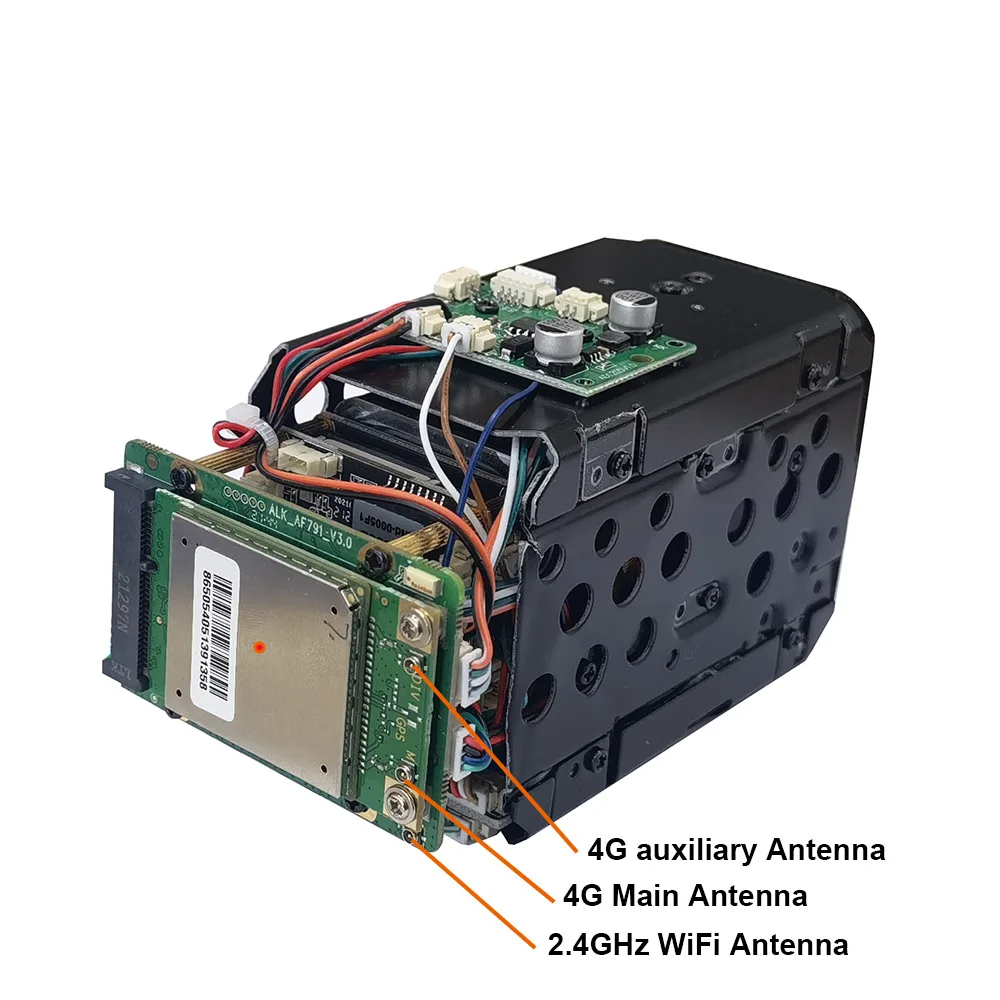

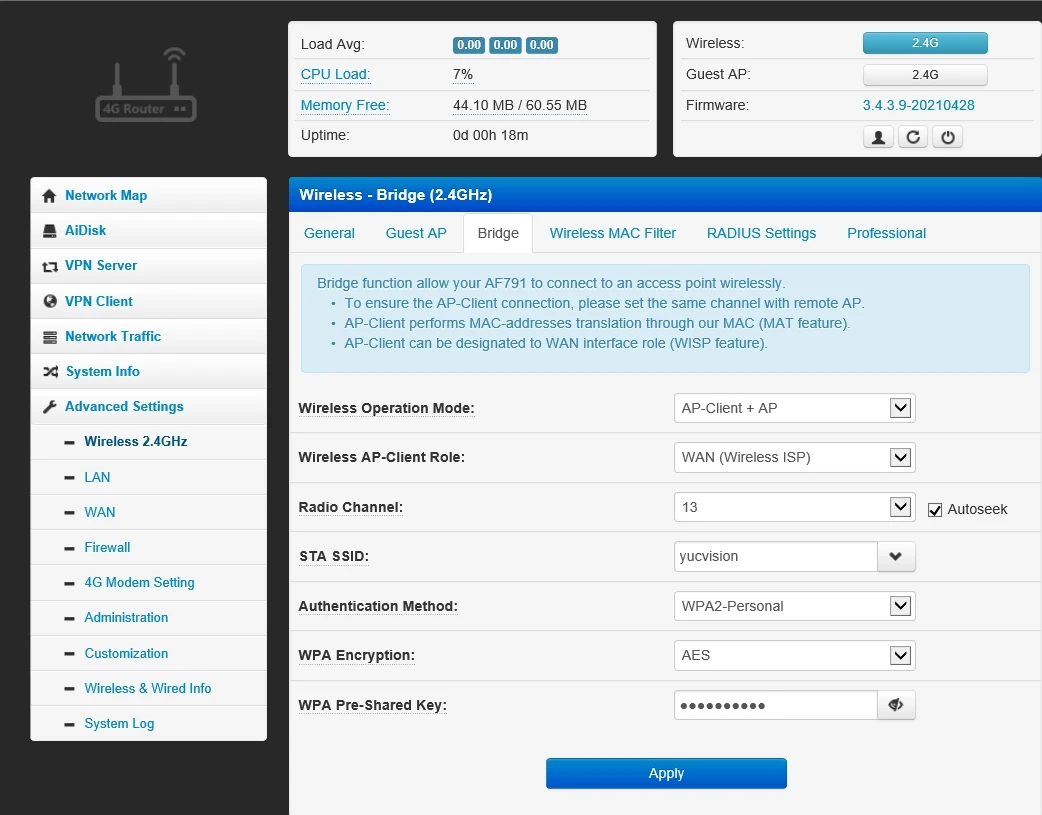

4G wireless wifi router:
Scan the QR code to download the manual and software.
Package list
1x 360x zoom 4K 4G IP Camera
1x PT bracket
1x 12V power adapter
1x connection cable
