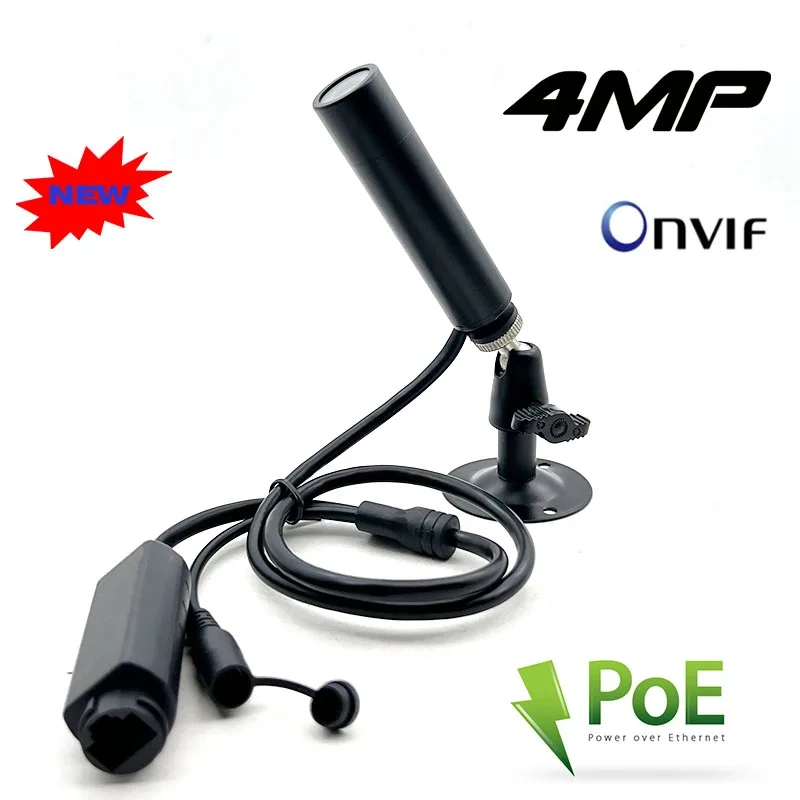

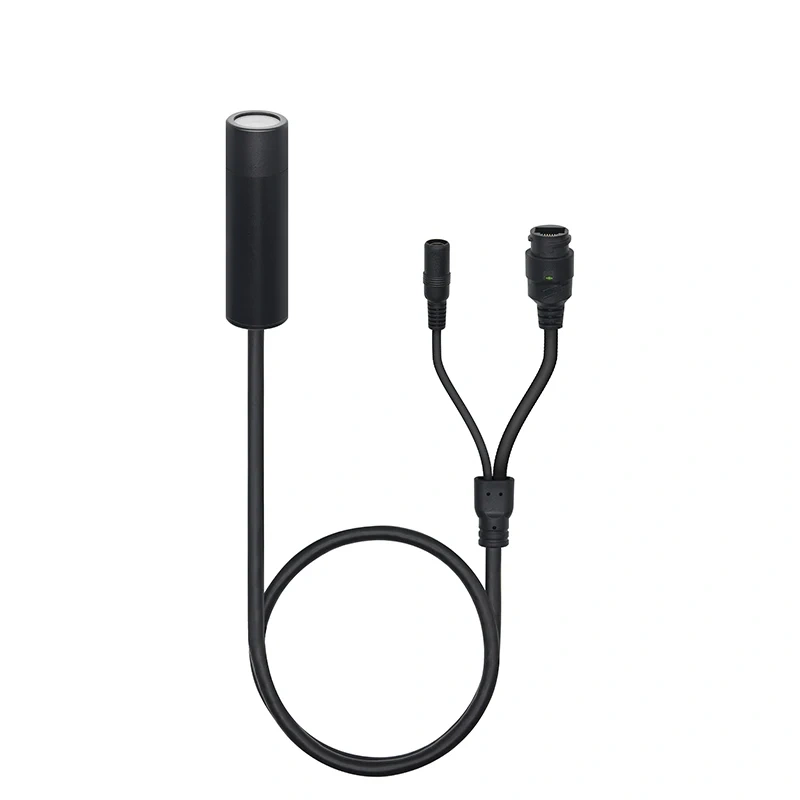

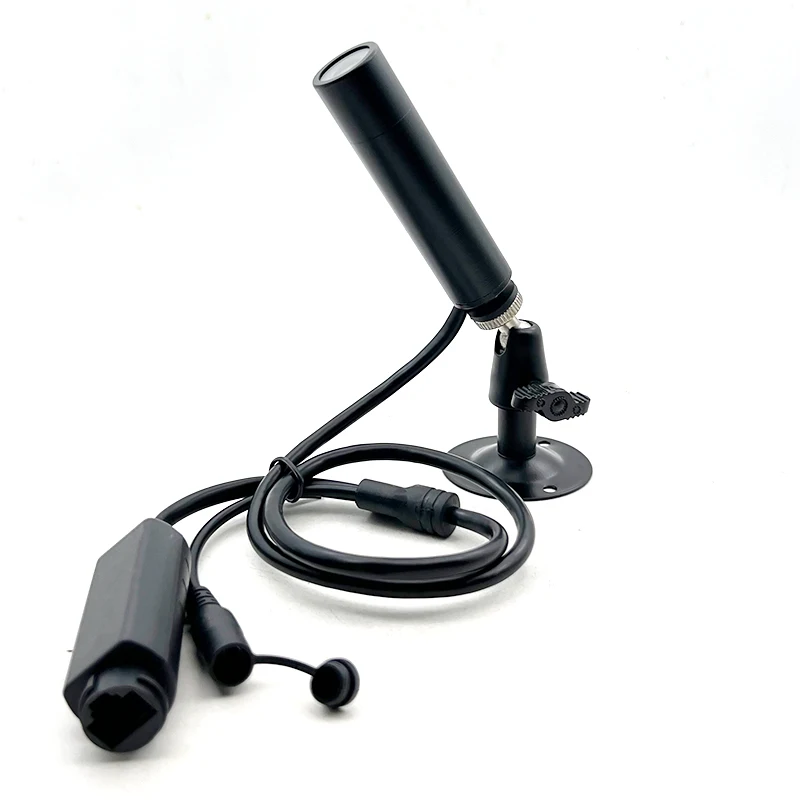

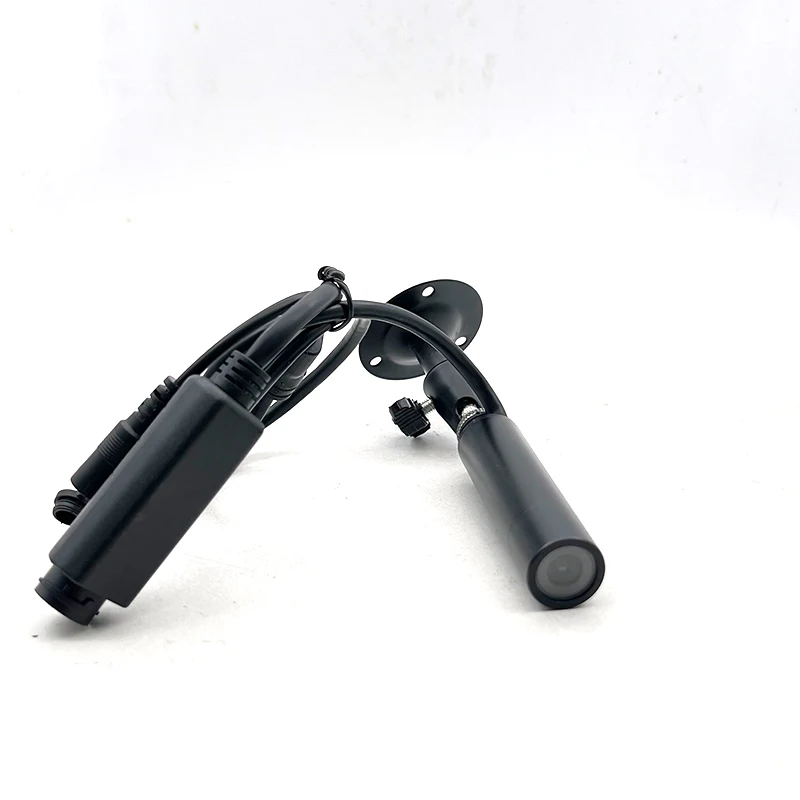

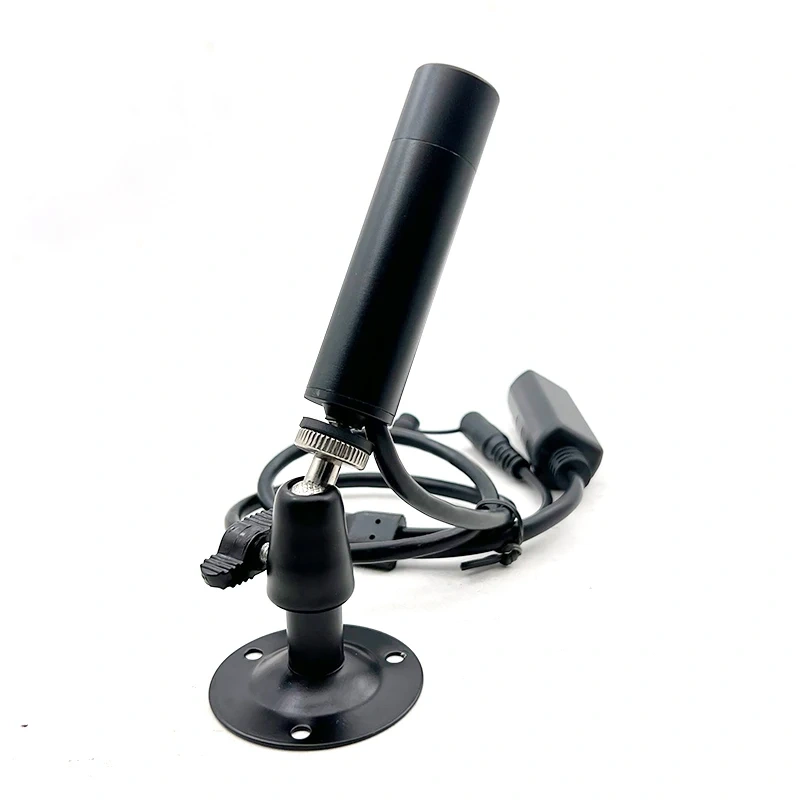

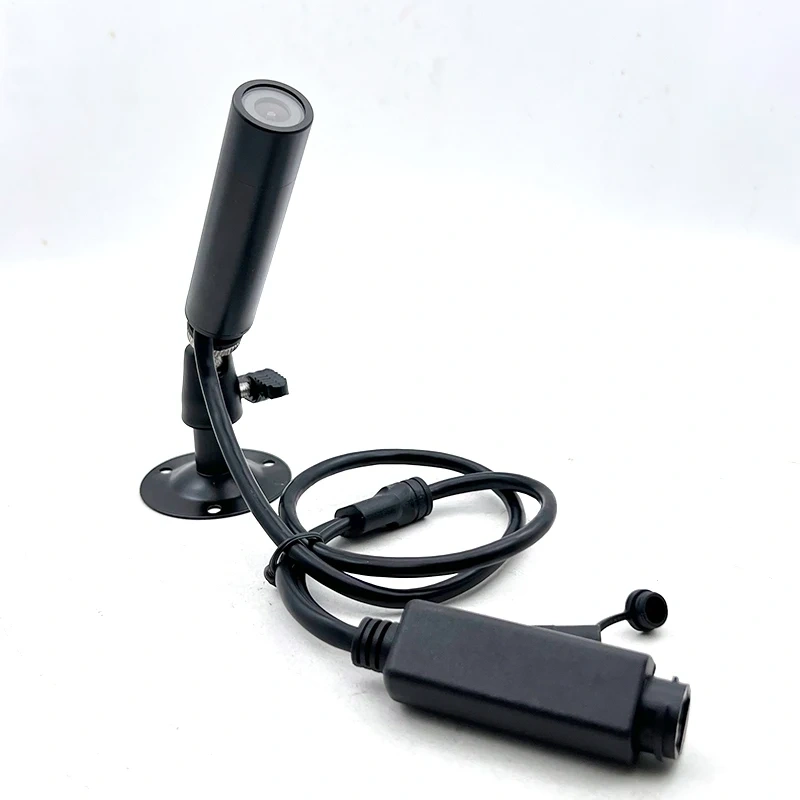

4MP 25Fps H.265 P2P Network Mini Bullet IP Camera POE Power Security Web Camera CCTV Surveillance RTSP FTP Xmeye P2P Onvif
Notice :
4MP 3MP 2MP H.265 H.264---camera is 4MP HD , video output only support H.264 /H.265 Formate
, fps:30fps ,not support audio . with onvif and rtsp
it fully competabile with hikvision nvr ,xmeye nvr ,dahua or other brand onvif nvr , onvif version is 2.6
Size:
Specification:

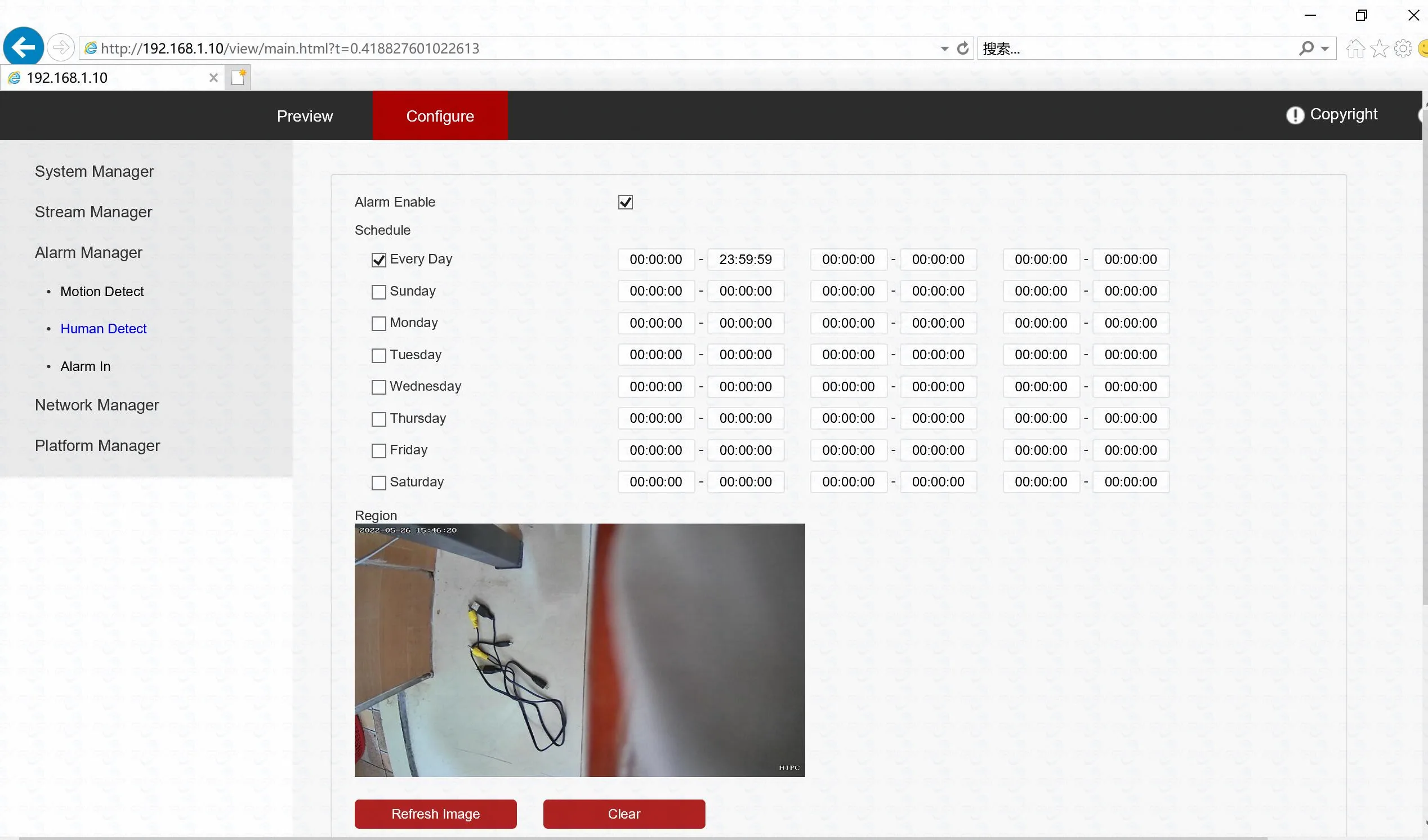

1/2.9" 4MP Low Lux CMOS sensor with Fullhan 2K DSP, single layer ; H.265+H.264 video coding, Support body detection & mark human frame,Main stream is 2560*1440,Sub stream is D1, Enabled with ONVIF protocol and NETCOM. With 0.5T Algorithm ,more accurate with human recognition. | ||||
Model No. | ||||
Hardware | ||||
Module | Fullhan 2K DSP+1/2.9"4MP CMOS | |||
LUX | Color 0.05Lux@F1.2; Black & White 0.005Lux@F1.2; | |||
S/N | ≥50db(AGC OFF) | |||
WDR | DWDR;＞80db | |||
Port | ||||
Audio Input | NA | |||
Audio Output | NA | |||
Light Type | NA | |||
IO Function | 1CH RESET | |||
Video Coding | ||||
Coding Format | H.265,H.264 | |||

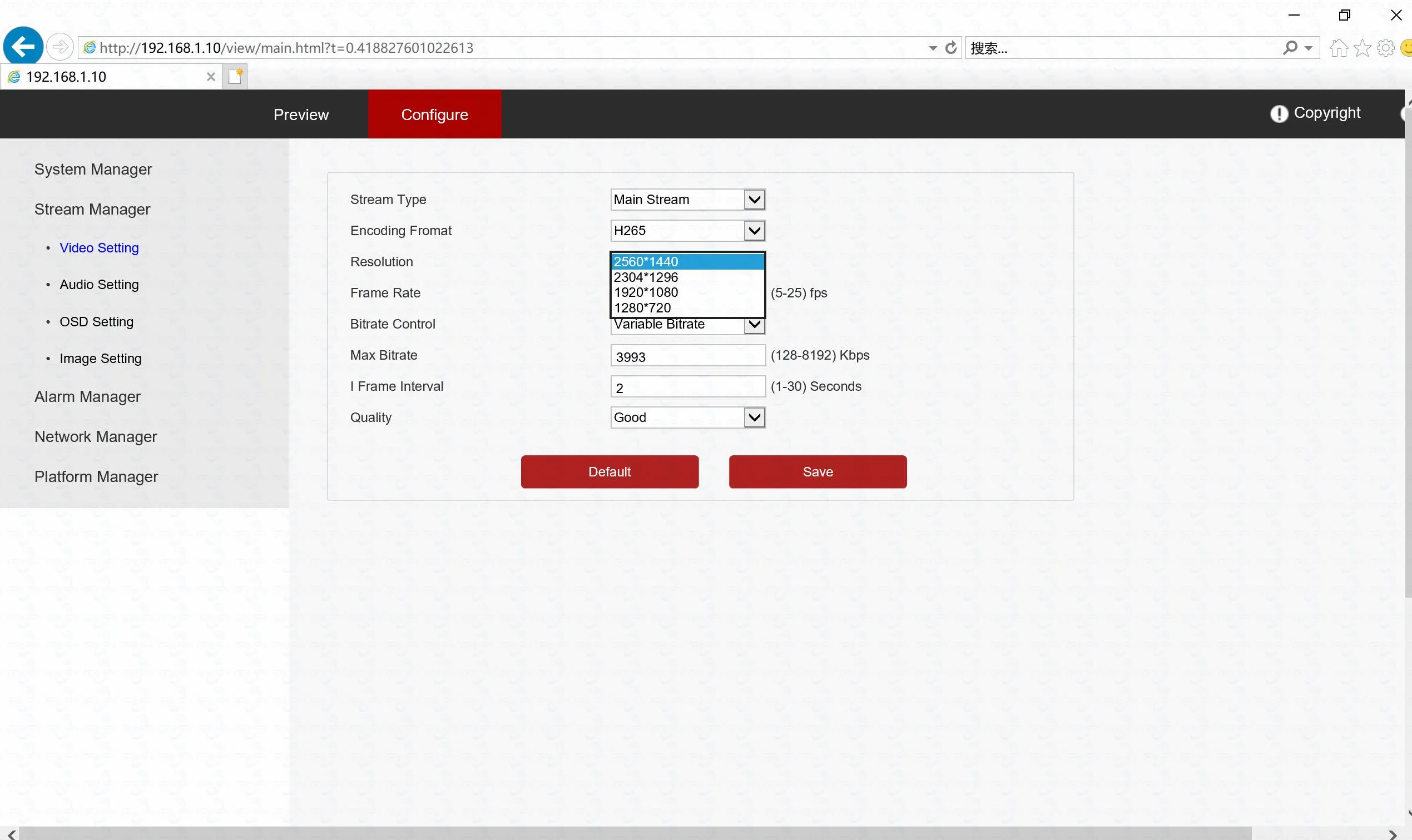

Resolution | Main Steam | 2560*1440,1-25fps/s | ||
2304*1296,1920*1080,1280*720,1-30fps/s | ||||
Sub steam | 704*576,640*480,640*360,352*288,1-30fps/s | |||
Video Coding Compression | 128Kbps-8192bps continuous adjustable | |||
Subtitle Overlay | Support Channel Name, Date & Time, Resolution & 4 lines characters adding | |||
Data Transmission &Storage | ||||
DataRecord | Video,picture | |||
Storage Method | Cycling Recording, Alarm Recording | |||
Alarm Transfer | IO output, browser, management software | |||

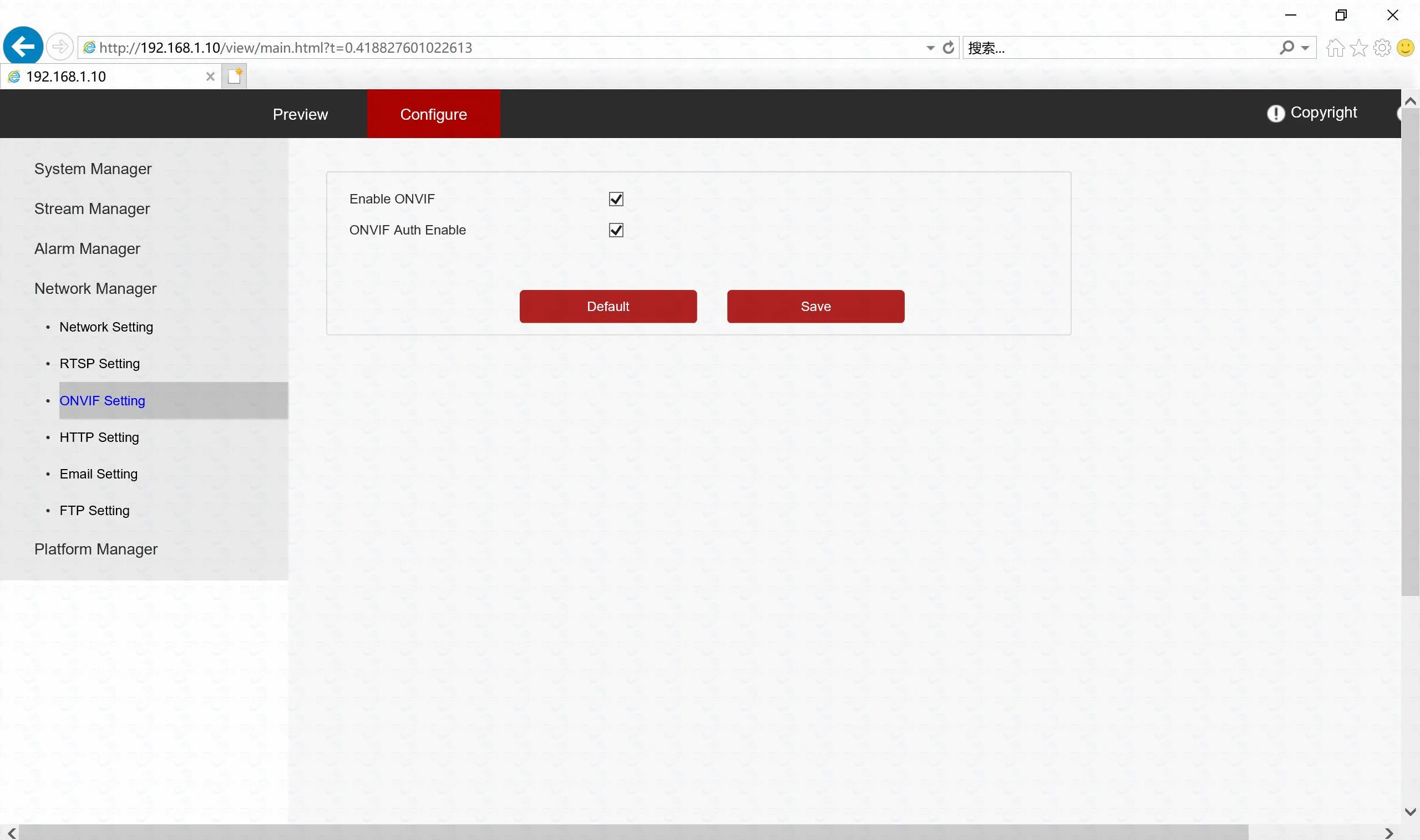

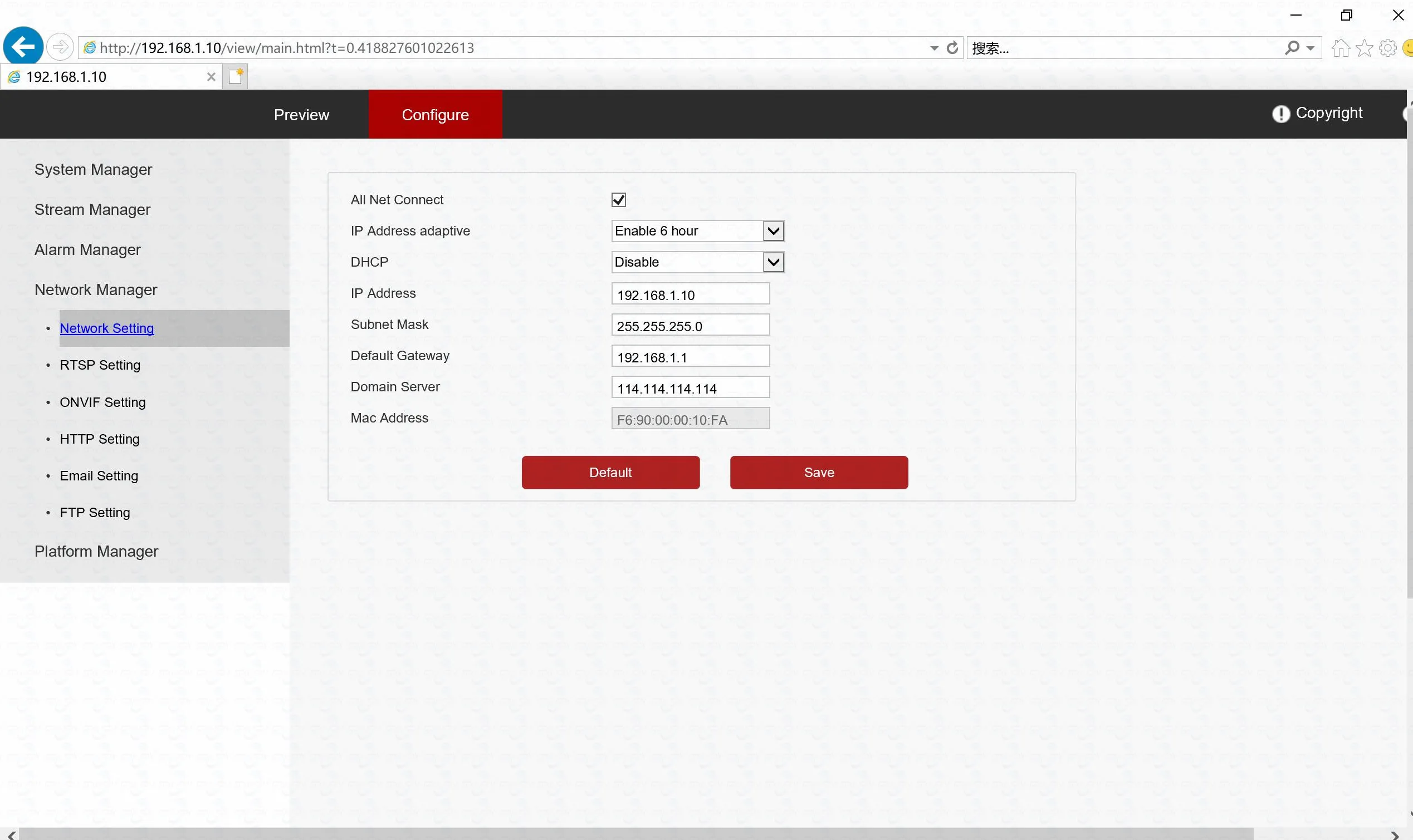

Protocol | ONVIF | |||

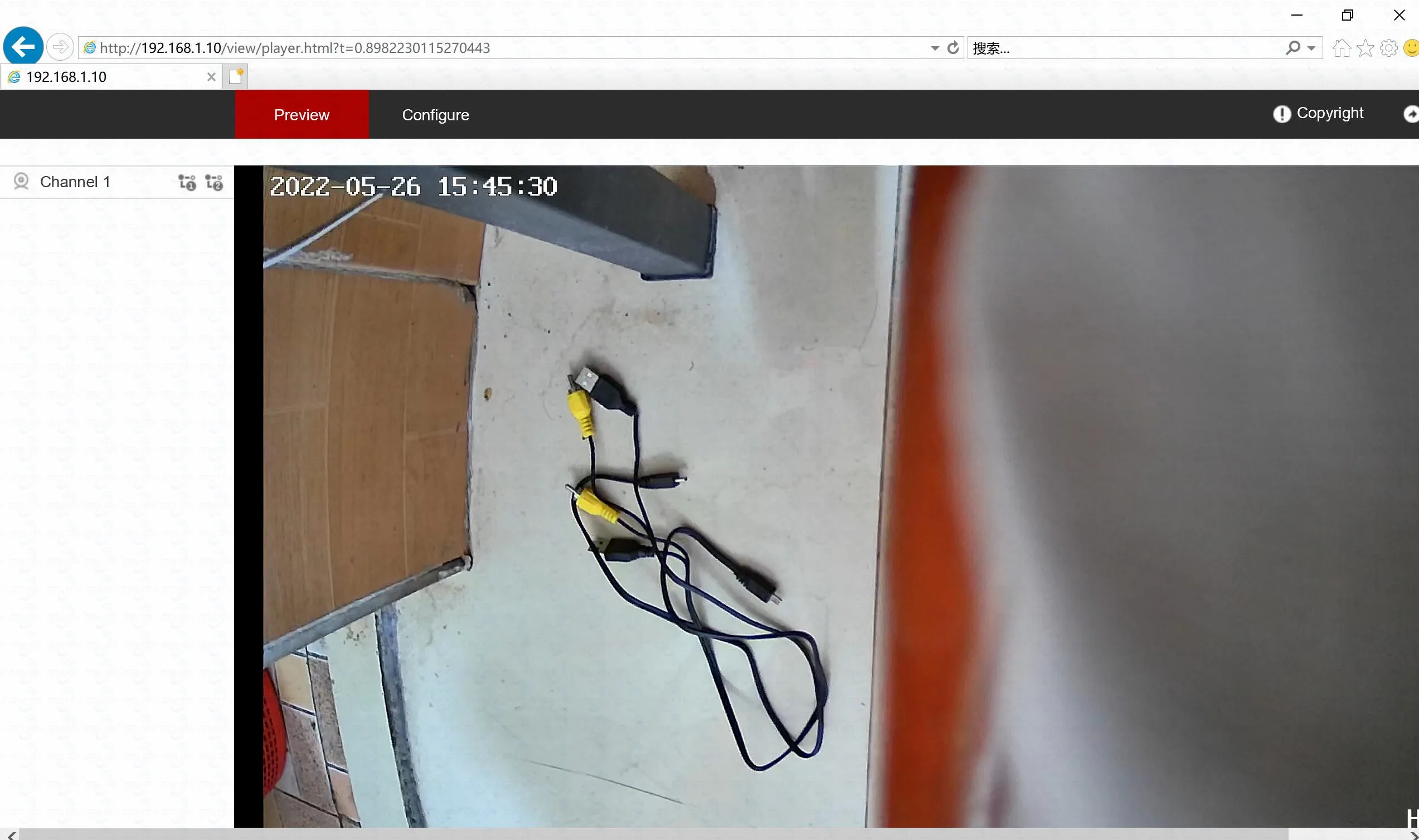

Browser | Support IE6.0 and above browser(insert Web Server) | |||
Mobile | Support IOS,Android Platform | |||
Comment Features | ||||
Temperature | -30℃ - +60℃ | |||
Humidity | 0% - 90% | |||
Power | DC12V / 110mA | |||
Consumption | 1.3W | |||
Dimension | / | |||
Weight | 10g | |||
Package contents:
1 x Camera
