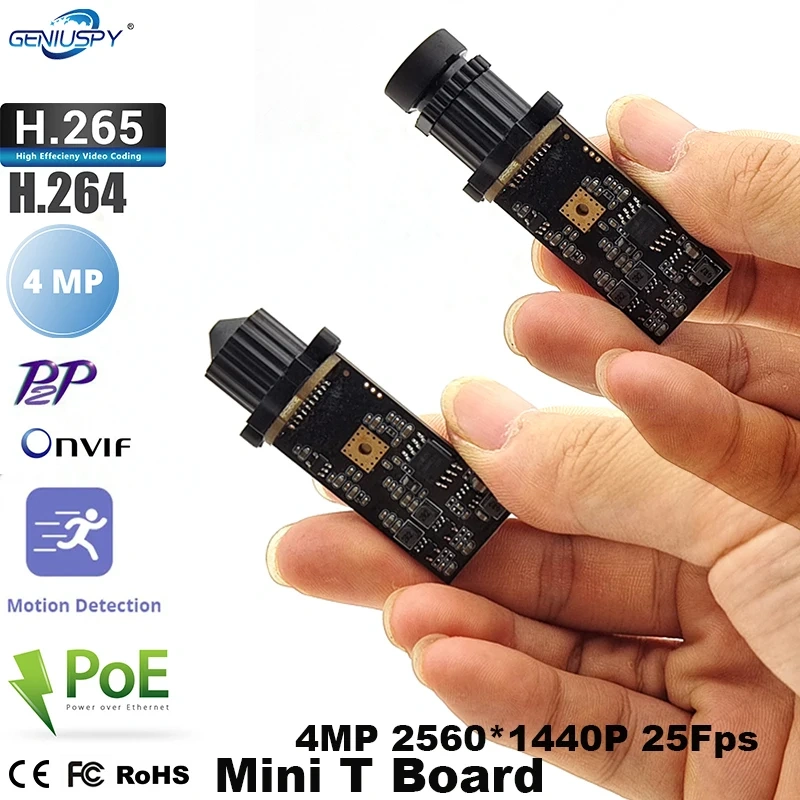

Name: 4MP T Board Bullet Mini IP Camera Module Pcb Security CCTV P2P RTSP On vif for Underwater Industry Pipeline Inspection1440P
Brand: Mini USB Camera Mini Camera IP Camera Camhi Camera Factory
SKU: 3256805617630932
Price: 24.90 USD
Availability: InStock

Description

4MP T Board Bullet Mini IP Camera Module Pcb Security CCTV P2P RTSP On vif for Underwater Industry Pipeline Inspection1440P

Notice :

4MP 3MP 2MP H.265 H.264---camera is 4MP HD , video output only support H.264 /H.265 Formate

with lens -board lens or pin ole lens optional , fps:30fps ,not support audio . with onvif and rtsp

it fully competabile with hikvision nvr ,xmeye nvr ,dahua or other brand onvif nvr , onvif version is 2.6

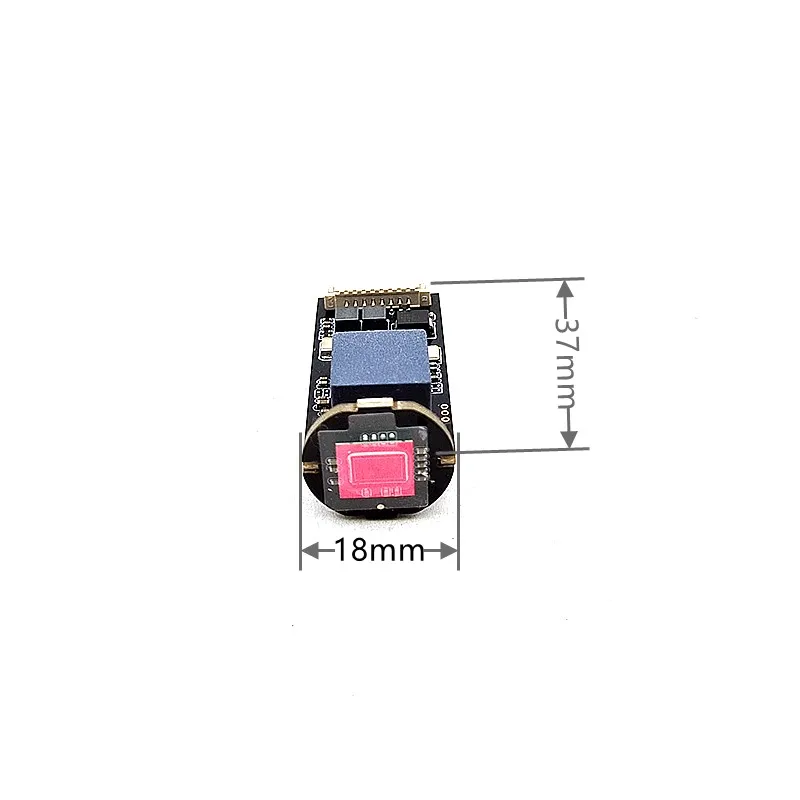

Size:

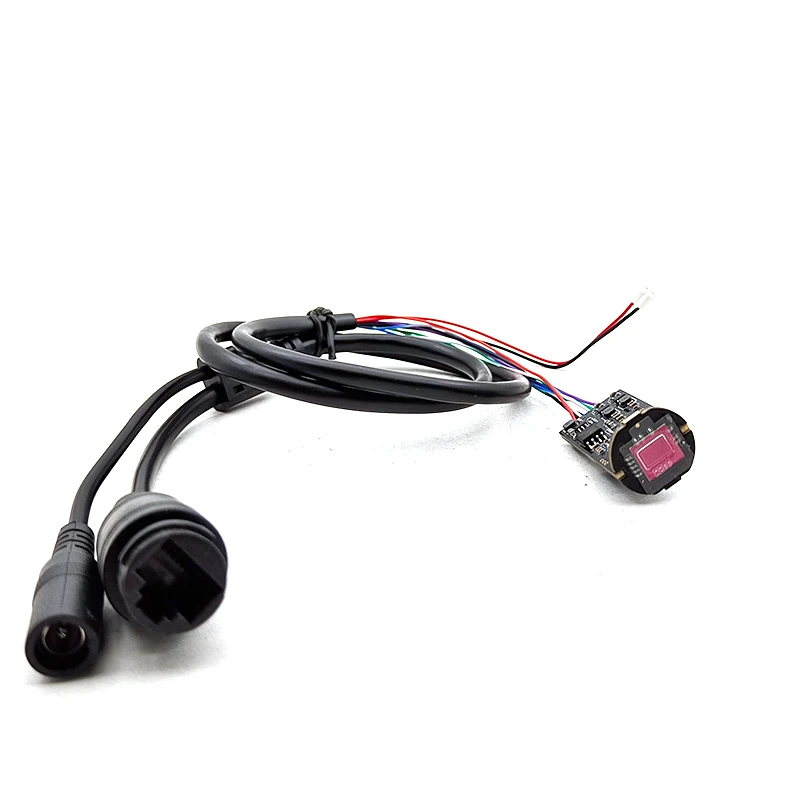

camera module without lens :

if you want buy camera module withut lens , pls click below pictures to another page !

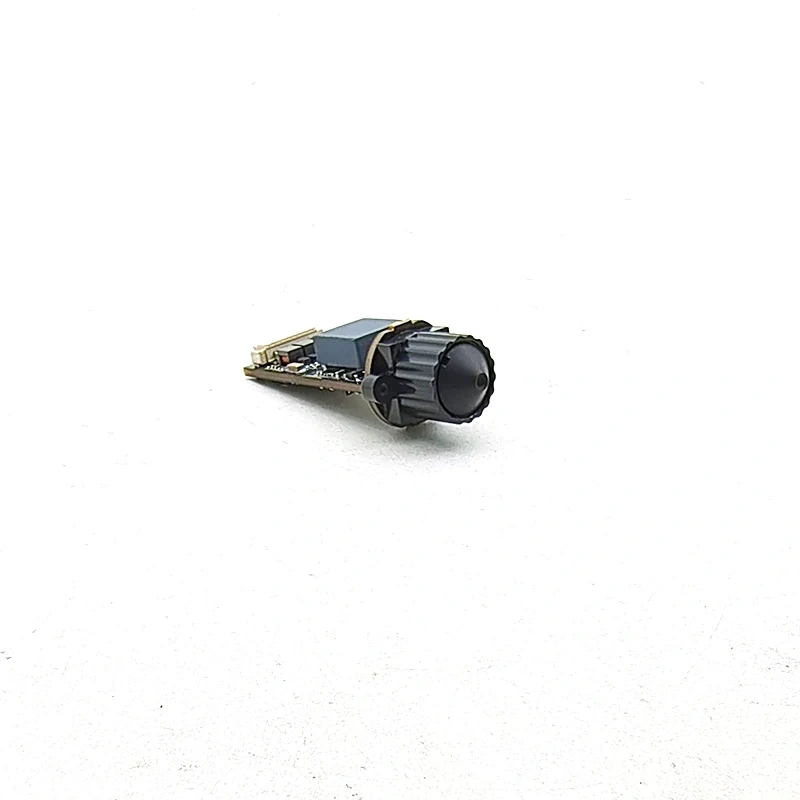

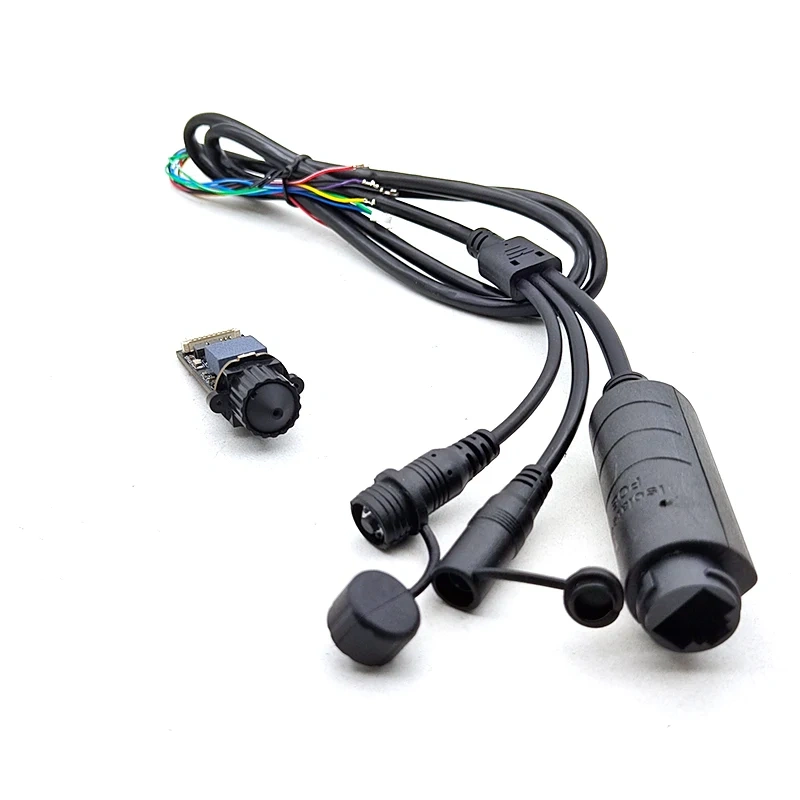

camera with pinhole lens

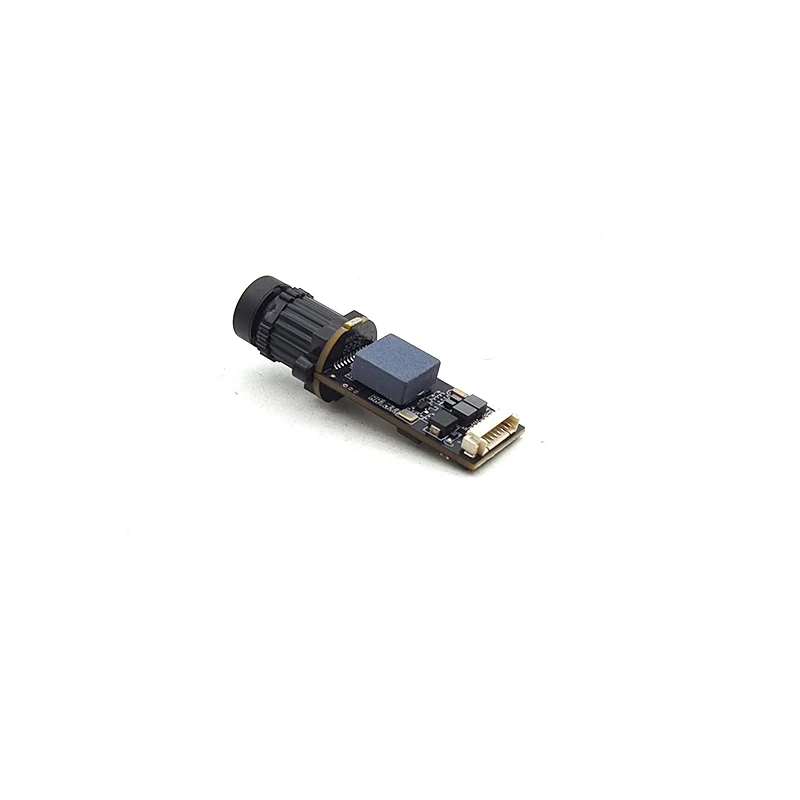

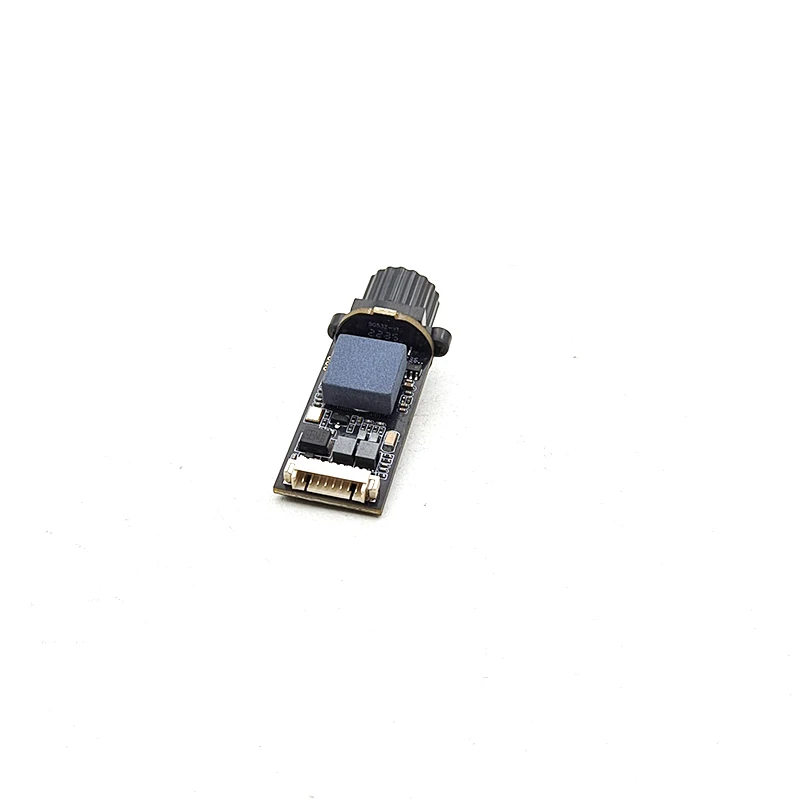

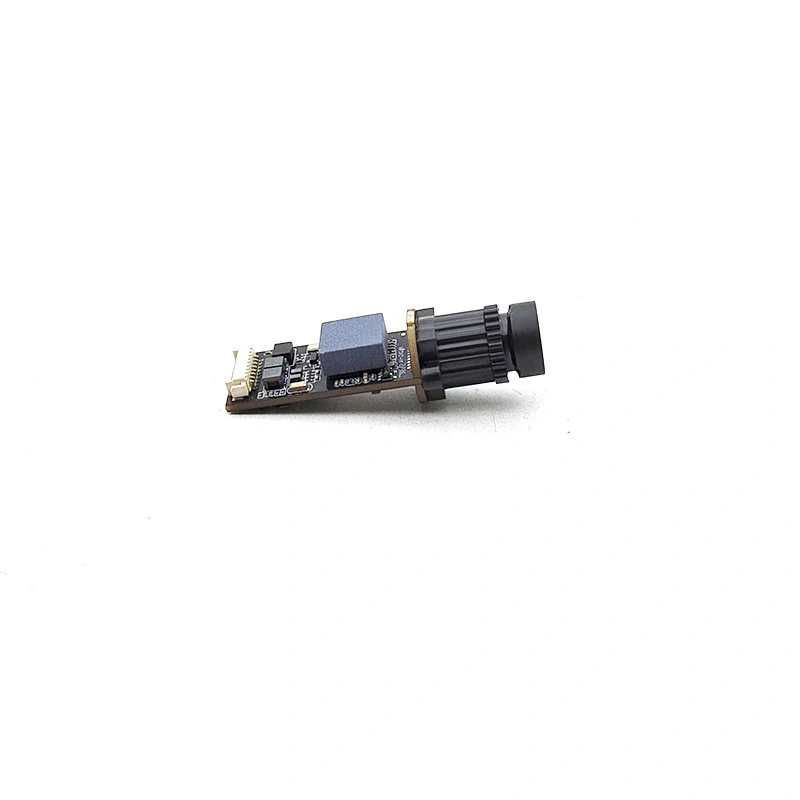

camera with board MTV lens
Specification:

1/2.9" 4MP Low Lux CMOS sensor with Fullhan 2K DSP, single layer with 37mmφ18mm; H.265+H.264 video coding, Support body detection & mark human frame,Main stream is 25601440,Sub stream is D1, Enabled with ONVIF protocol and NETCOM. With 0.5T Algorithm ,more accurate with human recognition.
Model No.
Hardware
Module		Fullhan 2K DSP+1/2.9"4MP CMOS
LUX		Color 0.05Lux@F1.2; Black & White 0.005Lux@F1.2;
S/N		≥50db(AGC OFF)
WDR		DWDR;＞80db
Port
Audio Input		NA
Audio Output		NA
Light Type		NA
IO Function		1CH RESET
Video Coding
Coding Format		H.265,H.264
Resolution	Main Steam	2560*1440,1-25fps/s
		23041296,19201080,1280*720,1-30fps/s
	Sub steam	704576,640480,640360,352288,1-30fps/s
Video Coding Compression		128Kbps-8192bps continuous adjustable
Subtitle Overlay		Support Channel Name, Date & Time, Resolution & 4 lines characters adding
Data Transmission &Storage
DataRecord		Video,picture
Storage Method		Cycling Recording, Alarm Recording
Alarm Transfer		IO output, browser, management software
Protocol		ONVIF
Browser		Support IE6.0 and above browser(insert Web Server)
Mobile		Support IOS,Android Platform
Comment Features
Temperature		-30℃ - +60℃
Humidity		0% - 90%
Power		DC12V / 110mA
Consumption		1.3W
Dimension		37*18mm
Weight		10g

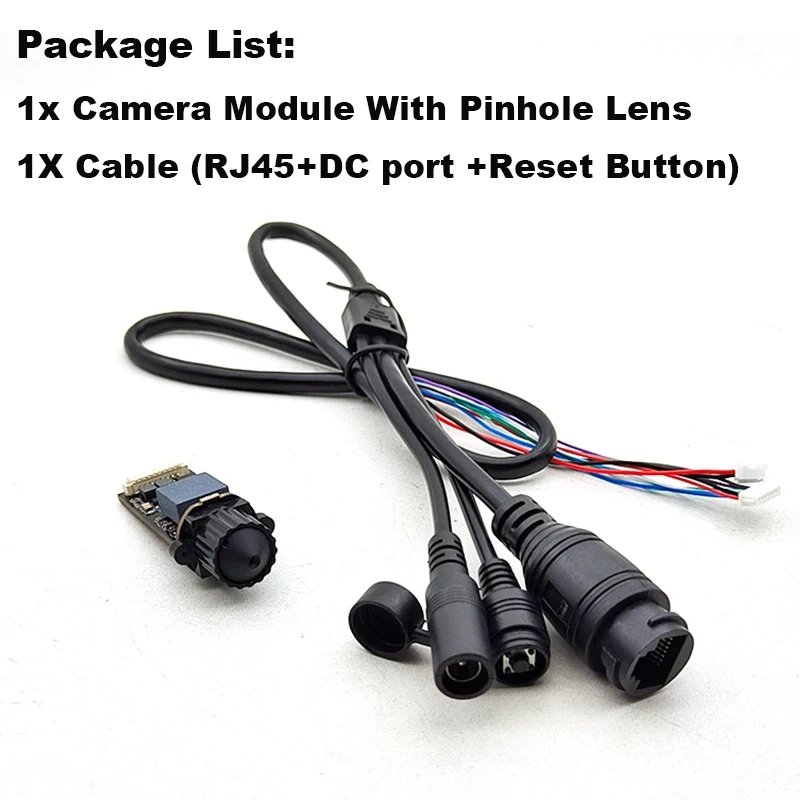

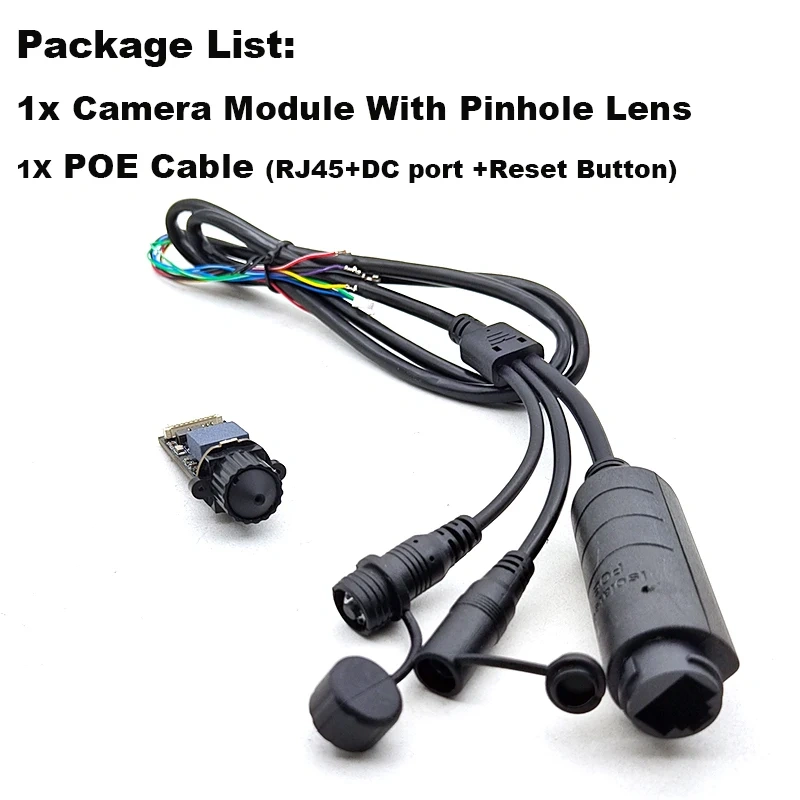

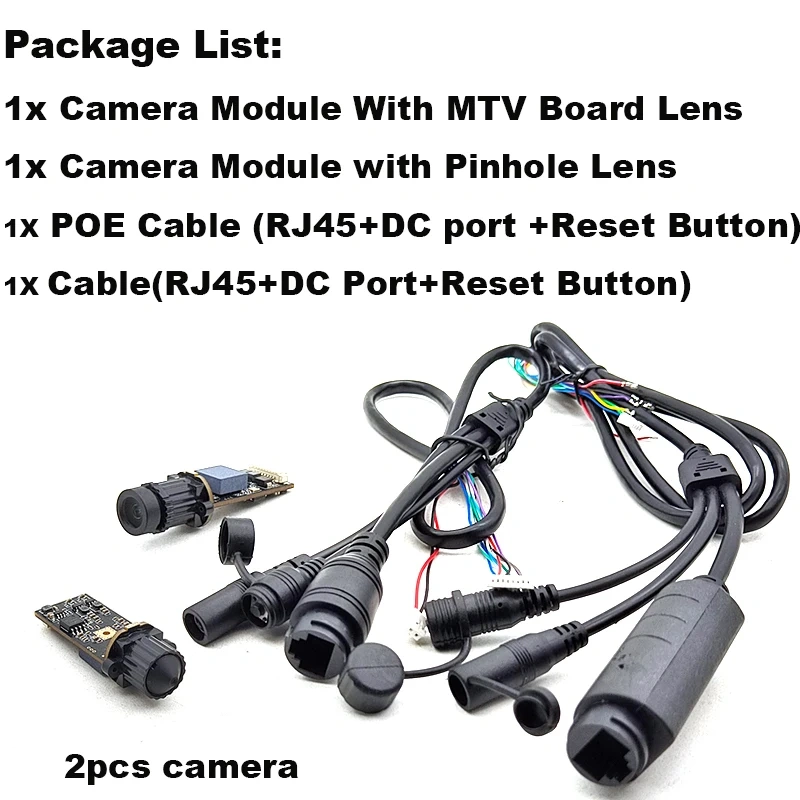

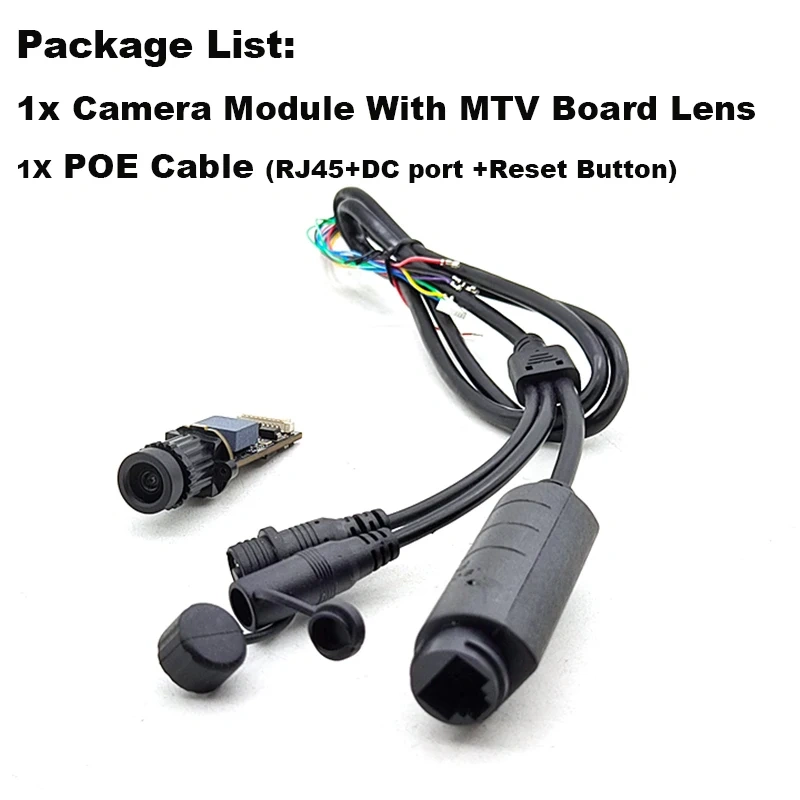

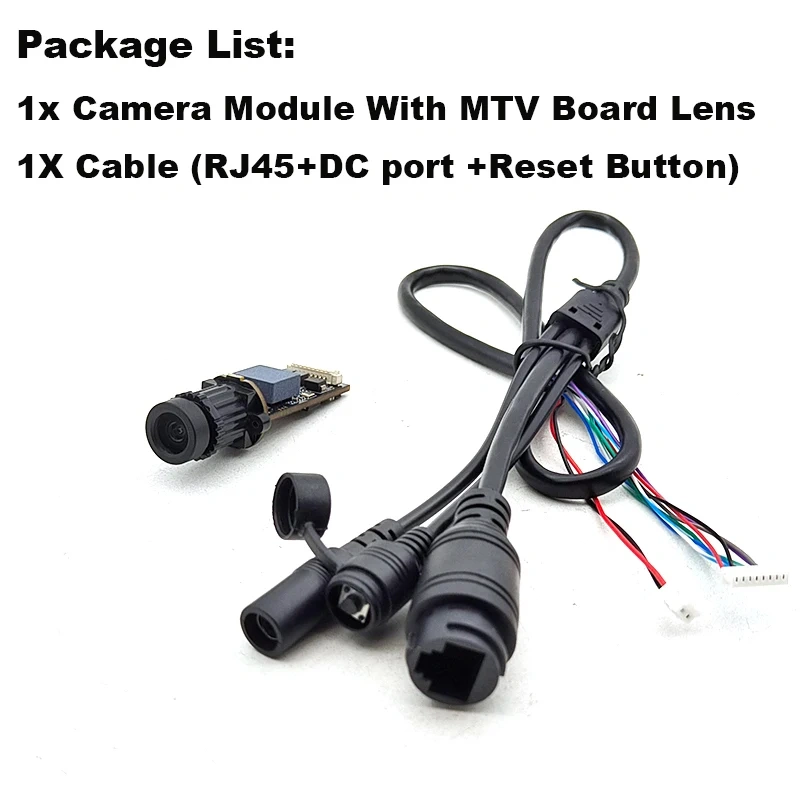

Package contents:

1 x Camera

Notice ：Dear,all customer ,because cd disk is easy damaged by rude transport and Most

of the Customer ‘s Computer Without CD CD-ROM disk drive,it is hard to copy the files

from the CD Disk! In addation ,the CD Disk Polluting the environment after used !

Software will be sent to your emails or leave message in aliexpress when you paid!pls contact with our SALES team if you need !

To Customers :

Thanks for your attention to our products.if you have any question ,pls fell free to contact with us !

we will replyed you within 24hours!!!
