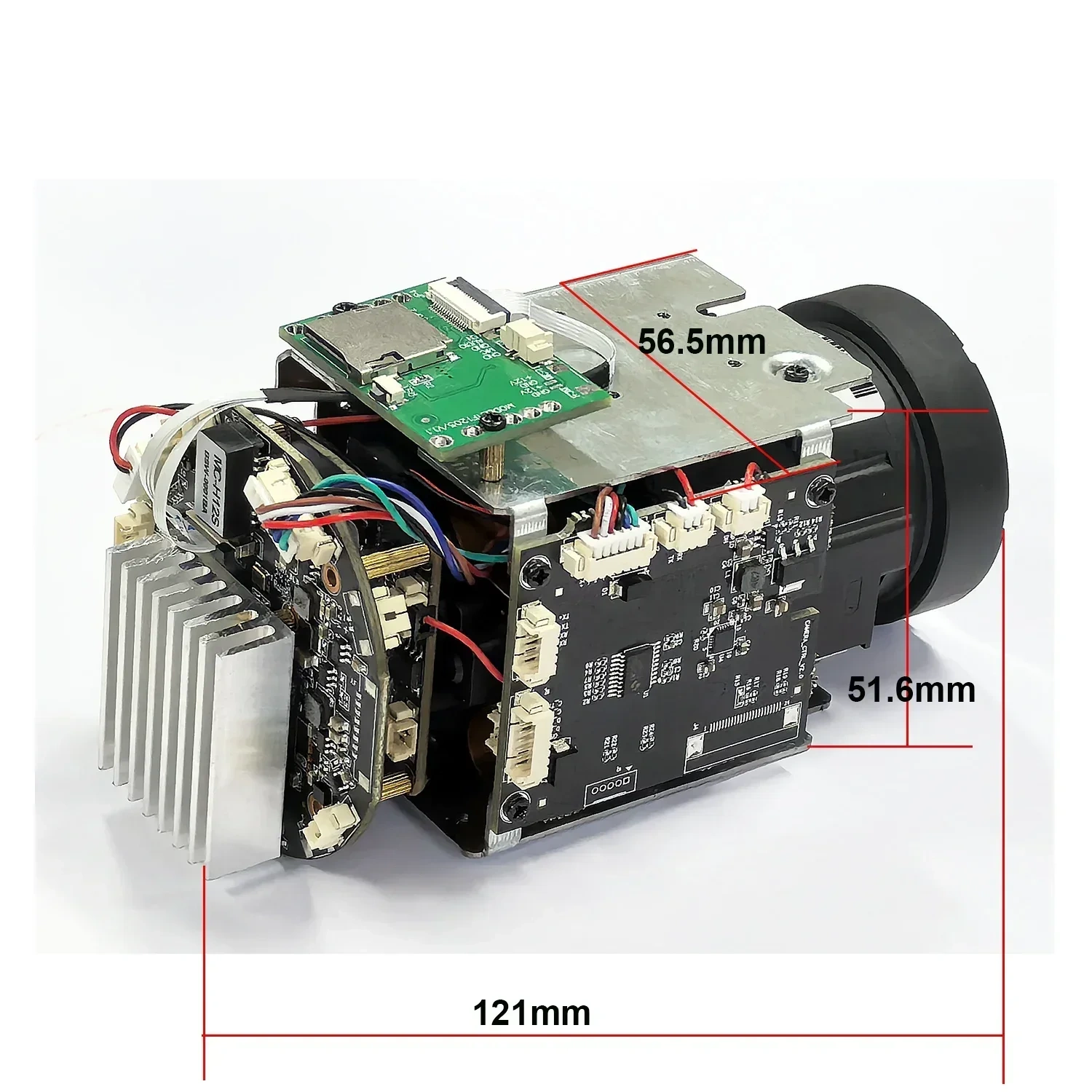

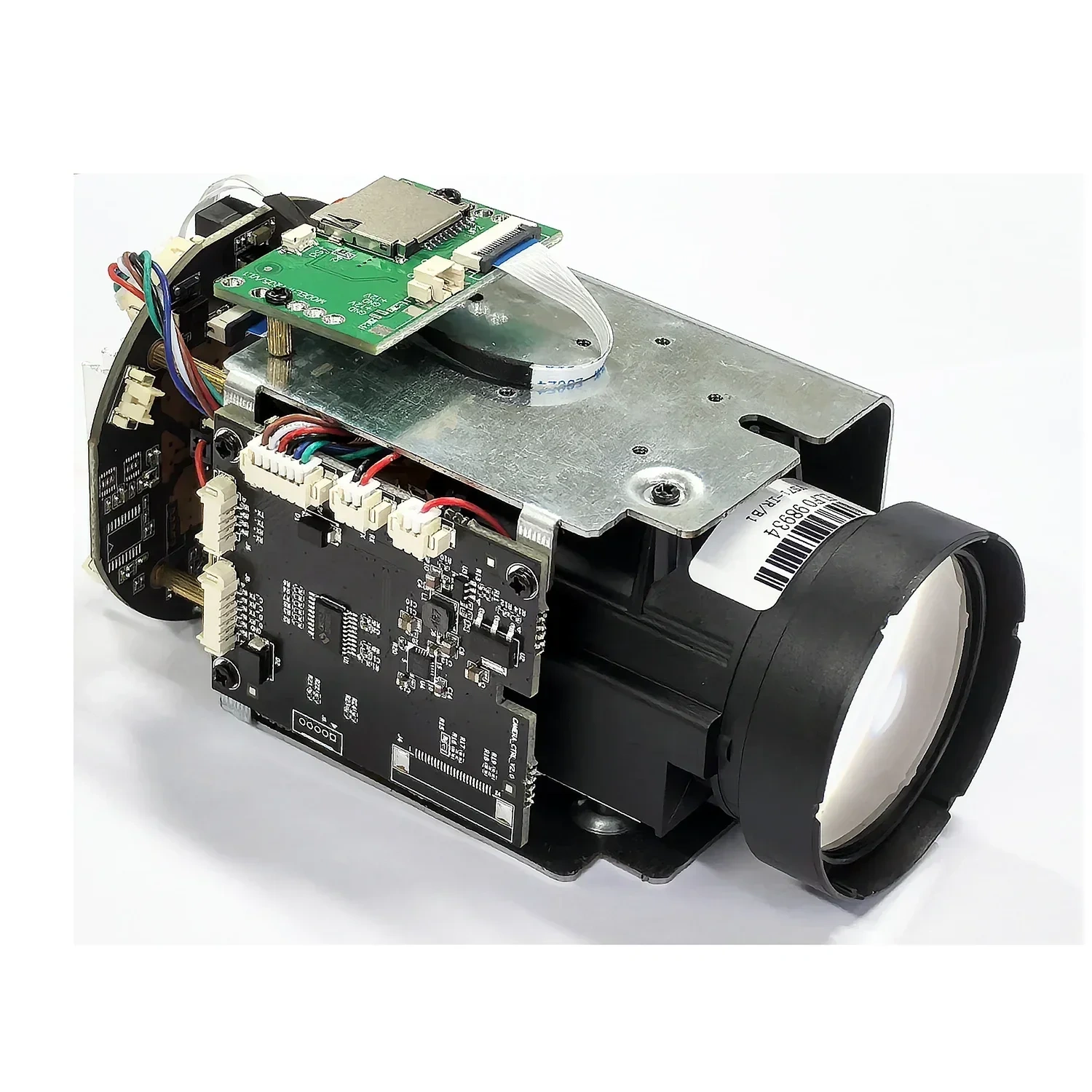

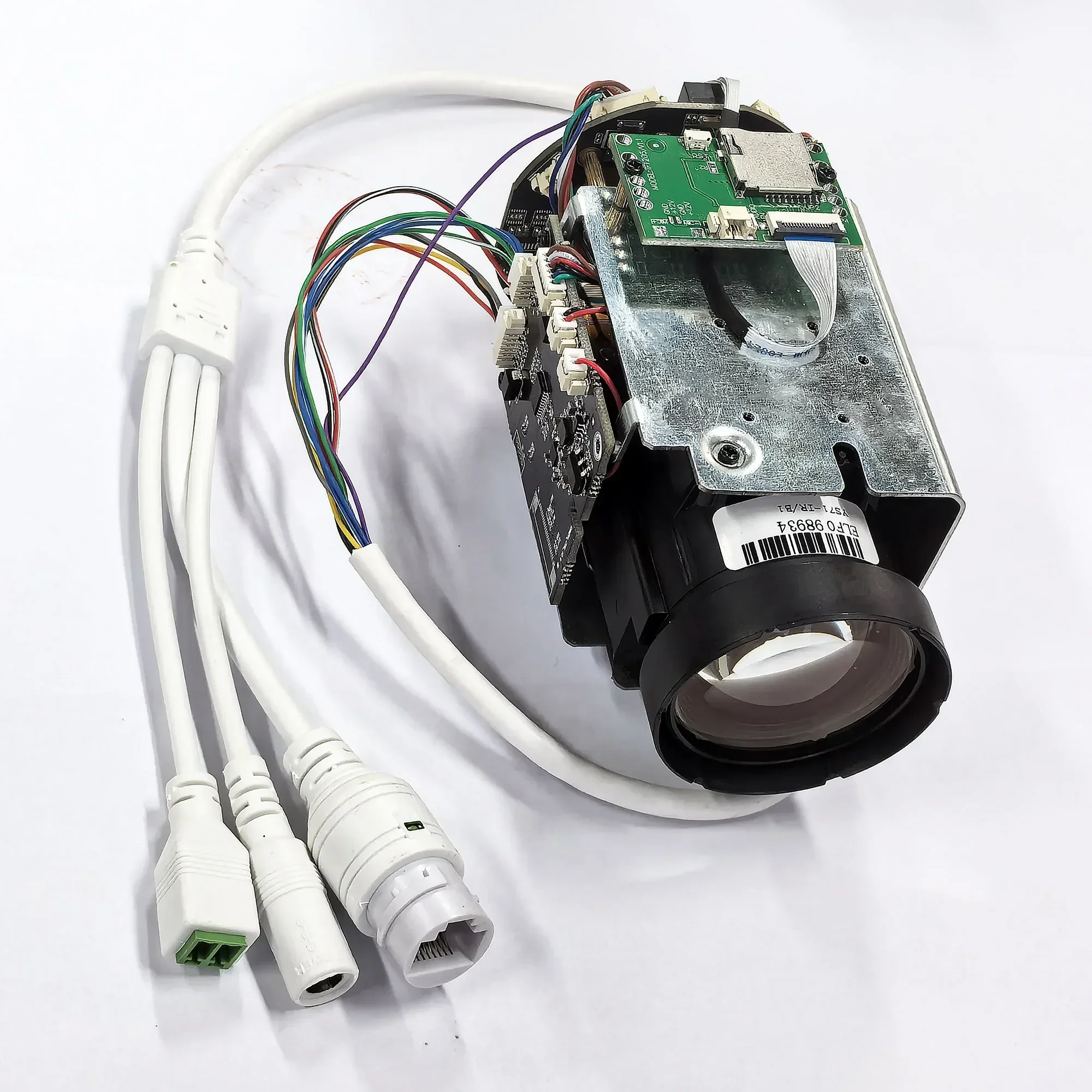

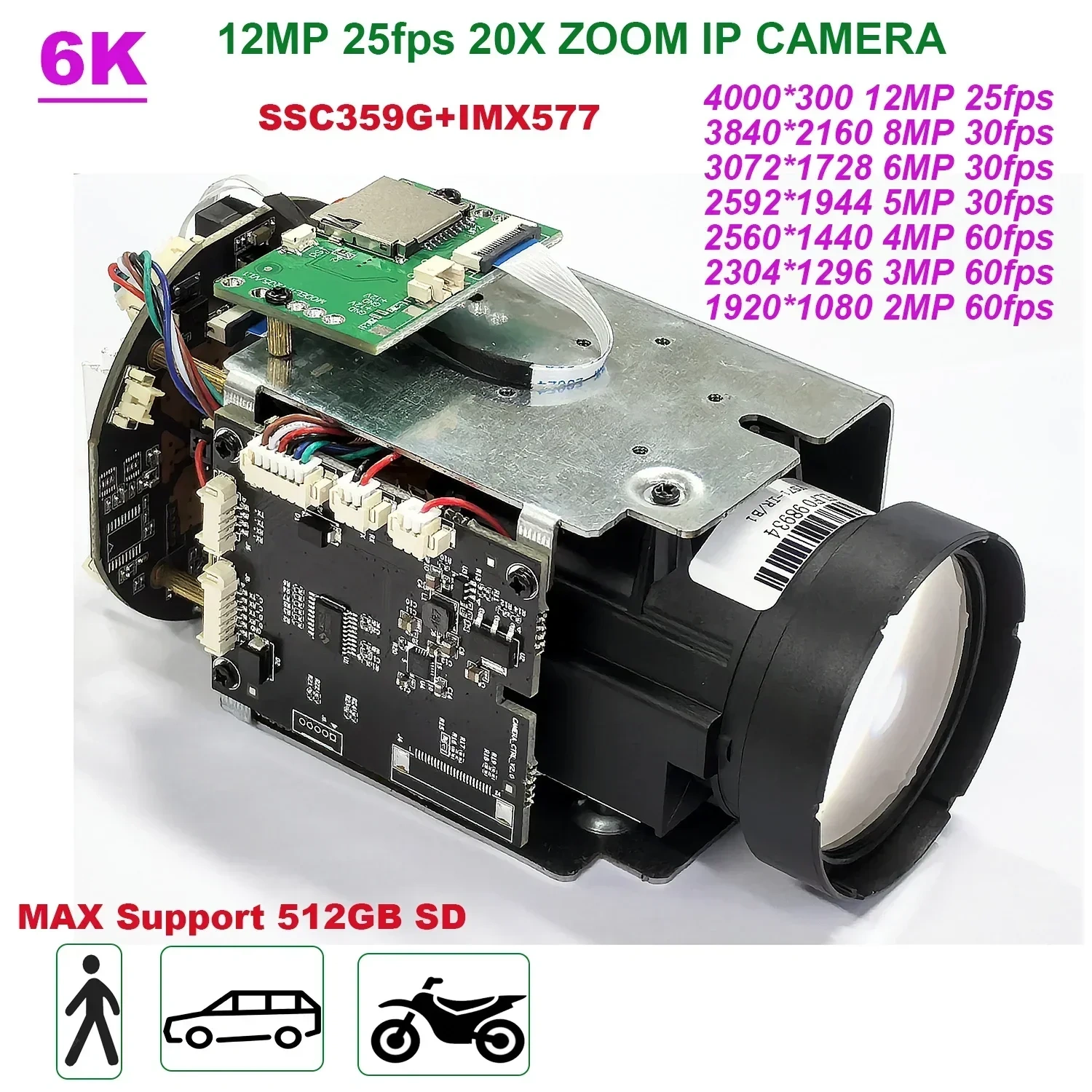

Name: 6K 12MP 20X ZOOM SSC359G IMX577 RTMP IP Camera Auto IRIS Hik Protocol IVM4200 P2P ONVIF SD Card Slot 512GB IP Cam
Brand: Mini USB Camera Mini Camera IP Camera Camhi Camera Factory
SKU: JH12S-10-20X
Price: 145.00 USD
Availability: InStock

Description

6K 12MP IP Camera adopts highly integrated MSTAR SSC359G+IMX577 processor, extremely low power consumption and strong stability; supports H.265,H.264 compression algorithm to ensure image quality while effectively reducing network bandwidth occupation; powerful network function, support standard Support Hikvision protocol, and compatible with iVMS-4200, support RTSP, RTMP and other protocols, support alarm picture upload FTP server, alarm picture to E-Mail, support mobile phone remote monitoring;

High sensitivity, high signal-to-noise CMOS image sensor

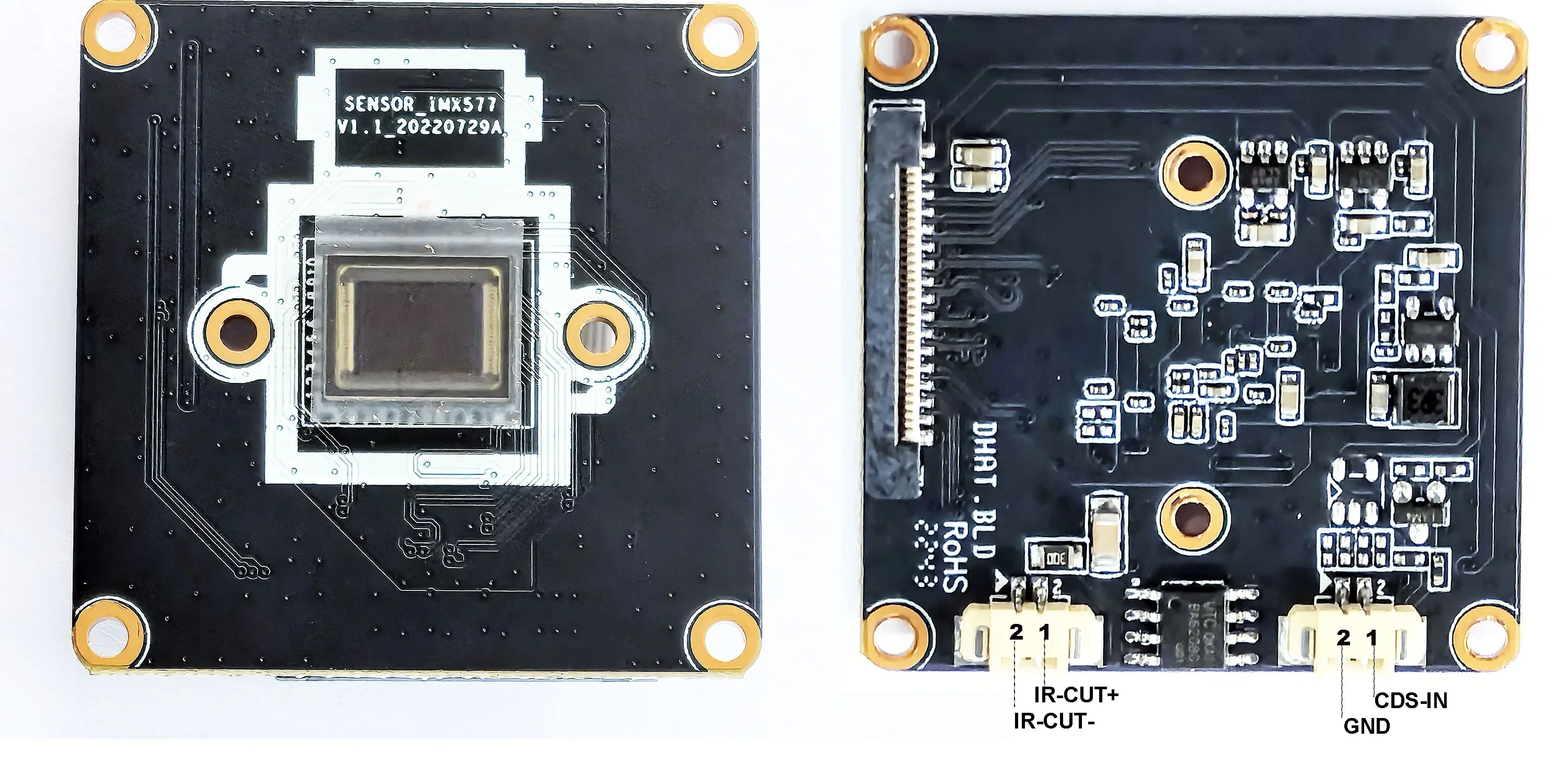

Using the SSC359G processing chip+SONY IMX577 CMOS

The highest pixel is up to 12MP, and the highest resolution is up to 12MP (4000*3000)

Support 12MP 25fps, 6MP/5MP 30fps,4MP/3MP/2MP 60fps

H.265 compression algorithm, effectively reducing network bandwidth, supporting dual stream, supporting mobile phone monitoring

Support humanoid recognition to trigger SD card recording, SD card capture, voice alarm, message push, email alarm and other functions.

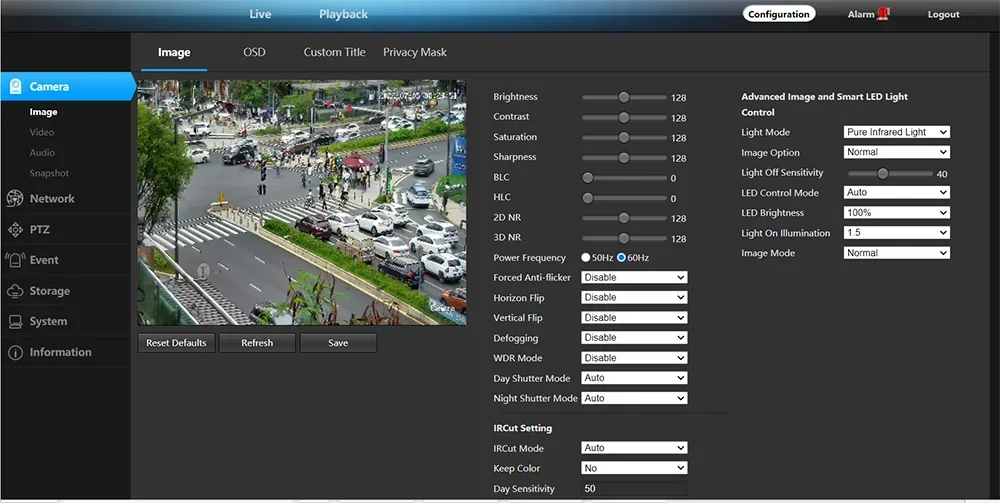

support fog function, support WDR, HDR. Support strong light suppression function.

Support humanoid recognition and humanoid alarm

Support multiple network protocols: TCP/IP, HTTP, TCP, ICMP, UDP, ARP, IGMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPNP, RTSP, RTMP,etc.

Support ONVIF protocol, Hikvision protocol

Support for manufacturer dynamic domain name and third-party dynamic domain name resolution

Support alarm picture sending E-Mail

Support alarm picture upload FTP server

Support alarm sound outputs

Support timing capture pictures to FTP server

Support static IP, also support dynamic IP (DHCP)

Support P2P plug and play

Support IE, Google, Firefox browser

Supports up to 6 users to browse at the same time (3 users per stream)

Provide motion detection (area, sensitivity can be set) alarm function

Support UPNP automatic port mapping

Support Micro SD card function, support up to 512GB Micro SD card

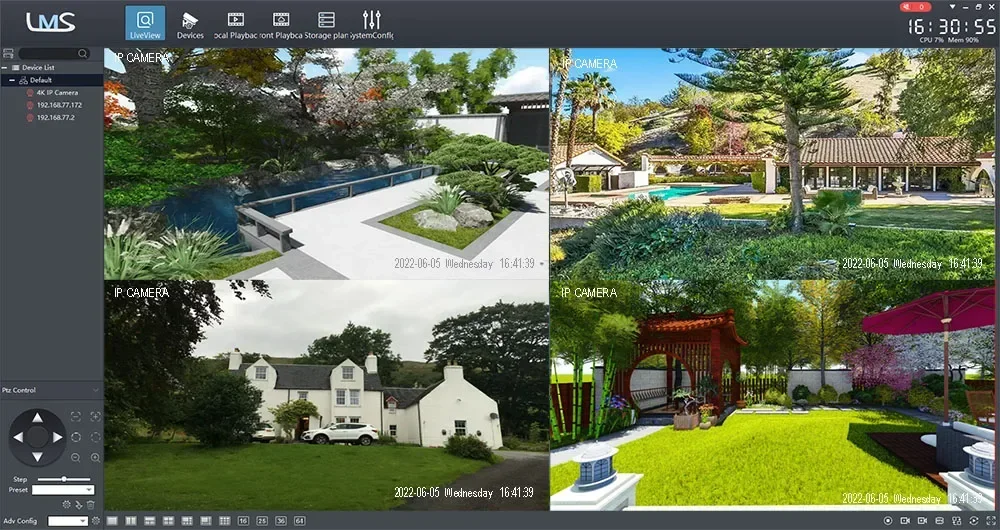

Support PC client to download SD card video

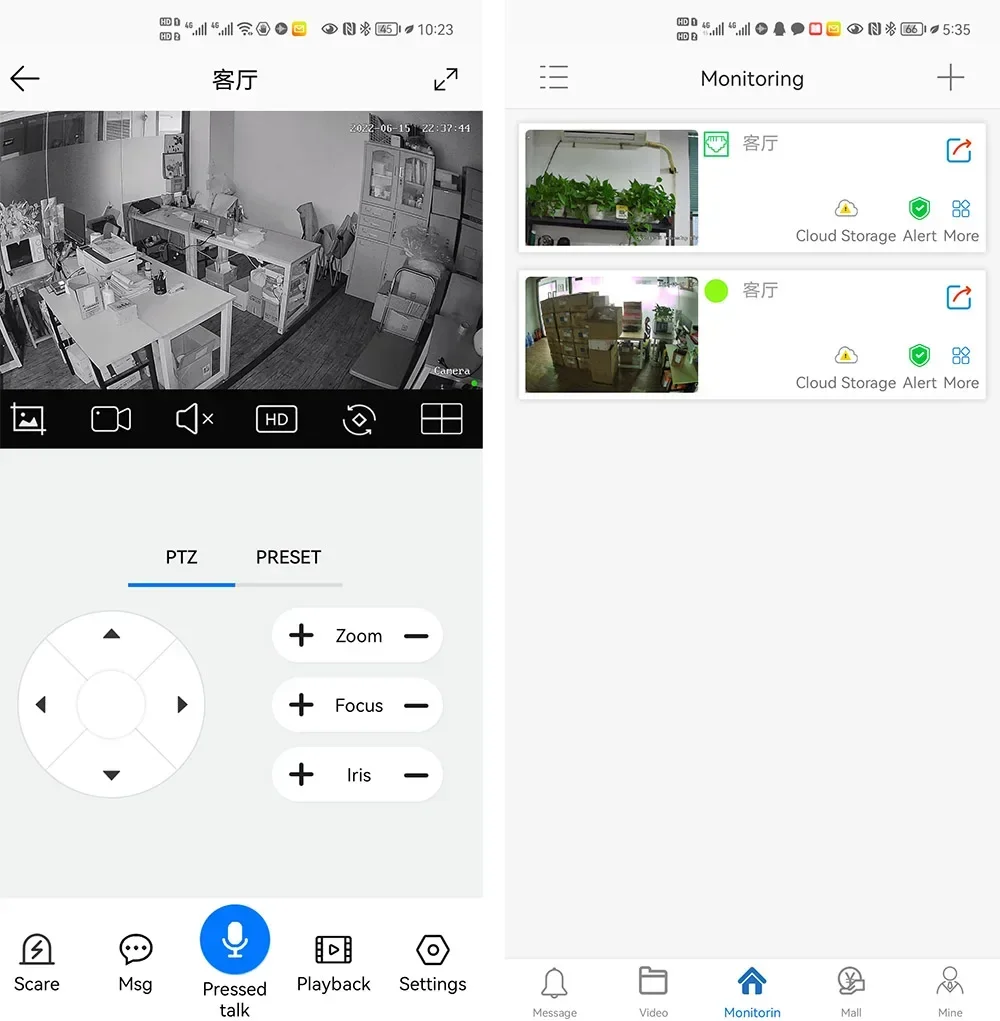

Support mobile phone download and playback SD card recording

* This is a professional camera, please use a computer or NVR connection to use it. Of course, it also supports mobile APP connection, but the mobile APP can only realize some simple functions. We provide SDK secondary development kit, you can develop software for yourself.

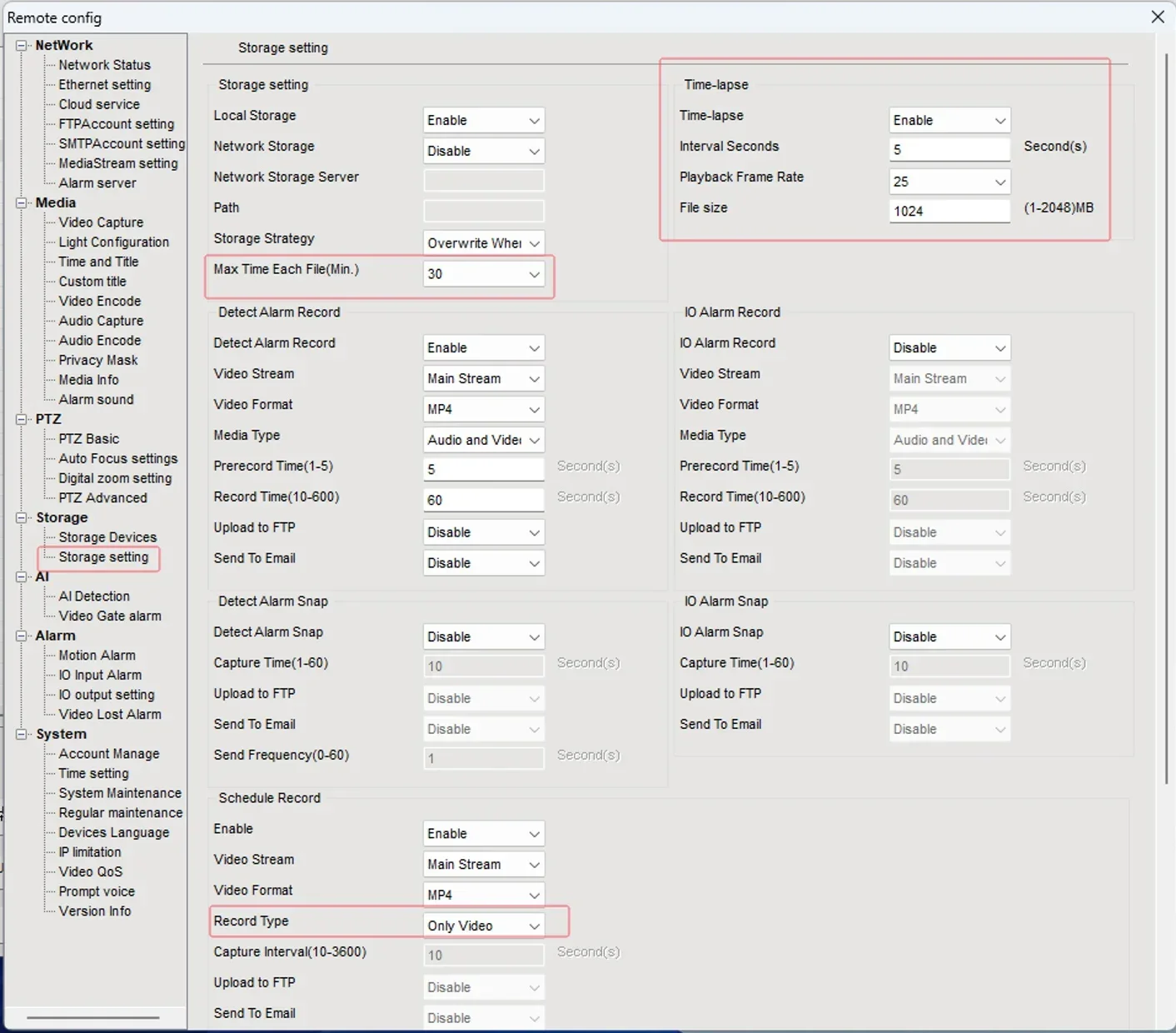

Support time-lapse photography function :

Function Introduction: The time-lapse photography function refers to the recording of time in miniature. For example, recording a 30 minute video on a camera only takes up 1 minute of recording time or storage space. When playing a 30 minute video file, the video file is fast forwarded and played within 1 minute.

Click on the link below to view the playback effect:Click on the link below to view the playback effect:

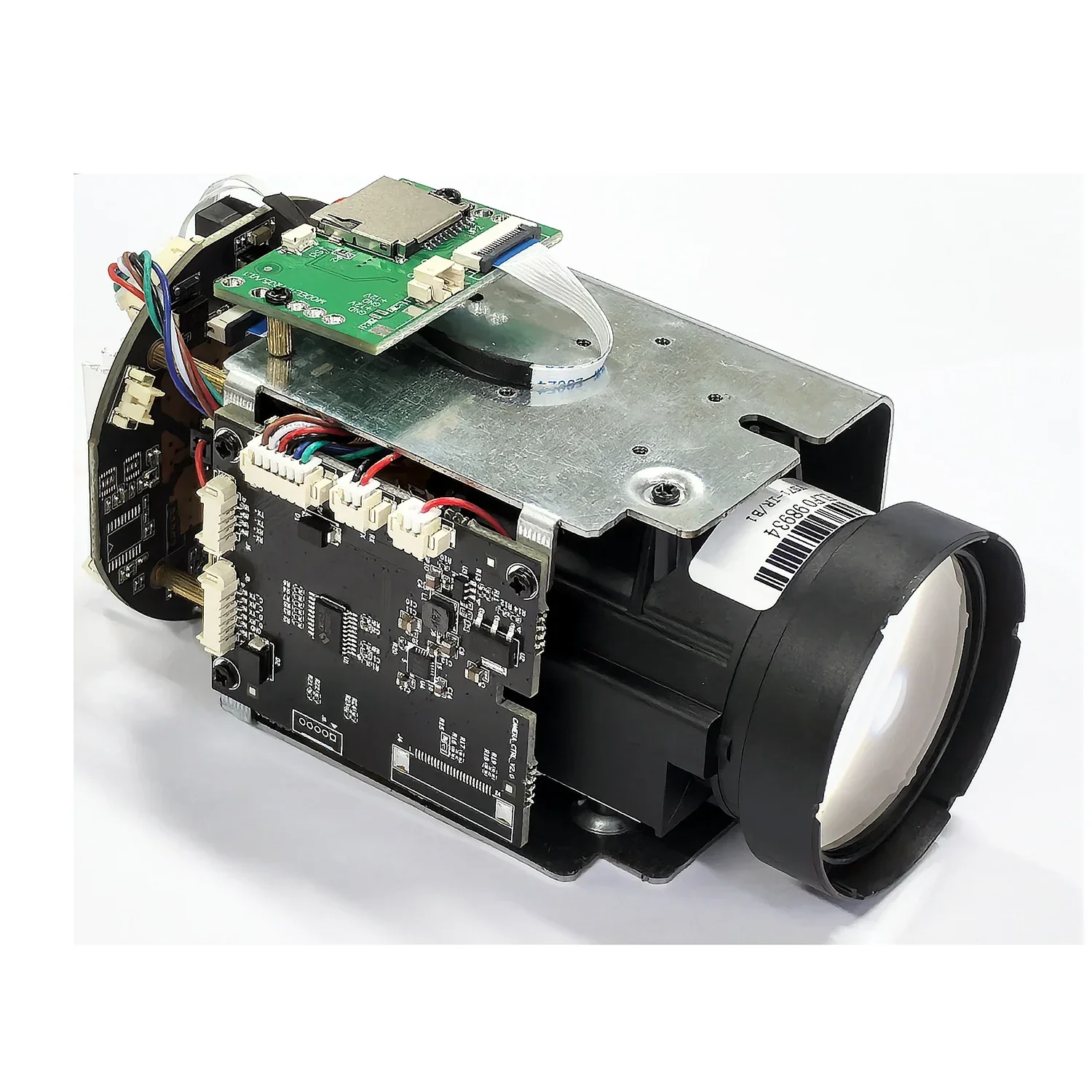

*Caution:This camera is a DIY semi-finished product.Without a casing, all components and wiring are exposed, and it is easy to cause the camera to malfunction due to improper operation.Buying a DIY semi-finished camera requires the buyer to have a certain hands-on ability and basic knowledge of electronic circuits.If you don't know anything, please don't buy it.We provide buyers with a full range of technical support.Of course buyers don't need to worry, If a component fails, we will provide you with a replacement service.And provide long-term technical support.

Model:JH12S-10-20X
Operating system	embedded LINUX

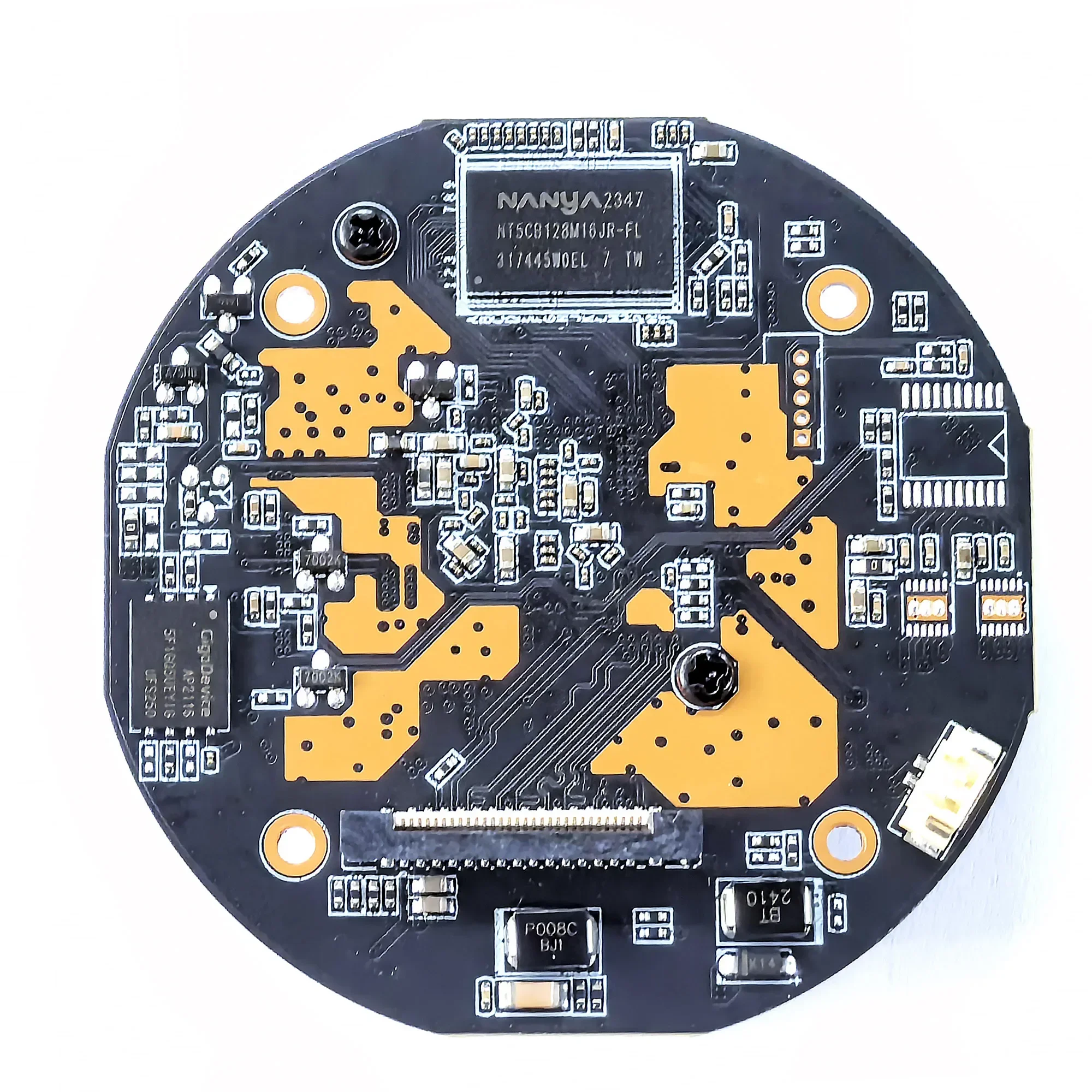

Main processor	MSTAR SSC359G
Image Sensor	SONY IMX577 1/2.3" Ultra Low Illumination CMOS Sensor
Day and night mode	Support
Compression standard
Compression standard	Video compression algorithm supports H.265, H.264 High Profile, H.264 Main Profile and H.264 Baseline
Audio compression algorithm	G.726/G.711/AAC
Compressed transport stream	512Kbps-12288bps, can be customized,
Images
Maximum image size	12MP (4000*3000)

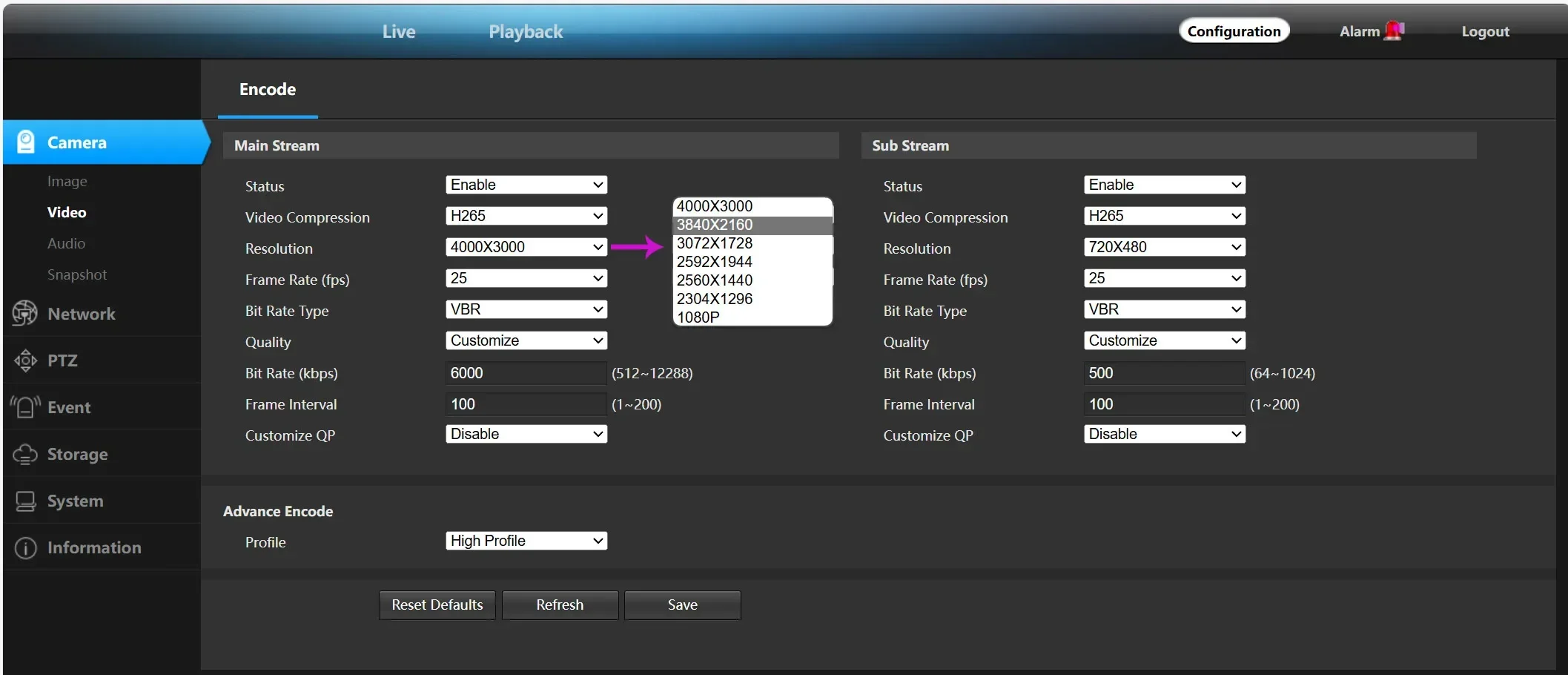

Sharpness Special function	First stream:6K(4000300),4K (38402160),6MP(30721728),5MP(25921944),4MP(25601440),3MP(23041296),1080P,720P support fog function, support WDR, HDR. Support strong light suppression function.
Sharpness Special function	Second stream:720480,VGA,640360,480*360,CIF
Video frame rate	12MP 25fps 8MP/6MP/5MP 30fps,4MP/3MP/2MP 60fps
Character overlay	Support OSD name,time and date information overlay
Image settings	Brightness, contrast, saturation, exposure, up and down reverse, left and right mirroring adjustable
Network Function
Storage function	Supports up to 512G Micro SD card storage and supports scheduled video storage
Motion detection	Four independent detection areas can be set (sensitivity 1-100 can be set)
Alarm linkage	alarm sends the picture to the specified mailbox; the alarm uploads the picture and the video is uploaded to the FTP server;
Network Protocol	Supports TCP/IP, HTTP, TCP, ICMP, UDP, ARP, IGMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPNP, RTSP,RTMP.
Access Protocol	Supports ONVIF 2.4 Protocol
Interface
Audio input	support External MIC
Audio output	External speaker
LAN interface	RJ45 10Base-T/100Base-TX,

IR night distance	support
LEN	1/1.8' 20X zoom,(10X optics ZOOM 6.9-69mm and 2X digital ZOOM(max support 10x)
waterproof level	indoor
WIFI	Does not support wifi
Working temperature	-40 to +85 Celsius
power	DC12V 2A
Working Humidity	-10-95%

CGI snapshot:

Main-stream snapshot URL:http://ip/snapshot.cgi?stream=1&username=admin&password=123456

Sub-stream snapshot URL:http://ip/snapshot.cgi?stream=0&username=admin&password=123456

About RTSP:

The RTSP URL format for YUCHENG series cameras is as follows (assuming the Camera IP is 192.168.0.123):

Main stream: rtsp://admin:123456at192.168.0.123/stream0

Substream: rtsp://admin:123456at192.168.0.123/stream1

For the RTSP URL above, if audio is enabled, the stream will contain both video and audio.

If you only need video or audio data, use the following URL:

Main stream pure video: rtsp://admin:123456at192.168.0.123/video1

Substream pure video: rtsp://admin:123456at192.168.0.123/video2

Audio only: rtsp://admin:123456at192.168.0.123/audio

About the protocol specification of the camera sent to the external MCU to control the lighting:

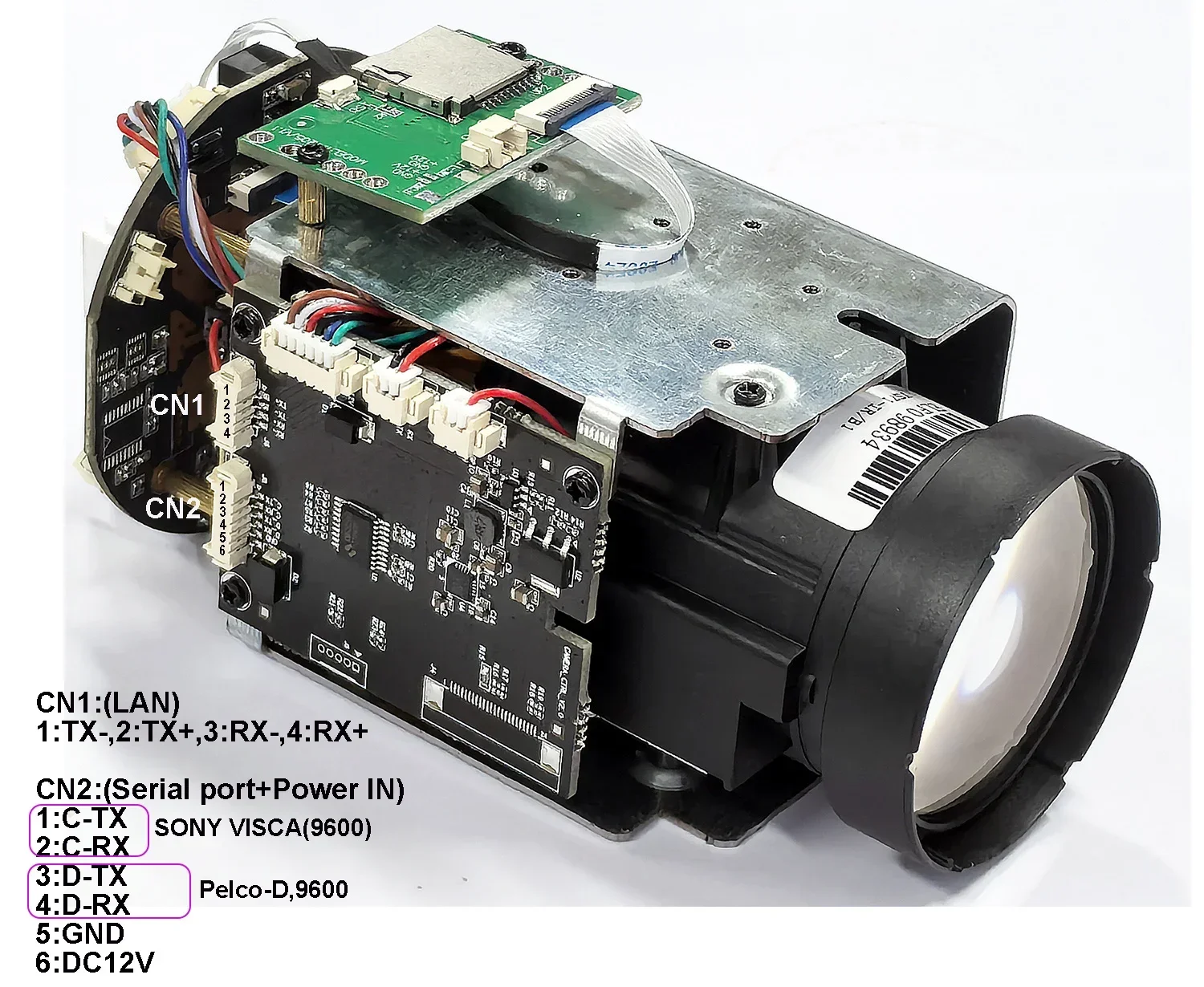

Data is sent through CN2: TXD1 UART1 (Pleco-d, 9600)

IRCUT status:0: color, 1:B/W

IRCUT model:0:Automatic control mode (day and night determined by SENSOR)

1:Day and night mode, control according to the time period

2:External control mode (this mode is the traditional camera control mode, the MCU sends the VISCA command to control the camera IRCUT mode, in this mode, the camera
will not send the command to the MCU)

3:Manual control mode

Light control PWM:

IR LED PWM: Infrared LED power 0-100 decimal, 0: close infrared LED, 100 maximum infrared LED brightness

White LED PWM: White LED power 0-100, decimal, 0 closes white LED, 100 maximum white LED brightness

For example:

IRCUT Auto Mode (Daytime):FF 01 83 01 00 00 11 00 96

IRCUT Auto Mode (Night - Pure Infrared) :FF 01 83 01 01 00 C6 00 4C

IRCUT automatic mode (pure white light at night):FF 01 83 01 00 00 E5 00 6A

IRCUT Auto Mode (Dual Light Night Infrared) :FF 01 83 01 01 00 ED 00 73

IRCUT automatic mode (dual light night white light) :FF 01 83 01 00 00 19 00 9E

Manual mode (daytime) :FF 01 83 01 00 03 07 00 8F

Manual mode (pure infrared at night):FF 01 83 01 01 03 EC 00 75
