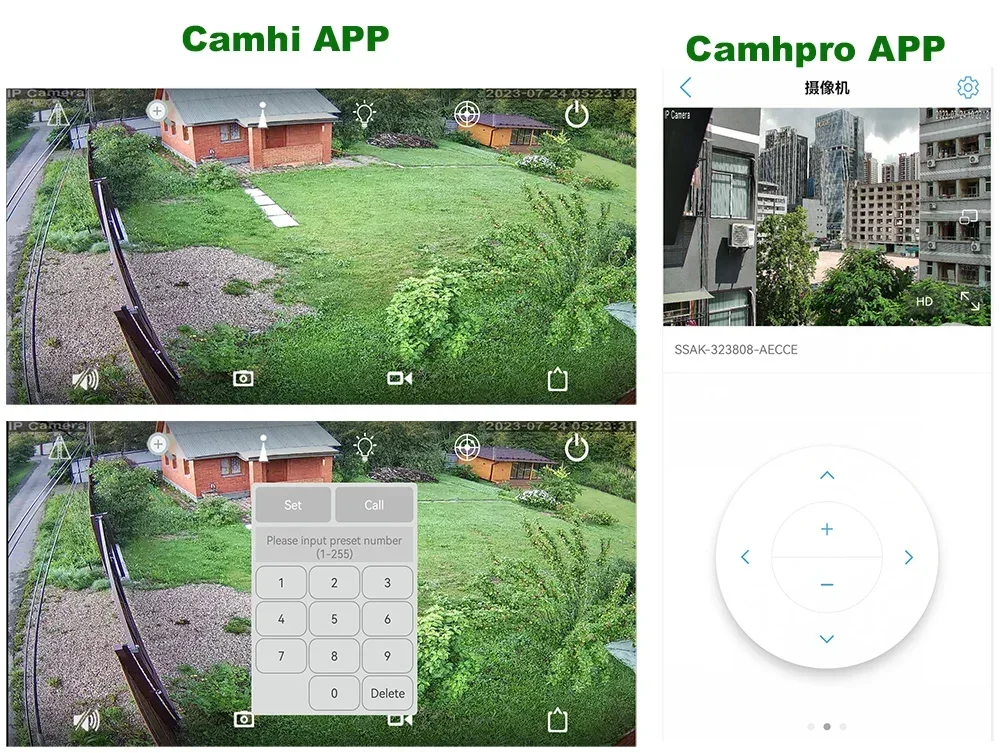

PC software
4K 8MP IP Camera adopts highly integrated MSTAR338Q+IMX415 processor, extremely low power consumption and strong stability;
Auto ZOOM tracking Video demo
249+call for turn on auto zoom tracking
249+set for turn off auto zoom tracking
Support Chinese, English, Francais, Deutsch ,Italiano ,Espanol ,Korean,Polski,Russia
|
GS-YH45-S-W-240X |
|
|
Operating system |
embedded LINUX |
|
Main processor |
MSTAR338Q |
|
Image Sensor |
SONY IMX415 1/2.8" Ultra Low Illumination CMOS Sensor |
|
Day and night mode |
Support |
|
Compression standard |
|
|
Compression standard |
Video compression algorithm supports H.265, H.264 High Profile, H.264 Main Profile and H.264 Baseline |
|
Audio compression algorithm |
G.726/G.711 |
|
Compressed transport stream |
32Kbps-6144bps, can be customized, default 1536Kbps |
|
Images |
|
|
Maximum image size |
8MP (3840*2160) |
|
Sharpness |
First stream:4K 8MP (3840*2160) 20fps,wifi 15fps,4MP,2MP 25fps |
|
Second stream:800*448,640*352) can be set |
|
|
Video frame rate |
20fps (50HZ),20fps (60HZ) |
|
Character overlay |
Support OSD name,time and date information overlay |
|
Image settings |
Brightness, contrast, saturation, exposure, up and down reverse, left and right mirroring adjustable |
|
Network Function |
|
|
Storage function |
Supports up to 256G Micro SD card storage and supports scheduled video storage |
|
Motion detection |
Four independent detection areas can be set (sensitivity 1-100 can be set) |
|
Alarm linkage |
alarm sends the picture to the specified mailbox; the alarm uploads the picture and the video is uploaded to the FTP server; |
|
Network Protocol |
Supports TCP/IP, HTTP, TCP, ICMP, UDP, ARP, IGMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPNP, RTSP |
|
Access Protocol |
Supports ONVIF 2.4 Protocol |
|

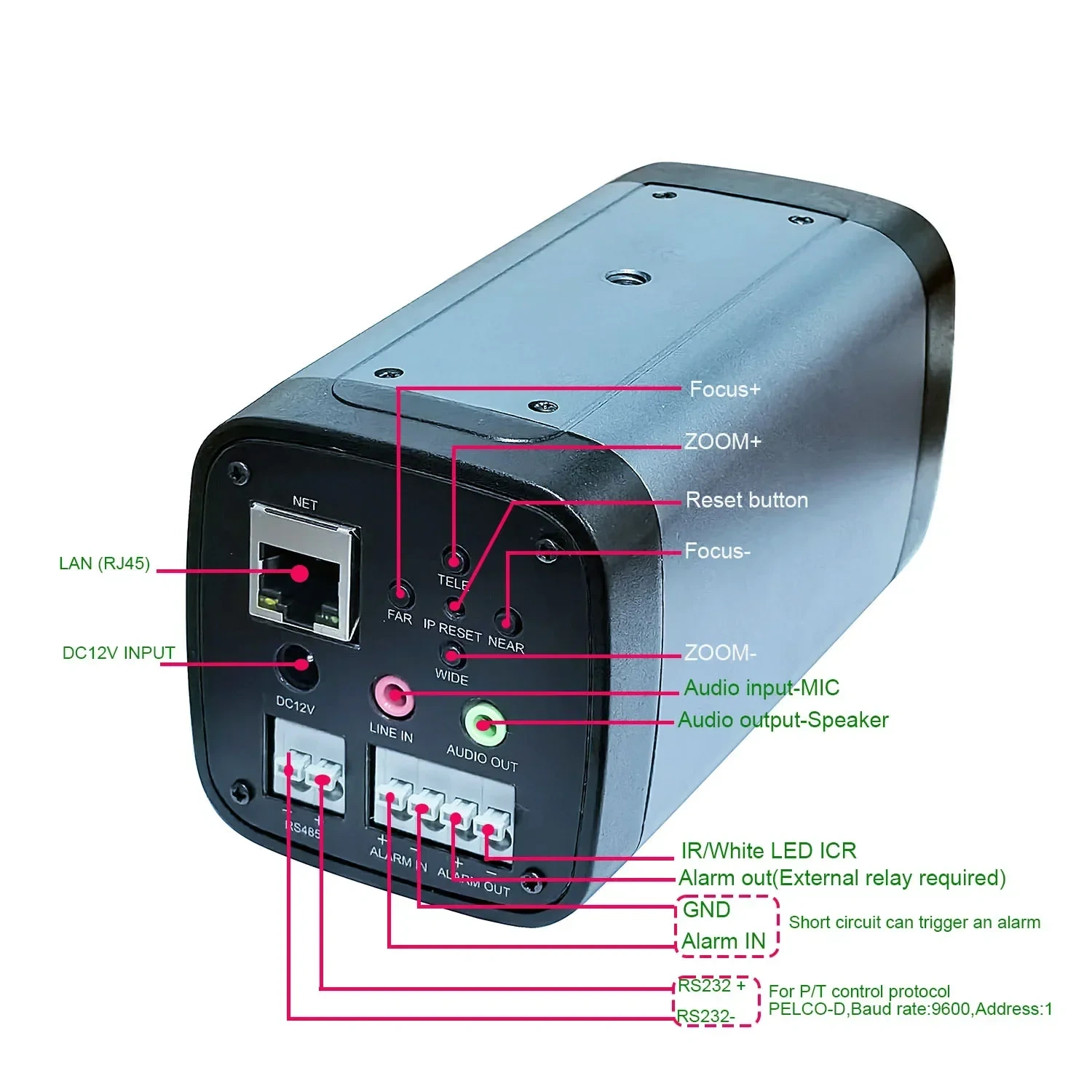

Interface |
|
|
Audio input |
support External MIC |
|
Audio output |
External speaker |
|
LAN interface |
RJ45 10Base-T/100Base-TX, and 2.4G /5G WIFI/802.11b/g/n wireless connection |
|
|
|
|
IR night distance |
support |
|
LEN |

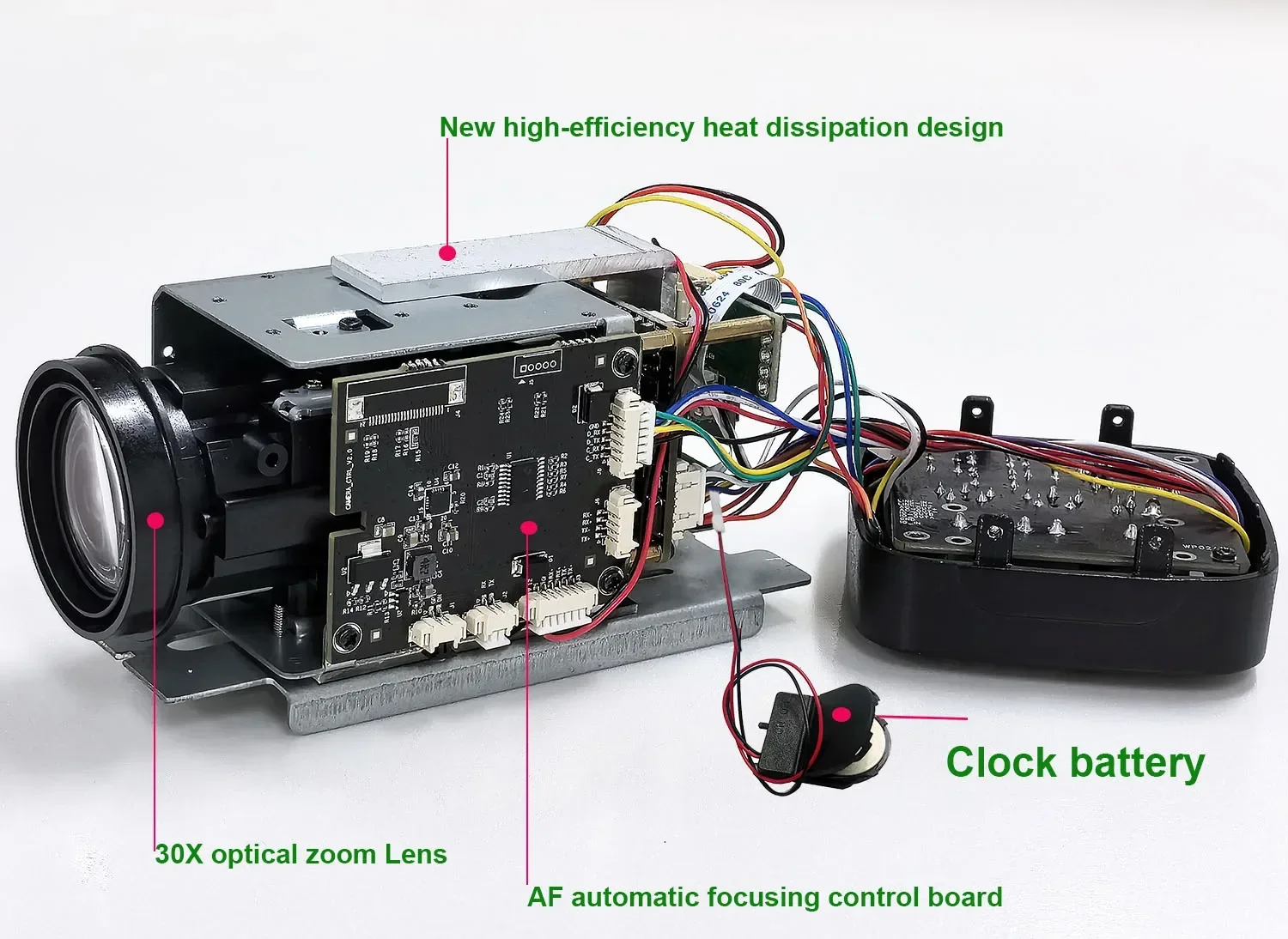

240X ZOOM (30X Optical ZOOM (3.3-97mm ) and 8X digital zoom) |
|
waterproof level |
indoor |
|
WIFI |
2.4G /5G WIFI/802.11b/g/n wireless |
|
Working temperature |
-40 to +85 Celsius |
|
power |
DC12V 1A |
|
Working Humidity |
-10-95% |
Command and Instructions:
4. Modification Digital ZOOM:

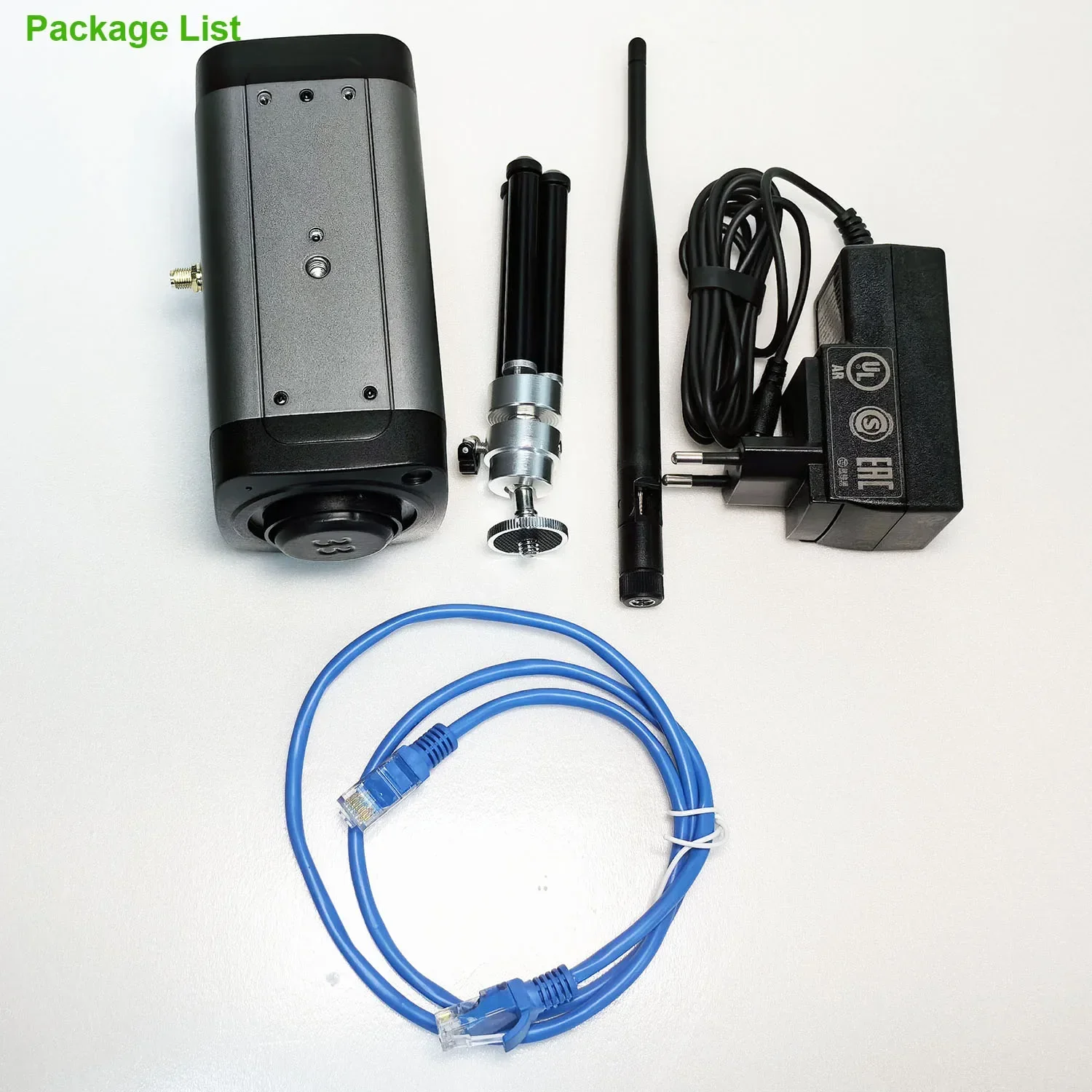

1X 240x zoom 4K 8MP wireless IP CAMERA
1x cable
1X wifi antenna
1X Manual
