Typical application
1: ATM,Kiosk,POS,TV box 2: advertising cameras 3: one camera 4: Smart TV built-in camera
5: Construction Equipment 6: Banking equipment 7: body switch 8: Scanner
9: a mobile terminal device 10: Medical diagnostic image acquisition 11: fingerprints, palm prints image acquisition
12:video door phone 13:HD surveillance

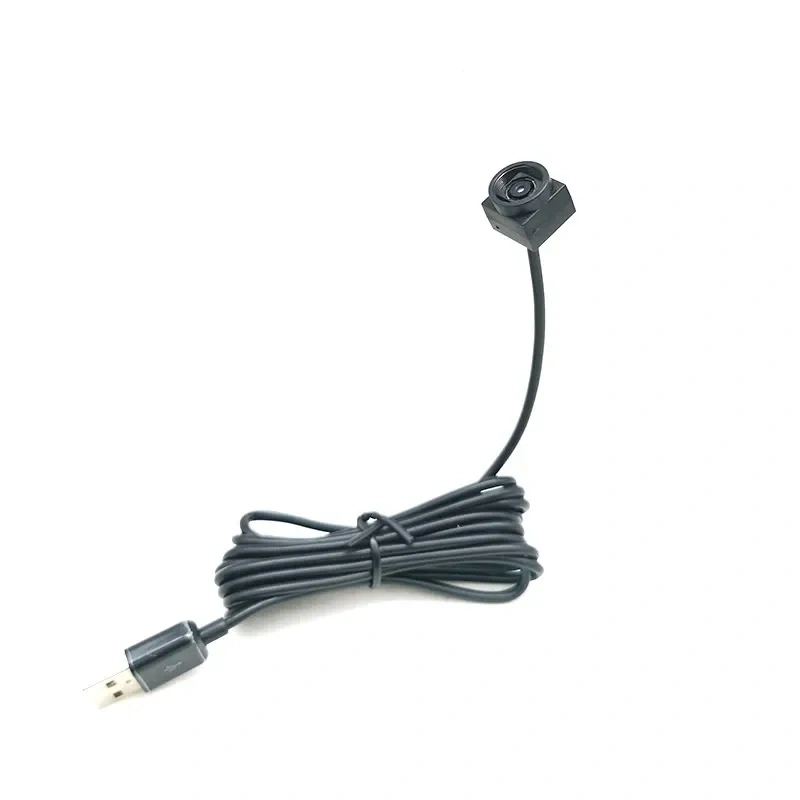

This camera is a 5.0 megapixel size 2592*1944 pixel 1080P HD USB-2.0-free drive camera module, frame rate up to 30 frames. It can be used for one computer, advertising equipment, video doorbell, can meet the high demands of customers!

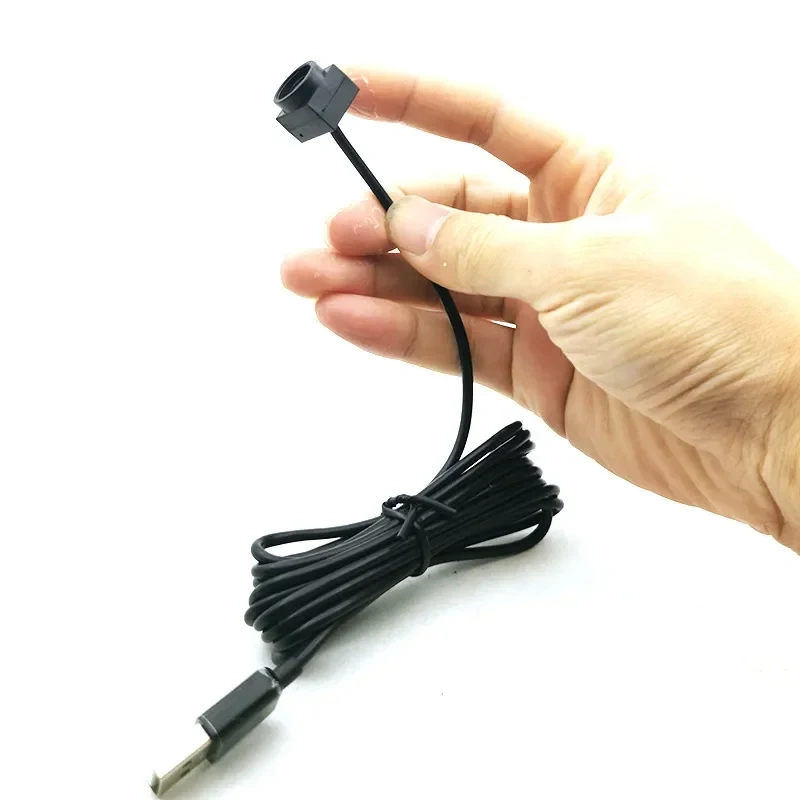

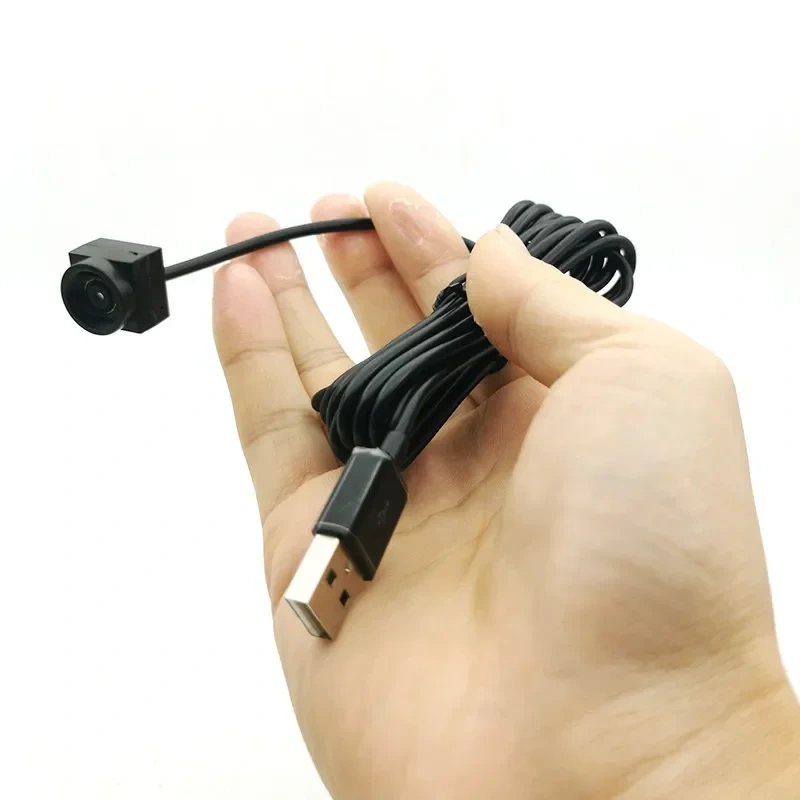

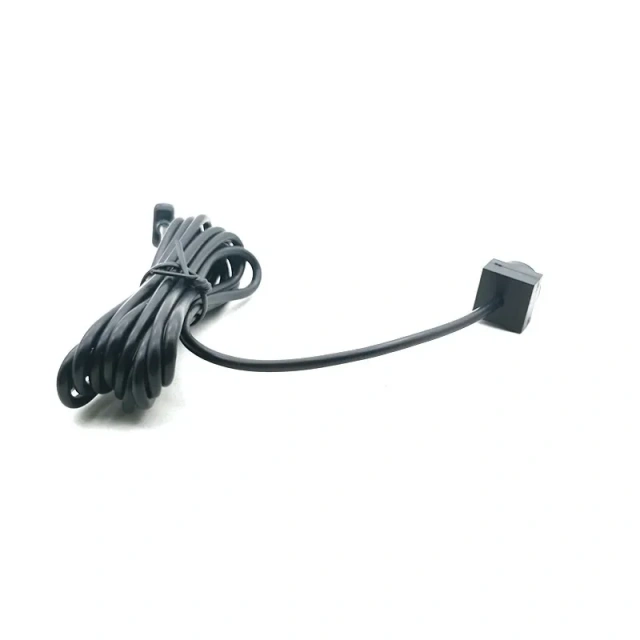

HD 5MP 1080P USB camera module
Synchronization technology
High speed USB 2.0 interface
High quality image
Low power consumption
Small outline for embedded application
UVC compliance for use in OS Windows,Linux,Android,Mac
1: ATM,Kiosk,POS,TV box 2: advertising cameras 3: one camera 4: Smart TV built-in camera
5: Construction Equipment 6: Banking equipment 7: body switch 8: Scanner
9: a mobile terminal device 10: Medical diagnostic image acquisition 11: fingerprints, palm prints image acquisition
12:video door phone 13:HD surveillance
1: Use the USB cable wire into the computer, notebooks and other USB interface will be able to use!
2: inserted as computers, laptops can not be used, indicating that there is no drive in accordance with the camera.
3: This product is equipped with a USB cable.
Models:GS-D15C5M-AF
Size:1/4 inch
pixel size:1.4 µm x 1.4 µm
Maximum effective pixels: 2592(H)*1944(V)/1920 (H) *1080 (V)
Output image format: YUV2 (YUYV) / MJPEG
Frame rate:
2592*1944-MJPEG-30FPS YUY2-2FPS
2048*1536-MJPEG-30FPS YUY2-3FPS
1920*1080-MJPEG-30FPS YUY2-5FPS
1280*720- MJPEG-30FPS YUY2-10FPS
950*540- MJPEG-30FPS YUY2-
640*480- MJPEG-30FPS YUY2-30FPS
320*240- MJPEG-30FPS YUY2-
320*180- MJPEG-30FPS YUY2-30FPS
Signal to noise ratio: 36dB
Dynamic range: 72dB
image area:3673.6 µm x 2738.4 µm
Sensitivity: 690 mV/lux-sec
Minimum illumination: 0.01LUX
Shutter type: Electronic rolling Frame shutter/ exposure
Interface type: USB2.0 High Speed
Support free flooding protocol: USB Video Class (UVC)

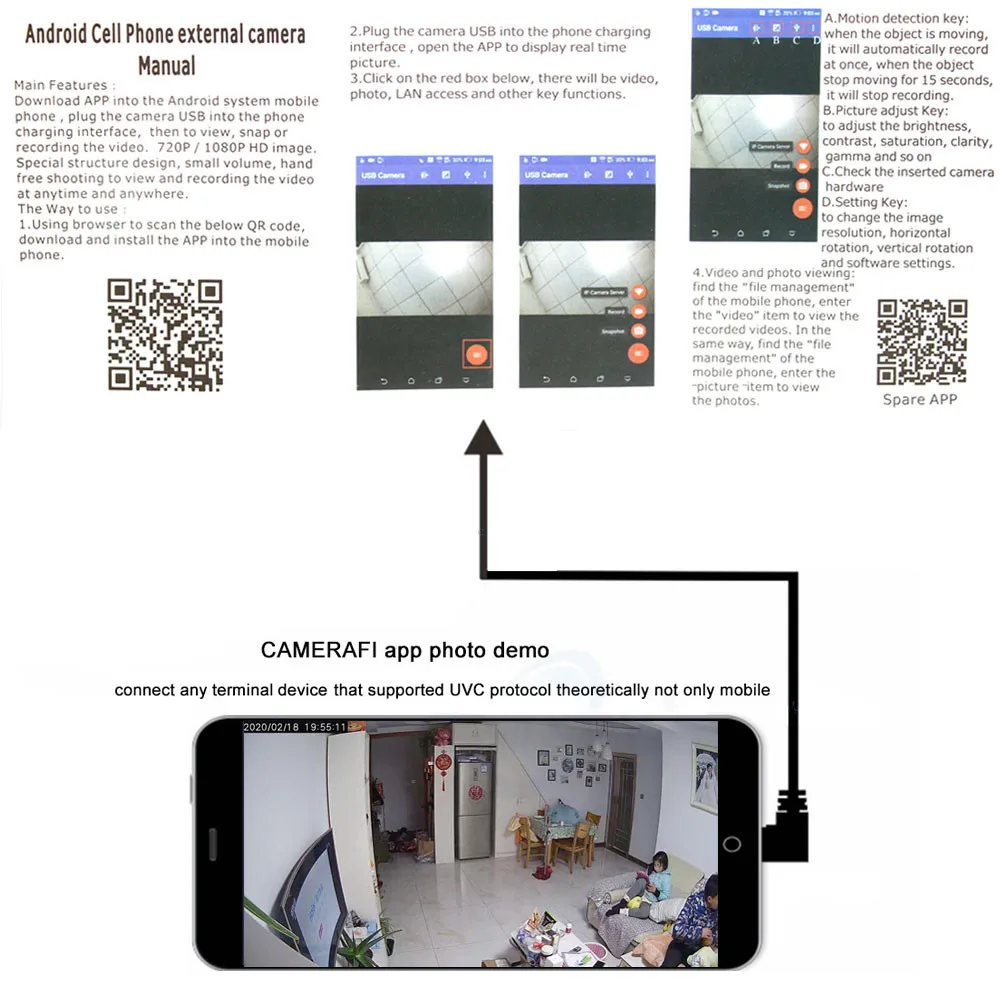

Support OTG protocol: USB2.0 OTG
Automatic exposure control AEC: support
Automatic white balance AEB: support
Automatic gain control AGC: support
Adjustable parameters: brightness contrast color saturation hue resolution
The gamma exposure contrast gain white balance backlighting
Power supply: USB BUS 4P-2.0mm POWER socket
Working voltage: DC5V
Working current: 140mA~220mA
Working temperature: 0 ~ 60
Storage temperature: -20 ~ 70 C
Board size: 20*75mm
Machine weight: 50g

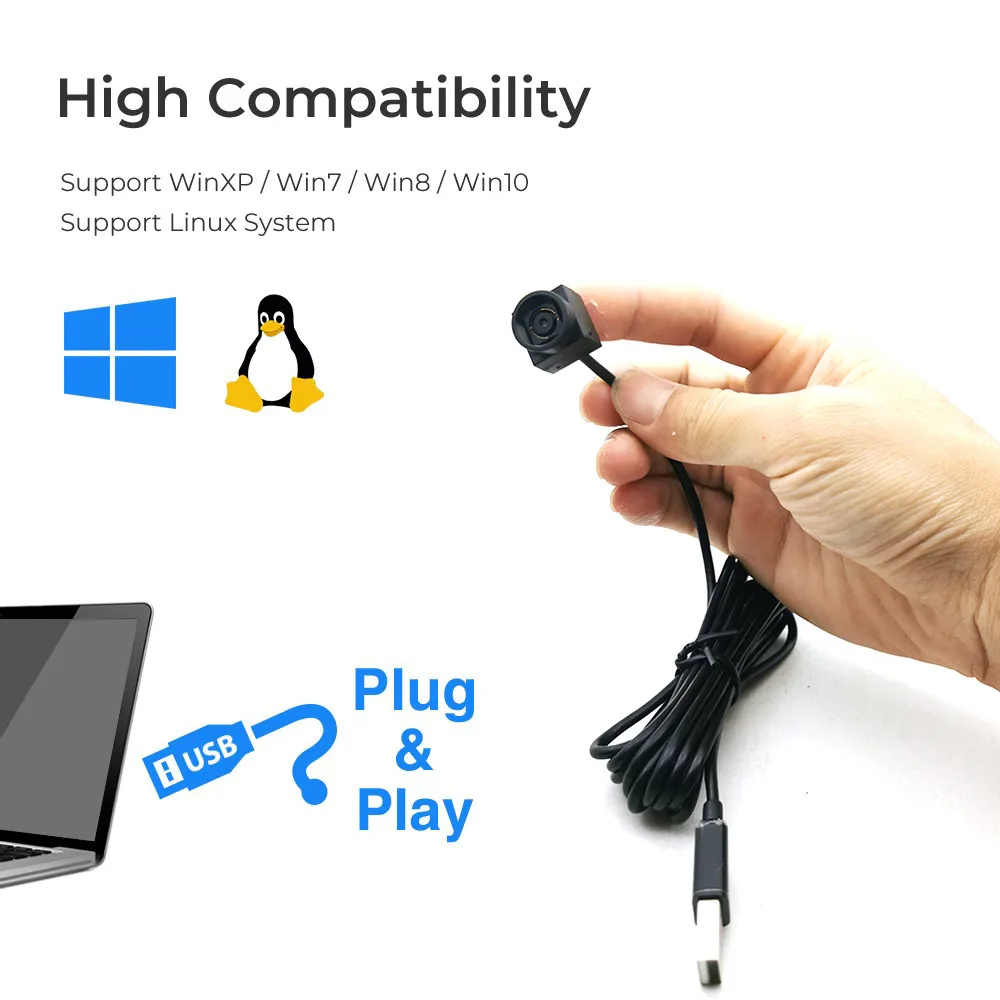

Supported system: WinXP/Vista/Win7/Win8/ Linux with UVC (above linux-2.6.26)/ MAC-OS X 10.4.8 or later
/Wince with UVC/Android 4 or with above UVC
Interface:USB Interface
Lens: 3.6mm
Angle(FOV): 90°
Line length:2M USB/ TYPE-C/Android 1meters
Product Description:
Sensor: So ny IMX179
Lens Size: 1/3.2inch
Pixel size: 1.4um
Image area: 6.18mm x 5.85mm
The most effective pixel: 3264(H) X 2448(V) 800MP pixels
Output image format: MJPEG
Supported resolution and frame rate:
3264X2448 @ 15fps / 2592X1944@ 15fps
1920x1080 @ 30fps / 1600X1200@ 30fps
1280X720 @ 30fps / 960X540@ 30fps
848X480 @ 30fps / 640X480@ 30fps
424X240 @ 30fps / 320X180 @30fps
Signal to noise ratio: 34dB
Dynamic range: 72.5dB
Sensitivity: 0.65V/lux-sec@550nm
Minimum illumination: 0.5lux
Shutter type: Electronic rolling shutter / Frame exposure
Interface type: USB2.0 High Speed
Support free drive protocol: USB Video Class (UVC)
Support OTG protocol: USB2.0 OTG
Automatic exposure control AEC: Support
Automatic white balance AEB: Support
Automatic gain control AGC: support
Button camera: support
Adjustable parameters: brightness, contrast, color saturation, hue, clarity
Lens parameters: with no distortion lens
Power supply mode: USB BUS POWER 4P-2.0mm socket
