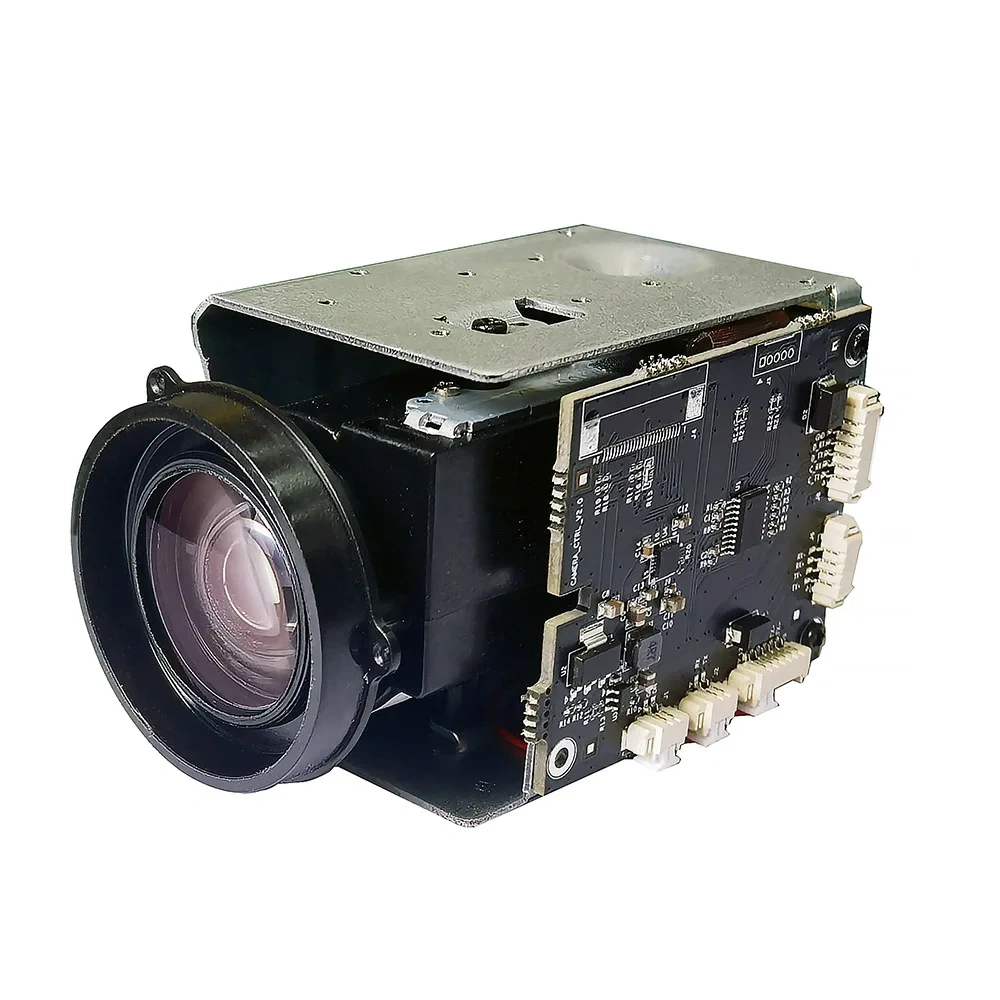

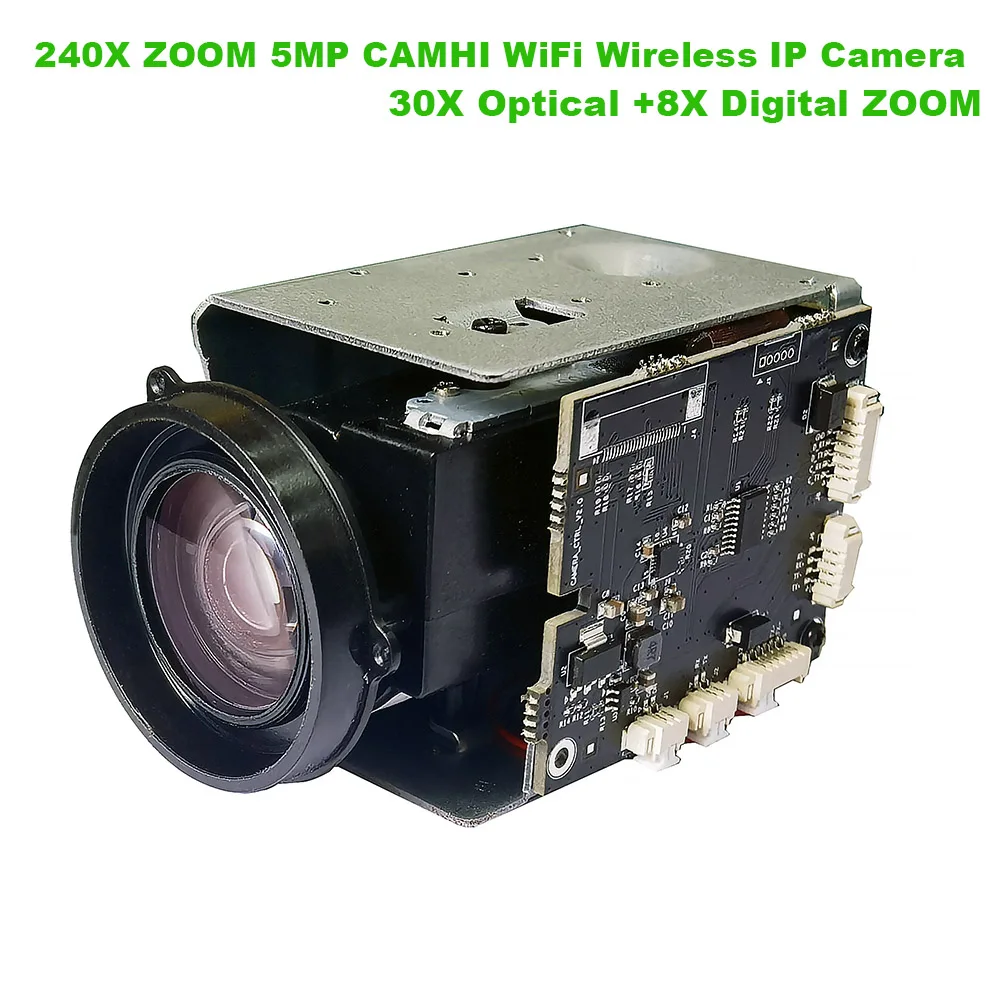

5MP IP Camera adopts highly integrated SOC GOKE7205V300 processor, extremely low power consumption and strong stability; supports H.265 compression algorithm to ensure image quality while effectively reducing network bandwidth occupation; powerful network function, support standard ONVIF Protocol, support RTSP, support alarm picture upload FTP server, alarm picture to E-Mail, support mobile phone remote monitoring;
Support Chinese, English, Francais, Deutsch ,Italiano ,Espanol ,Korean,Polski,Russia
The bracket support 270° horizontal rotation and Vertical 60° rotation (Pelco-d ,9600,1)

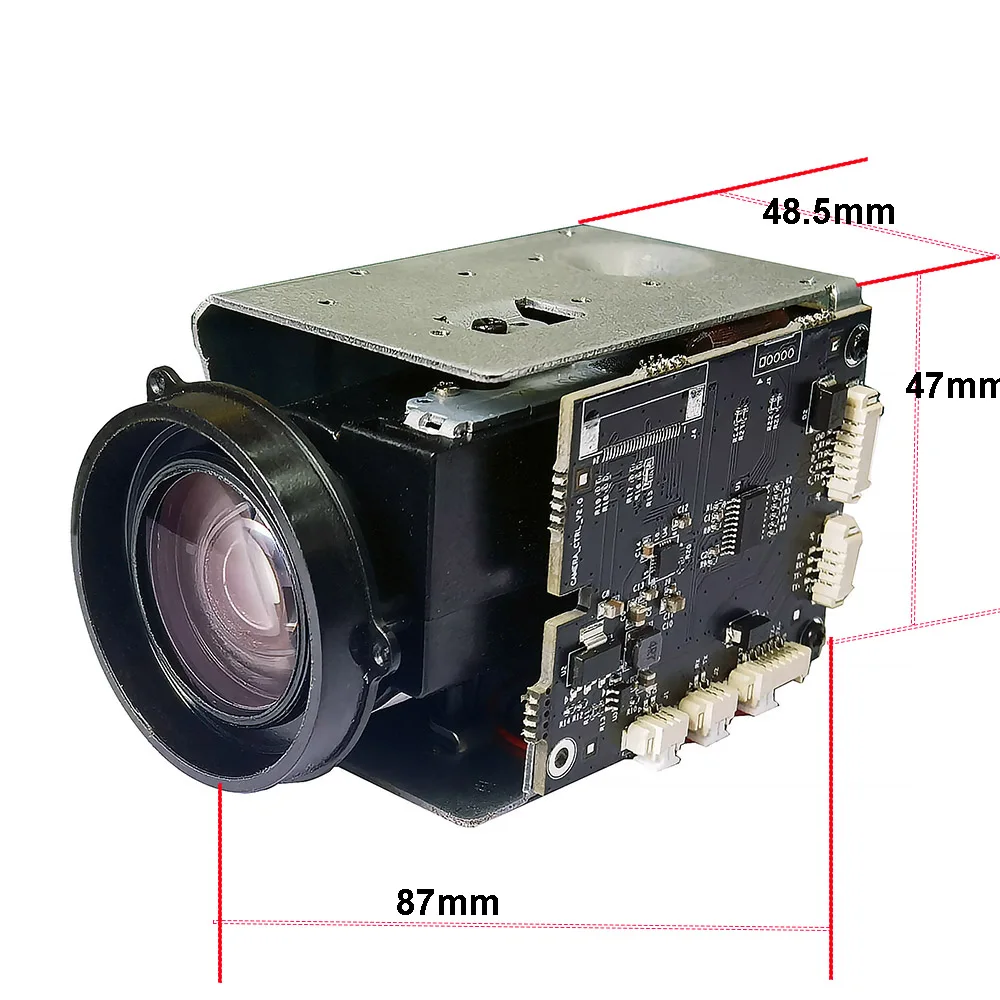

Model:JH35-W-20-240 | |
Operating system | embedded LINUX |
Main processor | GOKE7205V300 |
Image Sensor | SONY IMX335 1/2.8" Ultra Low Illumination CMOS Sensor |
Day and night mode | Support |
Compression standard | |
Compression standard | Video compression algorithm supports H.265, H.264 High Profile, H.264 Main Profile and H.264 Baseline |
Audio compression algorithm | G.726/G.711 |
Compressed transport stream | 32Kbps-6144bps, can be customized, default 1536Kbps |
Images | |
Maximum image size | 5MP (2560*1920) |
Sharpness | First stream:5MP (2560*1920) |
D1 (704*576 or 640x480), QQ720P (800x448 or 640x352) can be set | |
Video frame rate | 20fps (50HZ),20fps (60HZ) |
Character overlay | Support OSD name,time and date information overlay |
Image settings | Brightness, contrast, saturation, exposure, up and down reverse, left and right mirroring adjustable |
Network Function | |
Storage function | Supports up to 128G Micro SD card storage and supports scheduled video storage |
Motion detection | Four independent detection areas can be set (sensitivity 1-100 can be set) |
Alarm linkage | alarm sends the picture to the specified mailbox; the alarm uploads the picture and the video is uploaded to the FTP server; |
Network Protocol | Supports TCP/IP, HTTP, TCP, ICMP, UDP, ARP, IGMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPNP, RTSP |
Access Protocol | Supports ONVIF 2.4 Protocol |
Interface | |
Audio input | support External MIC |
Audio output | External speaker |
LAN interface | RJ45 10Base-T/100Base-TX, and 2.4G WIFI/802.11b/g/n wireless connection |
IR night distance | support |
LEN | 240X ZOOM (30x zoom,3.3-97mm and 8x digital zoom) |
waterproof level | indoor |
WIFI | 2.4G WIFI/802.11b/g/n wireless |
Working temperature | -40 to +85 Celsius |
power | DC12V 2A |
Working Humidity | -10-95% |
Remarks: This movement supports VISCA protocol (connected to Speed dome PTZ camera) and PTZ
serial port protocol (connected to PTZ). The default is VISCA protocol.

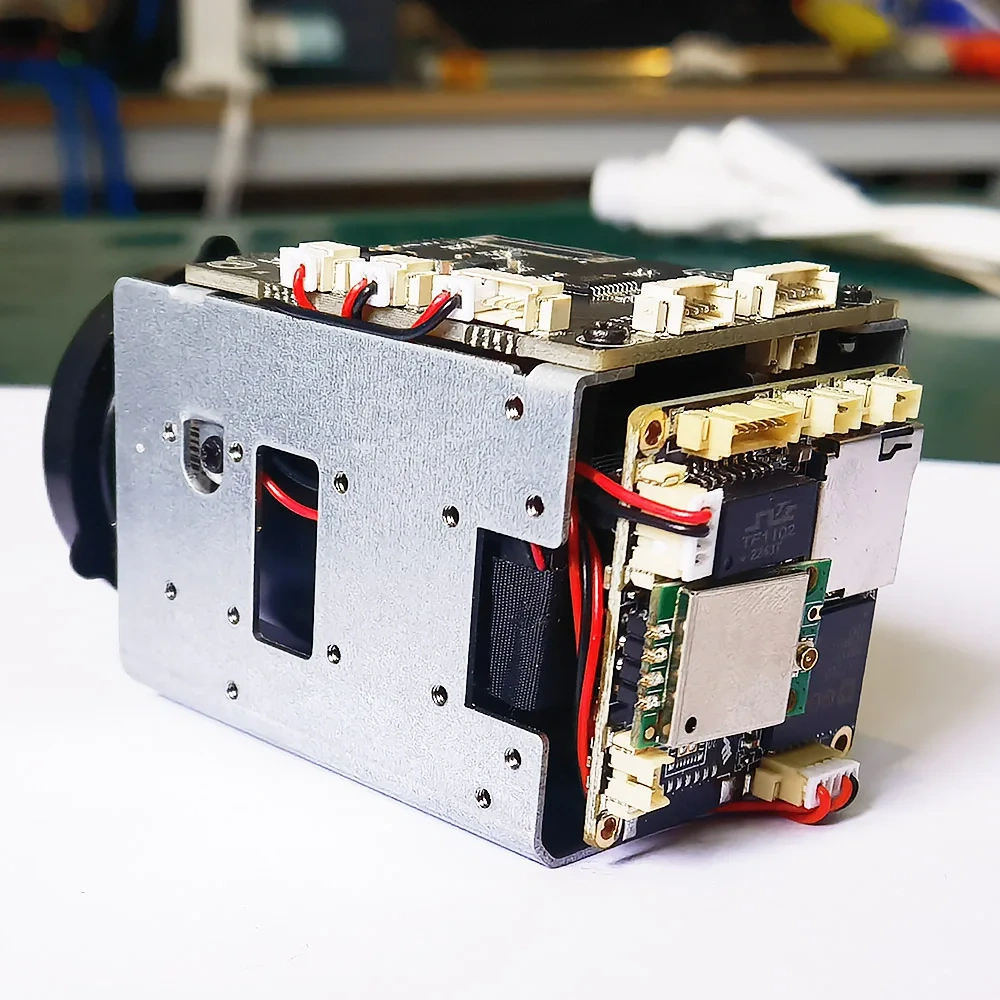

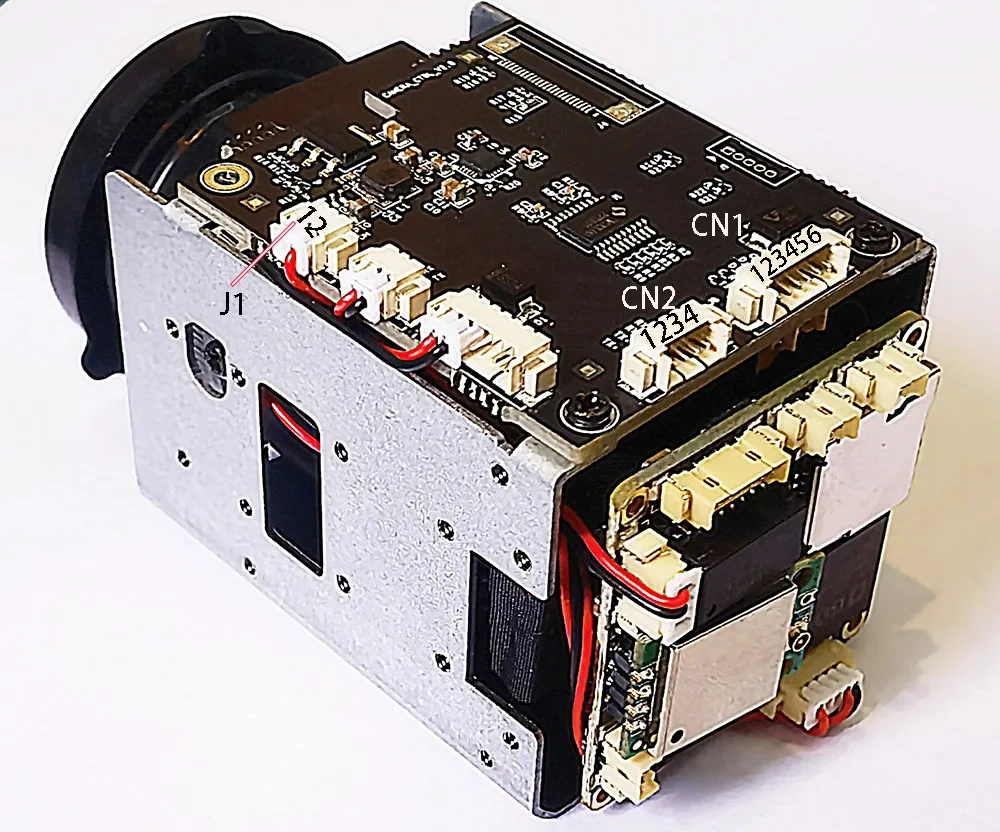

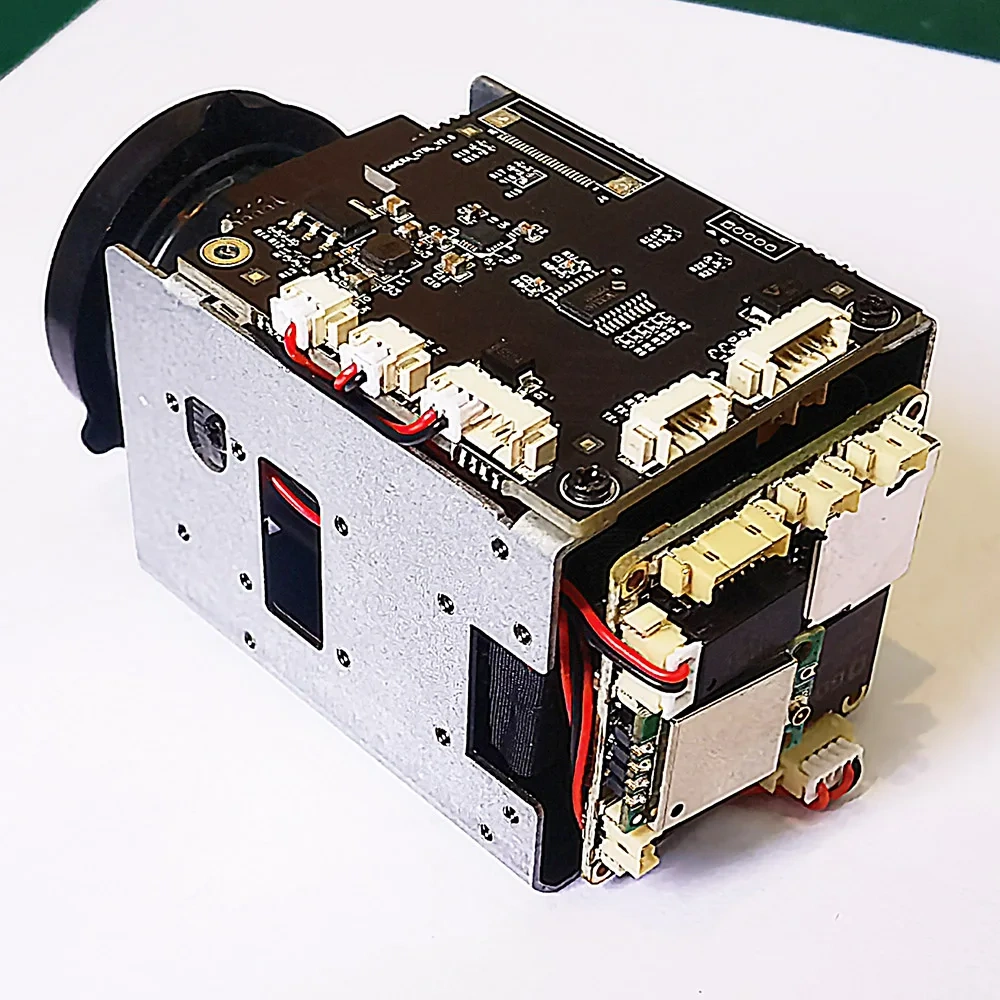

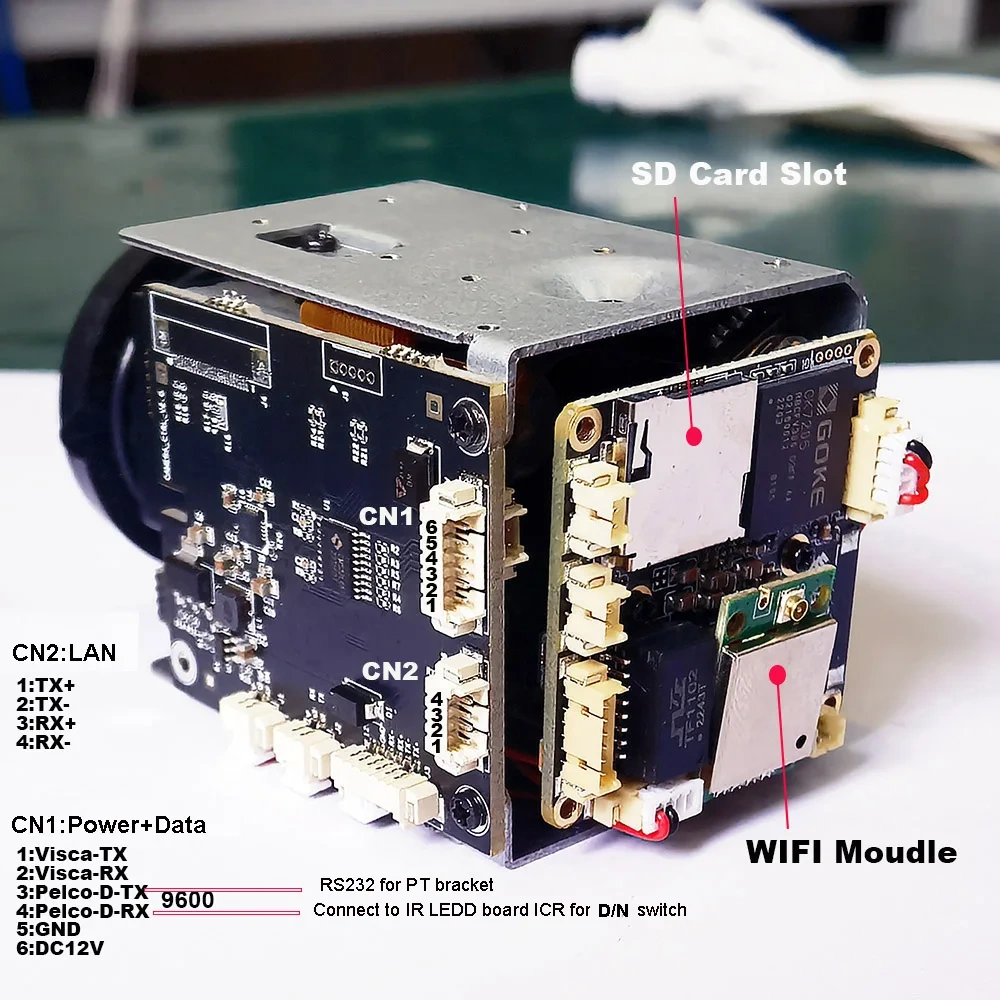

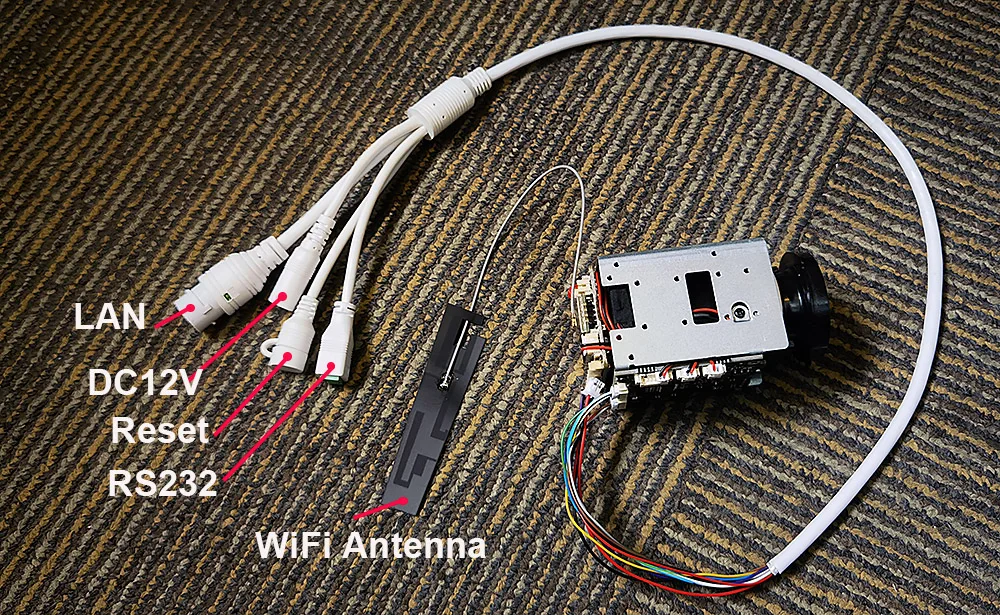

Interface definition
CN1 | 1 | TXD1 | P/T to RXD | VISICA9600 | ||
2 | RXD1 | P/T to TXD | ||||
3 | DOME UART2-TX | P/T RS232 serial port , Pelco-D,Baud rate:9600 | ||||
4 | DOME UART2-RX | Connect IR LED board ICR port for D/N | ||||
5 | GND | |||||
6 | DC12V | |||||
CN2 | 1 | TX+ | J1 | 1 | APP D/N switch | |
2 | TX- | |||||
3 | RX+ | 2 | Infrared: Connect to the IPC infrared light interface | |||
4 | RX- | |||||
Command and Instructions:
1.The lens curve learning command: 253 + set + 252 +call
(The distance between the camera and the object must be greater than 50meters)
2.Minimum focus distance setting:Set command: 251 + set + X + call.
When X = 1, the minimum focusing distance is about 1.5 meters;
when X = 2, the minimum focusing distance is about 3 meters;
when X = 3, the minimum focusing distance is about 6 meters;
when X = 4, the focusing distance is infinity.Default X = 2
3. Focus mode setting:Set command: 250 + set + X + call.
When X = 1, the focus will only be triggered when the zoom movement is triggered;
when X = 2, any change in the pan, tilt, left, right, and zoom modes will trigger the movement to focus;
when X = 3, the automatic focusing mode, In any case, the movement will automatically focus. Default X = 2
4. Modification Digital ZOOM:
If ip address of camera is 192.168.188, Please open the browser and enter this address:
http://192.168.1.88/cgi-bin/hi3510/param.cgi?cmd=setmaxezoom&-maxezoom=10
When maxezoom=1,digital zoom close,
Maxezoom value can be equal to any value from 1-10, representing the multiplier digital zoom of the number.
After the command is executed, please power off
andrestart the camera. digital zoom to take effect
5.ZOOM OSD display and not display: 225 + call + X + call,
when X = 1, the ZOOM timesdisplay is on;
when X = 2, the zoom timesdisplay is off, the default X =1
6.Modify the control protocol method (you need to restart the movement to take effect after modification):
254+set+1+set: VISCA protocol (default) (PELCO-D, baud rate: 9600, address code: 1/255)
254+set+2+set: PTZ serial port protocol (PELCO-D, baud rate: 9600, address: 1
7. The movement supports the standard Visca protocol with a baud rate of 9600.
The address codes of the dome camera is 1
Humanoid recognition algorithm based on deep learning.Based on Huawei's deep learning humanoid recognition
algorithm V2.0,
itprovides accurate humanoid recognition, providing continuous humanoid coordinates for the camera and smooth
tracking of the camera.
1X 240x zoom wireless IP CAMERA
1x cable
1X wifi antenna
1X Manual
