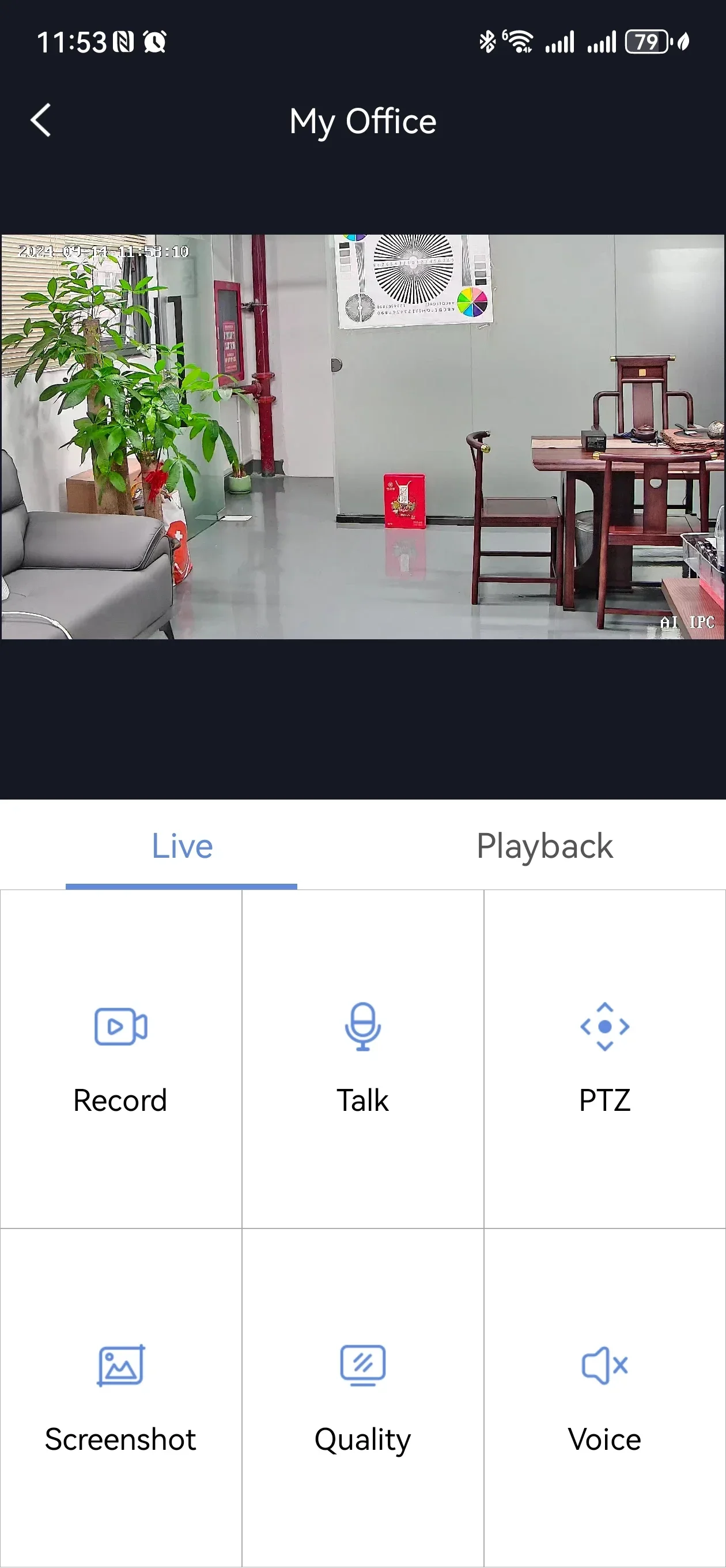

WIFI Bluetooth connection video

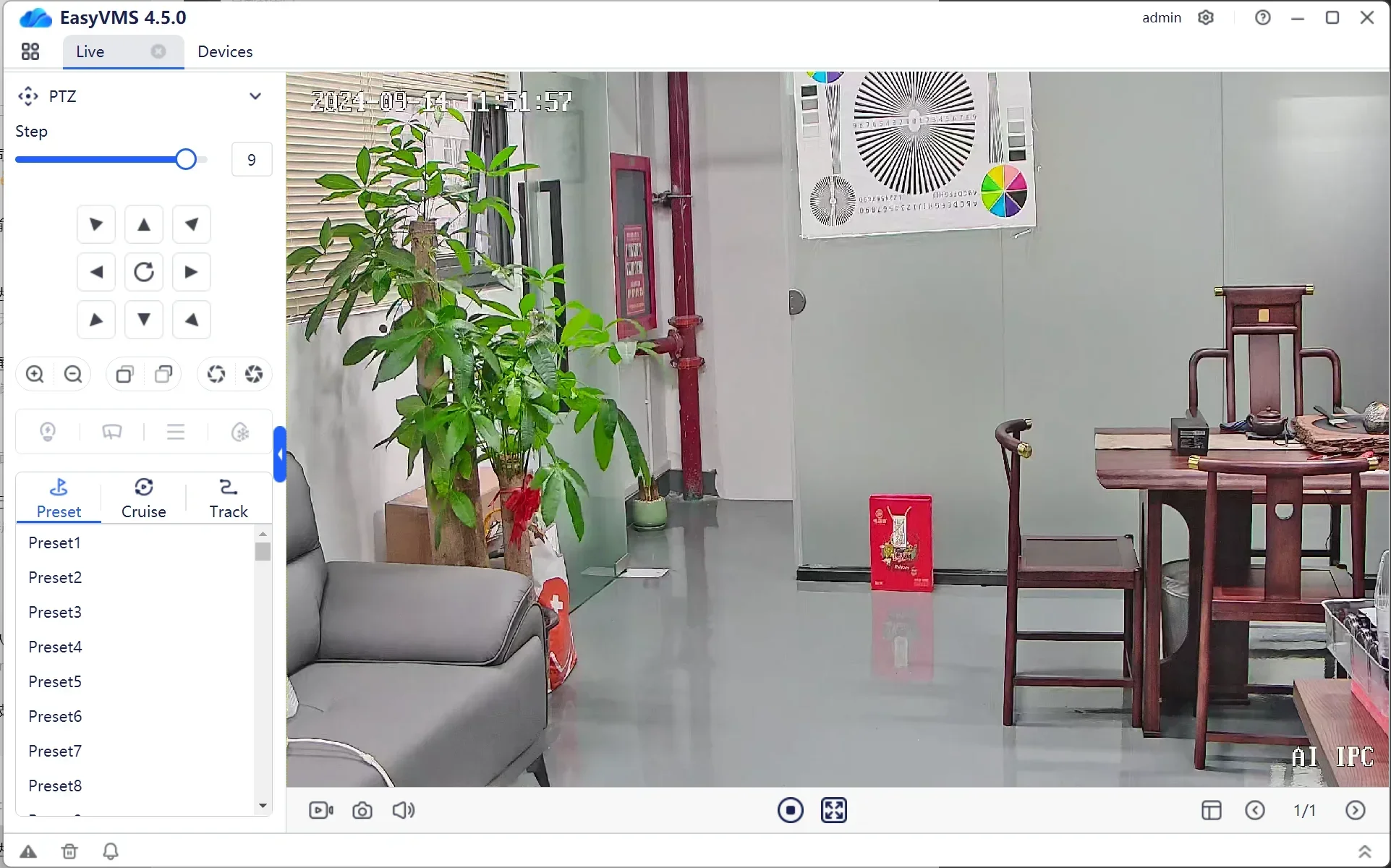

PC software:EasyVMS:

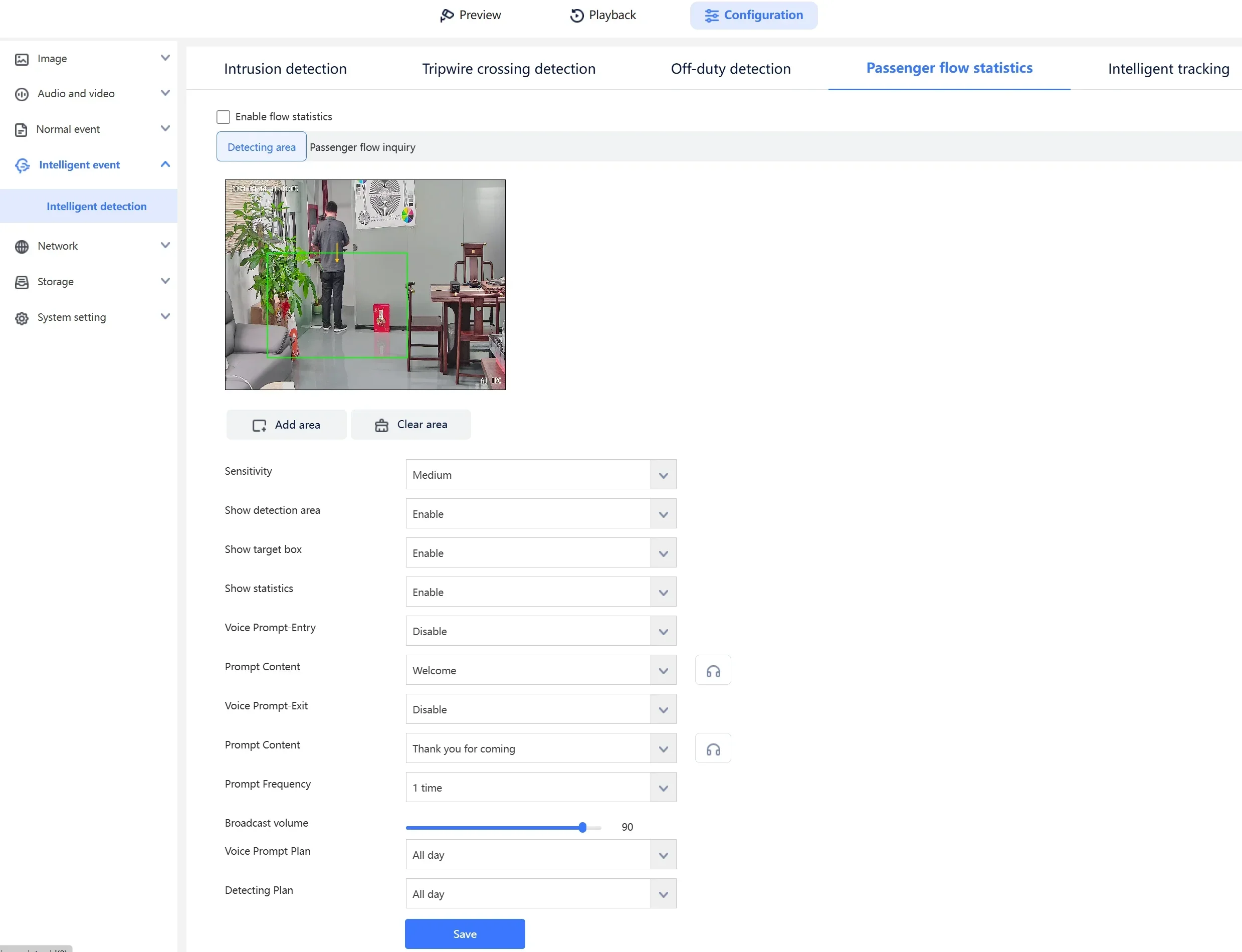

Smart function

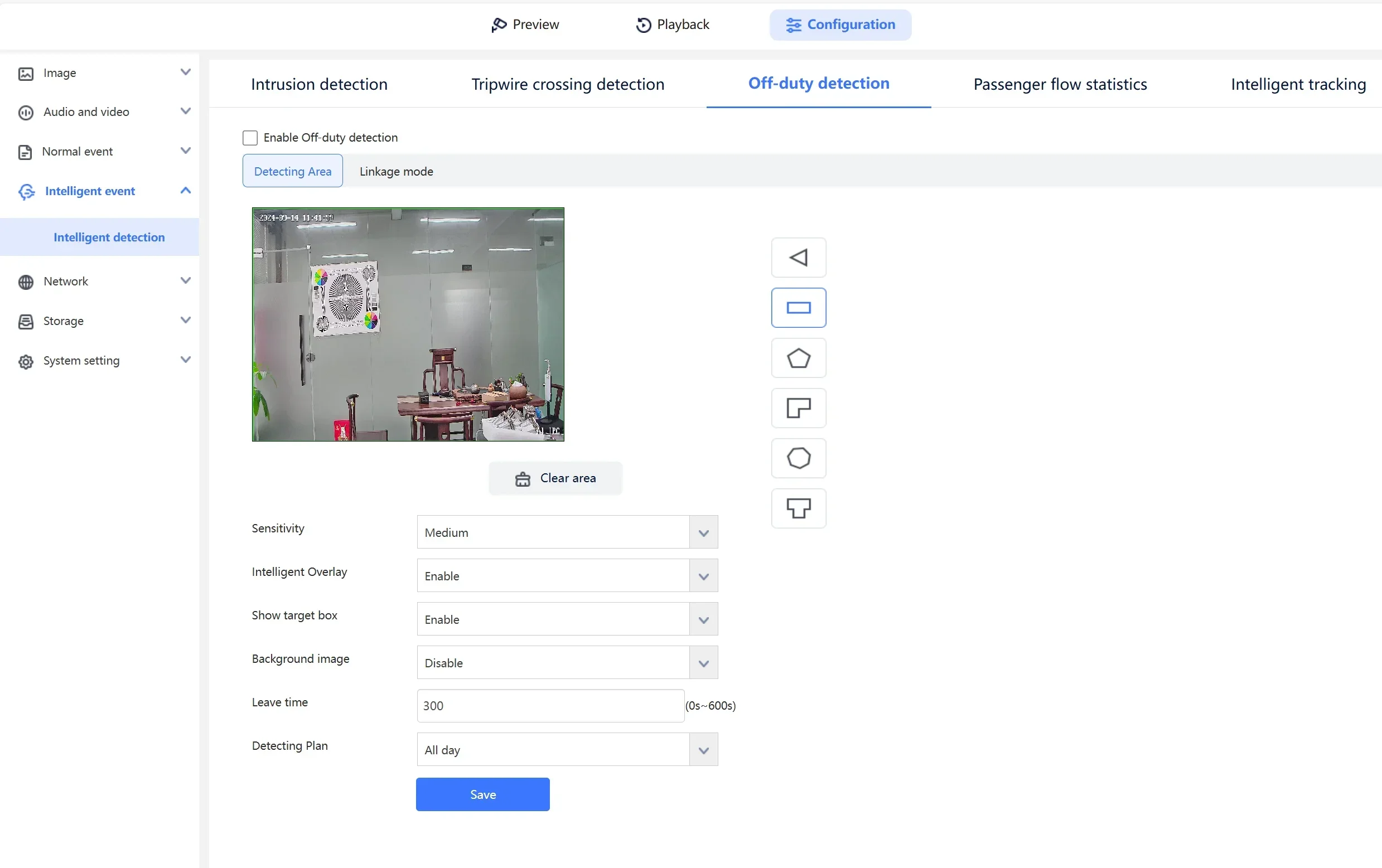

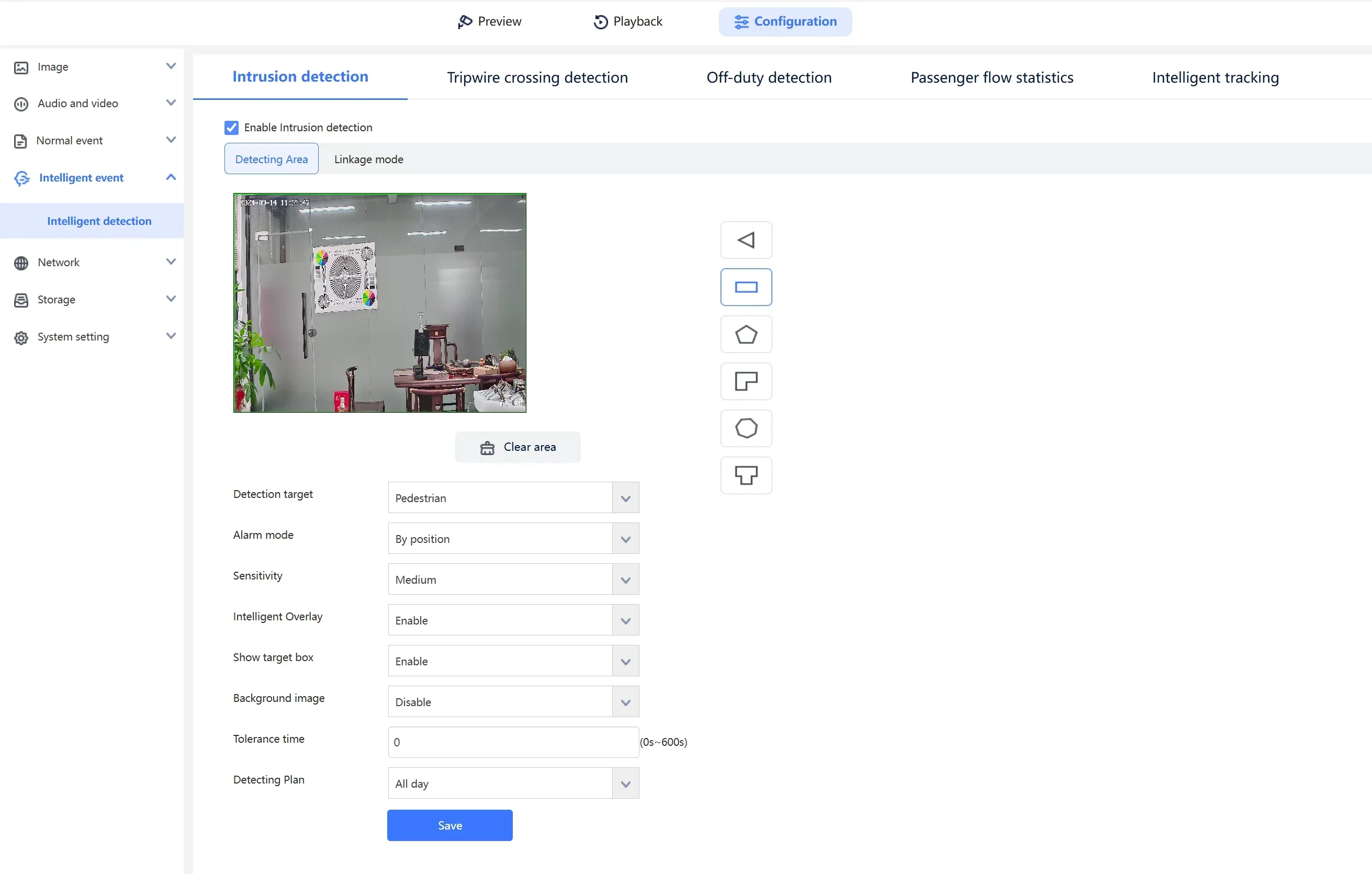

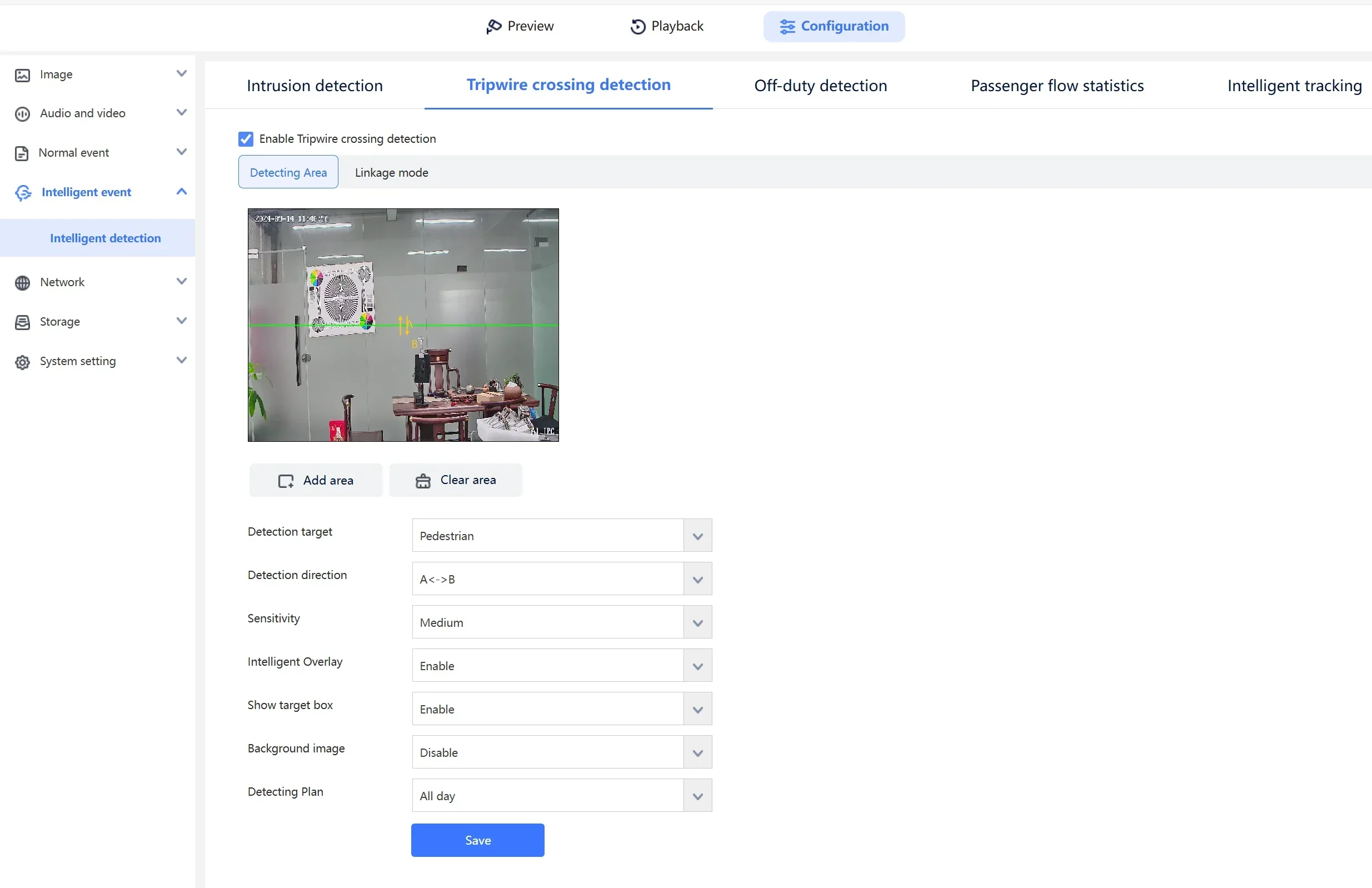

• Support intelligent detection functions such as regional intrusion detection, cross-border detection, and motion detection.
• Support the function of resuming transmission after disconnection to ensure that the video is not lost, and cooperate with Smart NVR to realize the secondary intelligent retrieval, analysis and concentrated playback of event video.
• Support timing tasks, one-key to Home position
• Supports H.265 high-efficiency compression algorithm, which can greatly save storage space.
Image related
• Support up to 2560*1440@25fps HD picture output.
• Support starlight level ultra-low illumination, 0.03Lux/F1.8 (color), 0.01Lux/F1.8 (black and white), 0 Lux with IR.
• Support 30X zoom and 6X digital zoom(Gesture or button control).

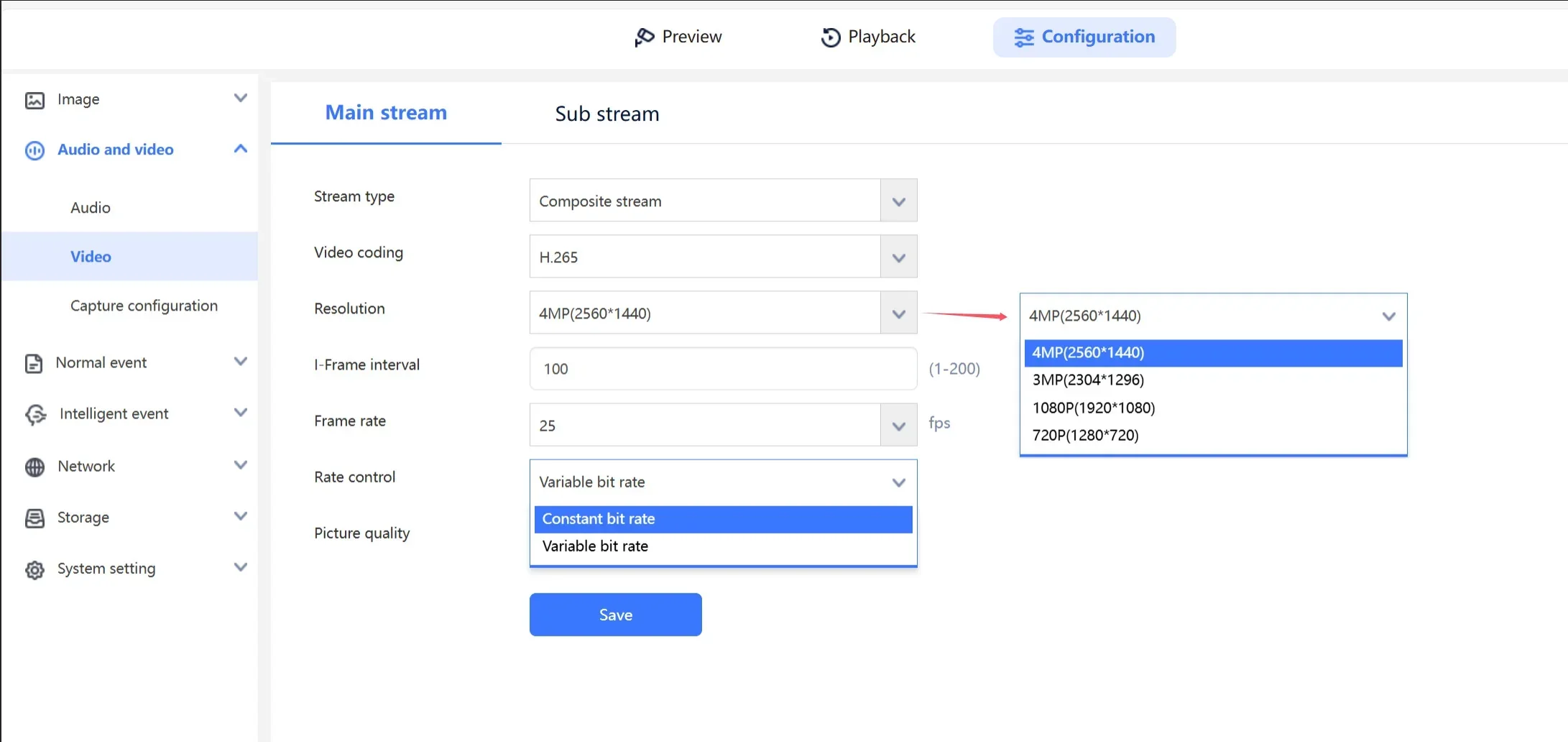

• Support three-stream technology, each stream can be independently configured with resolution and frame rate.
• Supports wide dynamic range up to 60dB, suitable for backlit environment monitoring.
• Support 3D digital noise reduction, strong light suppression.

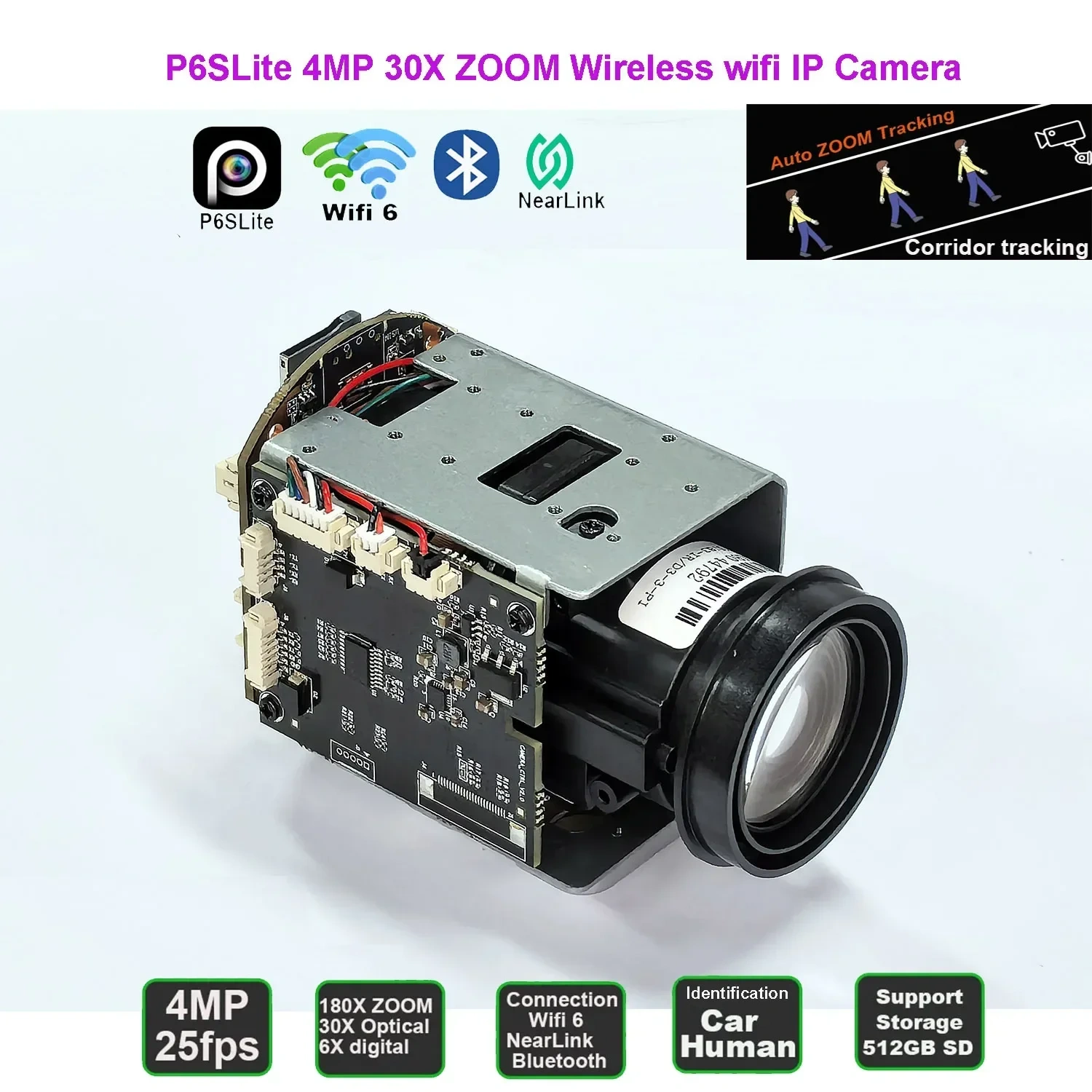

Support corridor auto ZOOM tracking mode

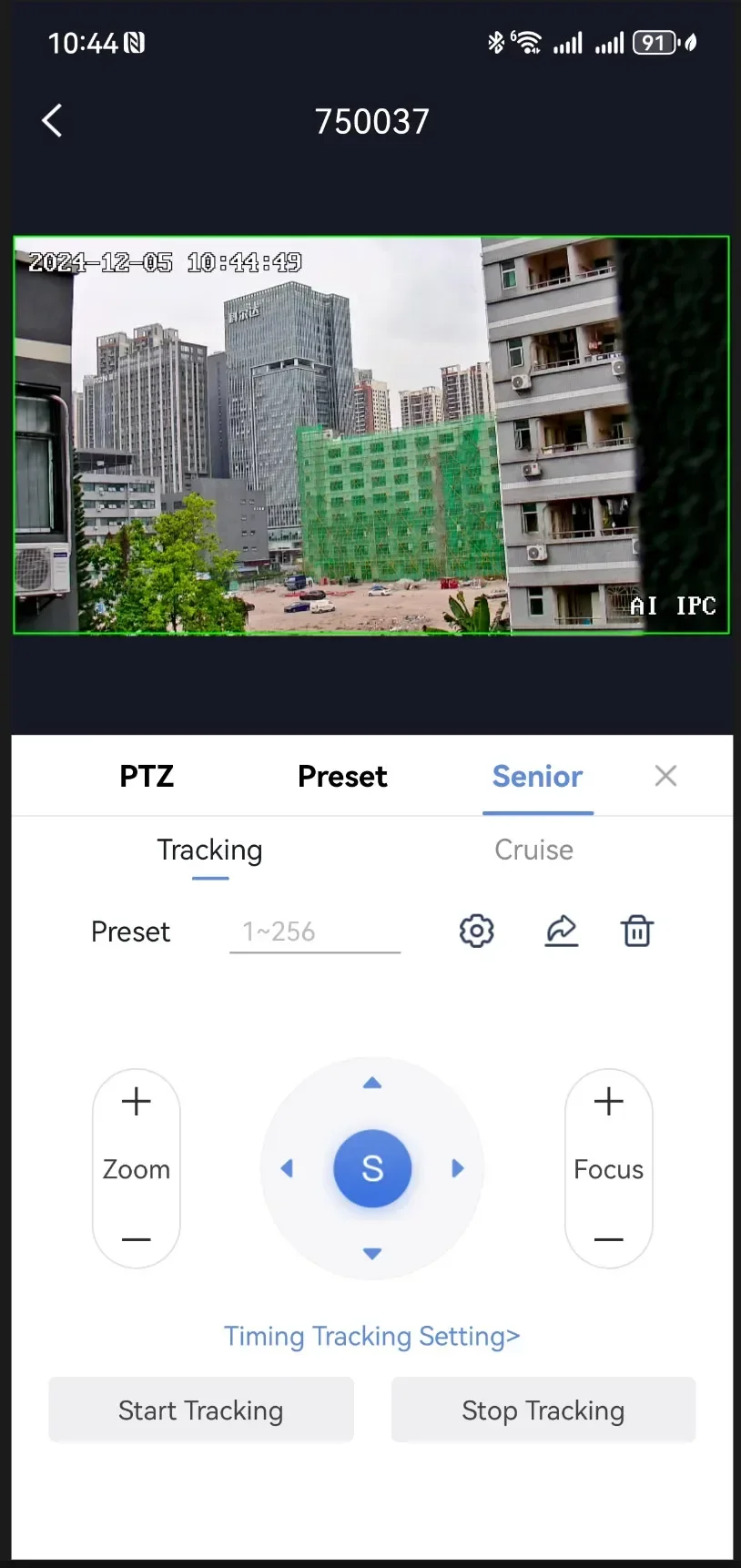

How to Turn ON/OFF Tracking
Button Star Track for Turn on Corridor mode tracking
Button Stop Track for Turn off Corridor mode tracking
254+call for turn on auto zoom tracking
254+set for turn off auto zoom tracking
|
Basic parameters (M-H4W-Y4X) |
|
|
Chip solution |
Hisilicon |
|
Minimum illumination |
Color:0.03Lux @(F1.8,AGC ON);B/W:0Lux @(F1.8,AGC ON),0 Lux with IR |
|
Resolution frame rate |
Main stream:25fps(2560×1440,2304×1296,1920×1080,1280×960,1280×720), |
|
Substream:25fps(800×448,640×360,352×288) |
|
|
|
|
|
Video Encoding format |
H.265+/H.265/H.264 |
|
Audio Encoding format |
G711 |
|
IR night vision |
Support |
|
White balance |
Incandescent lamp,warm light,fluorescent lamp,natural light,manual white balance,auto white balance,lock white balance |
|
Anti-flash mode |
50HZ,60HZ,OFF |
|
Aperture type |
Manual aperture,auto iris |
|
Exposure time |
Auto,1/25,1/35,1/40,1/50, 1/60,1/100,1/120,1/240,1/480,1/960,1/1000,1/2000,1/4000,1/8000,1/10000,1/100000 |
|
Gain |
Auto,6Db,12dB,18dB,24dB,30dB,36dB,42dB |
|
3D noise reduction |
Auto,weak,general,strong |
|
BLC |
OFF/ON |
|
WDR |
Auto,weak,general,strong |
|
IR Image mode |
Standard mode,Face without exposure,License plate mode |
|
Digital ZOOM |
Support 6X digital zoom |
|
Focus mode |
Fully automatic, semi-automatic, manual |
|
LENS |
|
|
focal length |
3.3-97mm,30X Optics ZOOM, support 6x digital zoom,Total 180x zoom |
|
Zoom speed |
about 6 seconds (optical, wide-angle-telephoto) |
|
Horizontal-viewing angle |
About 63-2 degrees (wide angle-telephoto) |
|
Close-up distance |
1.5-100meters (wide angle-telephoto) |
|
Number of aperture |
F1.4-F2.5 |
|
Features |
|
|
Smart Detect |
Face and humaniod detection, area intrusion detection, cross-border detection, entering area detection, fast motion detection, motion detection, video occlusion detection |
|
Smart record |
Motion detection recording, humanoid detection recording, timing recording |
|
Smart image Enhance |
60DB WDR, Strong light suppression, face overexposure prevention, smart infrared |
|
Smart code |
Smart 265/264,Dynamic code stream, fixed code stream, low code stream |
|
Proportional zoom |
Support |
|
Power-Off Memory |
Support |
|
Network |
|
|
Network protocol |
IPv4,HTTP,HTTPS ,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP/IP,DHCP,PPPoE,RTSP |
|
Application Programming |
Support open API for software integration, support standard protocol (ONVIF), support Hikvision protocol and third-party management platform access |
|
Browser |
Support IE8+, Chrome31+, Firefox30+, Safari8.0+ browser |
|
preview videos |
MAX 3 user sametime preview |
|
Wireless wifi |
support wifi6 |
|
Time |
time.windows.com,time.nist.gov,time.kriss.re.kr,time.nuri.net etc.,Network Time Protocol |
|
Alarm |
|
|
Snapshot |
Support Remote timing snapshot, |
|
Motion detection |
At most 4 respective regions |
|
Humanoid detection |
Support Humanoid detection record,snapshot,alarm ouput,tracking |
|
Alarm linkage |
E-mail Alarm and Send with Picture,Save Picture on the FTP Server(not support video), Relay out, alarm send message to mobile phone APP |
|
Record |
|
|
Record |
Support computer local record,Browser record,P2P client software record.NVR record |
|
SD card |
Not support |
|

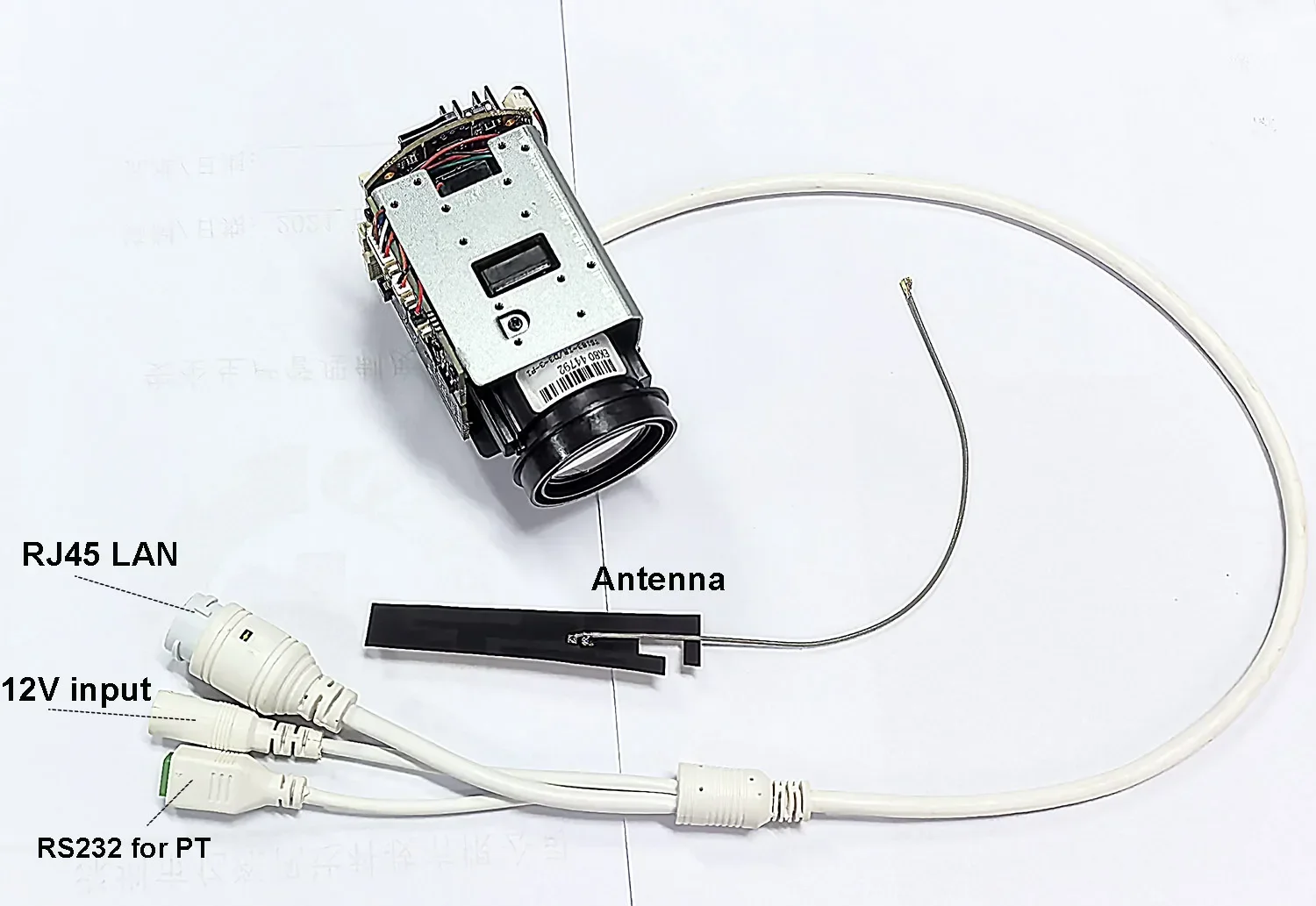

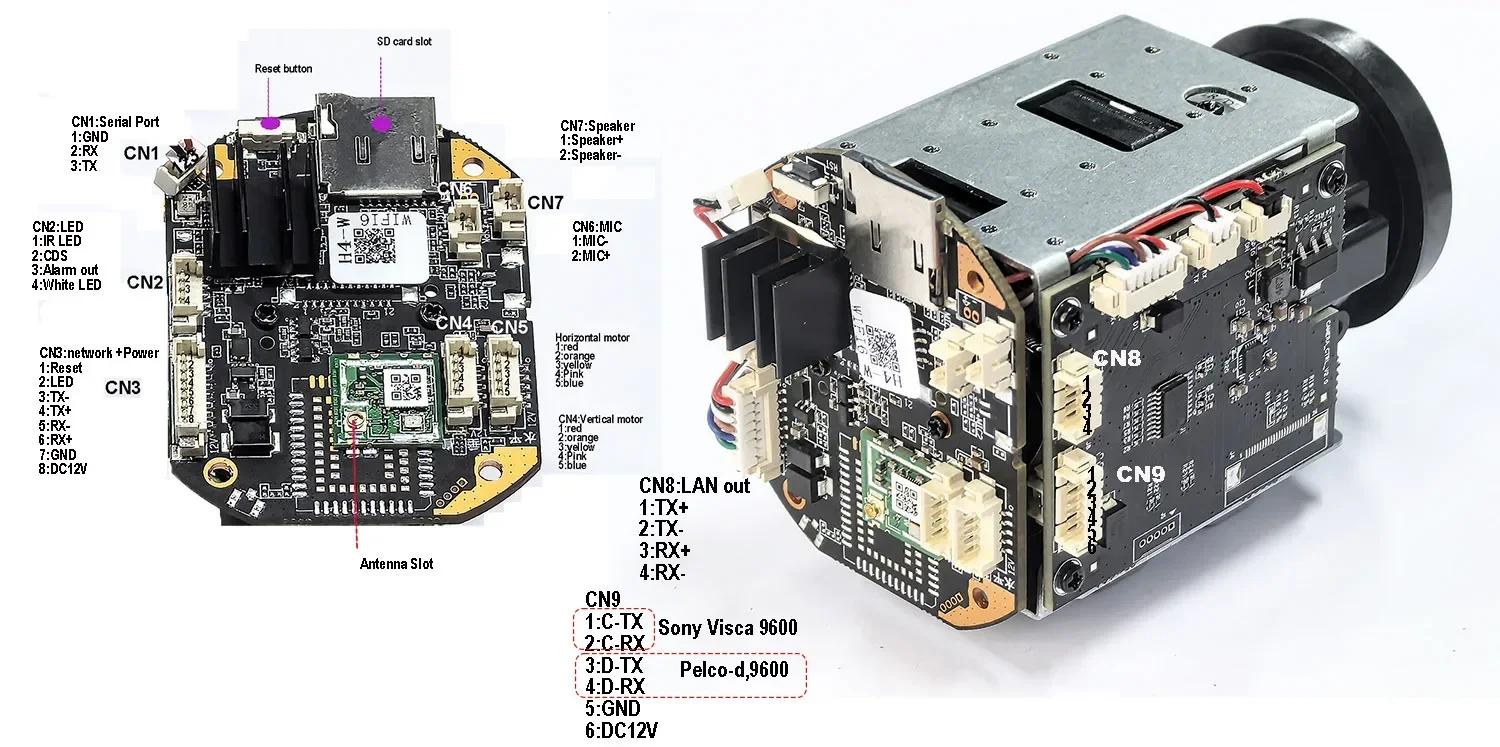

Interface |
|
|
Power interface |
DC12V |
|
Network |
RJ45 10Base-T/100Base-TX,WIFI |
|
Audio |
Mic Build in camera, and support one 3W speaker |
|
SD card |
MAX support 512GB |
|
Reset button |
one external reset button |
|
General specification |
|
|
Power |
Max 3W |
|
Working |
-35℃-65℃; humidity is less than 90% |
|
Protection grade |
IP66; TVS 4000V lightning protection, anti-surge, anti-surge, in line with GB/T17626.5 level four standards |
|

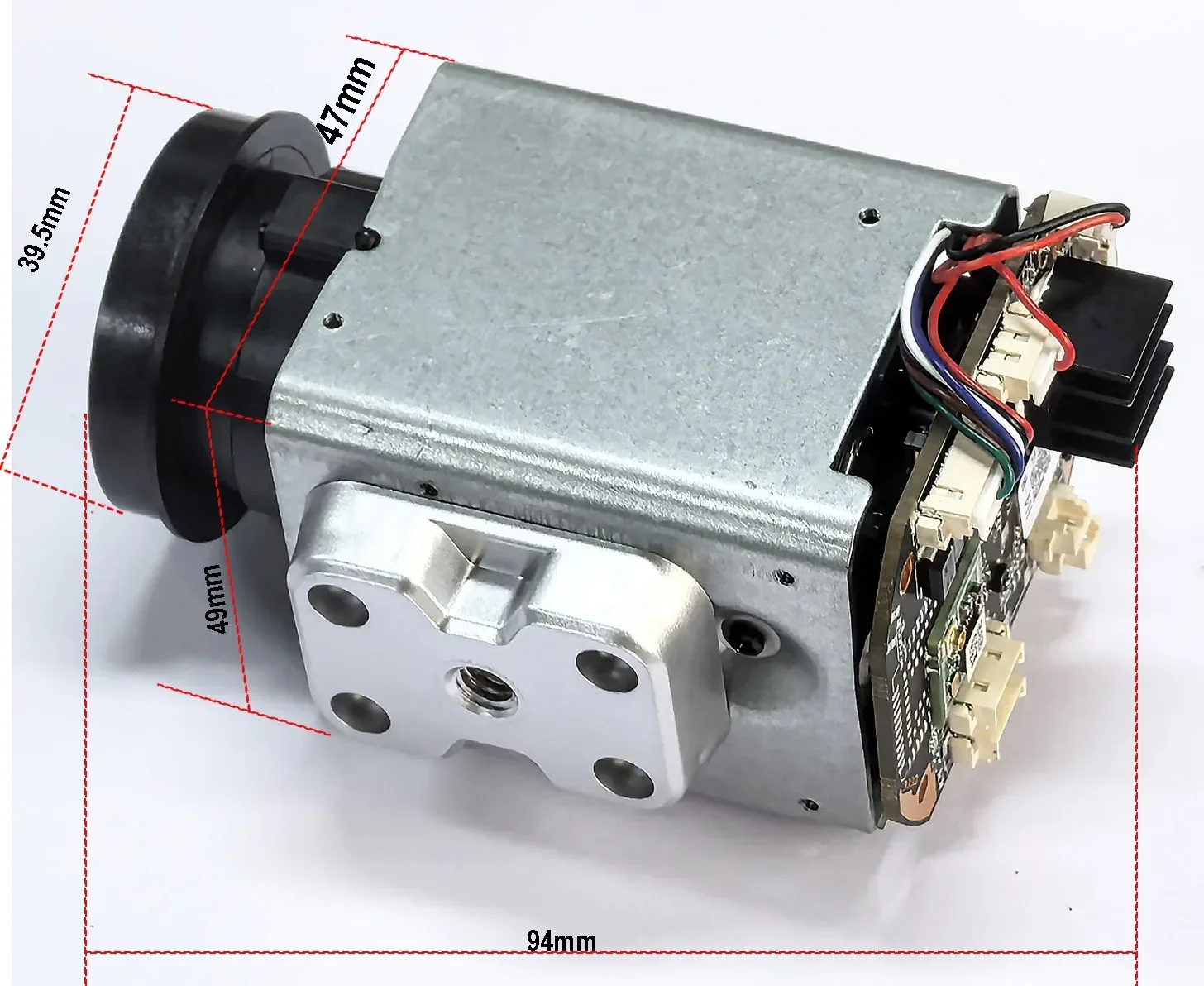

Weight |
0.3KG |
