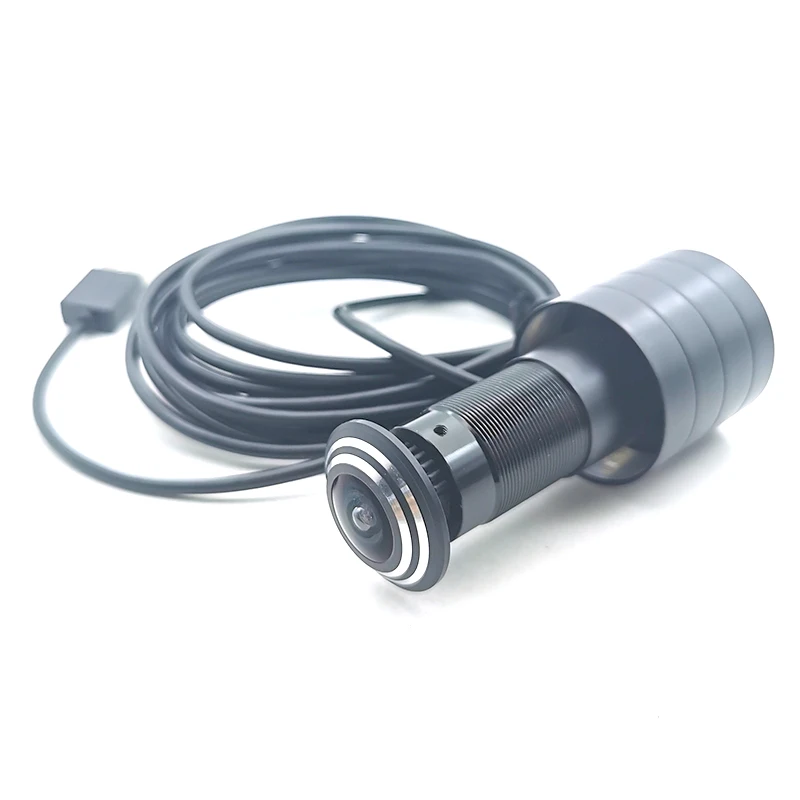

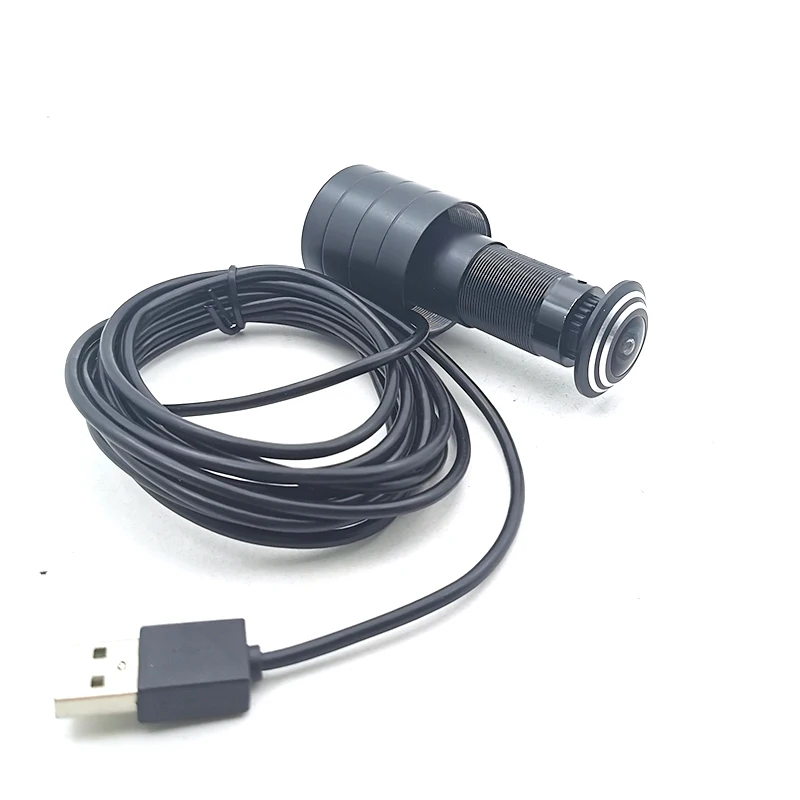

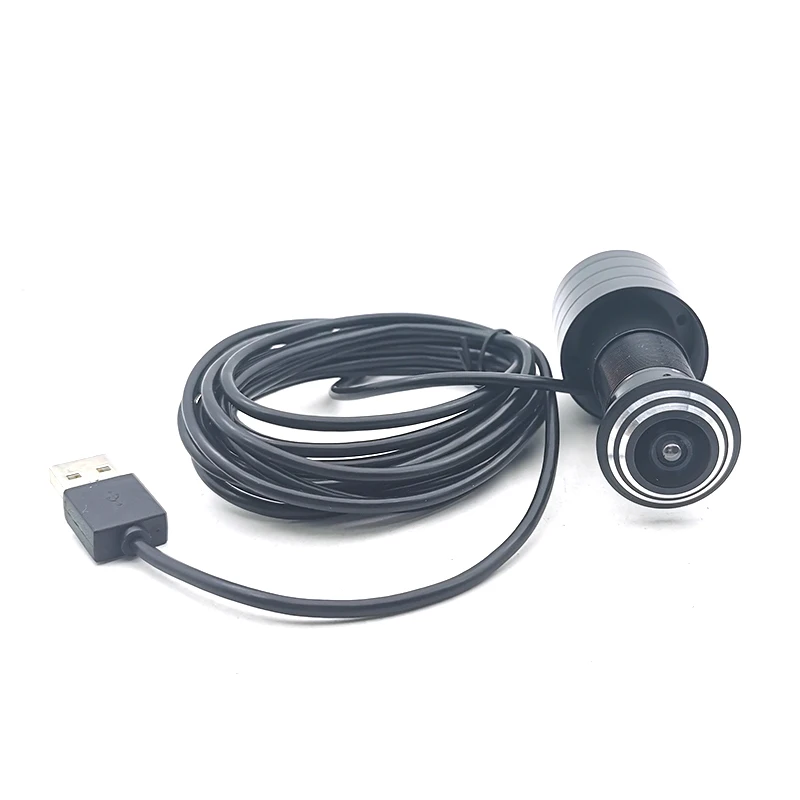

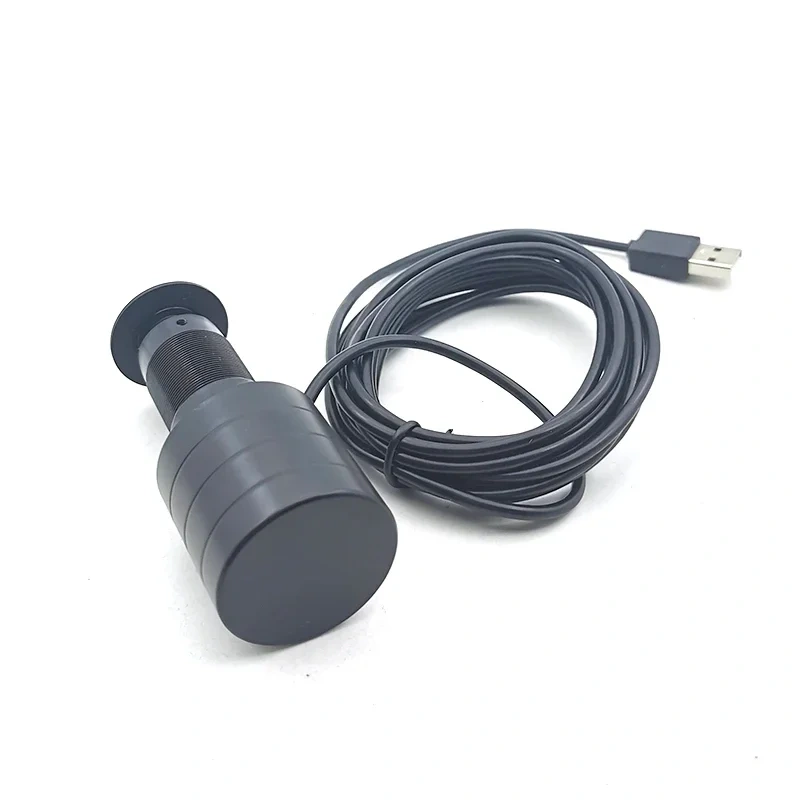

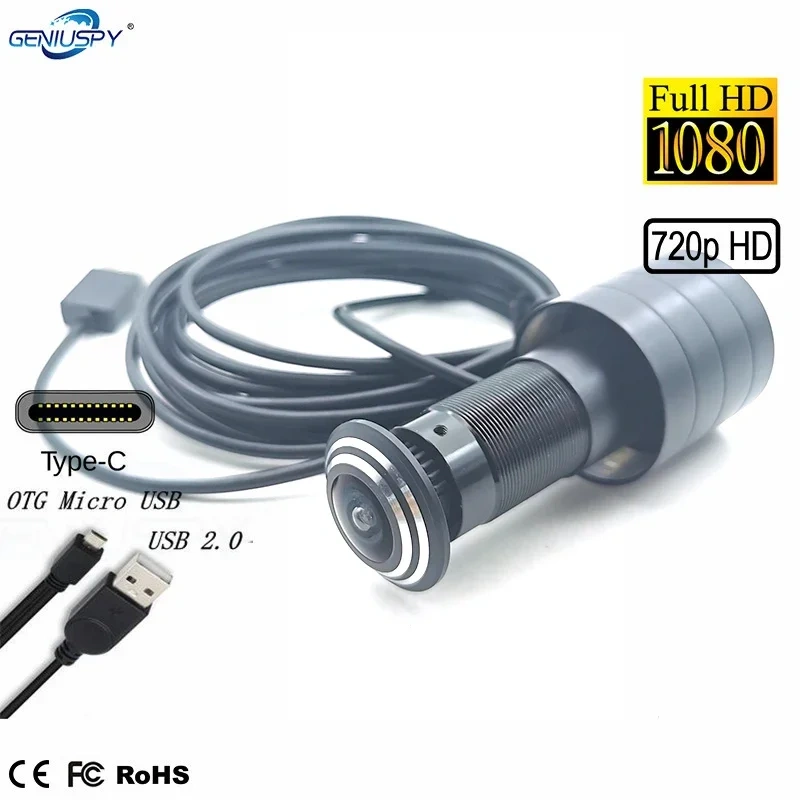

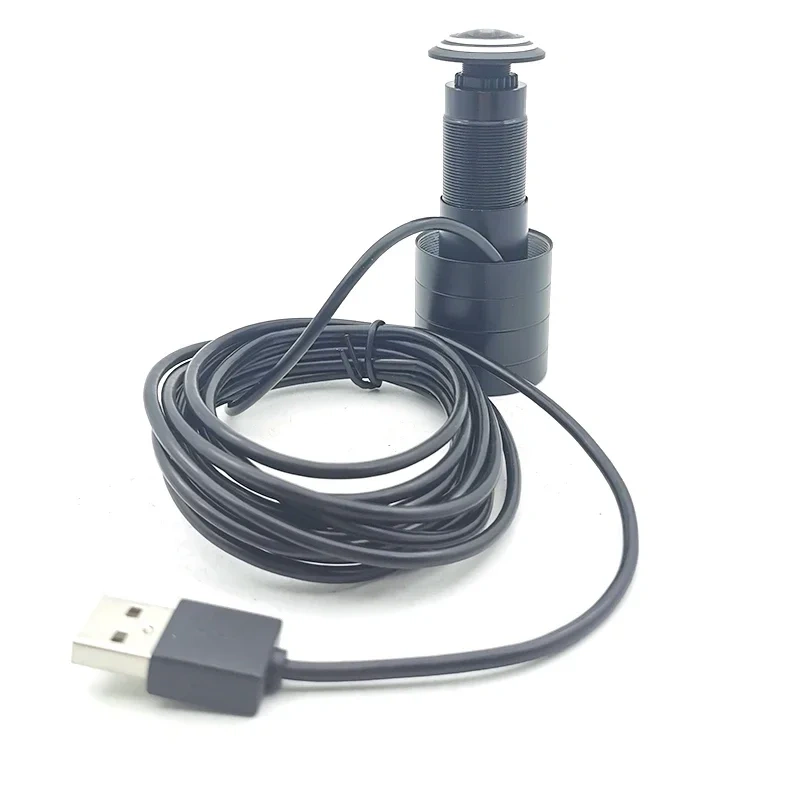

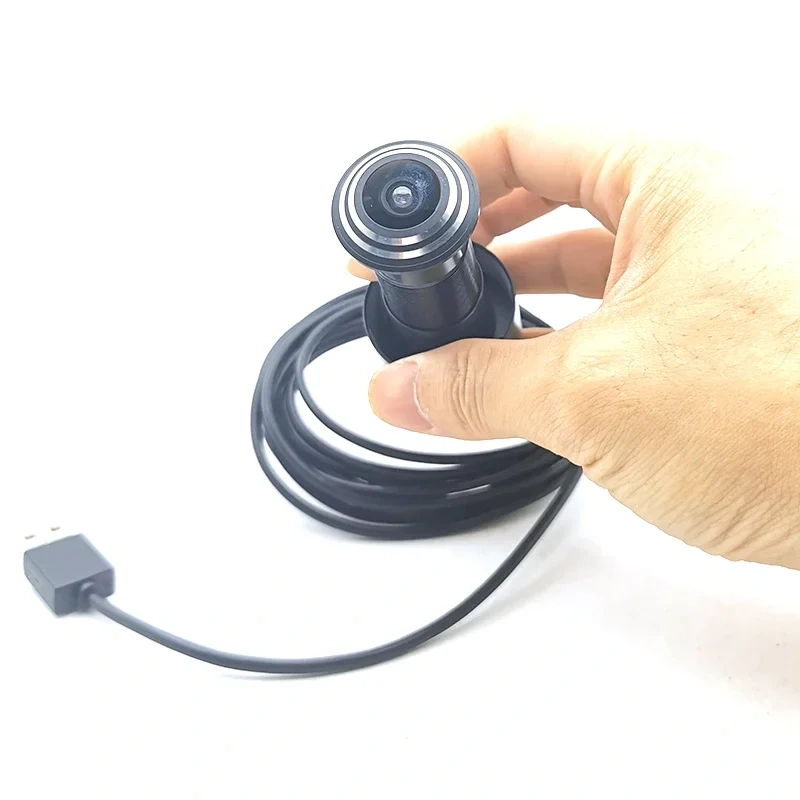

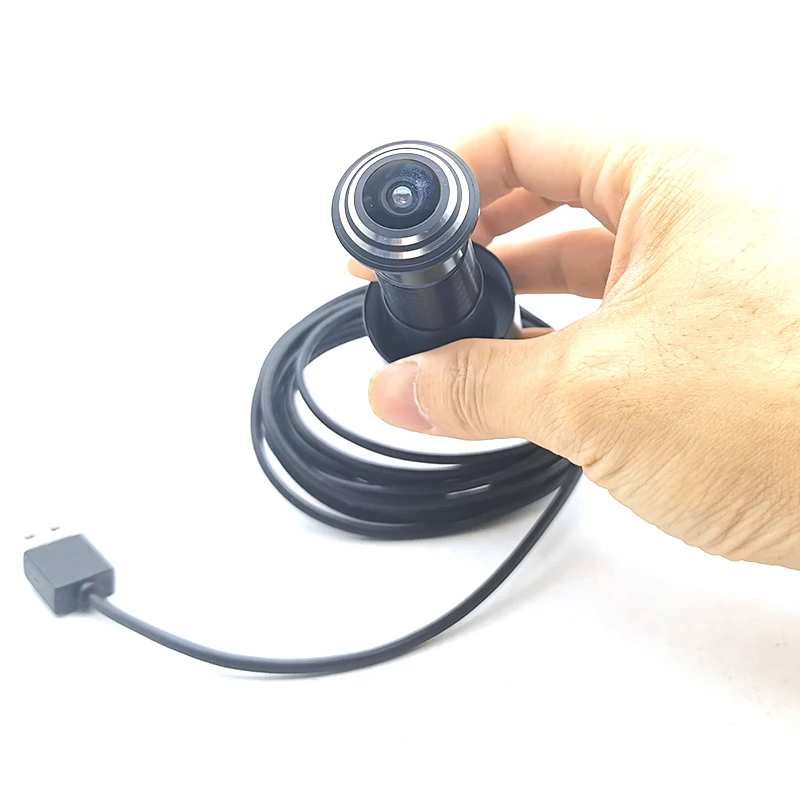

Geniuspy 720P 1080P 1.66MM Fisheye Lens Door Hd Camera Eye Viewer Peephole 1080P 2MP Free Driver Wide Angle Usb Web Cam UVC
Note: 1080P / 720P Optional ,Default 3meters USB Cable
NOTE: Before purchasing this camera, please confirm whether your phone supports OTG function to avoid unnecessary losses
(For those who require OTG Micro USB interface, please contact customer service or note in your order,Thank you !)
if you need other connector ,pls kindly contact with us for custom made !
USB Mini camera
Introducting:
USB Mini colour camera
Color CMOS CCD sensor
USB Format
Support Linux operation system
Main Features:
Image sensor 1/2.7" CMOS, 0.1Lux, 2.0MP imag
Free Driver USB 2.0 (UVC)
USB2.0 HIGH SPEED, compression USB 1.1
Default setting (30fps@1920*1080p)
Manual focus lens
Angle of view around 90 degrees (without any distortion)
Compression YUY2 & MJPEG
Support Windows 2000; Windows XP; Windows VISTA; Windows 7 and later;
Linux(In 2.6.18 above the kernel version);Mac ps3; Android system
Standard 3m cable,if you need shorter cable ,pls contact with us for custom made
Can be connected through 10 meters USB cable
Dimension: 30mm Diamater
USB Power: 5V±10%DC,50mA
Used:intelligent machine,especially Banks'ATM
Can be customized by your requirements
Detailed Specifications Of The Parameters
ModelsGS-DOUBCM
Image sensor | 1/2.7" Color CMOS | |
Effective Pixels | 1920(H)x1080P(v)1280(H)x720(V), 640(H)x480(V), 352(H)x288(V), 320(H)x240(V) resolutions | |
Synchronizing system | Internal | |
Scanning system | Progressive Scan | |
Video output | VGA(640X480), CiF(352X288), SiF(320X240), QSiF(176X144, ),C iF(160x120) | |
S/N ratio | More then 48 dB (AGC Off) | |
Min. Illumination | 0.1 Lux @ F1.2 | |
Exposure | Auto / Manual(Shutter Speed & AGC Control) | |
White Balance | Auto / Fixed / Indoor / Initial / Outdoor | |
Gamma Characteristic | Auto r=0.45 | |
Picture | Brightness / Contrast / Gamma / Saturation | |
Miscellaneous | BW Image / Mirror / Flip / Back Light / Flickerless | |
Power source | 5V DC / 400mA | |
Operating current | 125mA / regulated 5.7VC in | |
Lens | Standard | 1.8mm default around 160degree |
Operating Temperature | 0°C∼ 40°C (Humidity : 0% RH∼ 80% RH) | |
Interface Type | USB format(Complies with USB 2.0) | |
Measurement (mm) | / | |
Weight (Approx. G) | 50g | |
1.0Megapixel 720P usb Mini camera
Detailed Specifications Of The Parameters
ModelsGS-DOUBCH
Image sensor | 1/4" Color CMOS | |
Effective Pixels | 1280(H)x720(V), 640(H)x480(V), 352(H)x288(V), 320(H)x240(V) resolutions | |
Synchronizing system | Internal | |
Scanning system | Progressive Scan | |
Video output 1280*720P | VGA(640X480), CiF(352X288), SiF(320X240), QSiF(176X144, ),C iF(160x120) | |
S/N ratio | More then 48 dB (AGC Off) | |
Min. Illumination | 0.1 Lux @ F1.2 | |
Exposure | Auto / Manual(Shutter Speed & AGC Control) | |
White Balance | Auto / Fixed / Indoor / Initial / Outdoor | |
Gamma Characteristic | Auto r=0.45 | |
Picture | Brightness / Contrast / Gamma / Saturation | |
Miscellaneous | BW Image / Mirror / Flip / Back Light / Flickerless | |
Power source | 5V DC / 400mA | |
Operating current | 125mA / regulated 5.7VC in | |
Lens | Standard | 1.8MM Default 180degree |
Operating Temperature | 0°C∼ 40°C (Humidity : 0% RH∼ 80% RH) | |
Interface Type | USB format(Complies with USB 2.0) | |
Measurement (mm) | / | |
Weight (Approx. G) | 50g | |
Package contents:
1 x Camera 1 x English User Manual
