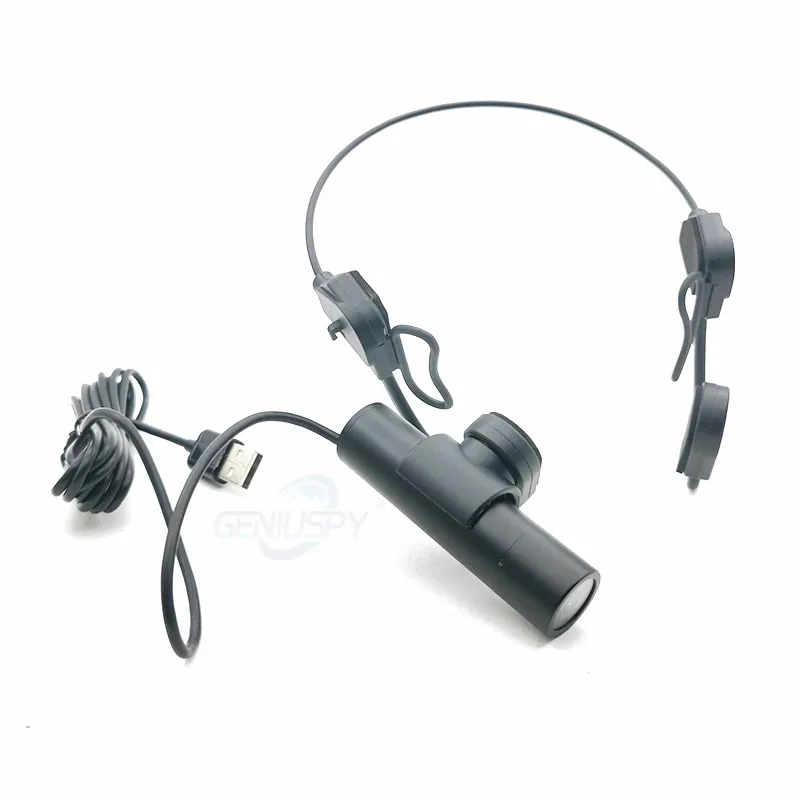

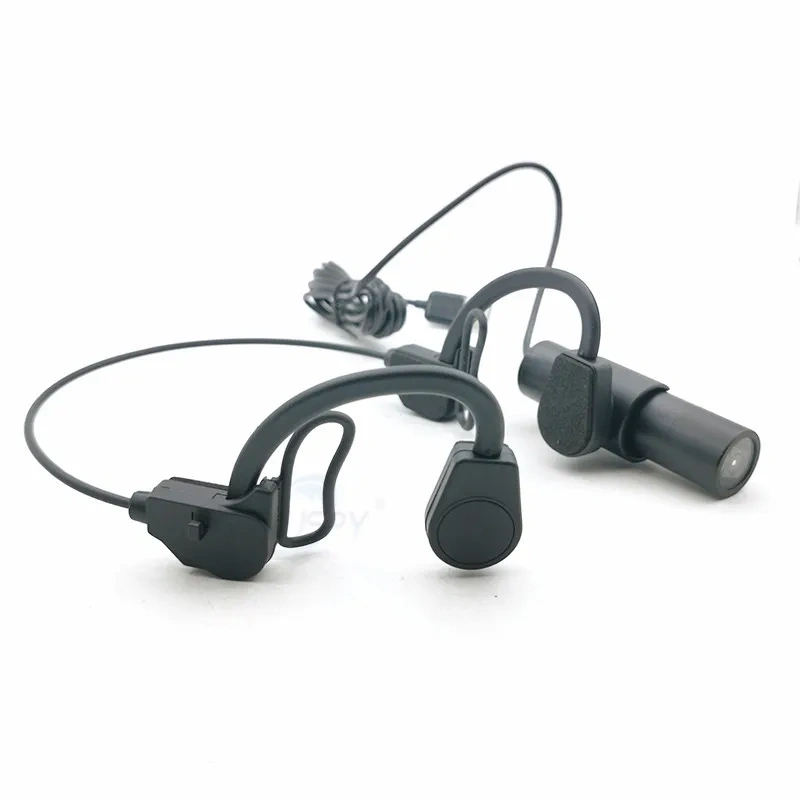

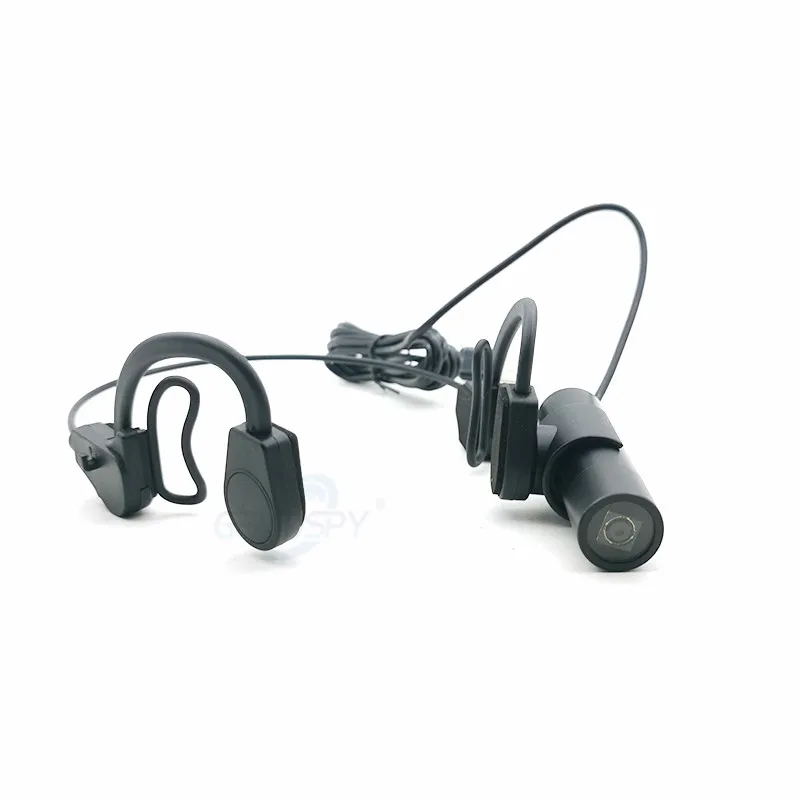

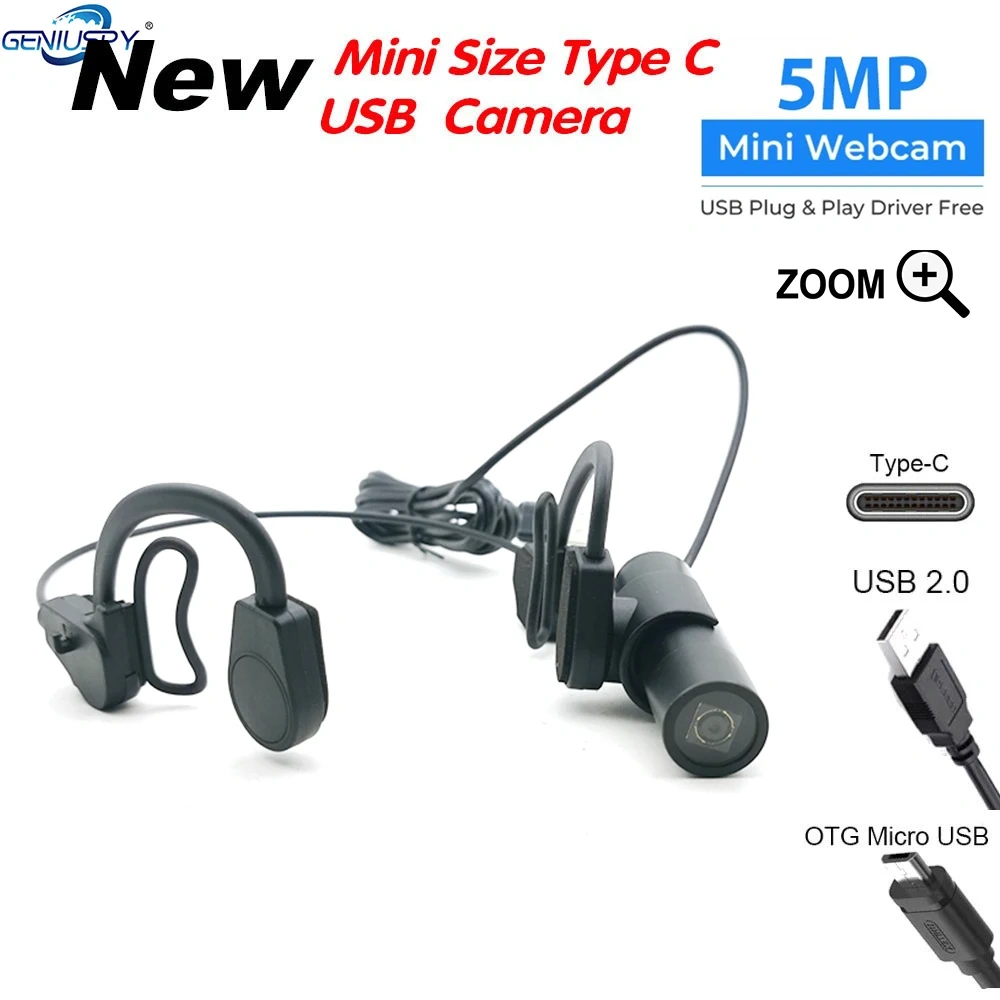

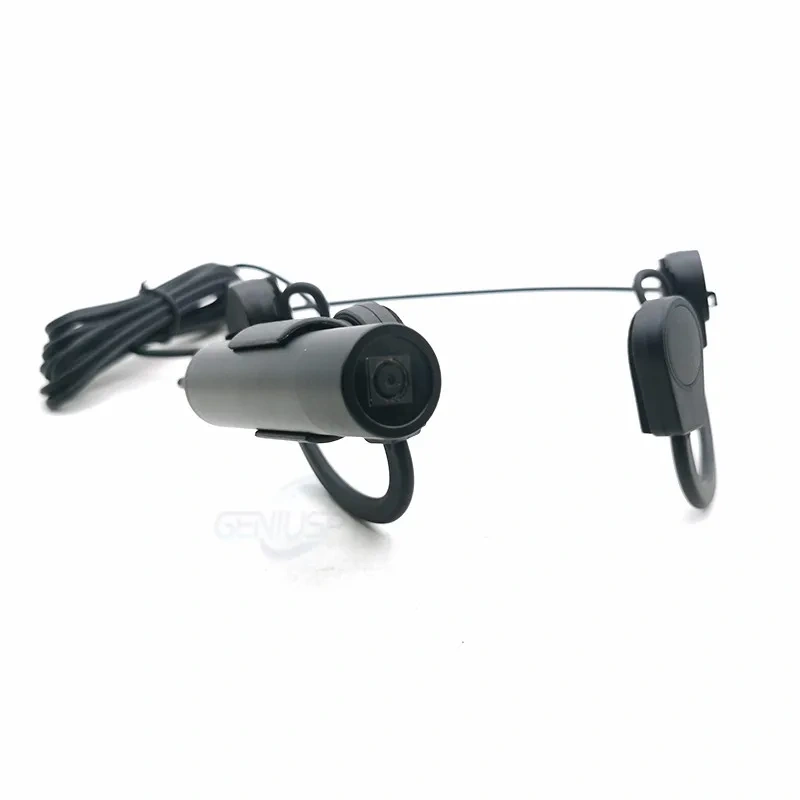

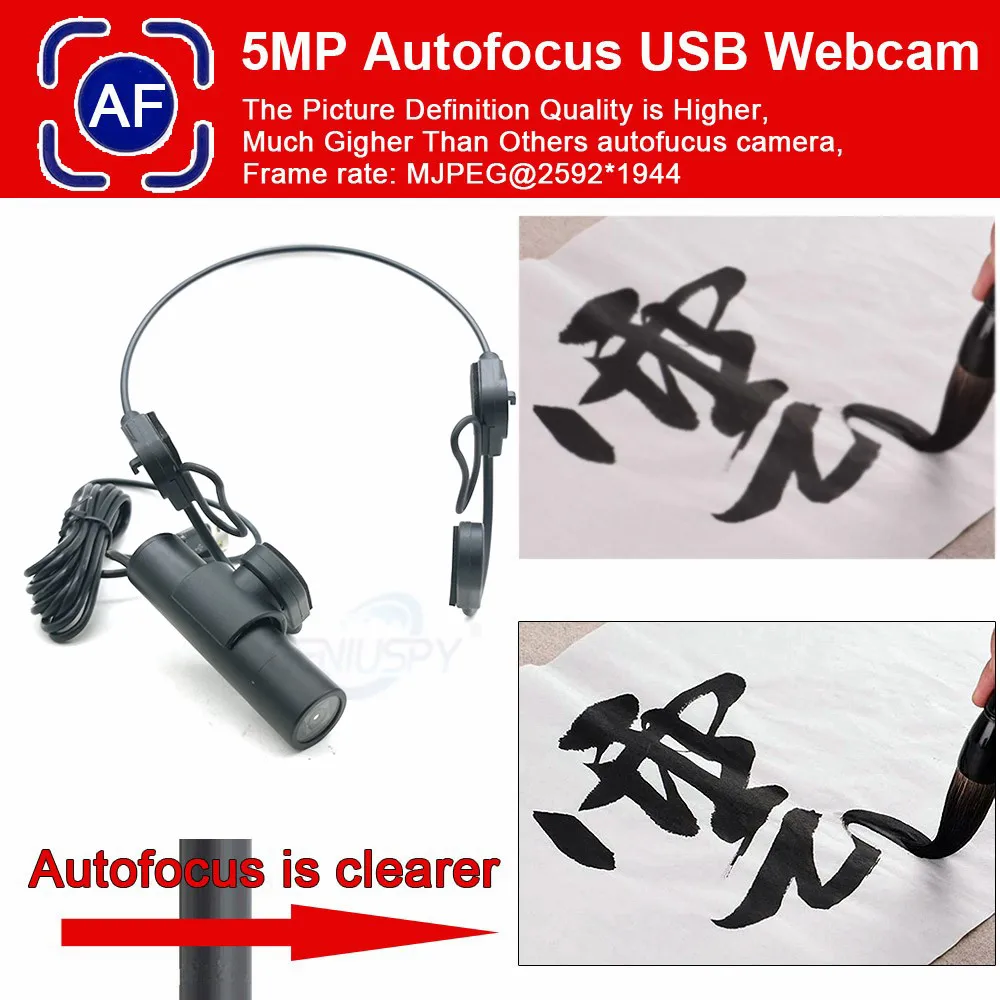

HD 5MP OTG Mini Bullet USB Camera Auto Focus Micro USB Module AF Automatic Focus Lens Android OTG External Small Camera Headset

HD 5MP OTG Mini Bullet USB Camera Auto Focus Micro USB Module AF Automatic Focus Lens Android OTG External Small Camera Headset

USB Mini Camera Feature:

• 5MP high resolution micro usb web camera

• 2M USB Cable, 5MP 30FPS frame rate

• USB 2.0 highly compatible webcam, plug and play, easy instally

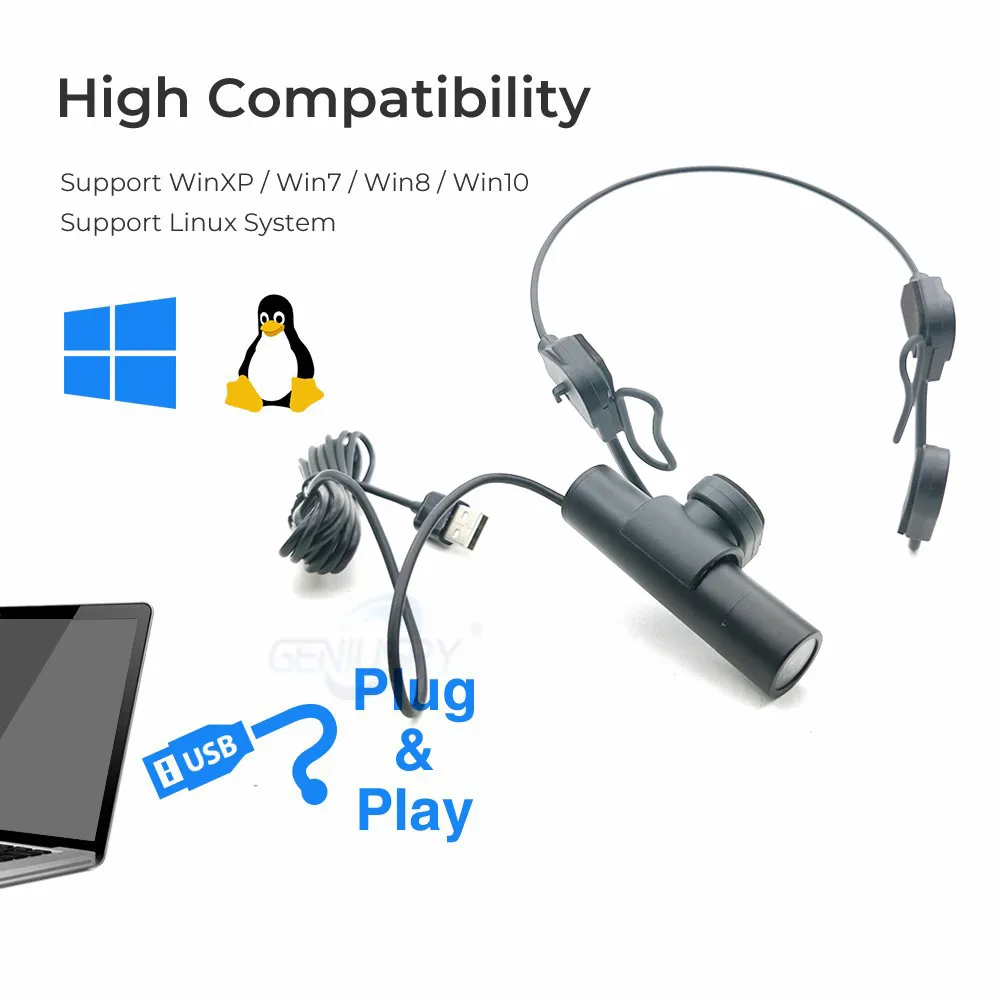

• Support WinXP/Vista/WIN7/WIN8/WIN10/Linux system

• 3.7 mm mini camera len, 90° viewing angle, high clearly image and video mini camera

• support Audio

Attenation:

Note:This Camera not apply to all the Android Phone and Computer System.Please note that your phone must support OTG function, Android system above.

Statement: This product is only used for industrial testing. It is mainly used in small space equipment. It is forbidden to be used for personal eavesdropping and taking pictures.

These interfaces are optional, please place orders which one you need:

Surveillance Camera Full HD 1080P UVC OTG AF AutoFocus 500W USB Camera Module 2592*1944 30FPS High Speed 2MP CCTV Webcam

Our company has been persisting in the tenet of credibility based, customers supreme, and quality guaranteed, to provide the best services to you through our utmost efforts!

We promise: the same to you the quality our price is optimal, same price our quality is the most guarantee!

Factory direct sales of goods are definitely value for money!

Feature:

HD 1080P  5MP USB camera module

Synchronization technology

High speed USB 2.0 interface

High quality image

Low power consumption

Small outline for embedded application

UVC compliance for use in OS Windows,Linux,Android,Mac

Typical application

1: ATM,Kiosk,POS,TV box2: advertising cameras3: one camera4: Smart TV built-in camera

5: Construction Equipment6: Banking equipment7: body switch8: Scanner

9: a mobile terminal device10: Medical diagnostic image acquisition11: fingerprints, palm prints image acquisition

12:video door phone13:HD surveillance

Remarks:

1: Use the USB cable wire into the computer, notebooks and other USB interface will be able to use!

2: inserted as computers, laptops can not be used, indicating that there is no drive in accordance with the camera.

3: This product is equipped with a USB cable.

Typical application

1: ATM,Kiosk,POS,TV box          2: advertising cameras        3: one camera         4: Smart TV built-in camera

5: Construction Equipment         6: Banking equipment          7: body switch          8: Scanner

9: a mobile terminal device        10: Medical diagnostic image acquisition            11: fingerprints, palm prints image acquisition

12:video door phone                  13:HD surveillance

This camera is a 5.0 megapixel size 2592*1944 pixel 1080P HD USB-2.0-free drive camera module, frame rate up to 30 frames. It can be used for one computer, advertising equipment, video doorbell, can meet the high demands of customers!

HD 5MP 1080P USB camera module

Synchronization technology

High speed USB 2.0 interface

High quality image

Low power consumption

Small outline for embedded application

UVC compliance for use in OS Windows,Linux,Android,Mac

1: ATM,Kiosk,POS,TV box         2: advertising cameras       3: one camera        4: Smart TV built-in camera

5: Construction Equipment        6: Banking equipment         7: body switch         8: Scanner

9: a mobile terminal device       10: Medical diagnostic image acquisition           11: fingerprints, palm prints image acquisition

12:video door phone                 13:HD surveillance

1: Use the USB cable wire into the computer, notebooks and other USB interface will be able to use!

2: inserted as computers, laptops can not be used, indicating that there is no drive in accordance with the camera.

3: This product is equipped with a USB cable.

Models:GS-BU620C5MB-AF

Size:1/4 inch

pixel size:1.4 µm x 1.4 µm

Maximum effective pixels: 2592(H)*1944(V)/1920 (H) *1080 (V)

Output image format: YUV2 (YUYV) / MJPEG

Frame rate:

2592*1944-MJPEG-30FPS YUY2-2FPS

2048*1536-MJPEG-30FPS YUY2-3FPS

1920*1080-MJPEG-30FPS YUY2-5FPS

1280*720-  MJPEG-30FPS           YUY2-10FPS

950*540-    MJPEG-30FPS            YUY2-

640*480-    MJPEG-30FPS            YUY2-30FPS

320*240-    MJPEG-30FPS            YUY2-

320*180-    MJPEG-30FPS            YUY2-30FPS

Signal to noise ratio: 36dB

Dynamic range: 72dB

image area:3673.6 µm x 2738.4 µm

Sensitivity: 690 mV/lux-sec

Minimum illumination: 0.01LUX

Shutter type: Electronic rolling Frame shutter/ exposure

Interface type: USB2.0 High Speed

Support free flooding protocol: USB Video Class (UVC)

Support OTG protocol: USB2.0 OTG

Automatic exposure control AEC: support

Automatic white balance AEB: support

Automatic gain control AGC: support

Adjustable parameters: brightness contrast color saturation hue resolution

The gamma exposure contrast gain white balance backlighting

Power supply: USB BUS 4P-2.0mm POWER socket

Working voltage: DC5V

Working current: 140mA~220mA

Working temperature: 0 ~ 60

Storage temperature: -20 ~ 70 C

Board size: 20*75mm

Machine weight: 50g

Supported system: WinXP/Vista/Win7/Win8/ Linux with UVC (above linux-2.6.26)/ MAC-OS X 10.4.8 or later

/Wince with UVC/Android 4 or with above UVC
Interface:USB Interface

Lens: 3.6mm

Angle（FOV): 90°

Line length:2M USB/ TYPE-C/Android 1meters

Real case:

Package contents:

1 x Camera 1x headset.1x manual

Notice ：Dear,all customer ,because cd disk is easy damaged by rude transport and Most

of the Customer ‘s Computer Without CD CD-ROM disk drive,it is hard to copy the files

from the CD Disk! In addation ,the CD Disk Polluting the environment after used !

Software will be sent to your emails or leave message in aliexpress when you paid!pls contact with our SALES team if you need !



To Customers :

Thanks for your attention to our products.if you have any question ,pls fell free to contact with us !

we will replyed you within 24hours!!!
