The camera output is AHD by default. If you need to switch to cvbs mode, connect the camera to AHD DVR and use the OSD menu to operate

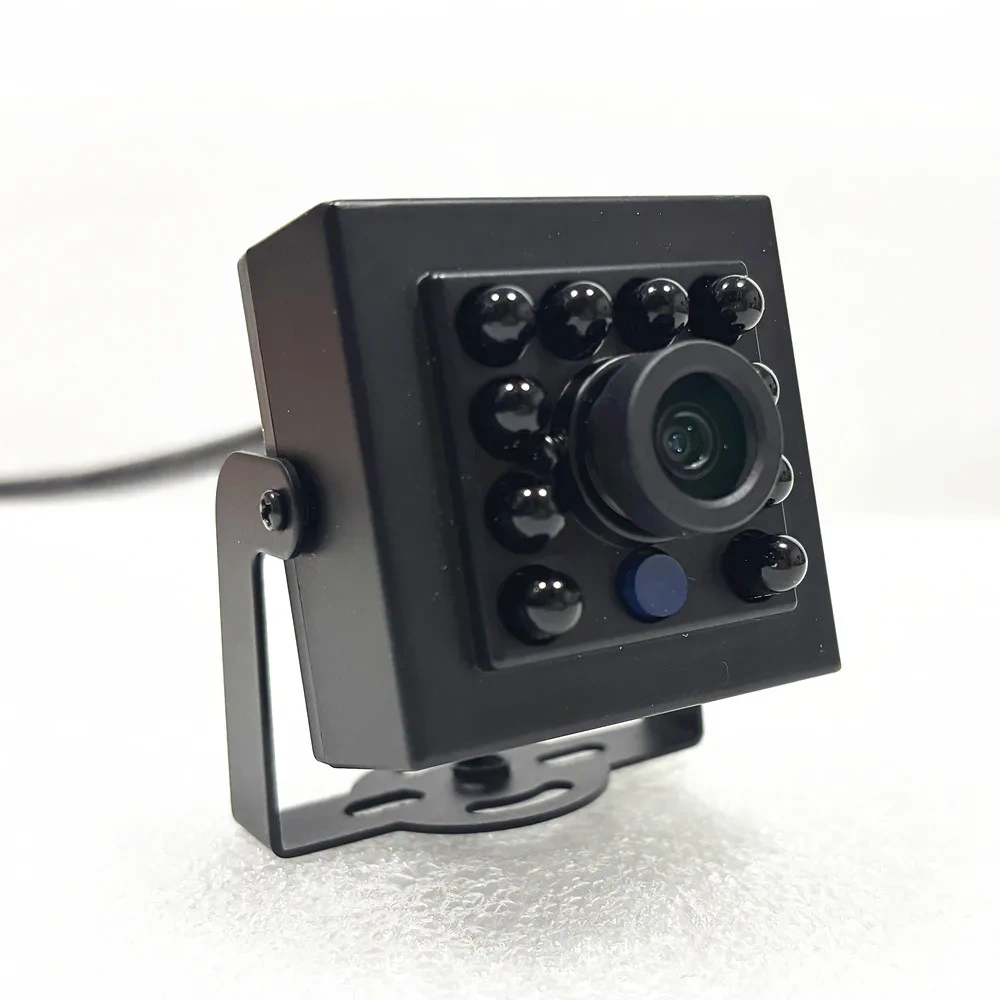

This infrared light is 940nm, and the light source is invisible to the human eye

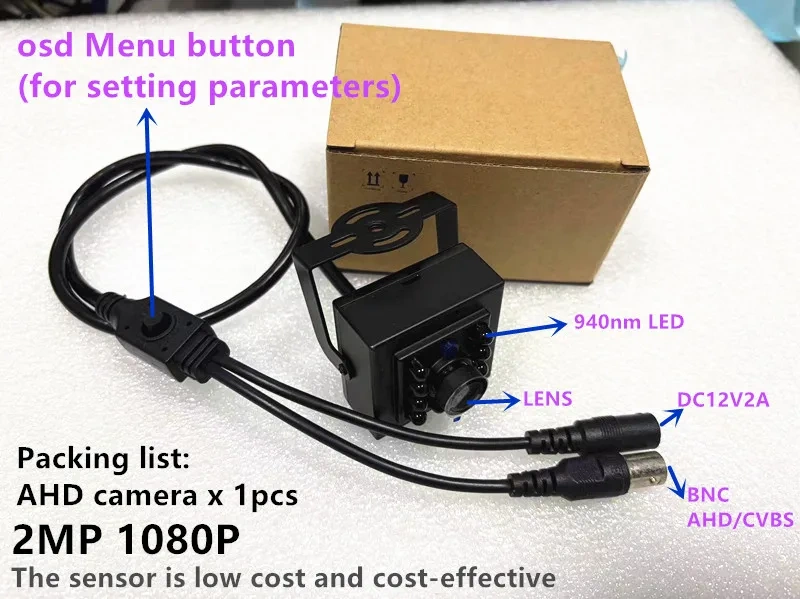

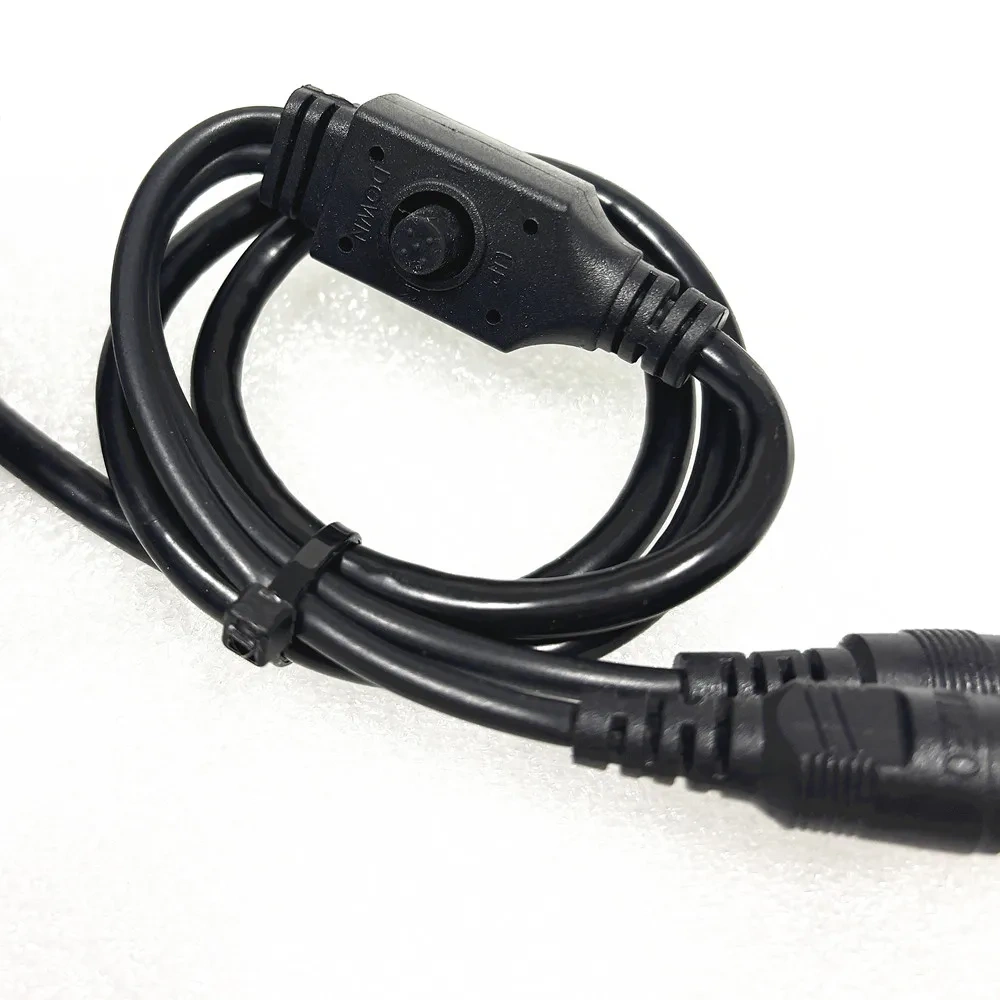

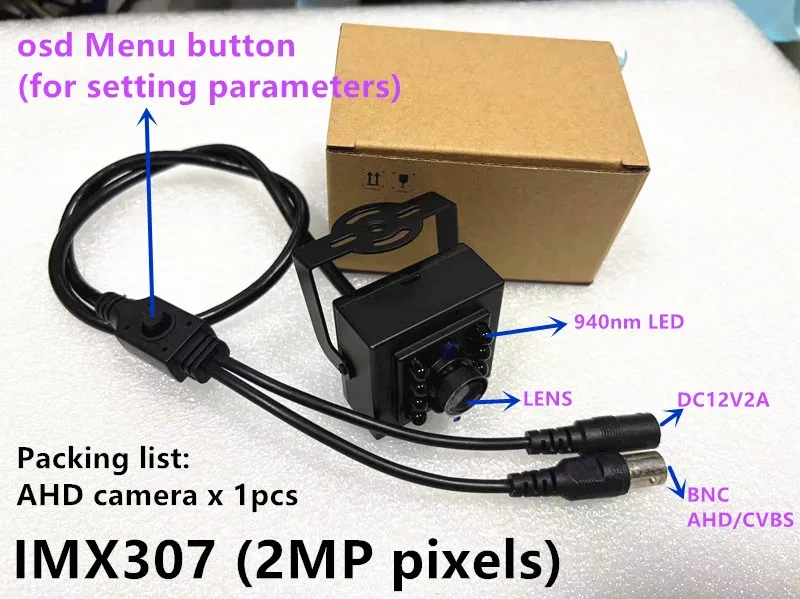

OSD key can switch AHD and CVBS signal output, can also switch the system, can also adjust the basic Settings of the camera, the function is very rich
Specifications:
|
Sensor |
1/2.8" IMX307 |
|
Format |
PAL/NTSC |
|
Effective Pixel |
1920(H)*1080(V) |
|
Illumination |
0.0001Lux/(F1.2, AGC ON), 0LUX with IR |
|
Shutter |
AUTO |
|
D/N Mode |
EXT (Default) /AUTO/COLOR/B/W |
|
Synchronously |
Internal |
|
Video Output |
AHD/CVBS switch |
|
Exposure |
Brightness / Exposure Mode / GAIN |
|
White Balance |
ATW/MWB |
|
D/N Mode |
Infrared/Internal AUTO/Color/B&W |
|
Video Setting |
Contrast/Sharpness/Color/GAIN/DNR/Format/WDR |
|
Language |
CHN1/ESPANOL/CHN2/ITALIANO/ENGLISH |
|
OperationTemperature |
-20℃ to 60℃ |
|
WorkingHumidity |
Relative humidity less than 90 % |
|
Power |
DC12V / 2A |
|
Weight |
0.2kg |
Specifications:
|
Sensor |
1/2.9" IMX335 |
|
Format |
PAL/NTSC |
|
Effective Pixel |
2560(H)*1920(V) 5mp 4:3 FPS: 5MP/20fps, 4MP/25fps, 4MP/30fps |
|
Illumination |
0.001Lux/(F1.2, AGC ON), 0LUX with IR |
|
Shutter |
AUTO |
|
D/N Mode |
EXT (Default) /AUTO/COLOR/B/W |
|
Synchronously |
Internal |
|
Video Output |
AHD/CVBS switch |
|
Exposure |
Shutter/AGC/Brightness/DWDR |
|
White Balance |
ATW/MWB |
|
D/N Mode |
Infrared/Internal AUTO/Color/B&W |
|
Adjust |
Sharpness/Display Screen/Edge DPC/Output mode |
|
Language |
CHN1/CHN2/GER/FRA/ITA/SPA/POL/RUS/POR/NED/TUR/JAP/ENG |
|
OperationTemperature |
-20℃ to 60℃ |
|
WorkingHumidity |
Relative humidity less than 90 % |
|
Power |
DC 12V/2A |
|
Weight |
0.2kg |
