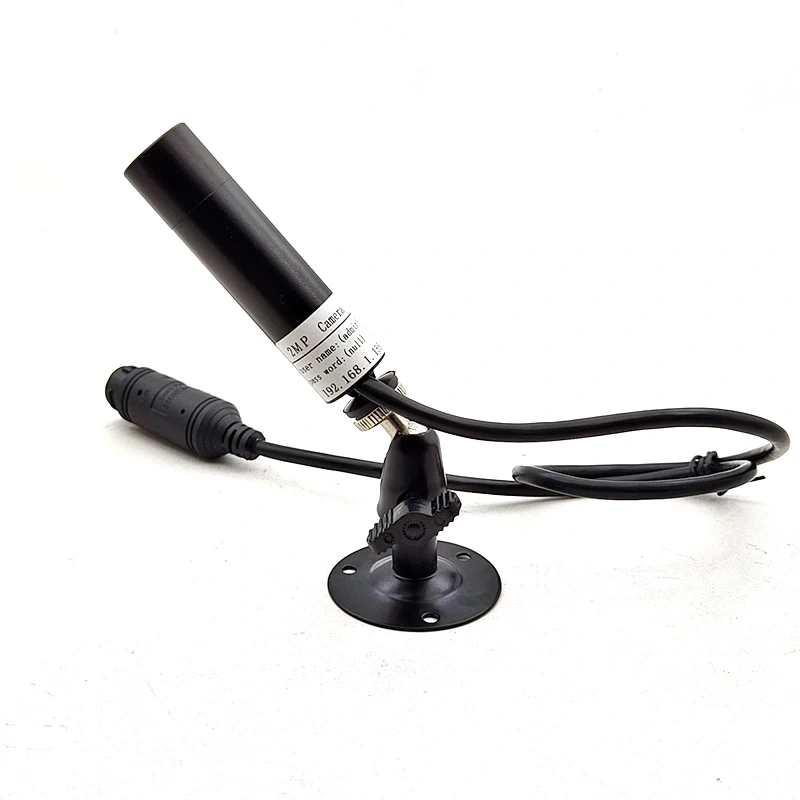

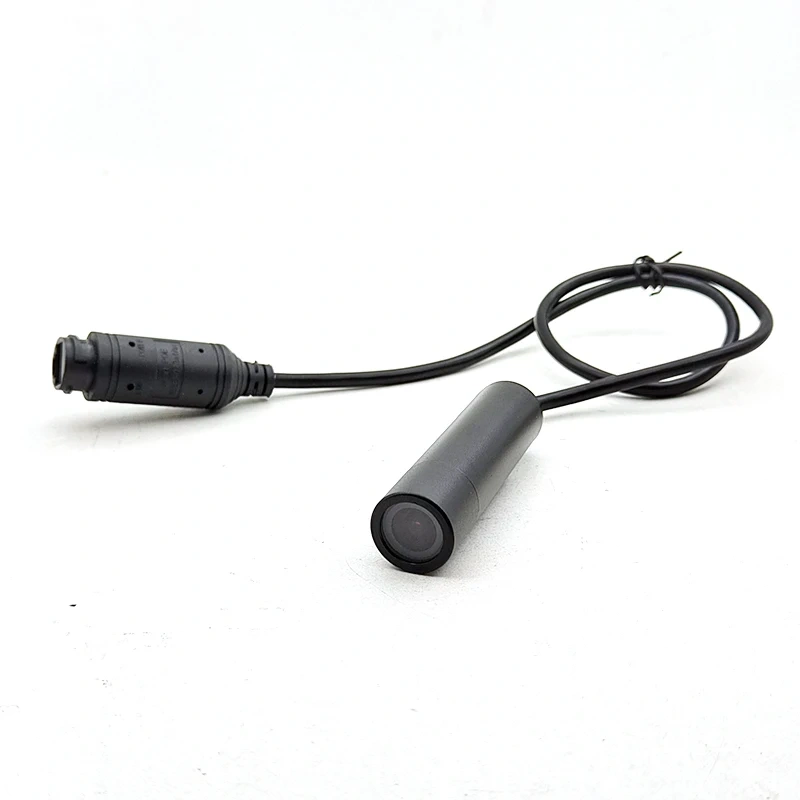

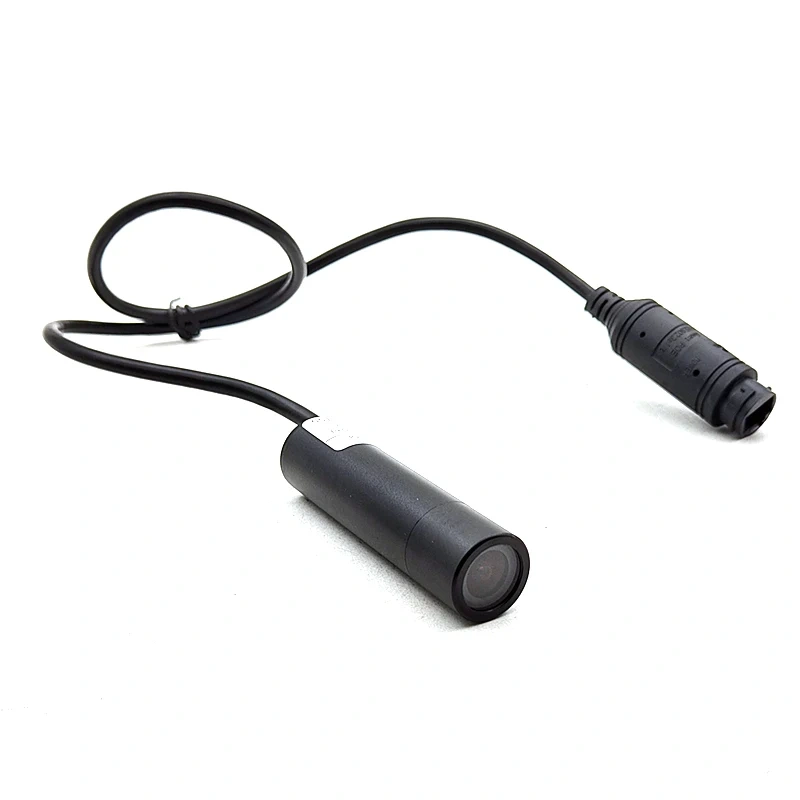

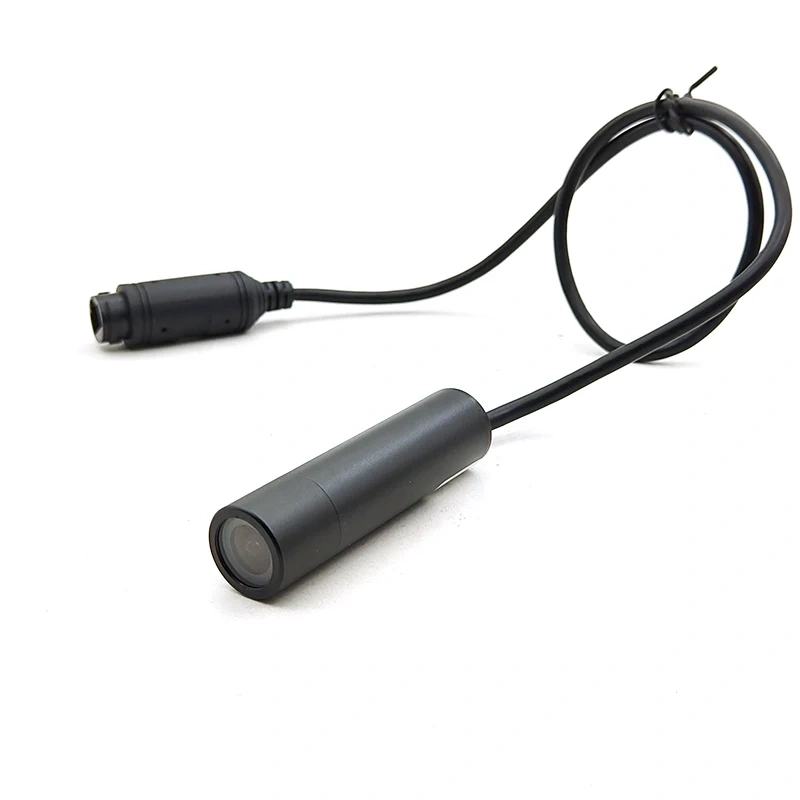

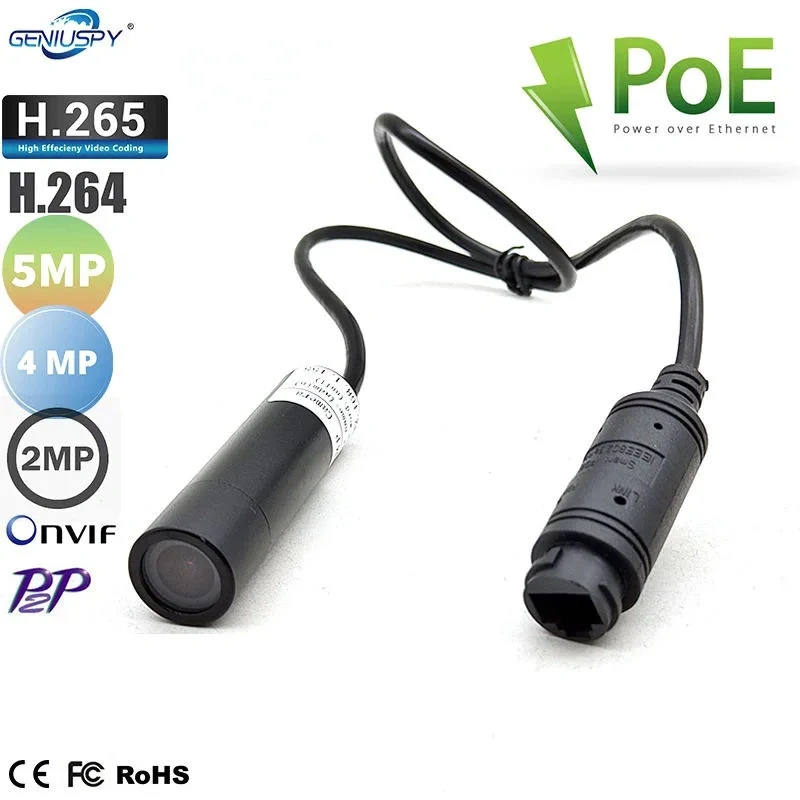

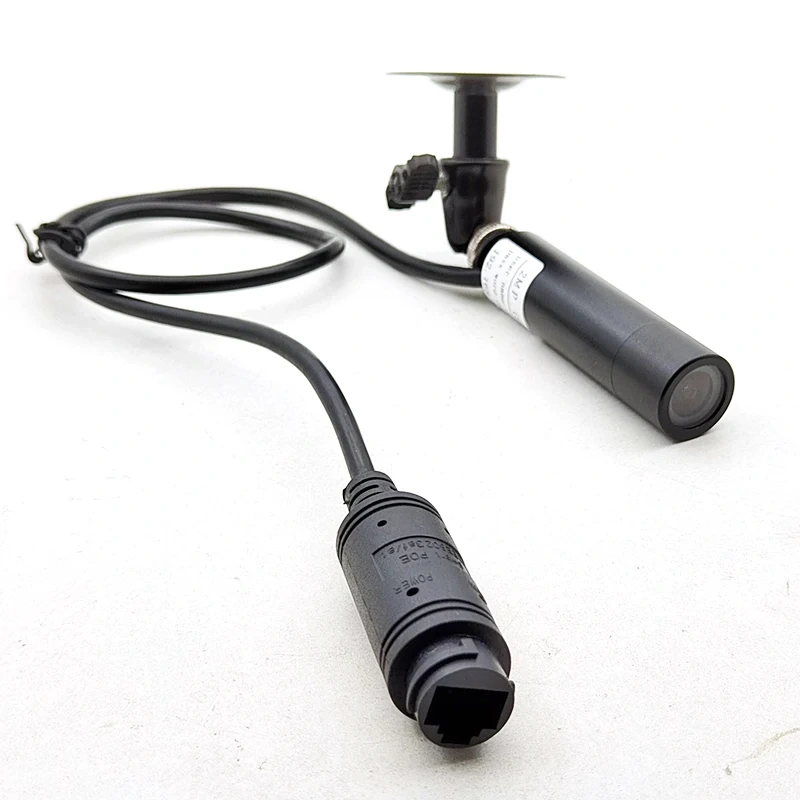

IP Network Mini Bullet Camera1080P POE 2MP 4MP 5MP Surveillance IP Camera Wide Angle Lens XMEye ICsee seeeasy CCTV Video Cam
1. Support 5MP(2592X1904@20fps), 4MP(2560X1440@25fps), 3MP(2304X1296@25fps), 2MP(1920X1080@25fps) resolution
2. Built-in human detection algorithm, detection frame rate 5 fps/second, detect 5 people at the same time
3. S265/H.265 efficient compression, saving bandwidth and storage space
4. Low consumption, low bit rate and low latency
5. Support infrared/full color/dual light source video mode optional
6. Support automatic electronic shutter function to adapt to different monitoring environments
7. Support ONVIF, SLINK protocol
8. Support NTP service
9. Support two-way intercom optional
10. Support HTTPS encrypted transmission
11. Built-in amplifier, built-in TF card slot, P2P (SeeEasy)
Notice:
5MP 4MP NO Audio Default ,weatherproof ,IP55

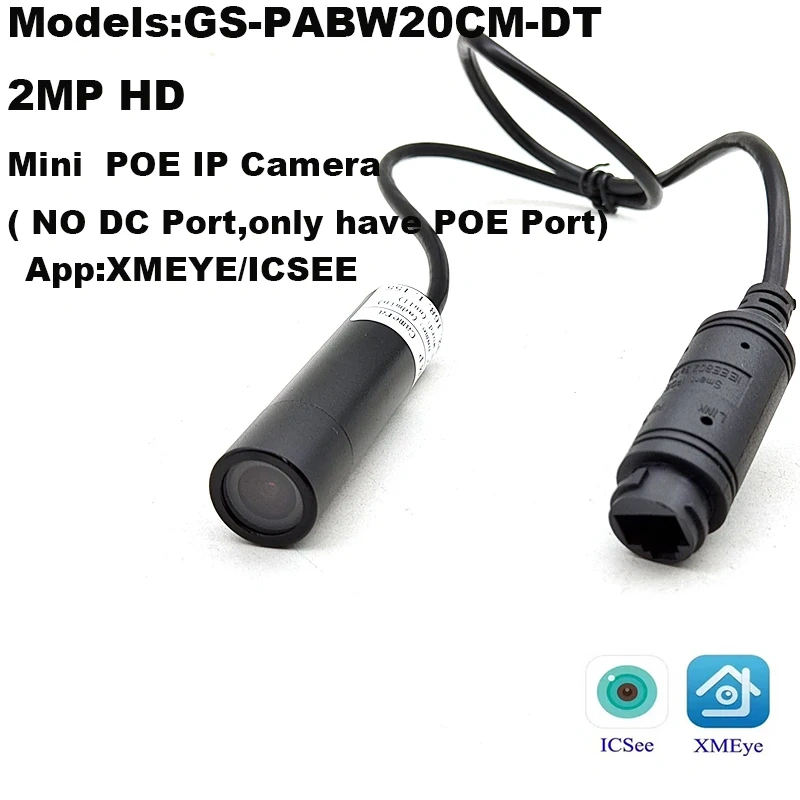

Xmeye app : 2MP
Specification :
Basic parameter | ||||||||

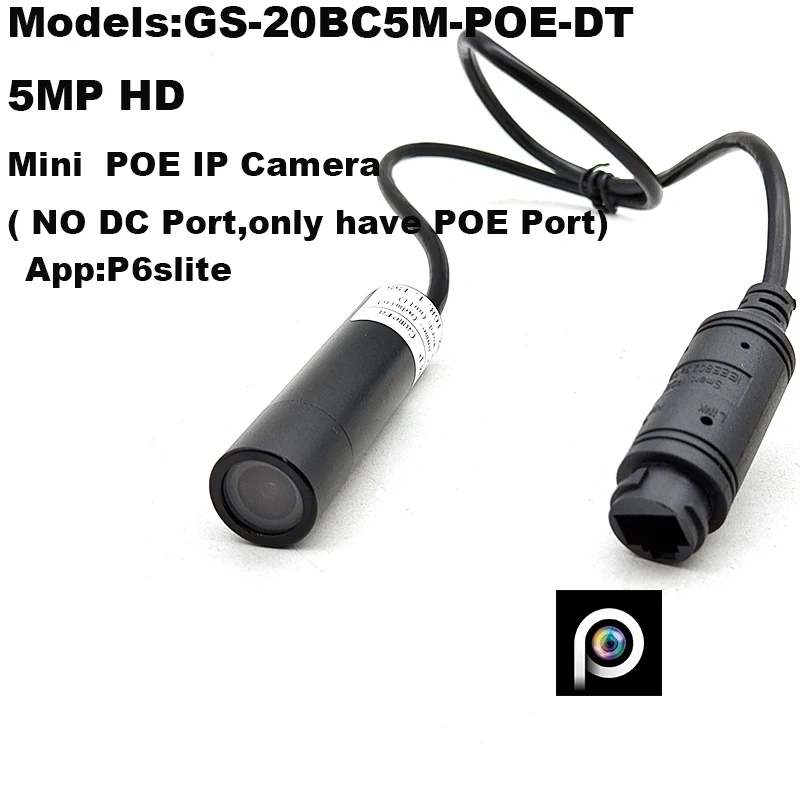

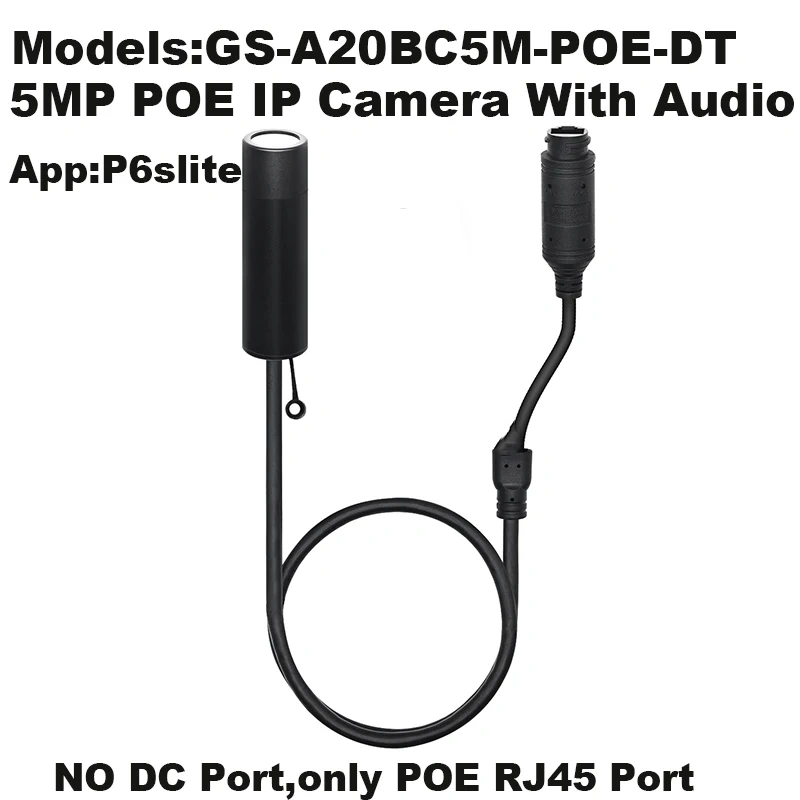

Model | GS-A20BC5M-POE-DT/GS-20BC5M-POE-DT | |||||||
Smart function | Human detection | |||||||
Main chipset | T31X | |||||||
Image sensor | 1/2.7", 4MP progressive scan ultra-low illumination CMOS GC4653 | |||||||
Lens | Support fixed lens and manual varifocal lens | |||||||
WDR | D-WDR (off/low/middle/high) | |||||||
D&N | ICR switch, auto/color/B&W/external trigger | |||||||
Lamp board control | Auto/manual/off | |||||||
Noise reduction | Off/low/middle/high/higher | |||||||
Mirror | Off/horizontal mirroring/vertical mirroring/180 ° rotation | |||||||
Image setting | Brightness/contrast/sharpness/saturation/chroma | |||||||
Human detection | ||||||||
Detection qty | ≤ 5 person at the same time | |||||||
Detect human pixel | Human pixel ≥ 40X40 | |||||||
Human detection rate | ≥99% (meet above requirement) | |||||||
Responding speed | ≤1s | |||||||
Maximum detection Frame Rate | 5fps/s | |||||||
False detection rate | ≤2% | |||||||
Detection part | People in any pose, including half body, head | |||||||
People tracking | Support | |||||||
Detection mode | Support static human detection, support dynamic humanoid detection | |||||||
Detection method | Support visible light image detection, support near-infrared image detection | |||||||
Detection area | Support specified area, default full screen | |||||||
Upload method | Private protocol upload | |||||||
Trigger method | Video trigger | |||||||
Video and audio coding | ||||||||
Encoding format | S265/H.265/H.264 | |||||||
Coding characteristics | Main stream: 5MP(2592X1904@20fps), 4MP(2560X1440@25fps), 3MP(2304X1296@25fps), 2MP(1920X1080@25fps) | |||||||
Video bit rate | CBR/VBR | |||||||
Video type | Composite stream/video stream | |||||||
Audio coding standard | G.711A/G.711U | |||||||
Network function | ||||||||
Network protocol | TCP/IP, UDP, HTTP, HTTPS, DHCP, RTSP, DDNS, NTP, PPPOE | |||||||
Interface protocol | ONVIF, SLINK | |||||||
Safe mode | Authorized username and password, HTTPS encryption, AES connection encryption, RTSP authentication | |||||||
Motion detection | Set detection area, multi-level sensitivity can be set | |||||||
Video tampering | Support 1 area setting | |||||||
Privacy zones | Support 4 area privacy mask | |||||||
Port | ||||||||
Network port | RJ45 10M/100M network self-adjustable | |||||||
Audio | Mic in/out OPTIONAL, | |||||||
General | ||||||||
Operation T/H | - 10°C ~ 50°C/0﹪-90﹪ | |||||||
Power supply | POE 48v ONLY ( work with poe switch or POE NVR ) | |||||||
Dimension (mm) | 20*80mm | |||||||
Package contents:
1 x Camera ,1x bracket 1 x English User Manual
