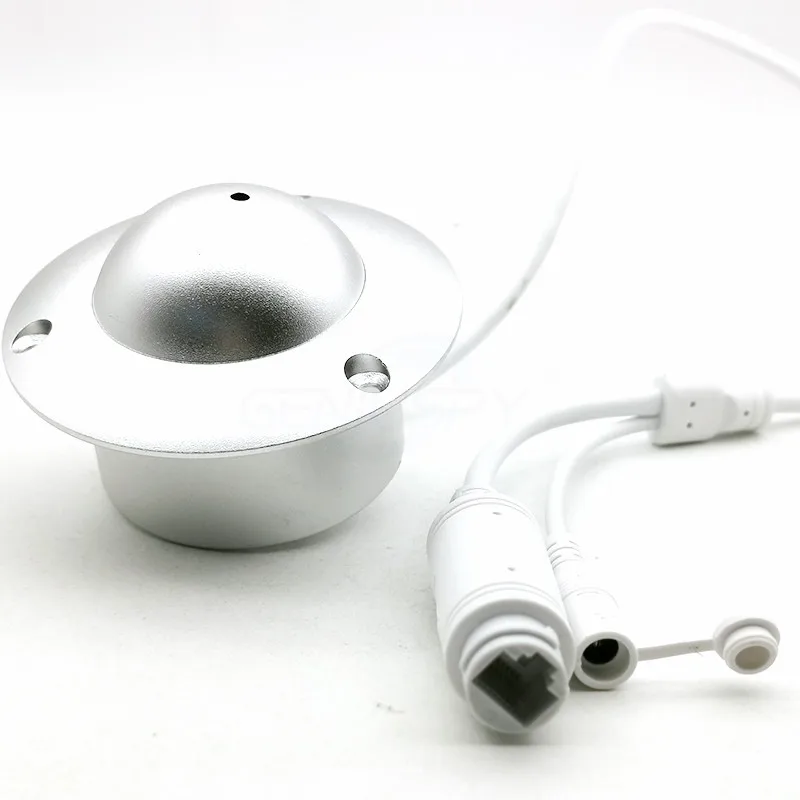

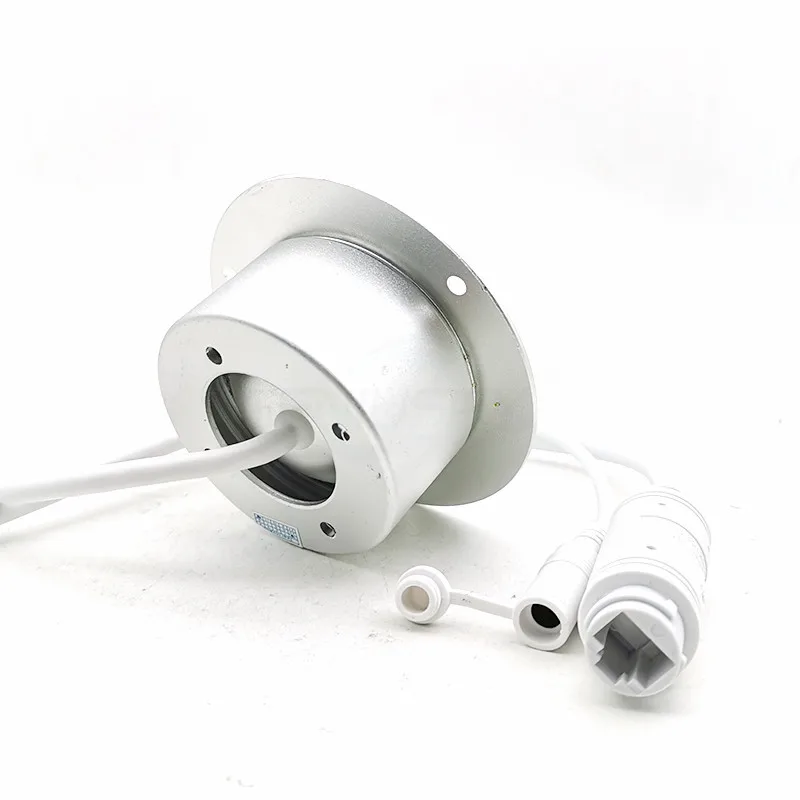

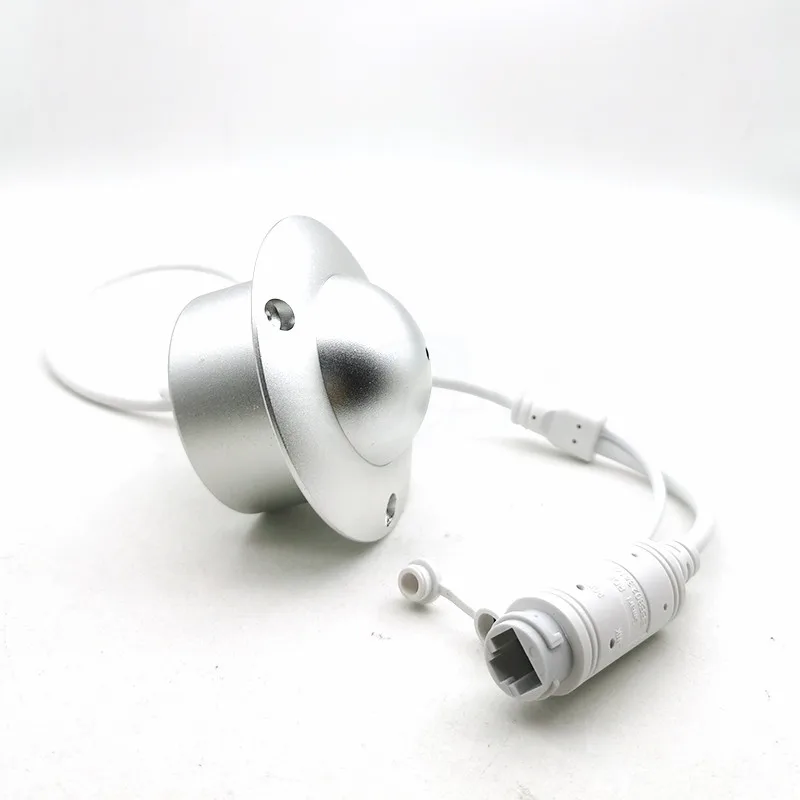

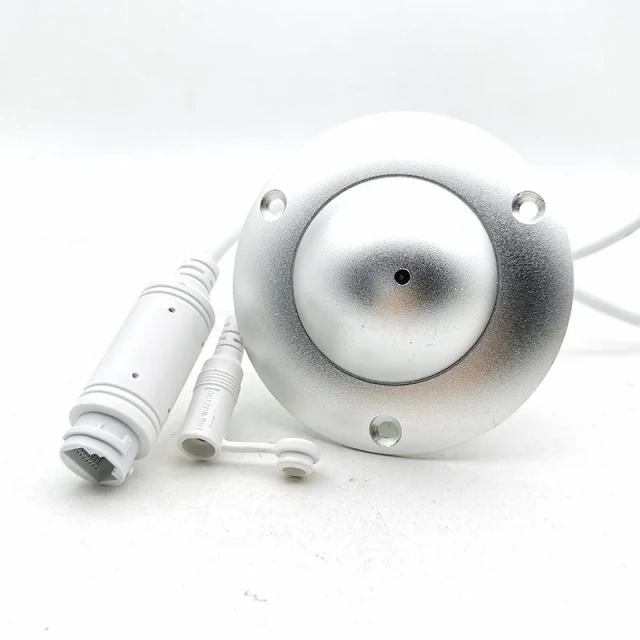

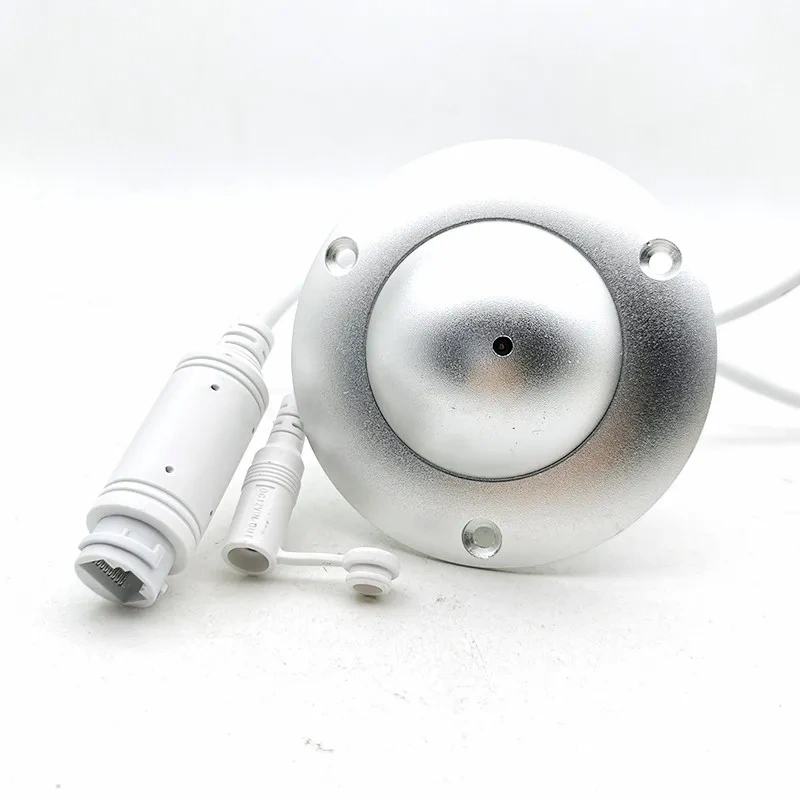

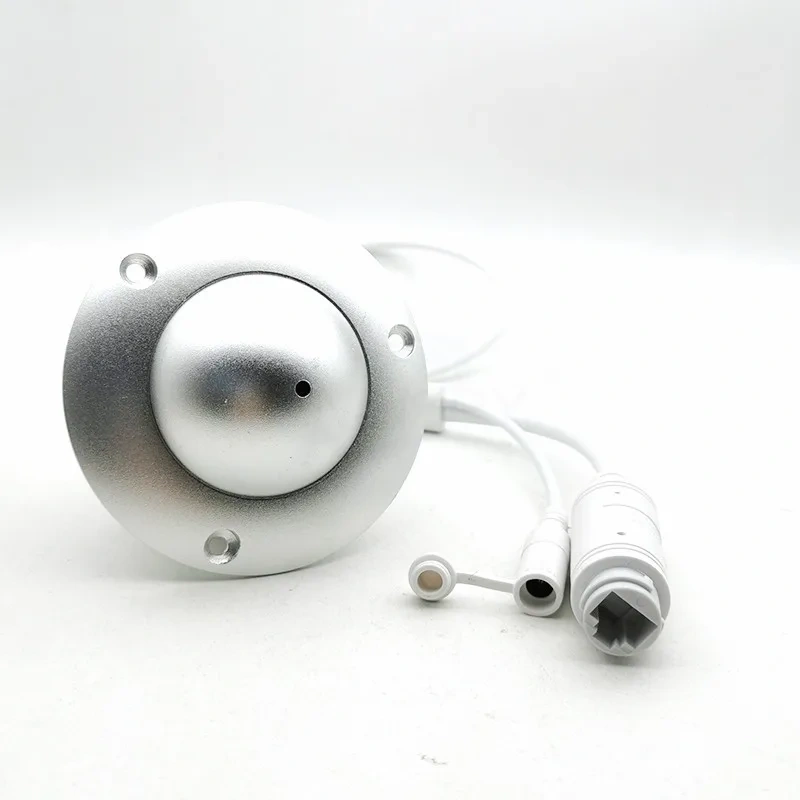

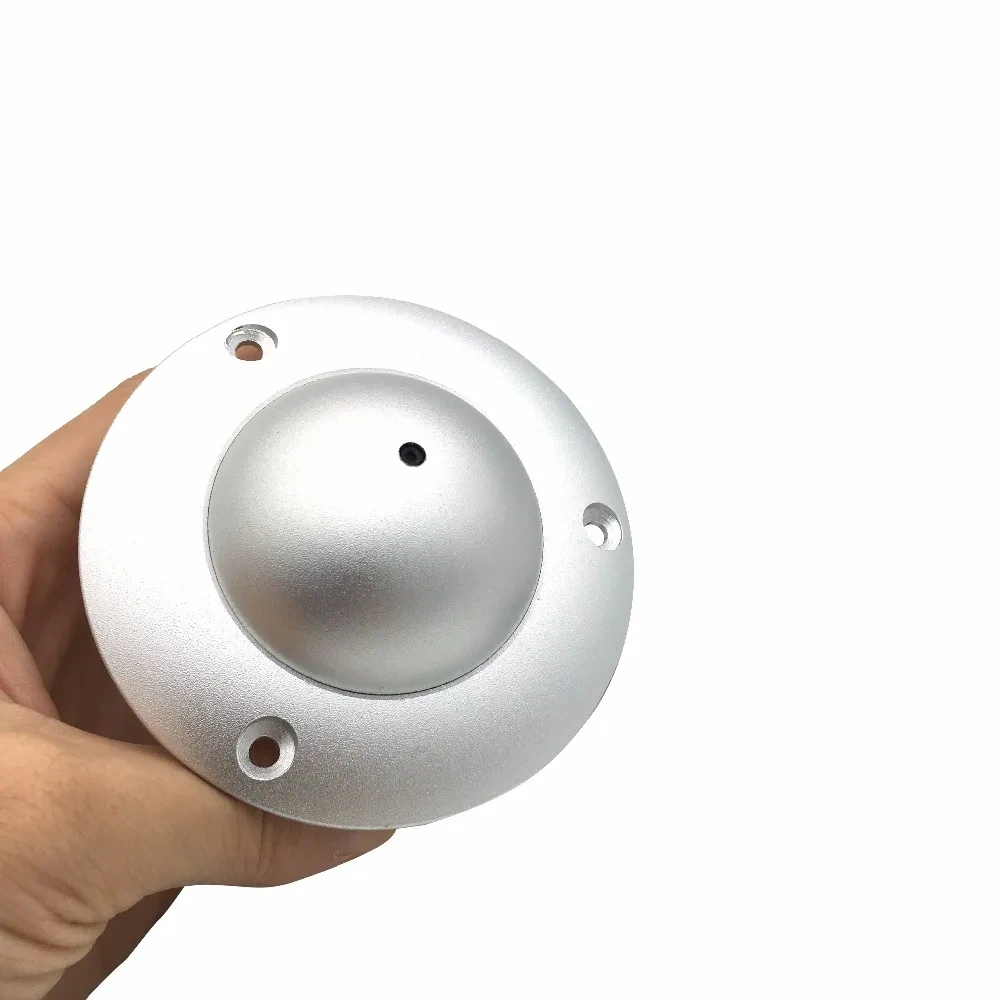

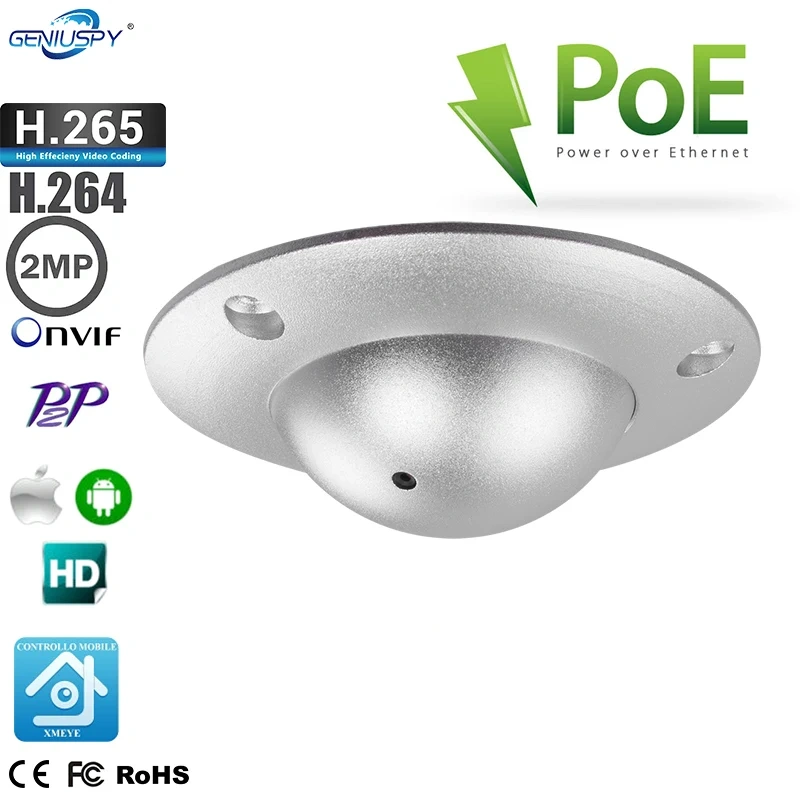

Name: Metal 1080P POE Dome Mini Flying Saucer UFO Camera Indoor Security Surveillance CCTV IP Network Video Camera Audio
Brand: Mini USB Camera Mini Camera IP Camera Camhi Camera Factory
SKU: 3256805869544667
Price: 48.22 USD
Availability: InStock

Description

1080P POE Power Supply Mini Flying Saucer Dome UFO Camera Indoor Security Surveillance CCTV IP Network POE Flying Video Camera

attenation:

Regard OnVif support Mini Pin hole ip camera poe

this models have:1xRJ 45 interface+Poe module ,1x dc12v power , small microphone build inside optional

for more products infomation ,pls go to page:http://www.aliexpress.com/store/1034208

if you have other requirement ,welcome contact with us free !

NOTICE:

Our IP Camera DO NOT Included The Power Adapter,
If You Need It, Please Kindly Click The Photo As Below, Add It In Your Order List, Thanks !

if you have other requirement ,welcome contact with us free !

.Features:

HD 1080P Mini Pinhole IP Network Camera POE
Equiped 3.7mm Megapixel lens
High resolution, presenting vivid and clear pictures.
Support automatic color change/IR-CUT,realising day&night non-stop monitoring.
Support various information superimposed (such as: ID, IP DDNS and so on) convenient to operate
Introduce advanced H.264 HP video compression, achieving ultra-low bit-rate, superb high-definition picture quality.
Support dual-stream
support various mobile long-distance monitoring iPhone,Windows Mobile, BlackBerry,Symbian, Android
Support IE
support auto electronic shutter, adapt to different monitoring environment
web and CMS supporting central management software,providing SDK development
support HVR/NVR connection conform to ONVIF

Features

1080P HD resolution,clear and fine images,

Support 2D/3D noise reduction,digital wide dynamic;

Advanced H.265+/H.264 video compression,Super low rate,high definition quality of image;

Professional anti-lightning,conform to GB/T17626.5 and IEC61000-4-5 .

Support ONVIF;access third party;

Support various mobile monitoring(iPhone,Android);

Provide web,CMS,center platform management software MYEYE,provide SDK development

Support cloud technology,easy to achieve network penetration,fro in-line and alarm information pushed

Specification:

Model	GS-FS55CMP4-POE
System structure	Embedded RTOS,dual-core 32bit DSP(Hi3516EV100),pure hard compression ,watch dog
Sensor	2.0M CMOS sensor ,color 0.1Lux F1.2,black/white 0.01Lux F1.2
Video compression	H.265+/H.264,support dual stream,AVI;0.1M~8Mpbs variable;1~30f/s variable
Image output	Main stream: 19201080 20fps,1280720 25fps; sub-stream: 704*576 25fps;
Shutter	1/50(1/60)s to 1/10,000s
Lens	N/A
Day and night	N/A
Noise reduction	Support 2D/3D
Wide dynamic	Support digital
Auto iris	N/A
Audio compression	N/A
Audio interface	N/A
Network interface	1*RJ45 10/100M adaptive Ethernet port;support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc
Extension interface	N/A
Singal interface	N/A
Lens	3.6mm lens Default angle view 92degree,other lens optional
Motor interface	N/A
Alarm I/O	N/A
WIFI interface	N/A
Reset interface	N/A
SD Card	N/A
Reliability	Comprehensive lightning protection, 7 * 24 hours 65 ℃ high temperature stable and reliable testing
Intelligence analysis	N/A
Other function	Support WEB,OSD,live video transmission,motion detect and IO alarm,front-end storage/playback/download, and center reminder and image linkage,support JPEG capture;united remote client monitoring sofaware,MYEYE;perfect SDK;
ONVIF	Support
Mobile monitoring	Support multiple mobile monitoring(iOS,Android)
Power	DC12V/2A input, power consumption:≤3W,
APP	XMEYE
Other	Support POE

Package Include:

1 x mini IP Camera

1 x CD Disk

1x manual

1 x CD Disk

For protect the environment & in avoid the cd disk of software broken by rude post air mail and express services !

Software also will be sent to your emails or leave message in aliexpress when you need!pls contact with our team if you need !

To Customers :

Thanks for your attention to our products.if you have any question ,pls fell free to contact with us !

we will replyed you within 24hours!!!

(Does not include Power Adapter)

Note: "DC 12V" Please use DC12 V 1A power supply, packaging does not include the power supply.

We recommend using our h.265 NVR, other manufacturers of NVR may not be able to run h.265 perfectly, it will run with h.264.

Q & A

1, IP camera default IP address:192.168.1.10

User name:admin,password:empty(null)

If there is a problem with "Can not find the Device", it is the default ip address is not in the same network segment as your router.

Please click "Edit Device" to change the camera's ip address,

For example, if your router's ip address is 192.168.0.1, then you need to change the camera's ip address to 192.168.0.XX.

"DeviceManage" It can find and change the IP address, upgrade the firmware.

2, P2P website: "www.xmeye.net" ,please use IE and install ActiveX,only IE supports Multi Language.Chrome,Safari just support Chinese .

then please input your P2P ID,user name and password to login and preview.

Access to the IPC through the web, only one screen can be displayed.

There are multiple IPC, please use client software to manage(such as: CMS VMS SNVR)

3,The camera's port information.

ONVIF 2.0 Port 8899 ;RTSP Port 554 ;HTTP Port 80;Media Port 34567;E-mail default port 25; SLL protocol Port 465.

4,Does the cameras can be compatible with other manufacturers NVR?

Please confirm whether other manufacturers NVR support onvif protocol.

Our camera's onvif protocol is onvif Profile S, does not support HTTPS protocol;

Auto focus camera, other manufacturers NVR can only zoom, can not focus.

5, The camera all supports Motion Detect,FTP,Email alarm, RTSP.

A,How to set up motion detection?

Access to IPC via IE (or CMS software), device configuration - alarm function - motion detection - on and save.

B, About FTP

FTP upload video and pictures, pictures will always upload, video files larger, after the alarm, the video file will be completed to upload.

We suggest the Sever-U and FileZilla FTP Server to upload the video or image.

C,For the Email alarm,please use Email server which supports SMTP ( Hotmail ,Yahoo not support SMTP ,it not supports Gmail temperately since the server problem ) .

D, RTSP URL for VLC media Player :

RTSP port: 554

rtsp: // (IP): (PORT) / user = (USER) & password = (PWD) & channel = (Channel) & stream = (Stream) .sdp? Real_stream

Example:

rtsp: //10.6.10.25: 554 / user = admin & password = & channel = 1 & stream = 0.sdp? Real_stream (stream = 0 primary stream 1 auxiliary stream)

If it is through the public network need to RTSP port open (default is 554), the port in the network service-RTSP can be set

6, About DDNS

Mapped media TCP port: 34567 and HTTP port: 80 (Note: mapping need to be changed to non-80)

Note: The two ports in the network settings can be viewed, can be modified

What domain names are supported?

- CN99 / DynDns / Oray / NO-IP / MYQ-SEE

Q:When I finish the steps to add the camera to the CMS list,why it notify “ Can’t find the Device “ even I can see the default ip address 192.168.1.10 in the menu .

F: It is the IP Address conflict ,the default ip address is not in the same network segment as your router.

Please click “Edit Device “ to change the camera’s ip address to make them in the same network segment !

For example ,if your router’s ip address is 192.168.0.1 ,then you need to change the camera’s ip address to 192.168.0.XX .

Package contents:

1 x Camera, 1x CD, 1 x Screw, 1 x English User Manual
