1. 1/3" HD sensor;

2. Support H264, H.265 encoding format

The main stream: 4MP (2560*1440)/3MP (2304*1296)/2MP (1920*1080)/1MP (1280*720)；

Substream 1:448P (800*448)/D1 (704*576)/360P (640*360 )/ CIF (352*288)

Sub-code stream 2:360P(640*360)/CIF(352*288);

3. Support three bit stream output at the same time;

4. Support digital wide dynamic, 3D noise reduction, backlight compensation, white balance, suitable for different monitoring environment;

5. Supports ONVI F protocol and can access third-party NVR;

6. Screen occlusion is supported to cover the privacy area;

7. Supports the OSD character overlay function and network time synchronization.

8. Support audio input and output, two-way intercom, audio and video synchronization;

9. Support a variety of light board types, can support hard and soft light sensitive light board;

10. Support humanoid detection function;

11. Support linkage sound and light alarm;

12. Support automatic maintenance function;
13. Support mobile phone remote monitoring (iOS, Android), support computer remote monitoring;
14.Waterproof level：IP67

function
To switch between day and night	Support day/night switch (optional IR-cut)
The white balance	Support for automatic white balance
Backlight compensation	Support backlight compensation
Digital noise reduction	Supports 3D noise reduction
Wide dynamic	Supports digital-wide dynamics
Motion detecting	Support for motion detection
Privacy shelter	support
The mirror	To support the mirror
OSD	OSD Settings and OSD dragging are supported
Automatic maintenance	support
The intelligence function
Human detection	Support humanoid detection function, can detect humanoid for intelligent alarm.
speech	Voice broadcast is performed when a human is detected.
The light alarm	Support the detection of humanoid linkage light alarm.
video
compression	H.264，H.265
resolution	main stream：4MP (2560*1440) ，3MP (2304*1296) ，2MP (1920*1080)， 1MP (1280*720)
	Deputy stream ：448P (800*448)/D1 (704*576)/360P (640*360 )/ CIF (352*288)
	Deputy stream ：360P(640*360 )/CIF(352*288)
Video frame rate	4MP 25FPS，3MP 30FPS
Video to adjust	Brightness, saturation, chroma, contrast, sharpness adjustment
network
Ethernet	RJ-45 10M/100M The adaptive
agreement	ONV IF，P2P，CGI，HTTP，TCP/IP，IPv4，RTSP，UDP，NTP，DHCP，DNS，IP Filter。
Access protocol	ON VIF/CGI
Maximum user number	4
The client	IOS，Android，Windows
audio
audio	G.711U、G711A
Audio input	support
Audio output	support
General specification

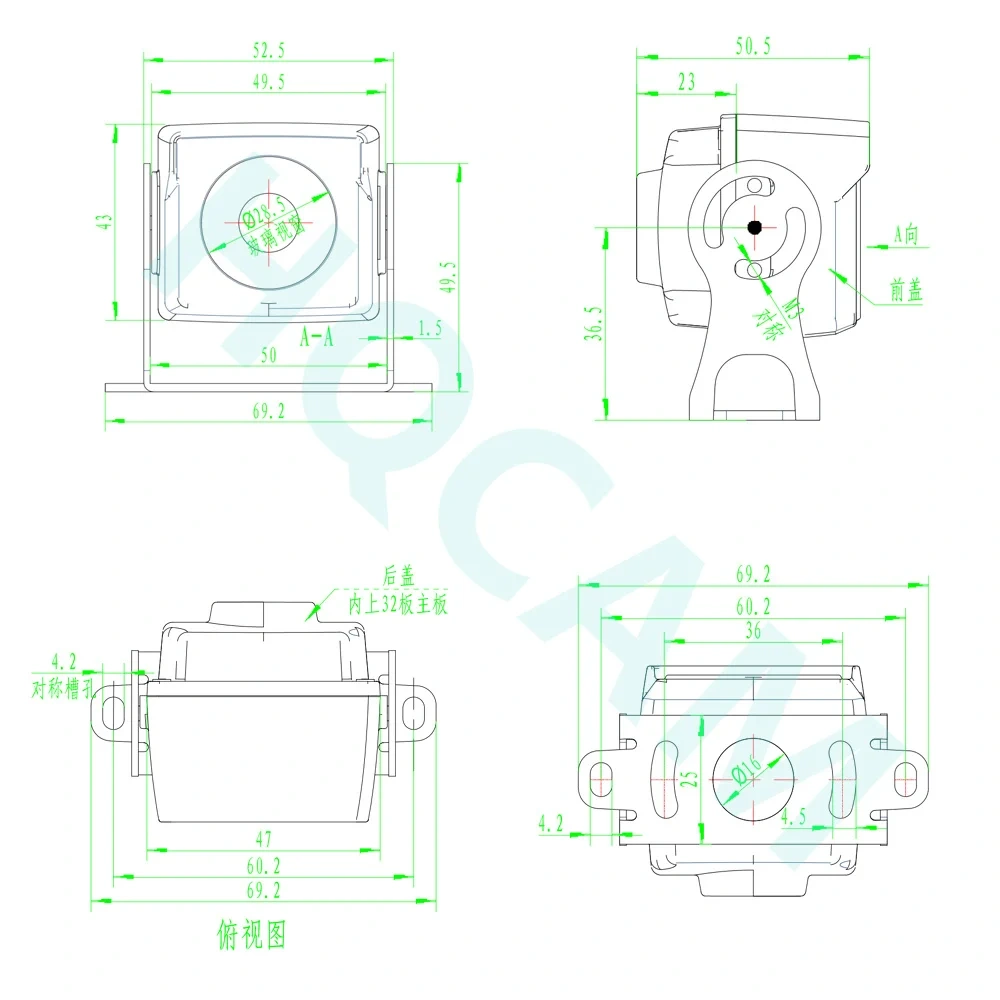

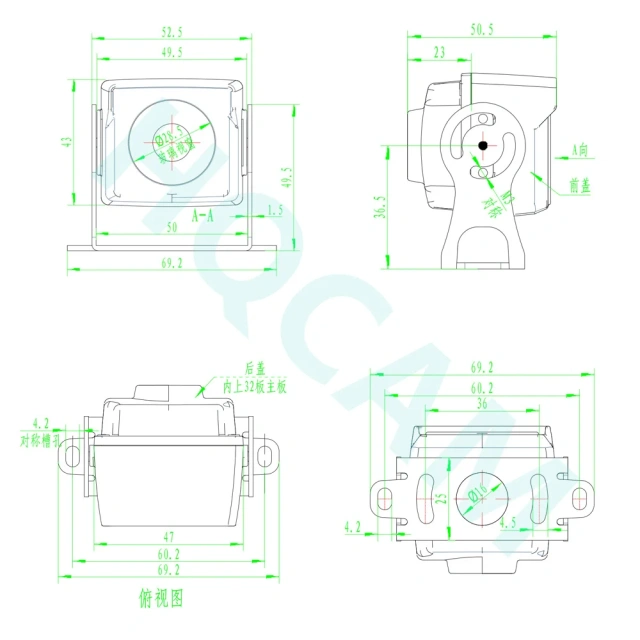

size
Temperature and humidity	-20℃～+65℃
The power supply	DC12V 2A

Please note: This camera can be placed in water for a short time, the water depth is not more than 1 meter





·supports ON VIF

·Can be connected to network video recorder that comply with ON VIF, RTSP standards made by many other major manufacturers, such as HI KVISION, DA HUA, XM, etc.

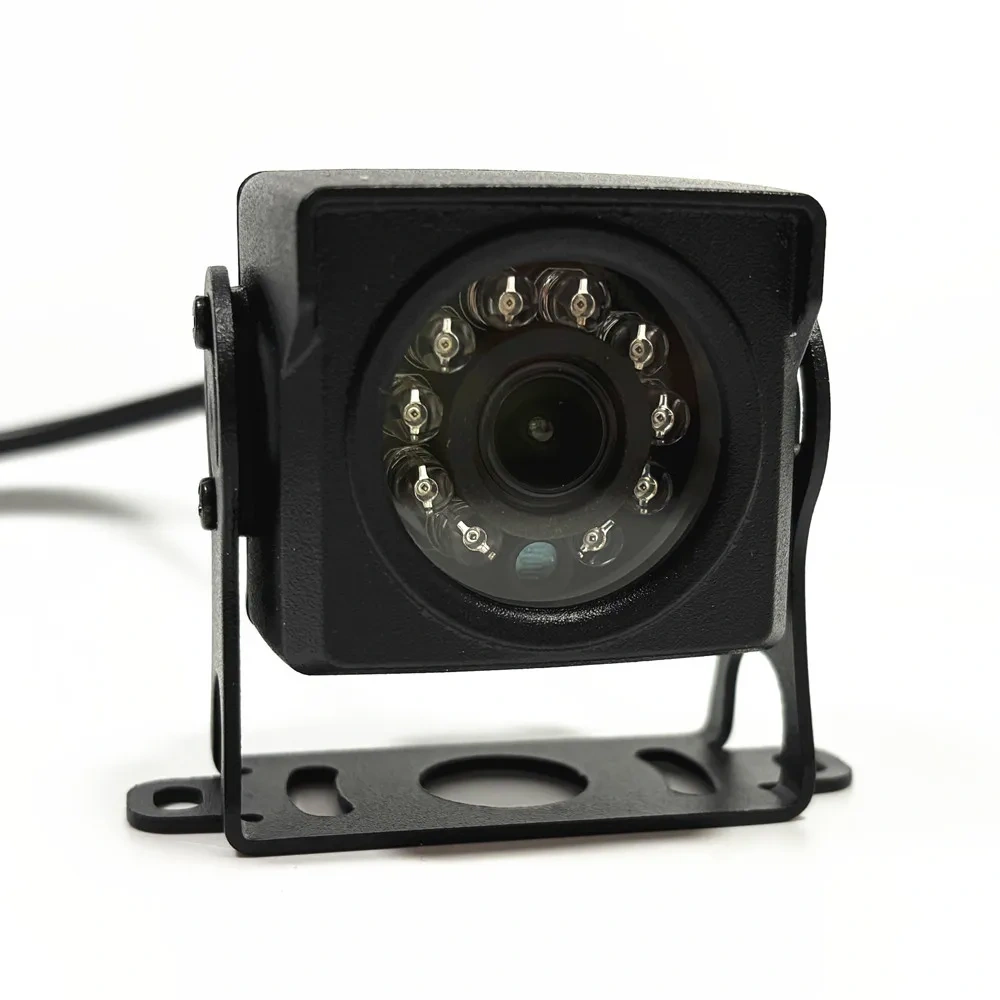

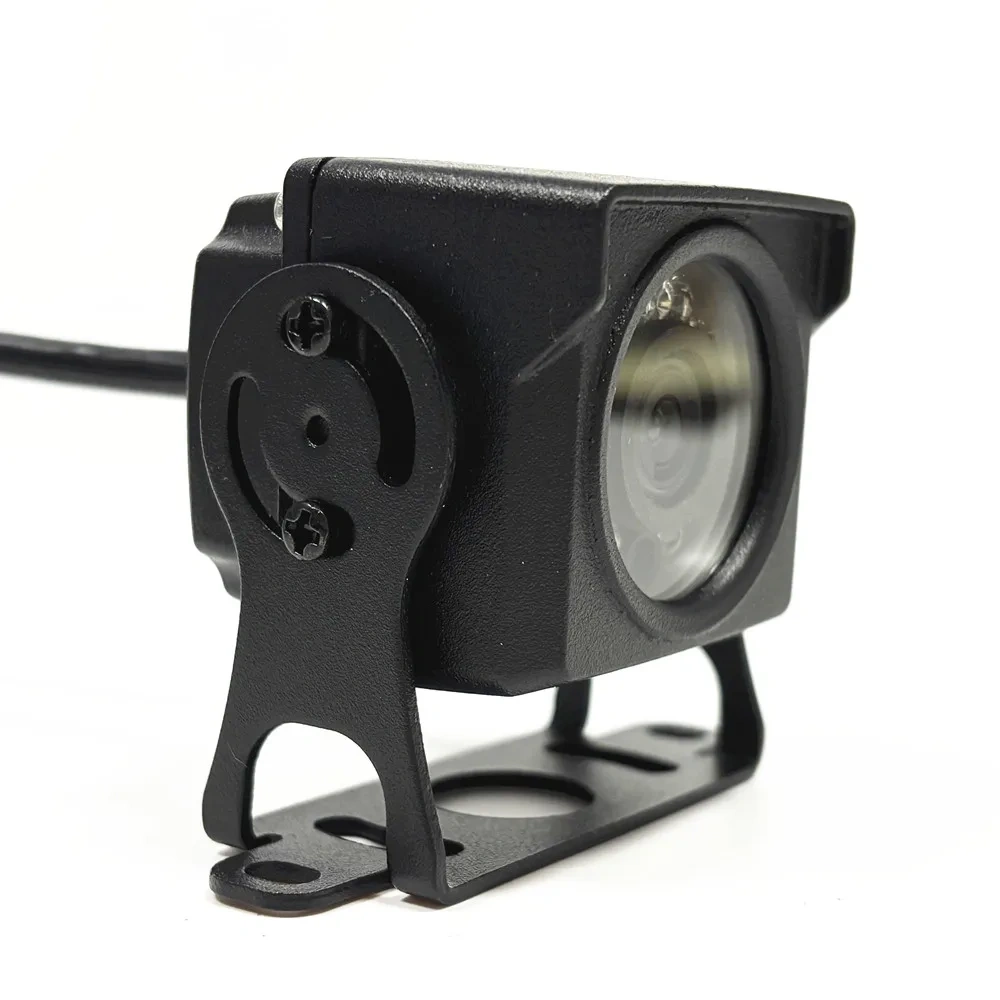

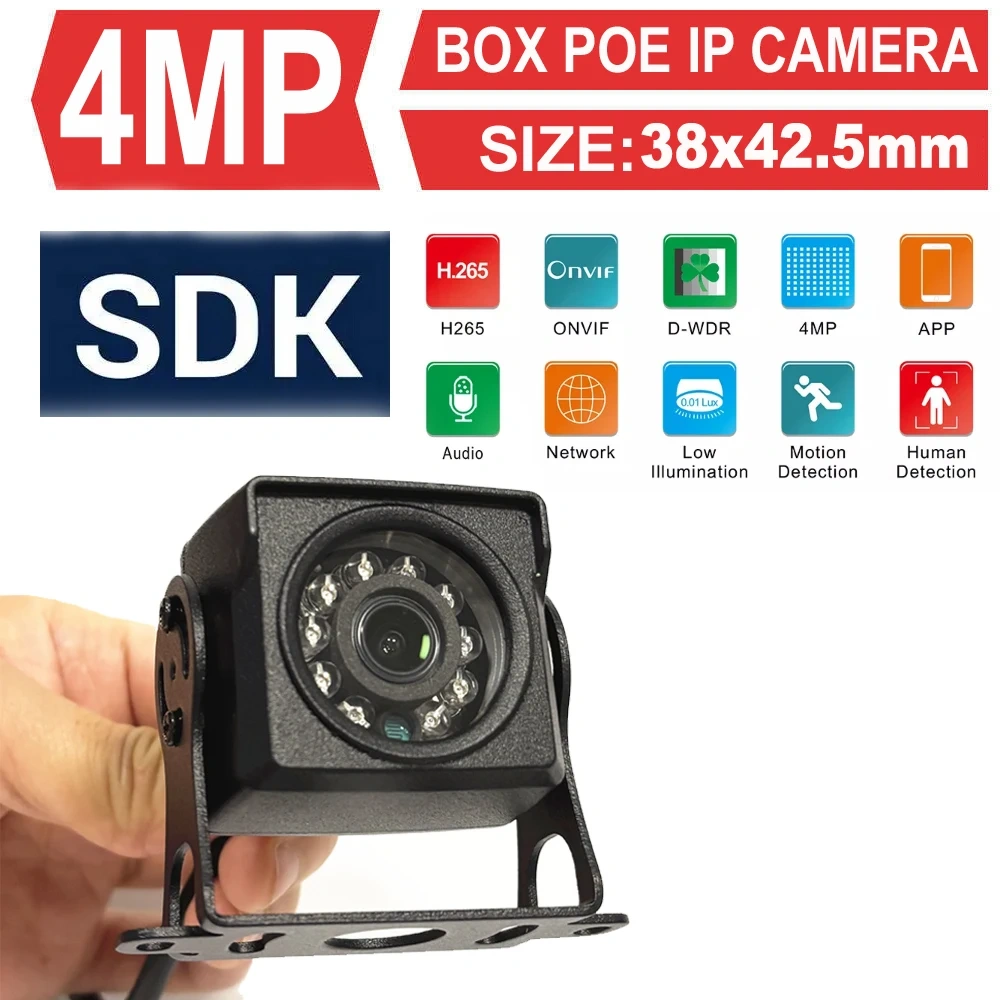

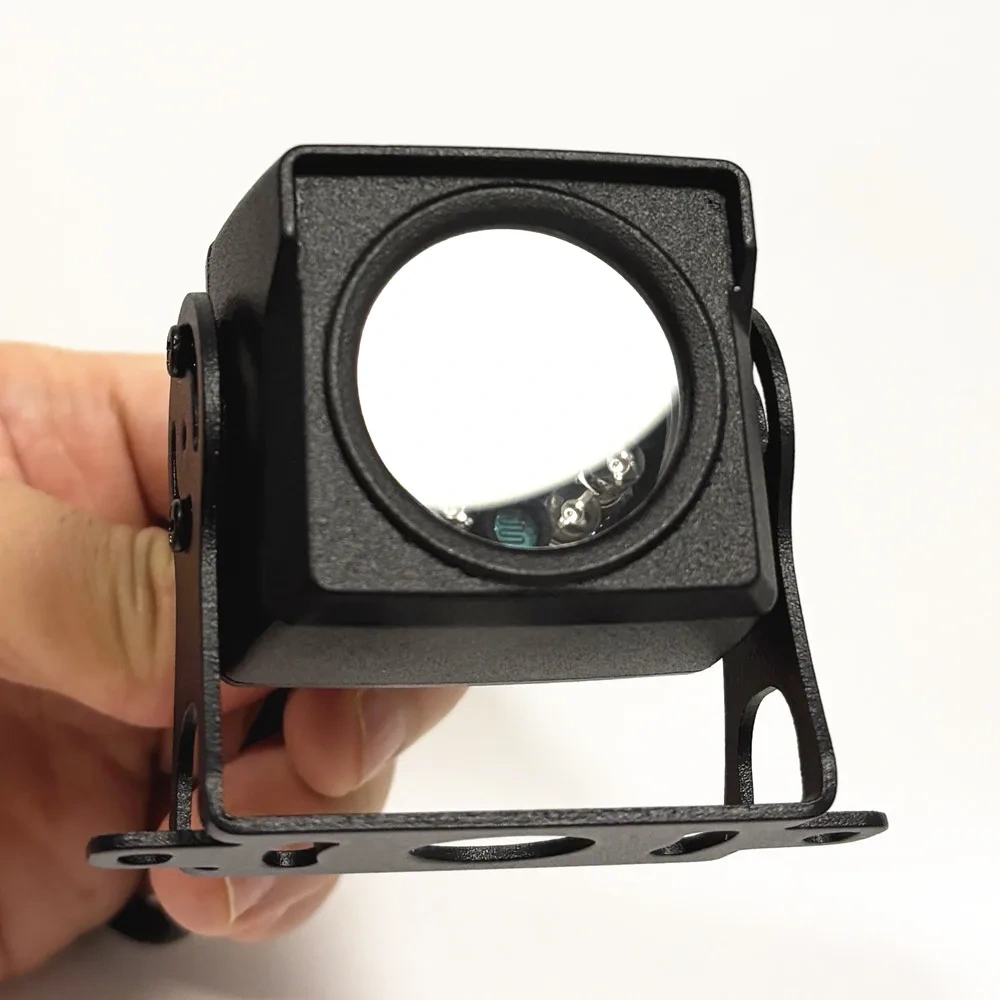

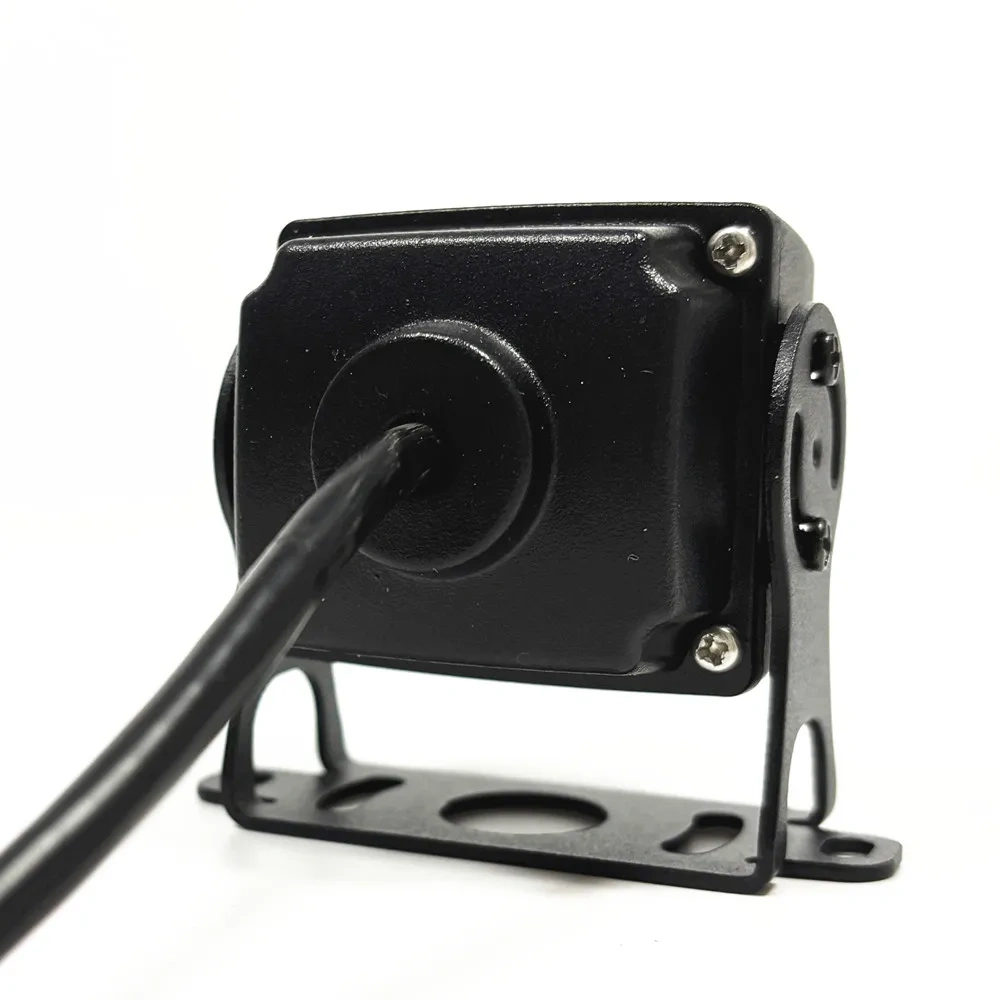

Mini Waterproof POE IP 4MP/3MP Outdoor Security Camera with Smart Human Detection

Overview

The Hieasy Mini Waterproof POE IP Camera redefines outdoor surveillance with its advanced 4MP/3MP imaging capabilities, rugged IP67-rated design, and AI-powered security features. Priced competitively at $35.05, this compact yet powerful camera delivers professional-grade monitoring solutions for residential and commercial applications.

Core Technical Specifications

Imaging Excellence

• Sensor Options:
• 3MP (2304×1296)
• 4MP (2560×1440)
• POE variants for simplified installation
• Lens Flexibility:
• 2.8mm wide-angle (110° FOV) for area coverage
• 3.6mm focal length (78° FOV) for focused monitoring
• Adaptive Imaging:
• 1/3" HD CMOS sensor with true WDR (Wide Dynamic Range)
• 3D Digital Noise Reduction for low-light clarity
• IR-cut filter with 940nm non-glare night vision (up to 30m)

Intelligent Video Processing

• Triple-Stream Encoding:
• Main stream: 4MP@25fps / 3MP@30fps
• Dual substreams (448P + 360P) for multi-device access
• H.265+/H.264 Compression:
• 50% bandwidth reduction vs standard H.264
• 256GB storage optimization (varies by encoding)

Advanced Security Features

AI-Powered Threat Detection

• Human Shape Recognition:
• 98.7% accuracy rate in distinguishing humans from objects
• Reduced false alarms from animals/foliage
• Proactive Defense System:
• Instant warnings ("You're being monitored")
• Strobe light activation upon intrusion detection
• Push notifications to mobile devices

Environmental Adaptability

• Multi-Scenario Optimization:
• Backlight compensation (BLC) for sunny entrances
• Digital WDR for high-contrast environments
• Automatic IR-cut switching (0.1s response)
• Weather Resilience:
• IP67 waterproof certification (submersible to 1m)
• -20℃~65℃ operational range (Arctic to desert climates)

Professional Integration Capabilities

Cross-Platform Compatibility

• Protocol Support:
• ONVIF Profile S/T compliance
• RTSP stream accessible
• Multi-Brand NVR Compatibility:
• Hikvision, Dahua, Uniview, Honeywell
• Synology Surveillance Station verified

Remote Management

• Multi-Access Channels:
• Hieasy Pro App (iOS/Android)
• Windows Client Software
• Web browser access (Chrome/Firerade Controls**:
• 4 concurrent user access
• OSD customization (time/date/location stamps)
• Privacy masking for sensitive areas

Installation & Maintenance

POE Flexibility

• Versatile Power Options:

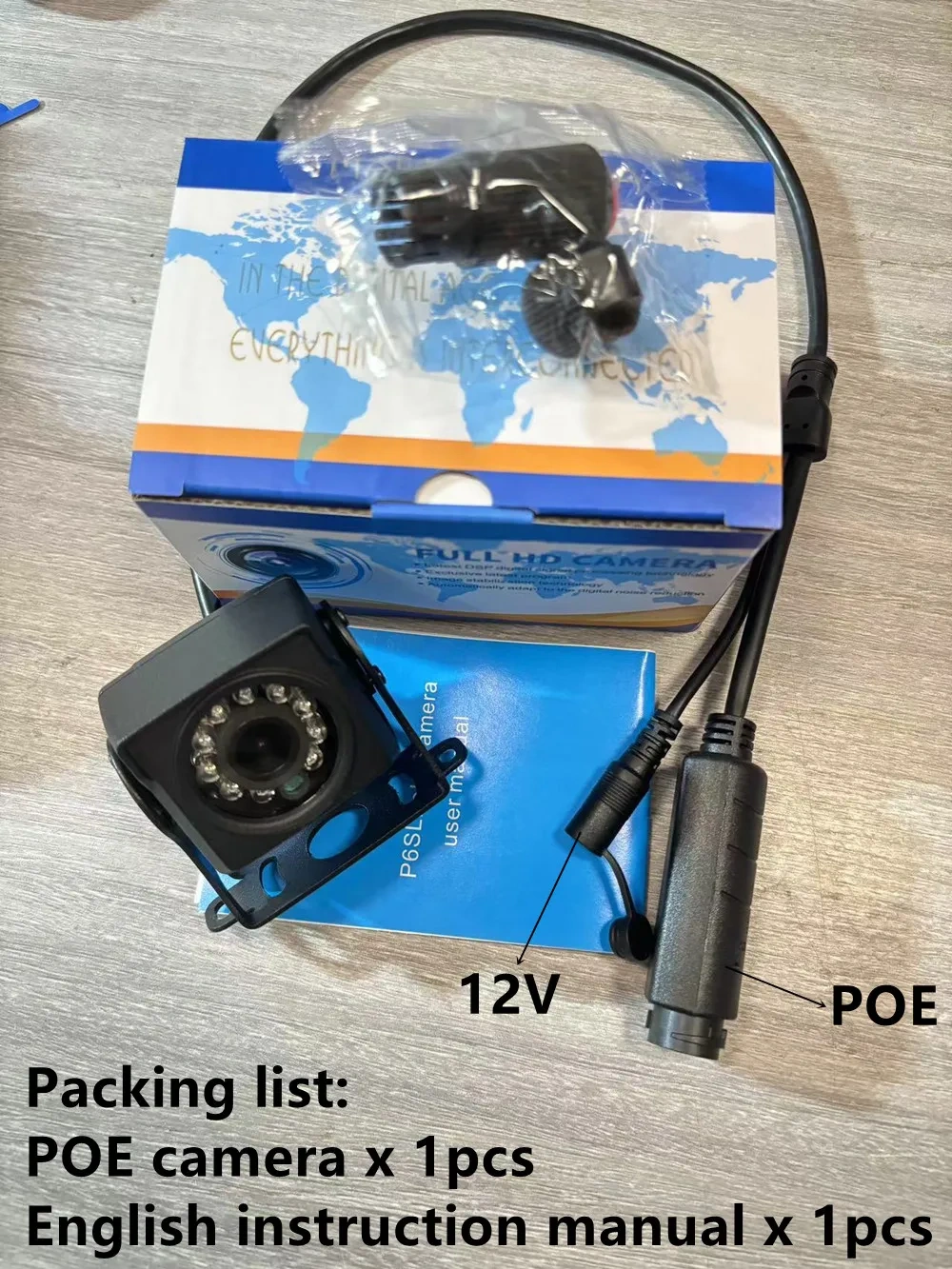

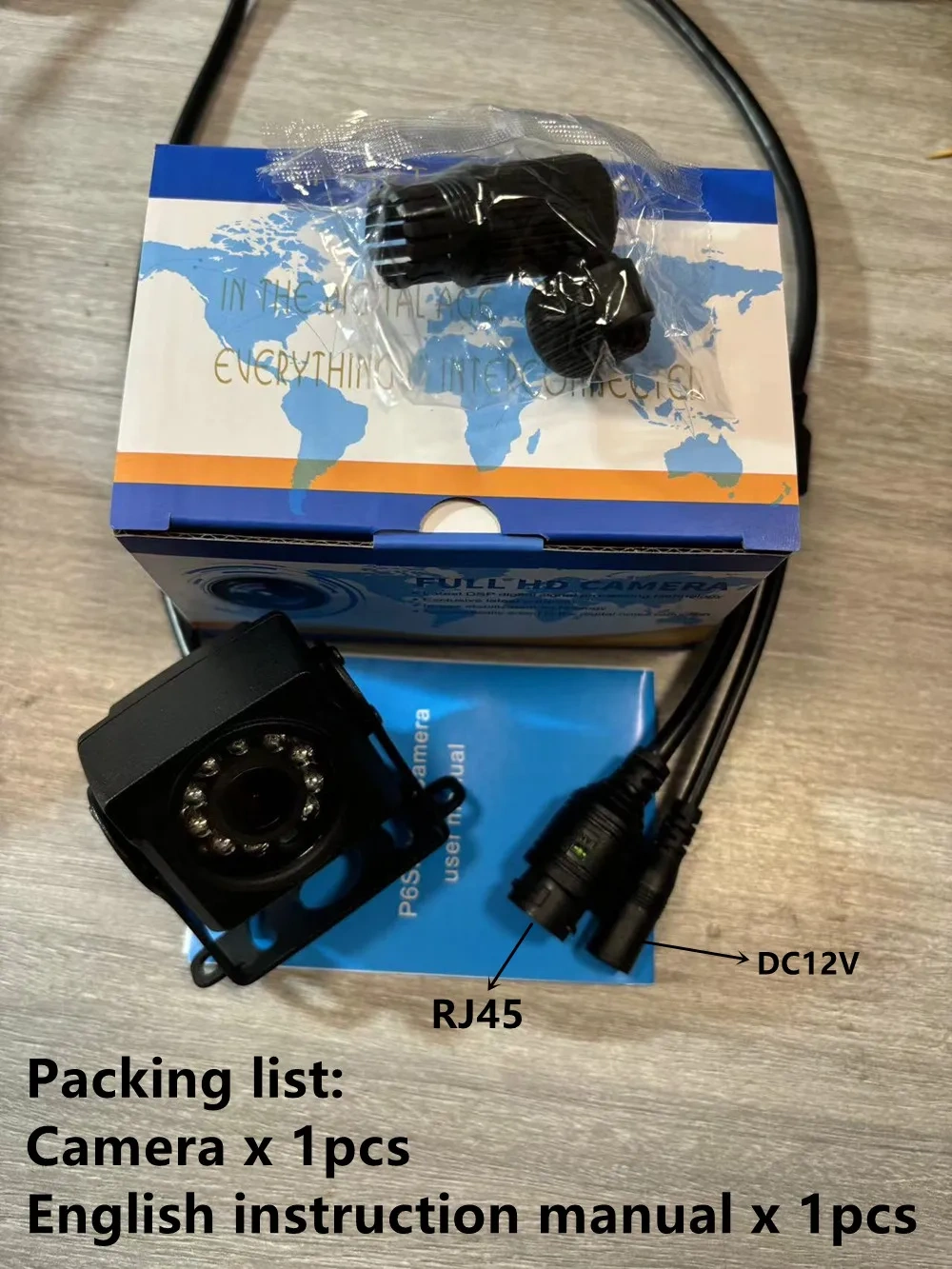

• Standard DC12V 2A input
• IEEE 802.3af PoE support (30 injector required)
• Smart Maintenance:
• Automatic firmware updates
• Storage health monitoring
• Network self-diagnosis tools

Compliance & Safety

• Global Certifications:
• FCC Part 15 Class B
• CE-EMC/LVD
• RoHS 2.0 compliant
• Data Security:
• AES-128 encryption
• IP address filtering
• HTTPS secure access

Ideal Application Scenarios

1. Perimeter Security: 24/7 construction site monitoring
2. Retail Analytics: Customer flow tracking + theft prevention
3. Smart Home: Baby/pet monitoring with two-way audio
4. Industrial: Machinery surveillance in harsh environments
