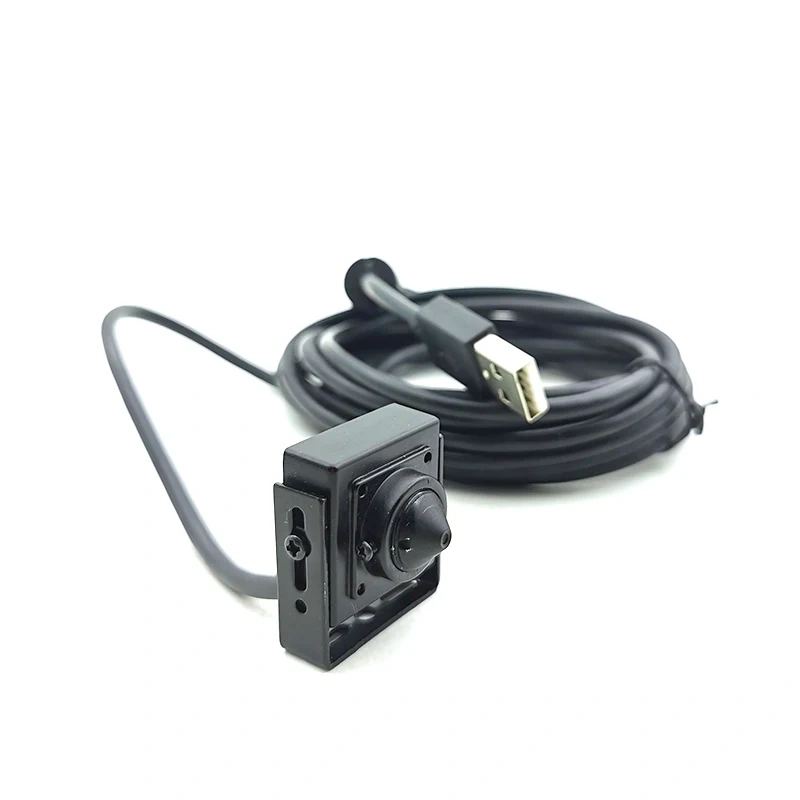

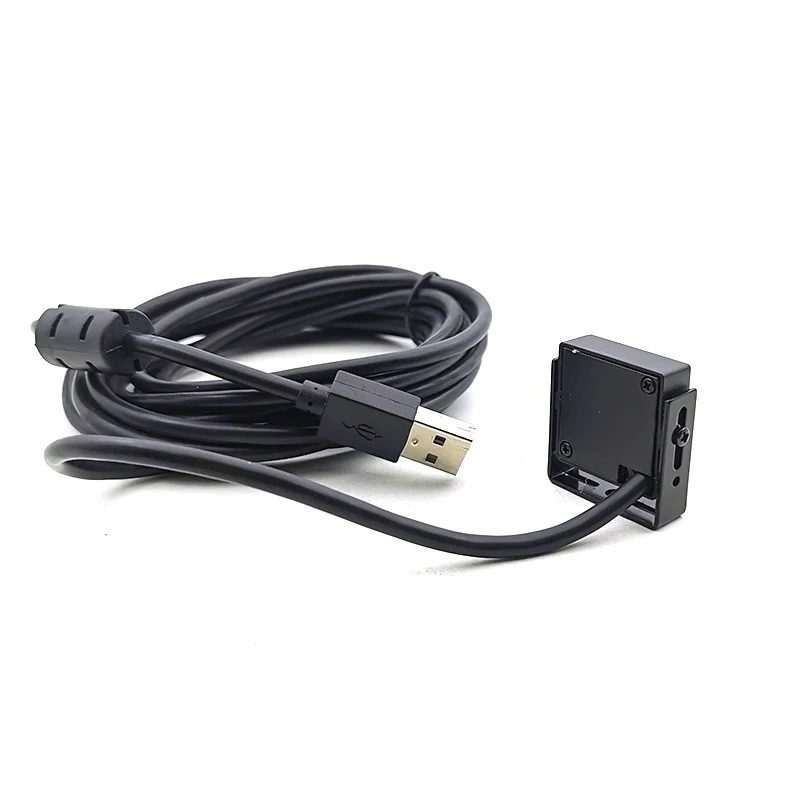

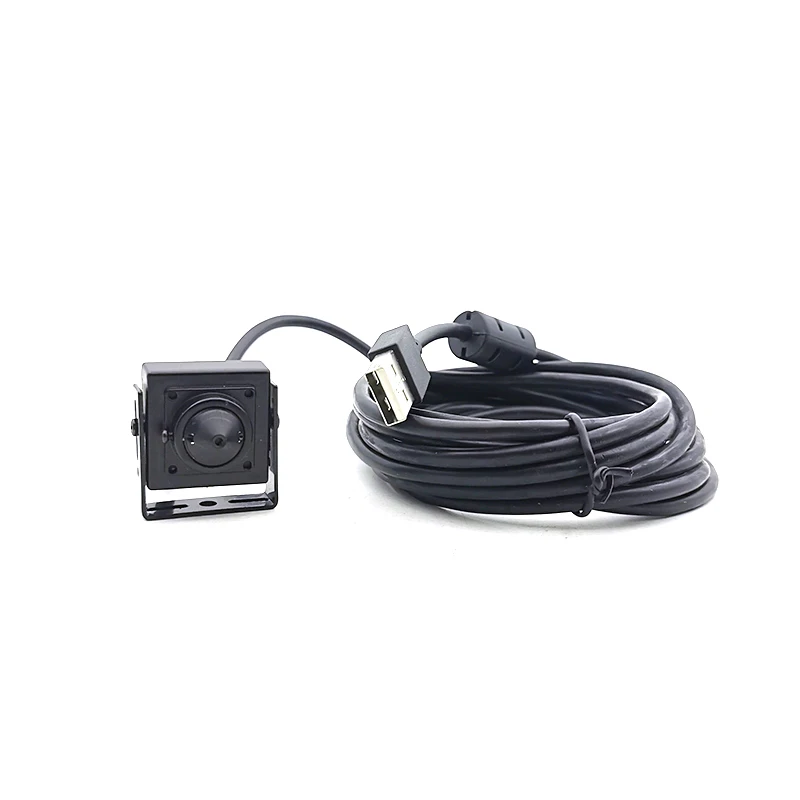

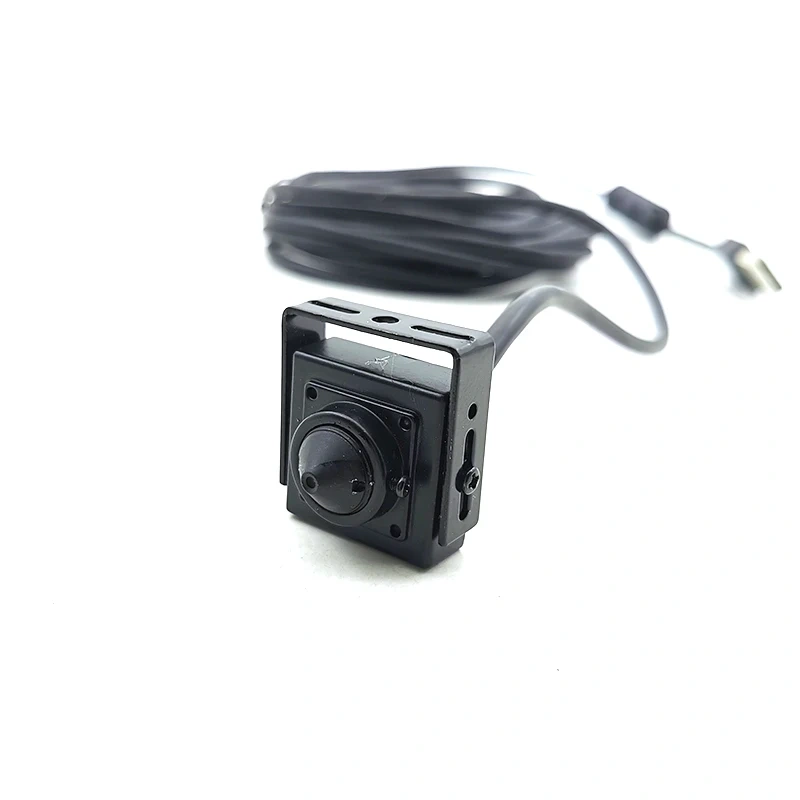

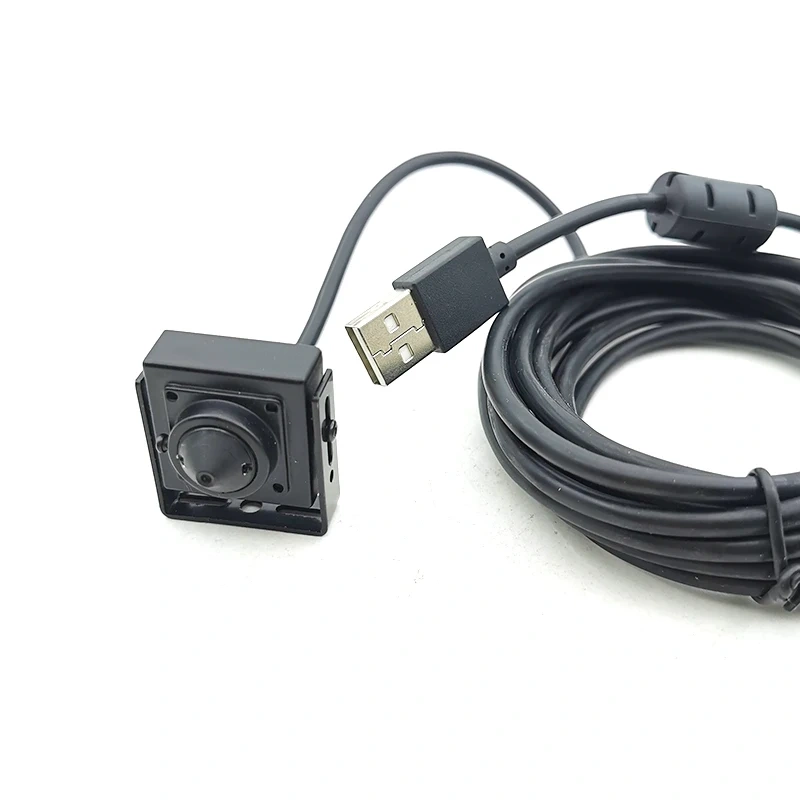

Miniature Size 25x25mm 2MP 1080P HD Pin Hole USB Camera ATM Mini USB CCTV Camera for ATM Kiosk Automatic Vending Machines
Note: 1080P
if you need other connector ,pls kindly contact with us for custom made !
Model | GS-MU25CSP4 |
Name | 1080P Ex-view Mini USB Camera |
Image Sensor | 1/3"cmos Progressive Scan 1080P |
DSP | Cmos |
Resolution | 1080P |
Syetem | Windows 2000/Windows XP/Windows VISTA/Windows 7/Linux(In 2.6.18 above the kernel version)/ Mac ps3 Driverless(UVC) |
Min.Illumination | 0.01Lux |
Effective Pixels | 1080P :1920*1080P .960P:1280*960P 720P: 1280H X720 /V800(H) ×600(V) /V640(H) ×480(V) |
Frame 30fps | 1280H X720 30fps /V8000(H)×6000(V) 30fps /V640(H) ×480(V) 30fps |

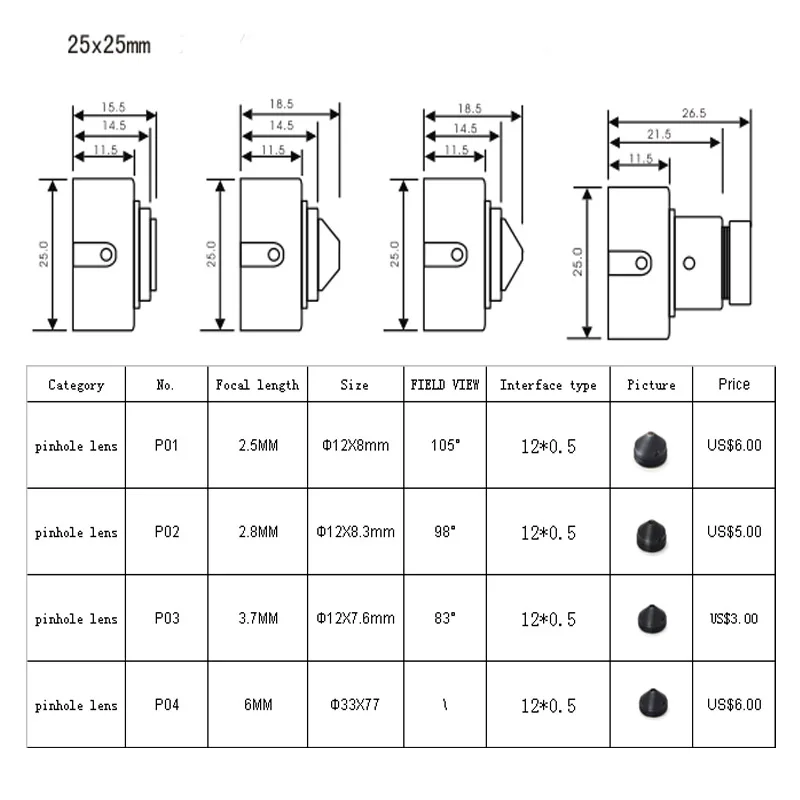

Standard Lens | P3.7mm default |
Optional Lens | L2.1/2.8/3.6/4/6/8mm, |
Elec Shutter | 1/50(1/60)s to 1/100,000s |
Day& Night | Electronic Day& Night |
White Balance | Auto |
Synchronization | Internal Synchronization |
Video Output | 1Vp-p Composite Output (75Ω/BNC) |
S/N Ratio | More than 48dB |
Power Supply | 5 V DC ± 10% |
Working Temp | -20 °C - 60 °C (14 °F-140 °F), |
Impact Protection | IEC60068-2-75 test, Eh, 50J; EN50102, up to IK10. |
Output | 2.0 USB Connector 1.0Vp-p 75Ω |
Shell Color | Black |

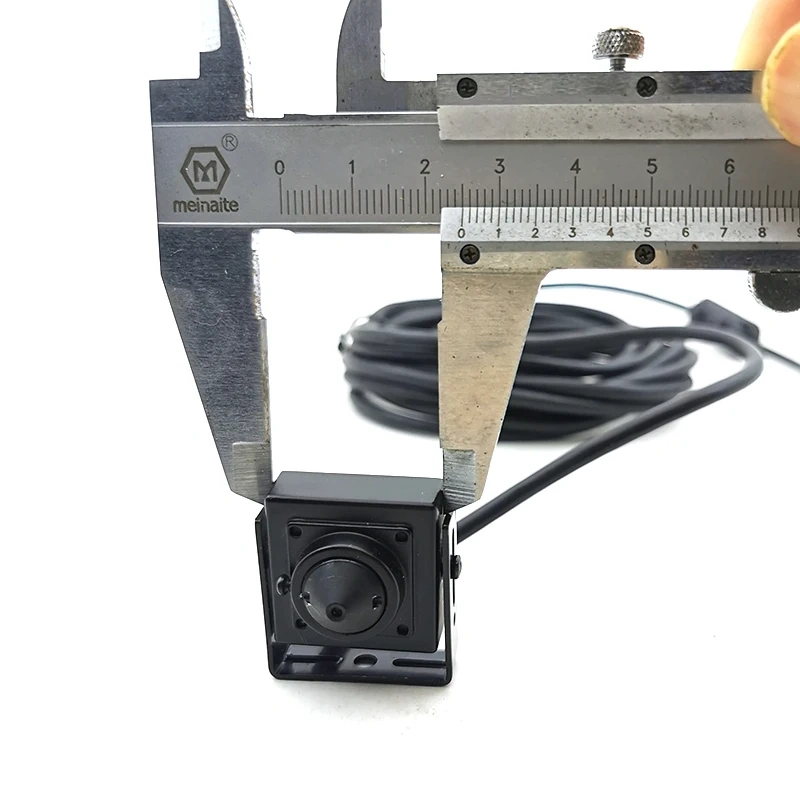

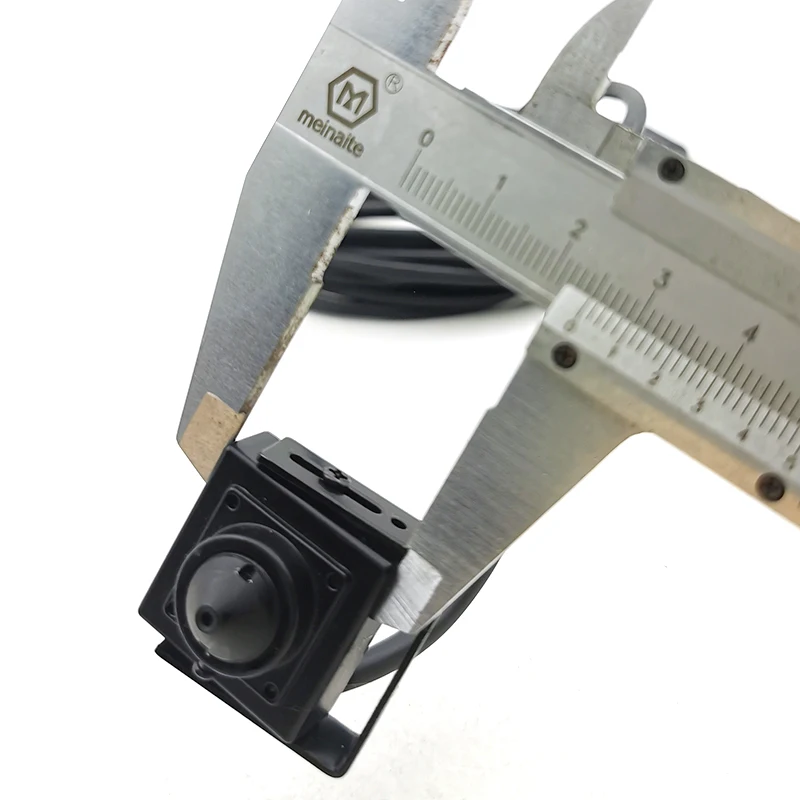

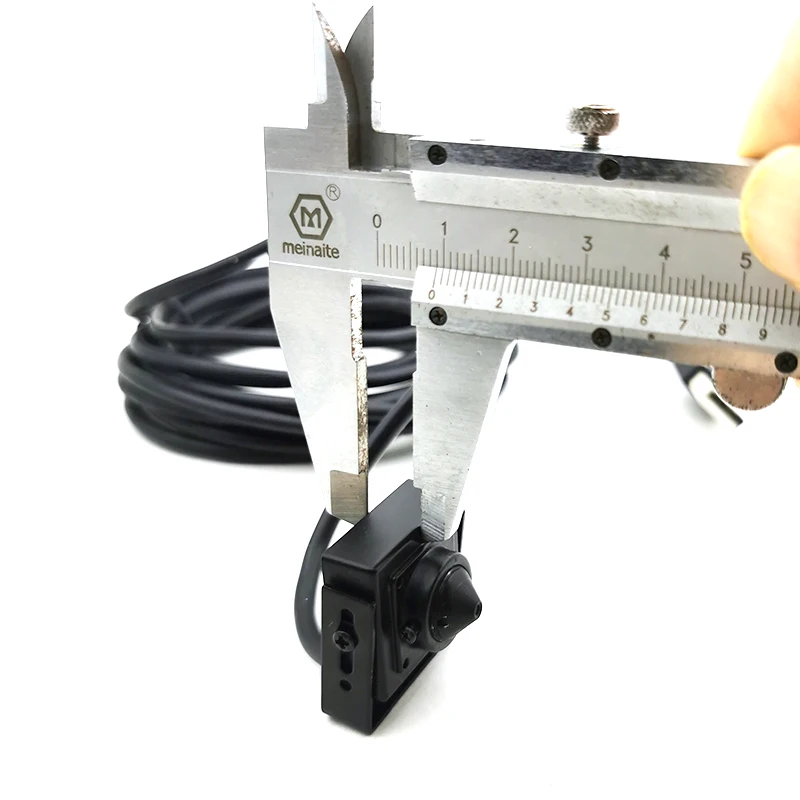

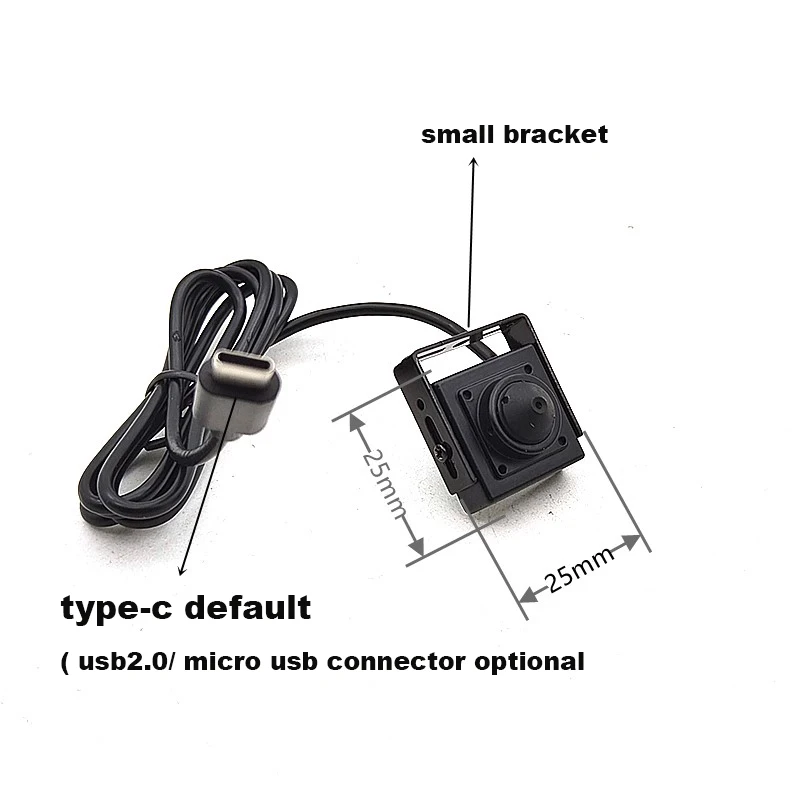

Size Weight | 25x25mm |
Free | Brackets *1,Screw *2,Cable *1,Manul book *1 |
Package contents:
1 x Camera 1 x English User Manual
Thanks for your attention to our products.if you have any question ,pls fell free to contact with us !
we will replyed you within 24hours!!!
