Description

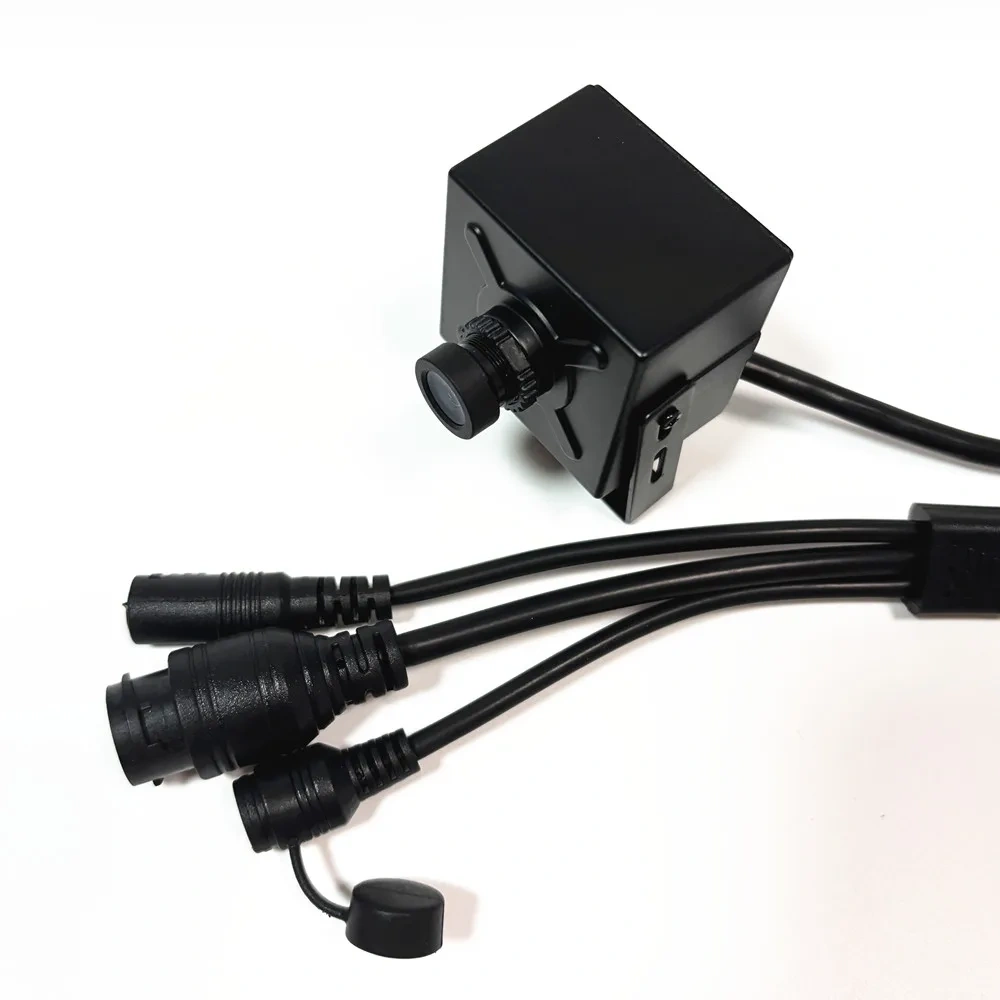

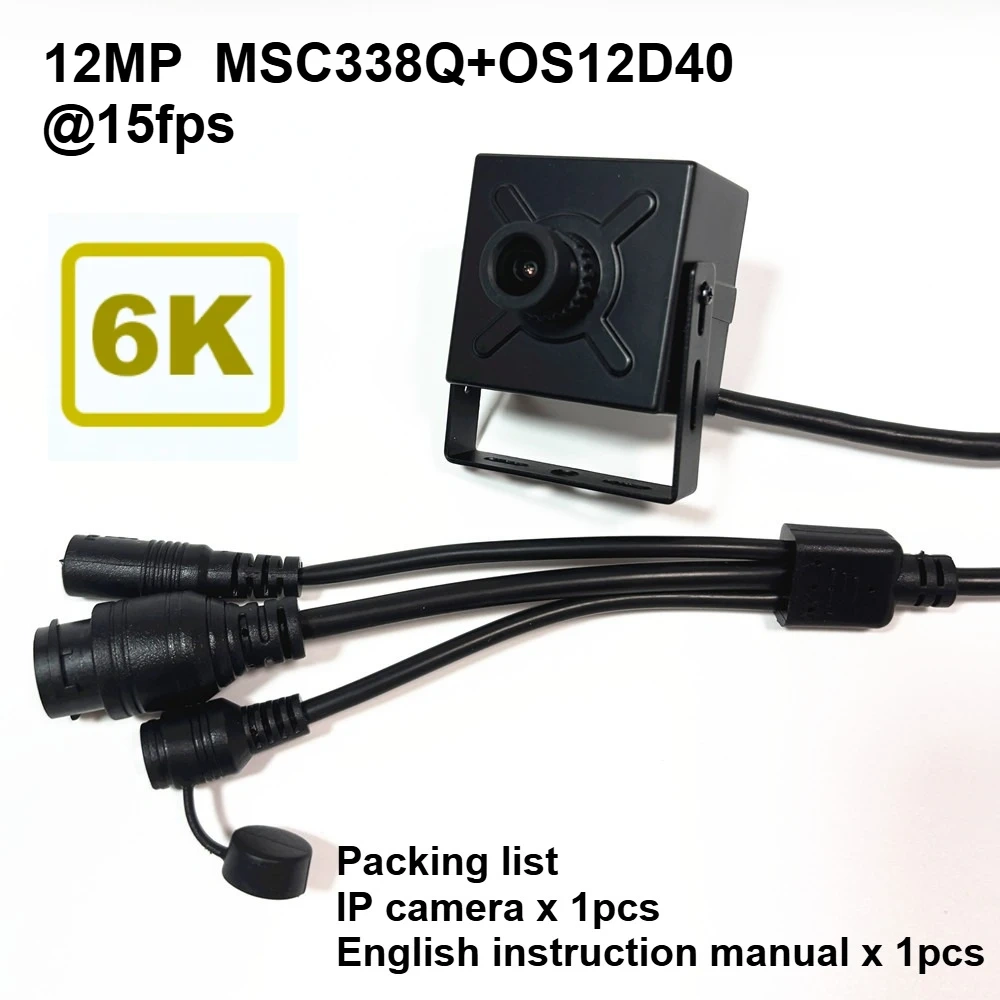

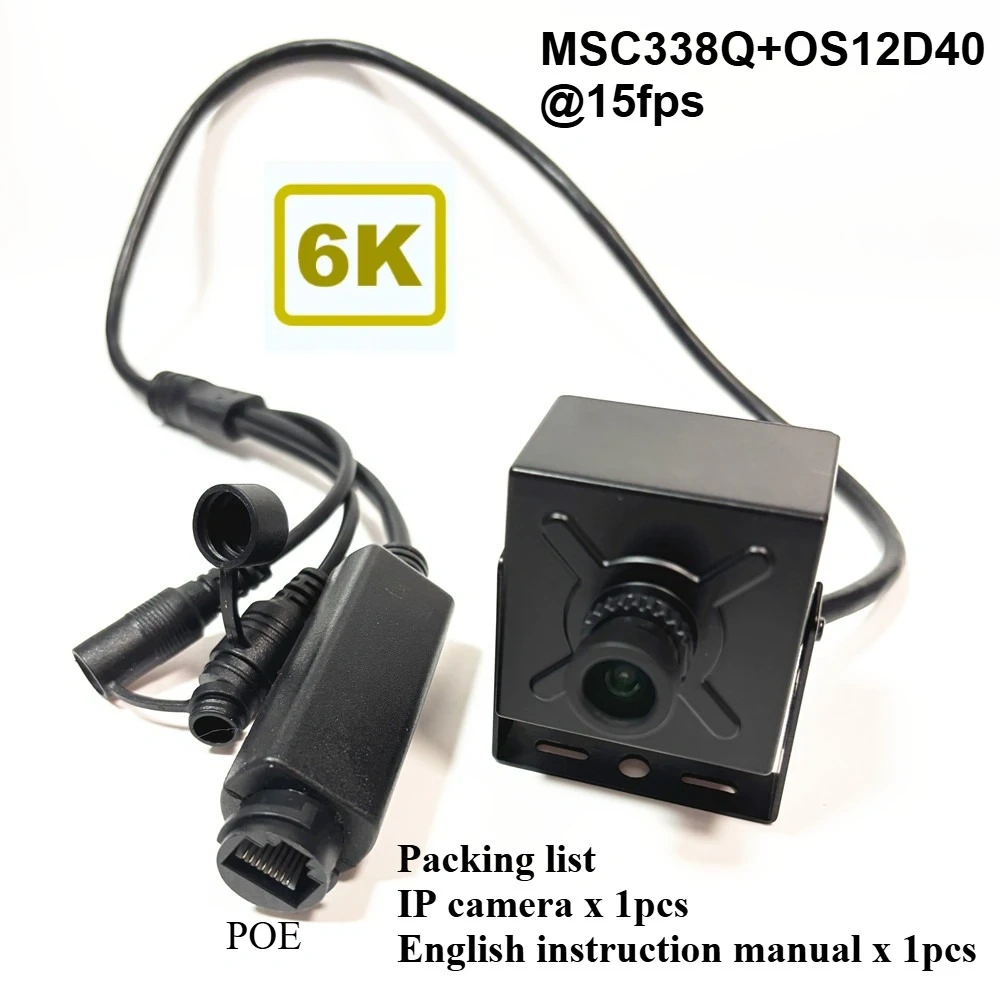

6K 12MP IP Camera adopts highly integrated MSTAR SSC338G+OV12D40 processor, extremely low power consumption and strong stability; supports H.265,H.264 compression algorithm to ensure image quality while effectively reducing network bandwidth occupation; powerful network function, support standard Support Hikvision protocol, and compatible with iVMS-4200, support RTSP, RTMP and other protocols, support alarm picture upload FTP server, alarm picture to E-Mail, support mobile phone remote monitoring;

High sensitivity, high signal-to-noise CMOS image sensor

Using the SSC338G processing chip+OV12D40

The highest pixel is up to 12MP, and the highest resolution is up to 12MP (3840*3104)

Support 12MP/11.5MP/10MP 15fps, 8MP 20fps,6MP/5MP/4MP/3MP/2MP/1MP 30fps

H.265 compression algorithm, effectively reducing network bandwidth, supporting dual stream, supporting mobile phone monitoring

support fog function, support WDR, HDR. Support strong light suppression function.

Support humanoid recognition and humanoid alarm

Support multiple network protocols: TCP/IP, HTTP, TCP, ICMP, UDP, ARP, IGMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPNP, RTSP, RTMP,etc.

Support ONV IF protocol, Hikvision protocol

Support for manufacturer dynamic domain name and third-party dynamic domain name resolution

Support alarm picture sending E-Mail

Support alarm picture upload FTP server

Support alarm sound outputs

Support timing capture pictures to FTP server

Support static IP, also support dynamic IP (DHCP)

Support P2P plug and play

Support IE, Google, Firefox browser

Supports up to 6 users to browse at the same time (3 users per stream)

Provide motion detection (area, sensitivity can be set) alarm function

Support UPNP automatic port mapping

* This is a professional camera, please use a computer or NVR connection to use it. Of course, it also supports mobile APP connection, but the mobile APP can only realize some simple functions. We provide SDK secondary development kit, you can develop software for yourself.

Support time-lapse photography function :

Function Introduction: The time-lapse photography function refers to the recording of time in miniature. For example, recording a 30 minute video on a camera only takes up 1 minute of recording time or storage space. When playing a 30 minute video file, the video file is fast forwarded and played within 1 minute.

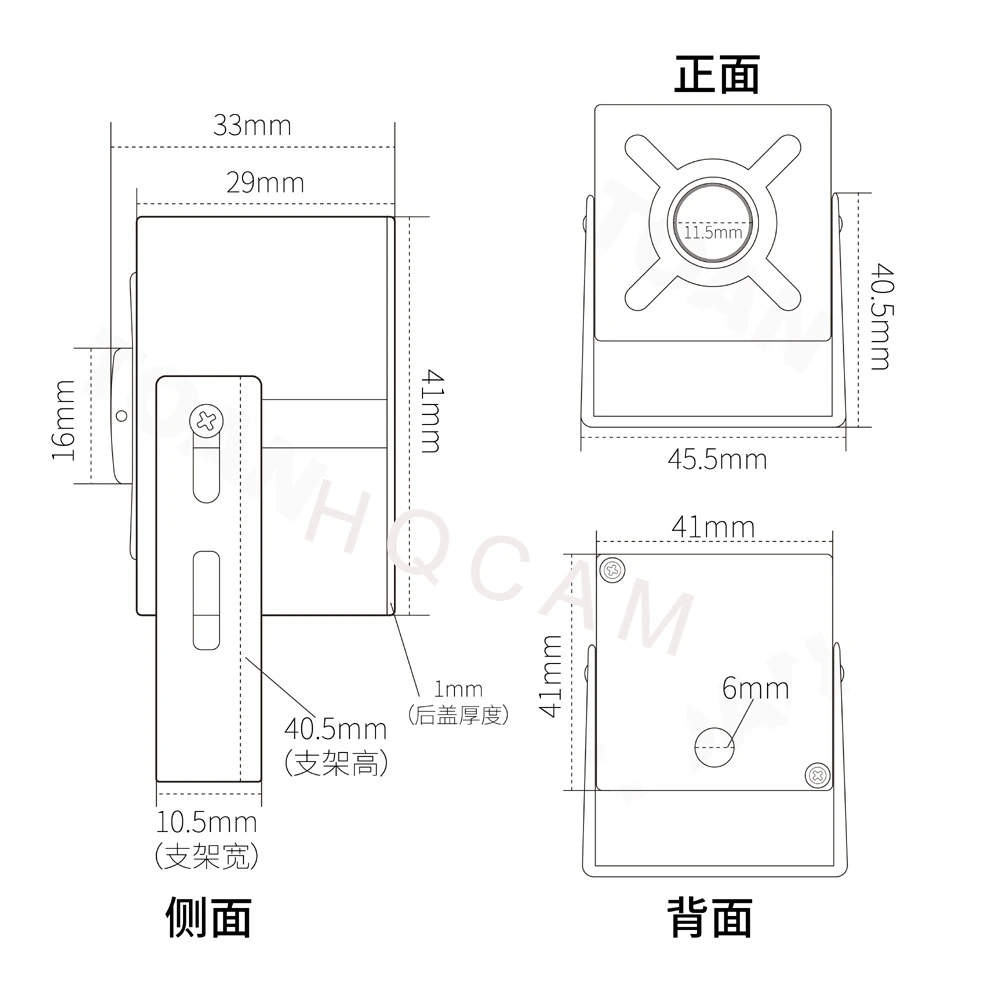

SIZE:


Operating system	embedded LINUX
Main processor	MSTAR SSC338G
Image Sensor	OV12D40 1/2.49" Ultra Low Illumination CMOS Sensor
Day and night mode	Support
Compression standard
Compression standard	Video compression algorithm supports H.265, H.264 High Profile, H.264 Main Profile and H.264 Baseline
Audio compression algorithm	G.726/G.711/AAC
Compressed transport stream	512Kbps-12288bps, can be customized,
Images
Maximum image size	12MP (3840*3104)
Main stream Special function Second stream 3th stream	First stream:12MP(38403140),11.5MP(38403000),10MP(38402512),8MP(38402160),5.3MP(30721728),5MP(25921944),4MP(25601440),3MP(23041296),2MP(1920*1080) support fog function, support WDR, HDR. Support strong light suppression function.
Main stream Special function Second stream 3th stream	Second stream：720480，VGA,640360,480*360,CIF 3th Stream:1080P,720P
Video frame rate	12MP/11.5MP/10MP 15fps, 8MP 20fps,6MP/5MP/4MP/3MP/2MP/1MP 30fpss
Character overlay	Support OSD name,time and date information overlay
Image settings	Brightness, contrast, saturation, exposure, up and down reverse, left and right mirroring adjustable
Network Function
Storage function	NA
Motion detection	Four independent detection areas can be set (sensitivity 1-100 can be set)
Alarm linkage	alarm sends the picture to the specified mailbox; the alarm uploads the picture and the video is uploaded to the FTP server;
Network Protocol	Supports TCP/IP, HTTP, TCP, ICMP, UDP, ARP, IGMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPNP, RTSP，RTMP.
Access Protocol	Supports ON VIF 2.4 Protocol
Interface
Audio input	support External MIC
Audio output	External speaker
LAN interface	RJ45 10Base-T/100Base-TX,

IR night distance	NA
LEN
waterproof level	indoor
WIFI	NA
Working temperature	-40 to +85 Celsius
power	DC12V 2A/POE
Working Humidity	-10-95%

About RTSP:

The RTSP URL format for cameras is as follows (assuming the Camera IP is 192.168.0.123):

Main stream: rtsp://admin:123456@192.168.0.123/stream0

Substream: rtsp://admin:123456@192.168.0.123/stream1

For the RTSP URL above, if audio is enabled, the stream will contain both video and audio.

If you only need video or audio data, use the following URL:

Main stream pure video: rtsp://admin:123456@192.168.0.123/video1

Substream pure video: rtsp://admin:123456@192.168.0.123/video2

Audio only: rtsp://admin:123456@192.168.0.123/audio

APP ：Open the "Videolink" APP icon, click the "Register account" item, select the country or region used by the app, enter the registration information and click Register.as shown in the figure:
