NOTICE:
Model No. | |
Image Sensor | 2.0 Mega Pixel, IMX290 CMOS Sensor |
Effective pixels | 1920(H) x 1080(V) |
Scanning system | Progressive Scan |
Minimum illumination | 0.001 Lux |
FPS | IMX290 is 60fps |
IR view distance | N/A |
WDR (Long and Short exposure) | OFF/ON(Level Adjustable) |
O.S.D | Built-in |
3D-DNR (3D Digital Noise Reduction) | OFF/ON(LOW/MIDDLE/HIGH) |
Sens-Up | OFF/ON |
Motion Detection | OFF/ON |
Privacy Zone | OFF/ON |
HLC | OFF/ON |
B.L.C. control | OFF/ON |
Defog | OFF/ON |
White balance | AWB/ATW/PUSH/MANUAL |
A.G.C | HIGH / LOW |
Electronic shutter Speed | AUTO/MANUAL/FLK |
Video output | HD-SDI(SMPTE 292M compatible) / :1.0 Vp-p Composite Signal (75ohm) |
Operation temperature | -10℃ - +50℃ |
Operation Humidity | Within 95% RH |
Power supply | DC12V(+/-15%) |
Power Consumption | 100mA |
Item Included:
Total Pixel | 2010(H)x1108(V) |
Actual pixels | 1920(H)x1080(V) |
Lens | NA |
Resolution | 1200TV Line |
Min.Illumination | Color 0.2lux, Black 0.01lux |
Shutter | Auto 1/25~1/3000 |
Frame cumulative | Auto(Max x4) |
SNR | 50dB |
BLC | WDR, BLC,(D-WDR) |
DNR | 3D |
Digital amplification | x |
Privacy covered | 32 Area |
Motion detecting | OK |
OSD | OK |
Function | Mirror,Sharpness,Digital Zoom,Privacy Mask |

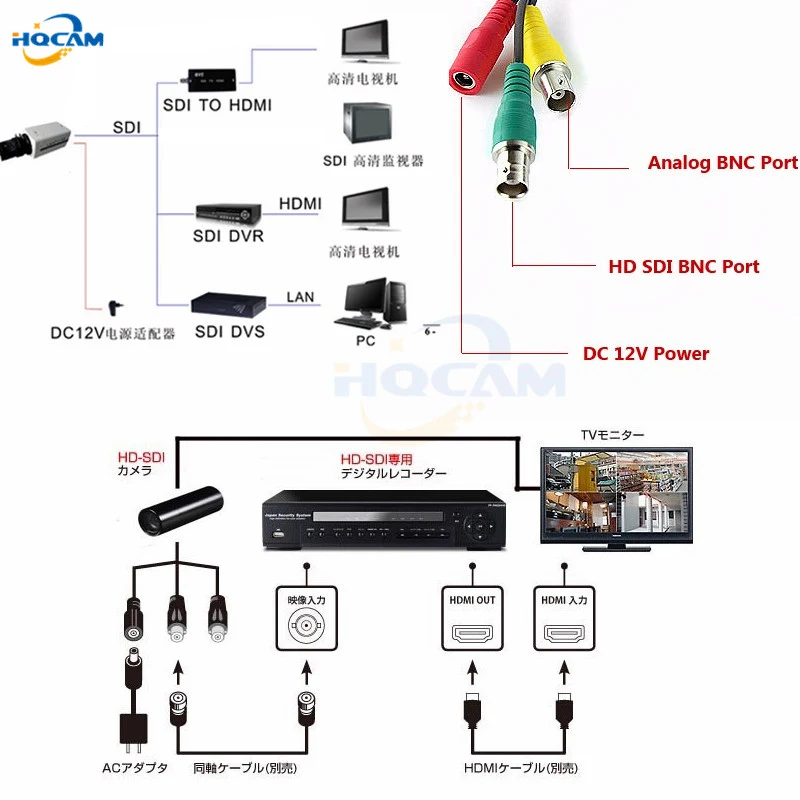

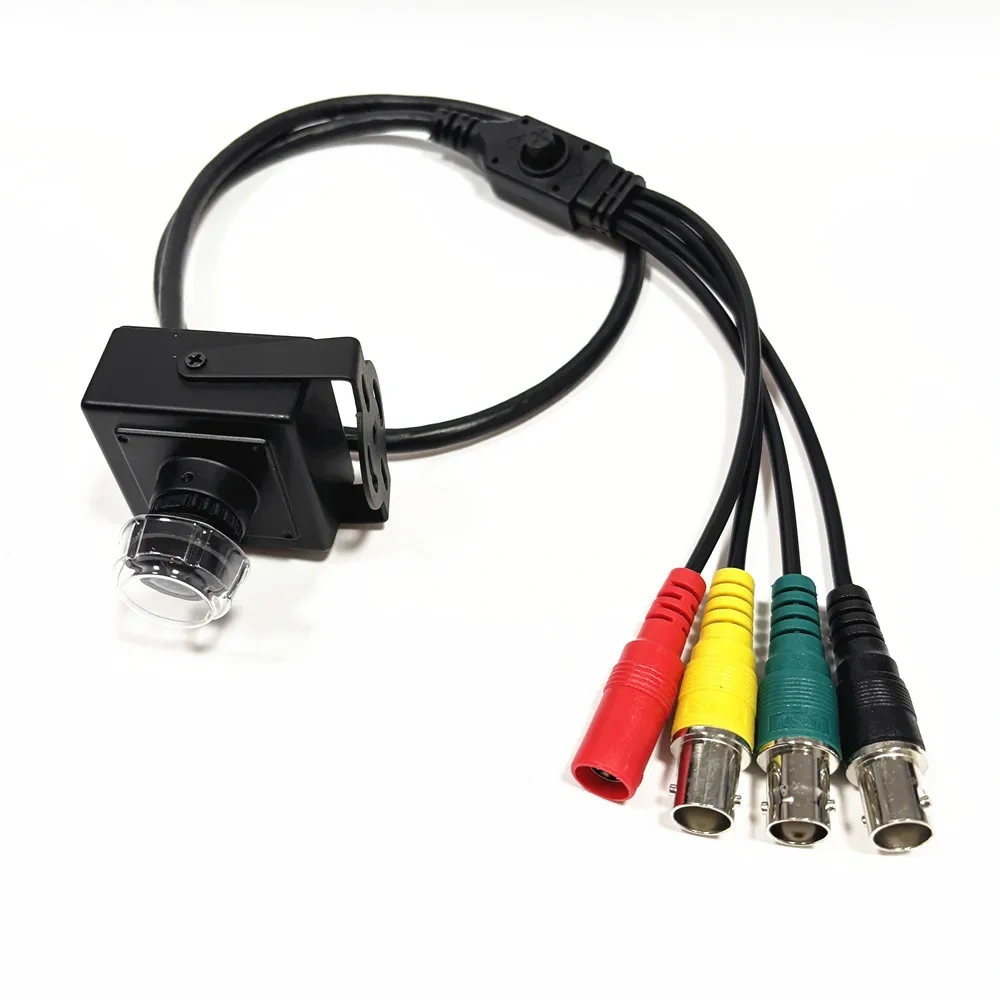

Video output | SDI: SMA connector, |
CVBS: BNC connector ( for test use ) | |
Power | DV12V |
Consumed Power | Max 2W |
Operating temperature | -10 Celsius degree~+50 Celsius degree |
Operating Humidity | Max 90%RH |

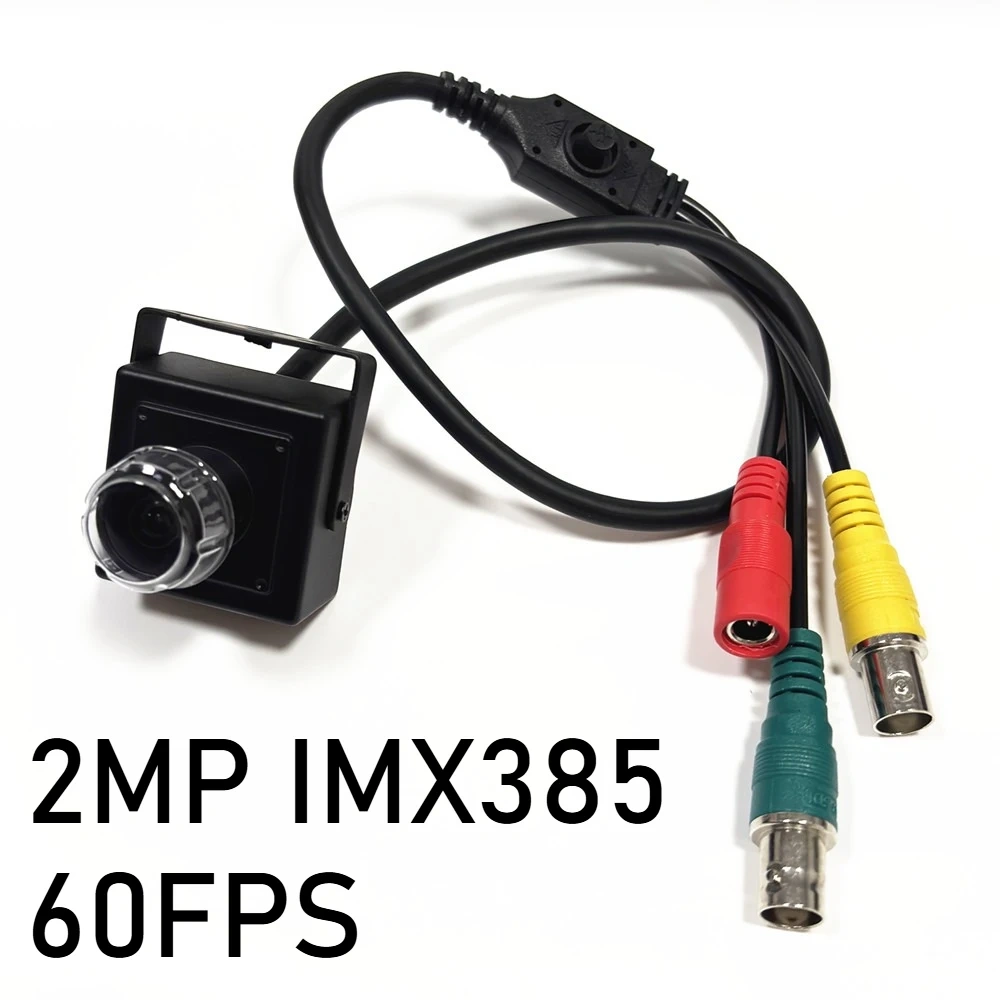

Specification IMX385:
Models: | SDI Camera |
Senor | 1/2 SO NY CMOS(IMX385) |
Resolution(MP) | 1956(H)X1266(VApprox.2.47M pixels |
Effective(MP) | 1944(H)X1092(VApprox.2.12M pixels |
sdi | 1080P(60fps) |
Minimum illuminati(LUX) | Color DSS:0.00017LUX,BW DSS:0.00008LUX |
shutter | AUTO/MANUAL(1/50/60-1/30,000set) |
letter-to-voice ratio.(dB) | >42dB |
White Balance(WB) | Auto/Auto ext/Preset/Manual |
(WDR) | Off/Low/Middle/High; WDR SNR;120DB |
(BLC) | Off/BLC |
(HLI) | Off/HLC |
(Defog) | Off/On, Low/Middle/High |
3D DNR | Off/Low/Middle/High |
(Mirrior) | Flip left/right/up and down. |
(Sens-up) | Off/X2/X4/X8/X16/X32 |
(AGC) | 0-10 steps |
(Language) | Chinese/English etc |

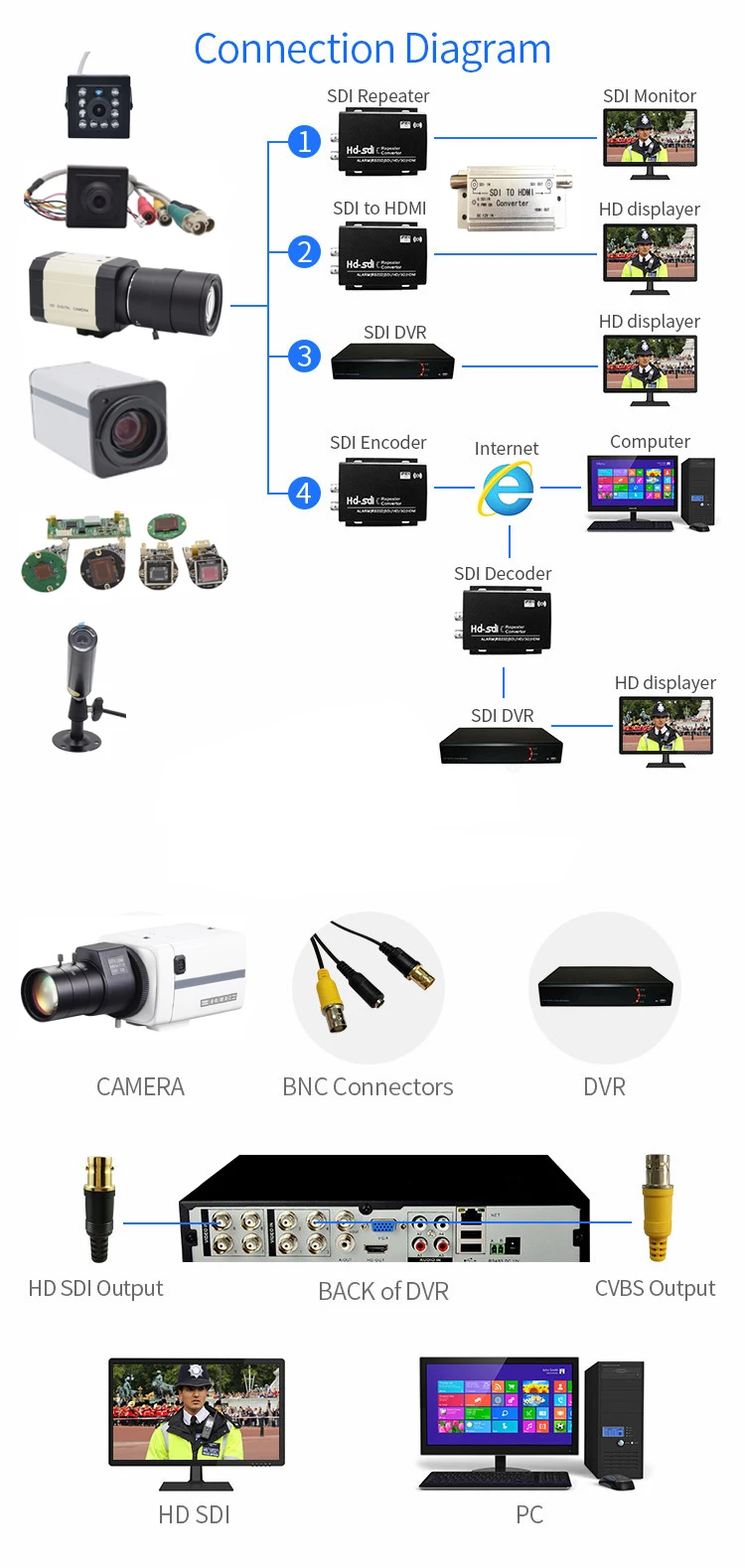

Video Output | 1.HD/EX-SDI 2.CVBS |
Power(V) | DC12V |
WorkTemperature(℃) | -20℃-+80℃ |
Power(W) | 4.0W |

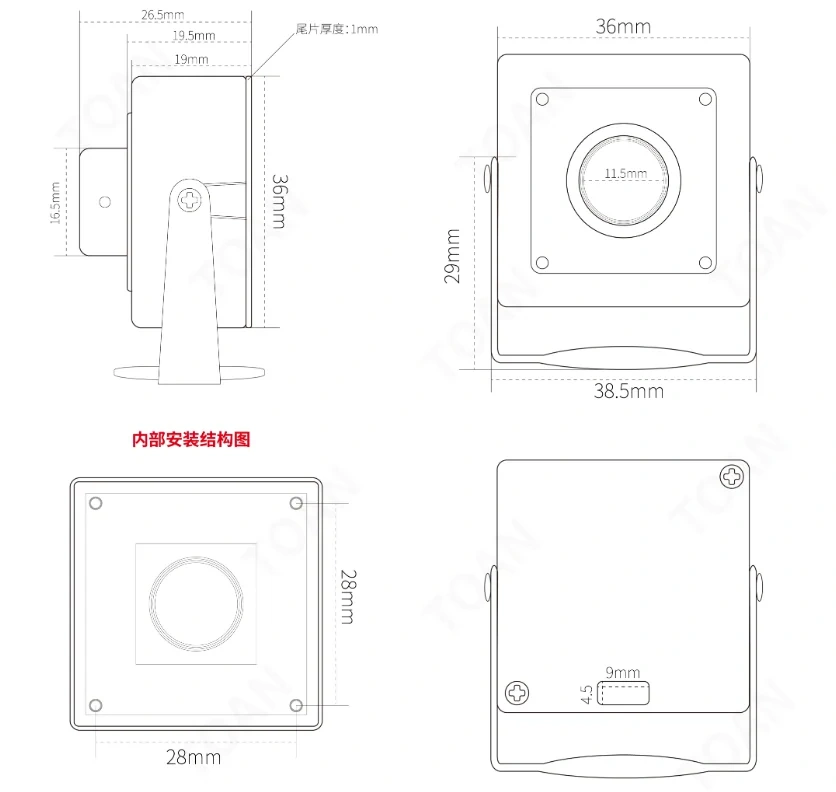

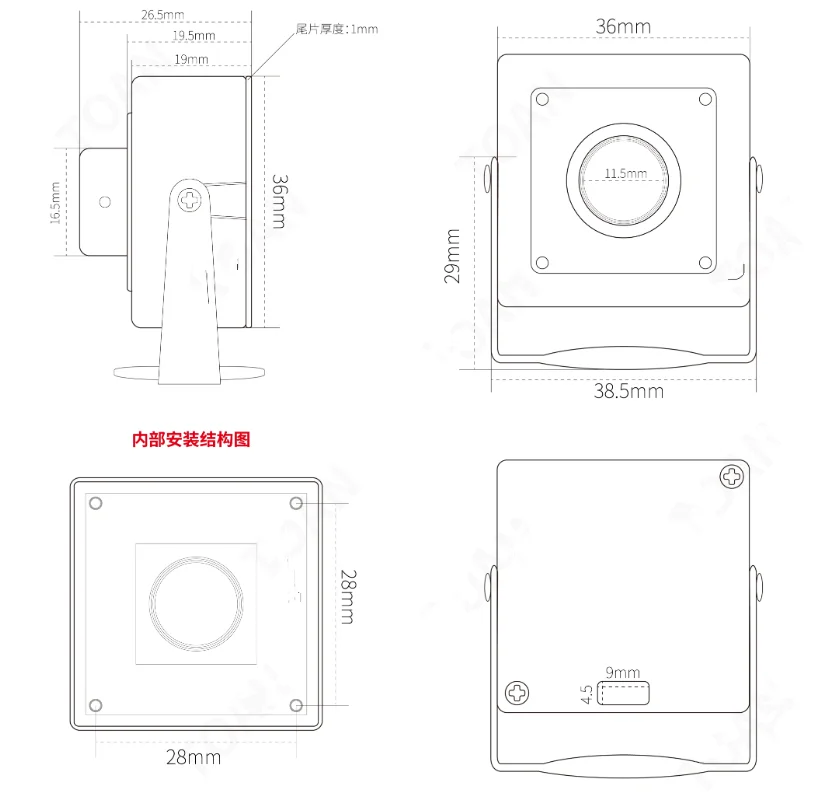

Size(mm) |
|
SIZIE:
